TAS POWERTEK PVT. LTD. Ambad, Nashik, Maharashtra

RTPFC System  Totally Custom Built Design High Speed Hot Response for VAR Compensation-Selectable upto 60mS. Harmonic Immunity through appropriate detuned harmonic blocking reactors. Thyristorised capacitor switching giving total solid state and reliable operation. Various protections to thyristors via,   1) Spike Current   2) Voltage transients   3) O/C, O/V, O/T   4) Self Health Monitoring   5) Supply system connection faults Usage of capacitors like MPP, MD, APP, Gas filled – based on site requirement along with on - line health monitoring in terms of μF Value. Data Logging facility with RS-485 PC interface. Optional GSM-SMS mode of communication for remote monitoring & control. Panel protection class based on site conditions - IP-21 to IP-56.

From Maharashtra(India), India, we delight our valuable patrons by providing quality-centralized products. Our complete range of products is subjected to stringent quality tests to ensure they are as per norms of international management systems.

Application :   All electrical loads which operates by means of magnetic field / Electro-magnetic field effect such as Motors,Transformers, Fluorescent Lighting, AC Drives ... etc, basically consumes two type of Power, namely Active Power and Inductive Reactive Power. Active Power is used by the loads to meet its functional requirement, whereas the Reactive Power is used to meet its magnetic field requirement as also magnetic losses.

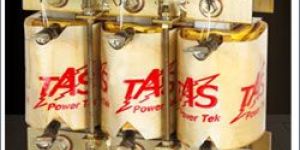

 Protection to capacitors against harmonics Reduces harmonic distortion Reduces power losses High harmonic load handling capacity Has a high linearity to avoid magnetic saturation for higher crest factors of waveform. Convenient mechanical design for mounting Long lifespan Temperature protection in all 3 phase windings

Application :    Individual PF Correction Dynamic PFC Individual PF Correction on three Phase Motor Individual PF Correction on Power Transformers Individual PF Correction on group Power Factor correction

Low cost reliable solution to harmonic filtering with 6-pulse converter loads like AC drives (VFD), DC drives, Rectifierloads, UPS systems, Induction Furnaces etc 12% current THD reduction Low pass L-C filter with passive component rugged design to handle most of the supply system adversities Models up to 1000Vac supply system Optional models with switching KVAR control and with in built �Energy Manager�

Detuned Inductors for PF Improvement Capacitors    Protection to capacitors against harmonics Reduces harmonic distortion Reduces power losses High harmonic load handling capacity Has a high linearity to avoid magnetic saturation for higher crest factors of waveform. Convenient mechanical design for mounting Long lifespan Temperature protection in all 3 phase windings

Ultra High Speed capacitor switching with Cold response time as Half supply cycle and Hot response up to Two supply cycles Extra protection to Thyristors facilitates non usage of costly Semiconductor Fuses High end Microcontroller technology Models with up to 500Vac and 800Vac Ph-Ph Voltages and with current rating of 25A, 40A, 80A, 120A and 160A Multifold Protection system in builtRemote and Local override control Continuous display of Capacitor Current and any annunciation on 4-digit 7-seg LED display Thyristor rating 2200V for up to 500Vac supply and 3600V for up to 800Vac supply Capacitor and Detuned reactor Earth Fault monitoring and protection Capacitor THD monitoring and protection Capacitor KVAR value deterioration monitoring and protection Thyristor health check and supply health check monitoring Standard Protection like Over/Under Voltage, Over temperature, spike current and supply voltage transient protection

 Totally Custom Built Design Harmonic Immunity through appropriate detuned harmonic blocking reactors. Cap. Duty contactor for supply system transient reduction due to capacitor switching. Usage of capacitors like MPP, MD, APP, Gas filled – based on site requirement. Monitoring of power parameter by inbuilt 1.0 class APFC Relay from TAS Powertek. Data Logging facility with RS-485 PC interface. Optional GSM-SMS mode of communication for remote monitoring & control. Panel protection class based on site conditions-IP-21 to IP-56. Protection through reputed brand switchgears selected for appropriate kA Short circuit Capacity.

 User selectable priority adjustment between Harmonics, PF correction and Load unbalance compensation.   Selective harmonics filtering - Up to 9 selected Harmonics. User defined harmonic spectrum or with auto selection of highest harmonics on supply system.  Reactive power compensation per individual phase Enable/Disable with target PF setting from 0.7 Capacitive to 0.7 Inductive.  Load Unbalance compensation- Enable/Disable with limit settings.  Additional filter for reduced PWM ripple current (< 2% pk-pk)  Closed loop control system for precise and effective compensation with high speed reaction time of < 300 micro-Second and response time of about one supply mains cycle. Unique Algorithm with current source pulse width modulation (PWM) giving high reliability of the operation to work under adverse supply PQ problems.  Filtering efficiency > 94%.  Wide range rating from 15Amp to 300 Amp in a single cubicle.  Supports Modular master/slave configuration for expansion.  Direct connection from 200 to 500V AC.  Graphical color LCD display for various electrical parameter information in text and graphical format. Displays harmonic spectrum bar graph and current waveforms (Load and source side)  User friendly 7-keys keyboard for Display / Settings / Menu navigation and control.  Communication module optionally available for SCADA system communication through various channels like RS-232, RS-485 (Mod-Bus-RTU & ASCII), LAN (TCP-IP), GSM/GPRS, Wi-Fi.
