Trinity Ventures Satpur, Nashik, Maharashtra

TRINITY PTO Generators are designed to provide reliable electrical power for customers who already have a compact utility tractor with 15 to 65 horsepower. TRINITY PTO Generator is a cost effective way of providing 230/410 volt single / three phase standby power when commercial power is disrupted, inaccessible or impractical. TRINITY P.T.O. generators are self-exciting, brushless, synchronous generators. They are available in single-phase and three-phase. Its rugged design makes it ideal for agricultural operations such as Dairy, Greenhouses, Poultry, Piggery, Aquaculture and many other applications where portable power is needed and a tractor is available.These units are manufactured in an ISO 9001 certified facility.

Options: > 4 x 100 Watts, 4 x 400 watts , 4 x 1000 watts > Height- 6 mtr, 9 mtr, 11 mtr > LED or MH Salient Features: > Compact and Rigid Design > Small footprint > Fully Telescopic mast, No tilting > Innovative design of Mast > 360 degree rotation of mast > Heavy duty outriggers and parking jacks > Soundproof Silent Diesel generator > Heavy duty self-braking Hand winch

Technical specifications specification model tlt-7010 tlt-5040 model variant dx ex ex extended height 9 m 9 m 9 m generator rating 7.5 kva 7.5 kva 5 kva sound level < 75dba @ 1mtr < 70dba @ 1mtr < 75dba @ 1mtr fuel tank capacity 80 litre 35 litre 20 litre luminaries total wattage 4 x 1000 4 x 1000 4 x 400 type of lamps mh mh mh lumens 360000 360000 144000 ip class 55 ( optional 65) dimensions - l x w x h in mm towing dimensions-mm 3525 x 1312 x 3121 2950 x 1190 x 2925 2950 x 1190 x 2925 working dimensions-mm 3525 x 2080 x 9000 3690 x 2340 x 9000 3690 x 2340 x 9000 engine make mitsubishi greaves mitsubishi greaves lombardini greaves model l2e g600w l2e g600w 15ld440 kd440 fuel diesel diesel diesel rpm 3000 3000 3000 cooling water cooled water cooled air cooled bhp 11 11 8 displacement 635 611 cc 635 611 cc 442 cc no of cylinders 2 2 1 alternator make meccalte nsm linz frequency 50 hz 50 hz 50 hz power for lights 4 kw 4 kw 1.6 kw auxiliary power 2 kw 2 kw 2.4 kw trailer no of wheels 2 2 2 tyre size 15" 16" 16" stabilisers jacks 4 no 3 no 3 no front jockey wheel 1 1 1 coupling 2" ball hitch hook tow hook tow hook manual parking brake optional no no suspension leaf springs, 2 no no leaf springs no leaf springs towing a-frame tow bar a-frame tow bar a-frame tow bar lifting provision fork pockets crane hook eyes crane hook eyes mast mast type fully vertical-telescopic, electroplated no of segments 6 winch mechanical (optional-electrical) mast rotation manual, 360 degrees (optional) max wind speed 110 kmph above specifications are subject to change due to continuos upgradation of the product.

Height : 6 mtr / 9 mtr / 11 mtr

Brand : Trinity

Country of Origin : Nashik,India

Trinity's NoiseGuard® Prima Series Barriers use High Density Mineral Wool with good sound absorbing properties. Mineral wool is encased in perforated or louvered galvanised or powder coated or aluminium panels and stacked one above the other to form a Barrier wall. Trinity's NoiseGuard® Maxima Series barriers use Polycarbonate or Acrylic sheet as a sound reflecting media. Sound waves get blocked and reflected back towards the side of source. These barriers stop further travel of sound waves towards community side. Since these barriers are transparent, they offer a clear view of surroundings to the travellers. Trinity's NoiseGuard® Optima Series barriers combine advantages of Prima and Maxima. It uses combination of Absorptive and Reflective media as a Noise dampener. Apart from offering the visibility of surrounding to the travellers, it either absorbs or reflects maximum possible sound waves emerging from source.

Trinity Diesel Welder is a reliable solution to carry out welding when mainline electricity is not available, disrrupted,impractical or inaccessible. This welder runs on compact & robust diesel engine and it eliminates the need of mainline electricity or diesel generator and or welding transformer. Trinity Diesel Welder is ideally suited for welding activities which are carried at sites such as Building Construction,, Railway repairing, Road Construction, Transmission tower erection, Service Trucks, Farms etc. where grid power is not available. Trinity Diesel welders are manufactured Trinity's world class manufacturing facilities which are equipped with imported CNC machines for sheet metal fabrication , conveyoried powder coatiing equipments,

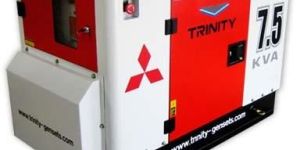

We are reckoned as one of the prominent Diesel Generator Sets Manufacturers in India. The Diesel Generator Sets offered by us have unmatched fuel efficiency, low noise & vibration level and is ideally designed for 100% continuous operation. These Diesel Generator Sets are powered by world class engines like Mitsubishi, Lombardini and Escorts. Easy installation, lower operating Cost, trouble-free operation and low maintenance  has also played a vital role in the enhancement of the demands of these Diesel Gensets. Diesel Generator Sets Ratings : 5 KVA (Technical Specification) 7.5 KVA (Technical Specification) 10 KVA (Technical Specification) 15 KVA (Technical Specification) 20 KVA (Technical Specification) 25 KVA (Technical Specification) 30 KVA (Technical Specification) 32.5 KVA (Technical Specification)

We are recognized as one of the staggering Gasoline Generator Sets Exporters in India. The Silent Gasoline Generator Sets are manufactured using premium quality materials that ensure sturdy structure, tensile strength and resistivity to adverse condition. The Air-Cooled Gasoline Generator Sets are also available in the array that have unmatched fuel efficiency, low noise & vibration level and is ideally designed for 100% continuous operation requiring easy installation and low maintenance cost. The trouble free operation has also made the Gasoline Generator Sets ideal for applications like Telecom, Residential, Commercial etc. Moreover, the Gasoline Gensets are loaded with all the advanced features.

Trinity Mobile Lighting Towers, with Fully Telescopic Mast, Smallest Footprint, 6-11 m height of Mast, Option of MH or LED
