Welding Cable

350 / Meter

MOQ2000 Meter
MaterialCopper
Number Of CoresSingle
Ambient Air Temperature30 deg C
Nominal Cross Sectional Area of Conductor35 sq mm2
Nominal Thickness of Covering2 mm
Current Rating125 amp( at a Maximum Duty Cycle of 100%)
Max Temperature of Conductor60 deg C

...more
Welding Cable

350 / Meter
2000 Meter (MOQ)

Material : Copper

Get Best Price
Traction Battery Cable

190 / Meter

Conductor MaterialCopper
Insulation MaterialPVC
Number Of FlowerBattery Cable
Number of CoresSingle, 2, 3, 4, 5
Max Withstand Temperature90 deg C
Nominal Cross Sectional Area of Conductor35 Sq mm2
Maximum Diameter0.4 (Of %kW.S In Conductor)
Maximum Resistance Of Conductor0.554 (@ 20 deg C 85% Duty Cycle)

...more
Traction Battery Cable

190 / Meter

Conductor Material : Copper
Insulation Material : PVC
Number Of Flower : Battery Cable
...more
Get Best Price

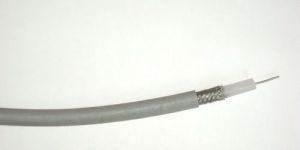

Ignition Cable

150 / Meter

MOQ500 Meter
Number Of FlowerHigh Voltage
FeaturesHigh voltage cables, Customized cables as per need
Min Voltage2 kV
Max Voltage100 kV
Conductor MaterialCopper
Insulation MaterialPVC
Resistance to Heat200 deg C

...more
Ignition Cable

150 / Meter
500 Meter (MOQ)

Number Of Flower : High Voltage

Get Best Price
Copper Armoured Control Cables

350 / Meter

MOQ1000 Meter
conductorCopper
Number Of FlowerA
ApplicationInsulation
FeaturesHigh Performance, High Durability, Easy Maintenance, High Breaking Point, Resistance Against Corrosion
Number of Core3 Core, 2 Core, Single Core, 5 Core, 4 Core
ArmouredYes
Copper1 to 1.5 Sq. mm.
Solid or StrandedSolid
Flexibility ClassClass 1 as per IS:8130/1984
PVC CompoundGeneral Purpose PVC (GPPVC)
Max Conductor Temperature700 deg C

...more
Copper Armoured Control Cables

350 / Meter
1000 Meter (MOQ)

conductor : Copper
Number Of Flower : A
Application : Insulation
...more
Get Best Price

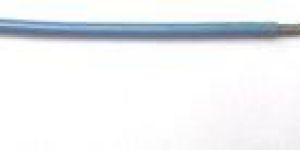

Coaxial Cables

25 / Meter

MOQ500 Meter
FeaturesMechanical strength, Protection against the internal corrosion, Moisture resistance
RG TypeRG8A/U
Inner Conductor Strand Material Number and Dia OfPCW 7/0.73
Dielectric Nom MaterialPE 7.3 (O.D. mm )
Jacket Nom MaterialBlack PVC 10.3 (O.D. mm )
Nominal Impedance52 Ohm
Nominal Attenuation11.5 (db/100 mtr @200MHz)
Nominal Capacitance97 ( pf / mtr)
Max RF Operating Voltage5000 (V Rms)

...more
Coaxial Cables

25 / Meter
500 Meter (MOQ)

Get Best Price
Auto Electrical Wires

95 / Meter

MOQ20000 Meter
Brand NameViral Cables & Wires
Number of core1
ArmouredNo
Cable Size0.50 sq.mm. to 25.00 sq.mm.
Voltage50 Volts, 650/1100 Volts
Dielectric Test1000 Vrms
Spark Test5000 V
Min Rated Temperature-40 deg C
Max Rated Temperature+80 deg C

...more
Auto Electrical Wires

95 / Meter
20000 Meter (MOQ)

Brand Name : Viral Cables & Wires

Get Best Price
Compensating Cables

Get Latest Price
Compensating Cables

Request for Price

Get Best Price
