Abak Electrofab Engineering Pvt Ltd Turbhe, Navi Mumbai, Maharashtra

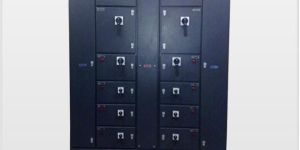

Features : Protects connected power & lighting loads against electrical damage Easy Access Sturdy Construction Easy installation High Reliability Highly customizable as per demanding applications or customers' requirements Description: We design & manufacture indoor / fully weather proof outdoor Power & Lighting Board Panels of exceptional quality with the necessary required IP protection & as per the client’s specifications. Lighting Board Panels in general get supply from the Main L.T panel and then supply power to the various connected loads and circuits. These panels come with necessary safety requirements to protect the connected power & lighting loads. Used In:   Chemical/Oil/Gas/Pharmaceutical Plants Residential buildings Malls Hospitals Manufacturing Units Schools

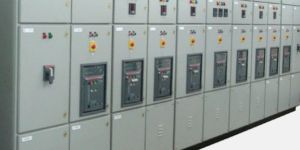

Power Control Centre (PCC) Panel is used to control and distribute the power from one single area to other sections of a residential or commercial building chemical, oil, gas plant any industry. Our range of PCC’s is capable to feed larger loads to support high capacity industrial motors and other equipment. These panels provide a guaranteed service with fewer chances of maintenance. We have the expertise to design and manufacture customized superior quality PCC panels according to our client’s specifications.

Features : Low Maintenance & High performance Efficient Power Distribution Robust Construction with sufficient cable space for providing connections User Friendly Easy Access Description : Power Control Centre (PCC) Panel is used to control and distribute the power from one single area to other sections of a residential or commercial building / chemical, oil, gas plant / any industry. Our range of PCC’s is capable to feed larger loads to support high capacity industrial motors and other equipment. These panels provide a guaranteed service with fewer chances of maintenance. We have the expertise to design and manufacture customized superior quality PCC panels according to our client’s specifications. Used In:   Chemical Plants Oil Plants Gas Plants Manufacturing Industries Food Processing Units Cold Storage Units Power Plants

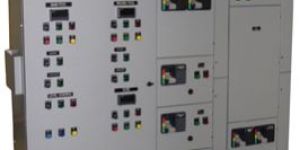

Features : Highly safe and Reliable Tailored Control using DOL Starter / Star-Delta starter /VFD High performance & low maintenance Sturdy Construction with sufficient cable space for providing connections Easy Operation Description : Motor Control Centre (MCC) Panel is the modern amalgamation of motor starters which usually consist of feeders for pumps, motors & blowers. We manufacture high quality MCC panels depending upon the application it is going to serve or as per client’s specifications. Feeders are always designed on the basis of motor ratings (kW/HP) & the protection that the motor requires. We provide MCC panels with auto/manual/remote provision, so controlling them becomes easy as the situation demands. Used In:   Automobile Industries Textile Industries Cement Plants Chemical Plants Pharmaceutical Plants Sewage plants Hydropower Plants

Motor Control Centre (MCC) Panel is the modern amalgamation of motor starters which usually consist of feeders for pumps, motors & blowers. We manufacture high quality MCC panels depending upon the application it is going to serve or as per client’s specifications. Feeders are always designed on the basis of motor ratings (kWHP) & the protection that the motor requires. We provide MCC panels with automanualremote provision, so controlling them becomes easy as the situation demands.

Country of Origin : 380/415/440V, 50 Hz, 3 Phase, 4 Wire

Motor Control Centre (MCC) Panel is the modern amalgamation of motor starters which usually consist of feeders for pumps, motors & blowers. We manufacture high quality MCC panels depending upon the application it is going to serve or as per client’s specifications. Feeders are always designed on the basis of motor ratings (kWHP) & the protection that the motor requires. We provide MCC panels with automanualremote provision, so controlling them becomes easy as the situation demands.

Country of Origin : 380/415/440V, 50 Hz, 3 Phase, 4 Wire AC System

Features : Efficient Power Management Easy installation low maintenance Sturdy Construction Description: Main L.T panels are considered the heart of the electrical supply system in any installed network of electrical distribution. The secondary side of transformer is connected to the incomer of the Main L.T Panel. Its main purpose is to distribute power efficiently to critical loads and other sub-distribution panels. Usually consists of circuit breakers, isolators and bus couplers. We design, manufacture and supply good quality Main L.T panels in accordance with customer’s specification and at reasonable price with the necessary safety requirements. They can be installed indoors / outdoors of the plant or facilities and have exceptional ability to withstand different climatic condition

Main L.T panels are considered the heart of the electrical supply system in any installed network of electrical distribution. The secondary side of transformer is connected to the incomer of the Main L.T Panel. Its main purpose is to distribute power efficiently to critical loads and other sub-distribution panels. Usually consists of circuit breakers, isolators and bus couplers. We design, manufacture and supply good quality Main L.T panels in accordance with customer’s specification and at reasonable price with the necessary safety requirements. They can be installed indoors outdoors of the plant or facilities and have exceptional ability to withstand different climatic condition.

Feature : Efficient Power Management.

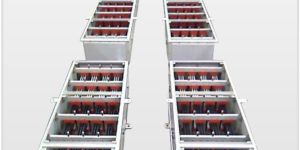

Features : Ample amount of spacing between the phase busbars Easy installation High reliability & extremely low maintenance. Précised ventilation slots. More economical in terms of current rating as compared to power cables of the same rating. Description : We manufacture L.T bus ducts of exceptional quality of the desired current rating and fault level which have the capability of conducting large amount of electric current through the aluminum or copper busbars. It is used in various industries to supply power from the secondary side of the transformer / outgoing side of the D.G set to the incomer side of the Main L.T panel / distribution panel. L.T Bus duct is the most preferred substitute to power cables. Usually it is preferred due to its high-power transmission ability. We design & manufacture efficient L.T bus ducts as the application demands or as per the customer’s specifications. We also provide MCCB’s or other electrical protection devices on customer’s demand to make it easier to control the power flow in events of maintenance/shutdown. Used In:   Commercial & Residential buildings Malls Pharmaceutical Plantss Chemical/Oil/Gas Plants Hospitals

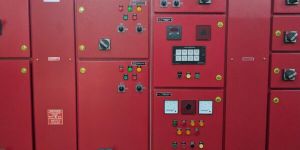

Features : Highly safe and Reliable Tailored Control using DOL Starter / Star-Delta starter High performance & low maintenance Sturdy Construction with sufficient cable space for providing connections Description : Fire Fighting MCC Panel is a type of MCC panel which usually consist of feeders for hydrant pumps, jockey pumps & sprinkler pumps with diesel engine controller. We design & manufacture high quality Fire Fighting MCC panels as per the customer’s specification. Unlike MCC panels where the motors & pumps require supply all the time, Fire Fighting MCC panels supply and control the pumps only when it is required. Feeders are always designed on the basis of motor pump’s ratings (kW/HP) & the protection that the motor pump requires. We provide Fire Fighting MCC panels with auto/manual/remote provision, so controlling them becomes easy as the situation demands. Used In:   Automobile Industries Textile Industries Cement Plants Chemical Plants Pharmaceutical Plants Commercial & Residential Buildings

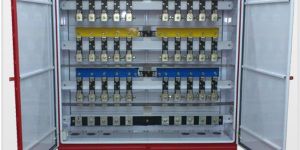

We design & manufacture indoor fully weather proof outdoor L.T Feeder Pillar Panels of exceptional quality with the necessary required IP protection & as per the client’s specifications. These panels supply power to the lighting loads across an entire wing of commercialresidential buildings or across the streets. These panels come with necessary safety requirements to protect the connected lighting loads.

Features : Protects connected lighting loads against electrical damage Sturdy Construction Easy installation High Reliability Description: We design & manufacture indoor / fully weather proof outdoor L.T Feeder Pillar Panels of exceptional quality with the necessary required IP protection & as per the client’s specifications. These panels supply power to the lighting loads across an entire wing of commercial/residential buildings or across the streets. These panels come with necessary safety requirements to protect the connected lighting loads. Used In:   Chemical/Oil/Gas/Pharmaceutical Plants Lighting Commercial & Residential building Lighting Manufacturing Unit Lighting Airport Runway Lighting Manufacturing Units having critical loads Highway Lighting / Street Lighting

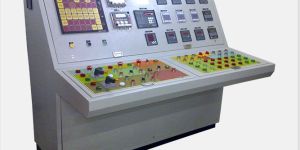

Features : Reduces process/production time. Easy installation Entire process is controlled by Control Desk / PLC Panel Requires less maintenance. Description: We design & manufacture highly advanced & efficient Control Desk and PLC (Programmable Logic Controller) Panels with the latest technology as per our client’s specification. Control Desks are used to control processes remotely in any type of industrial plant/manufacturing unit and they come with the necessary protection devices, switches, push buttons & indicating lights to control the desired processes. PLC panels are similarly used to control processes in any manufacturing/processing unit, but with minimal or zero human intervention in order to prevent any human error in the production. All the PLCs in the PLC Panels are programmed by PLC experts through standard software to reduce production time and wastage in the overall process. Used In:   Process Units Utility Plants Railways Sewage Plants Airports Manufacturing Units Chemical Plants Pharmaceutical Plants

We design & manufacture highly efficient Autotransformer Starter panel of the desired parameters as specified by our customers. The main purpose of this panel is to limit the starting current of the pumps or motors by using a three phase Autotransformer to reduce the initial stator applied voltage. This is achieved by automatic selection of different tappings across the autotransformer.

Rated Voltage : 380/415/440V, 50 Hz, 3 Phase, 4

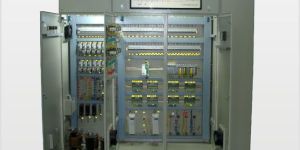

Highly advanced & efficient Annunciator Panels and Mimic Control Panels are designed and manufactured as per our client’s specifications at our manufacturing unit with the latest technology. Annunciator Panels are generally used as a centralized warning panel to indicate the status of the connected electrical loads or processes in any industry plantprocessing unit. The status indication is achieved through the use of visual and audio alarms. Mimic Panels usually have a flow chart of the entire process displayed on the front side of the panels. They are used to monitor & show the status of any given process in real time basis from one location and have efficient LED lights and push buttons as indicators.

Country of Origin : 380/415/440V, 50 Hz, 3 Phase, 4 Wire AC System

Features : LEDs can be provided with inbuilt power supply. Easy installation Alterations are possible Pictorial Charts of the process on the front side of the panel Robust construction. Panels are provided with visual indications to show any failure /change in process. Description: Highly advanced & efficient Annunciator Panels and Mimic Control Panels are designed and manufactured as per our client’s specifications at our manufacturing unit with the latest technology. Annunciator Panels are generally used as a centralized warning panel to indicate the status of the connected electrical loads or processes in any industry plant/processing unit.  The status indication is achieved through the use of visual and audio alarms. Mimic Panels usually have a flow chart of the entire process displayed on the front side of the panels. They are used to monitor & show the status of any given process in real time basis from one location and have efficient LED lights and push buttons as indicators.Used In:   Process Units Utility Plants Sewage Plants Airports Railways Manufacturing Units Chemical Plants Pharmaceutical Plants

Features : Easy Switchover from Mains supply to Generator Supply and vice versa Easy installation Low & Easy maintenance. Prevents critical electrical equipment shutdow       Description: We design and manufacture our own Automatic Mains Failure (AMF) panels, often as part of a comprehensive automatic standby power solution which links ATS, UPS and standby generators with remote monitoring and associated security and safety features. The main purpose of this panel is to activate the standby generators in the event of failure of main grid power supply. The AMF panel thus gets power from the generator thereby supplying power to the loads. When the supply from the main grid is back, the AMF panel switches back from the generator supply to the mains supply, thus shutting down the generator after considerable amount of cooling time. The AMF panel ensures smooth transition from the mains supply to the generator and vice versa. This can be achieved through both automatic mode and manual mode depending upon site requirements. The AMF panel is used at places where critical loads or equipment require power 24X7 or for load sharing purpose Used In:   Data Centers Hospitals Malls Commercial & Residential buildings Manufacturing Units having critical loads Chemical/Oil/Gas Plants having critical loads

Description: We manufacture highly efficient Automatic Power Factor Correction (APFC) Panels whose main purpose is to control or improve the power factor as the loading pattern of entire network of the industry /establishment changes from time to time. Power factor is an important factor in measurement of electrical usage and a dip in power factor will lead to a penalty from the electricity utility company and also cause operational losses in the industry/establishment. APFC panels automatically sense the change in load pattern through the microprocessor based relay and compensates the change in power factor by connecting to the capacitor banks. The APFC panels are designed as per the client’s specifications and the site demanding requirements which are highly reliable in sustaining the power factor from 0.95 to 0.99 Used In: Various Industries having numerous loads Manufacturing Units Chemical Plants Pharmaceutical Plants

Description : We design & manufacture highly efficient Autotransformer Starter panel of the desired parameters as specified by our customers. The main purpose of this panel is to limit the starting current of the pumps or motors by using a three phase Autotransformer to reduce the initial stator applied voltage. This is achieved by automatic selection of different tappings across the autotransformer. Used In: Oil/Gas/Chemical Plants Agricultural Activities Sewage Plants Processing Industries

Description : We design & manufacture highly efficient AC & DC Drive Panels of the desired parameters as specified by our customers. The main purpose of this panel is to control the speed / maintain constant speed of the motor by changing the frequency and voltage in same proportion with the aid of a variable frequency drive (VFD).  This enables to have a total control on the process and performance of the motors.   Used In: Oil/Gas/Chemical Plants Manufacturing Units Pharmaceutical Plants Processing Industries

Description : Outdoor type panels are usually MCC panels / PCC panels / AMF panels / Distribution Panels with a degree of protection of IP 5X / IP 6X. This makes the outdoor type panel fully weather proof and hence provides a longer durability with smooth functioning. We manufacture high quality Outdoor type panels depending upon the application it is going to serve or as per client’s specifications. Feeders are always designed on the basis of the applications that the outdoor type panel is going to serve. We provide Outdoor type panels with auto/manual/remote provision, so controlling them becomes easy as the situation demands. Used In: Chemical Plants Textile Industries Hydropower Plants Cement Plants Pharmaceutical Plants Sewage plants Automobile Industries
