Ajmera Electrotech LLP Kopar Khairane, Navi Mumbai, Maharashtra

Products Details 1015/AL Weather proof and water tight die cast Aluminium body LED Aviation light fitting with red polycarbonate shade, 15W. 240V. LED PCB with suitable heavy duty electronic driver. Duly powder coated finish. 1015/BR Same as above but in cast brass body.

AJMERA Trefoil clamps are used for keeping three single core cables in Trefoil arrangement which helps to maintain magnetic symmetry thereby to avoid current loss and the heating of electromagnetic. AJMERA Trefoil clamps have been manufactured by molding process from Virgin Glass Filled Nylon materials. Glass filled nylon materials are used to increase the flexibility of the clamp & to avoid the breaking the clamps from the hook while the tightening procedure of the three single core cables. Three single core cables are fixed in to the Trefoil clamps by means of Bolts, Nuts & Washers are commonly SS hardware or MS Zinc passivity, which depends upon the Customer's request. We are in a position to supply Trefoil Clamps with the dimensions between 13mm to 115mm Cable Od. Moreover we are also capable to cater to the demands of our clients according to their requirements and dimensions. Our Trefoil Clamps have adequate mechanical strength when installed at 1mtr intervals to withstand the force generated by the system of short circuit current of 105KA peak for 1sec. (Test Report available on request)

AJMERA Trefoil clamps are used for keeping three single core cables in Trefoil arrangement which helps to maintain magnetic symmetry thereby to avoid current loss and the heating of electromagnetic. AJMERA Trefoil clamps have been manufactured by molding process from Virgin Glass Filled Nylon materials. Glass filled nylon materials are used to increase the flexibility of the clamp & to avoid the breaking the clamps from the hook while the tightening procedure of the three single core cables. Three single core cables are fixed in to the Trefoil clamps by means of Bolts, Nuts & Washers are commonly SS hardware or MS Zinc passivity, which depends upon the Customer's request. We are in a position to supply Trefoil Clamps with the dimensions between 13mm to 115mm Cable Od. Moreover we are also capable to cater to the demands of our clients according to their requirements and dimensions.

10A250V, 3 pin Plastic body plug with procelain insertion with Brass pins. 2 Nos. 10A.15A. Socket insertion in single box also available as per requirement.

We are offering Street Light

Body Material : Aluminium Casting with Toughened Glass

We are offering Square Down Light

Packaging Type : CW / NW / WW

We are offering Square COB Down Light

Packaging Type : CW / NW / WW

We are offering Round Down Light

Packaging Type : CW / NW / WW

We are offering Round COB Down Light

Packaging Type : CW / NW / WW

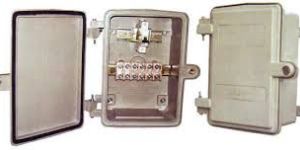

"AJMERA" weatherproof & water tight Junction Boxes and Pole Boxes are available in various sizes as per clients requirements. Our boxes are available in die cast Aluminium body FRP Thermoplastic & CRCA fabricated as per specification & requirements.

Products Details Catalogue No.Specification 2611/SS 10A. 230V. 3 pin Aluminium body socket with porcelain insertion with Brass terminals and 10A. 230V. double pole rotary switch with nylon knob for On/Off. 2 nos. Cable entries with Plastic cable glands. Plastic/Metallic cap with chain for socket when not in use. SS Hardware. 2533/SS --do-- with cast Brass body. 2614/SS Same as per 2611/SS - suitable for 15A. 230V. with bakelite socket insertion. 2536/SS Same as per 2614/SS - with cast Brass body. 2619/SS 30A, 415V. 4 pin (3pin & E) cast Aluminium body socket with porcelain insertion and suitable T.P. Rotary switch. 2 nos. cable entries with brass cable glands. Aluminium/Plastic cap with chain for socket when not in use. SS hardware. Switch-socket available with cast Aluminium 4 pin suitable plug top.

Country of Origin : 250 V

Catalogue No.Specification 1702  10 A, 250 V, On/Off double pole rotary switch in cast Aluminium enclosure with 2 Nos. cable entries with Plastic cable glands, bakelite knob for operating on/off, SS hardware 2522 ----do---- with cast Brass body 1703 Same as per 1702 - suitable for 15 A. 250 V 2523 Same as per 2522 - suitable for 15 A. 250 V

Catalogue No.Specification 2601/S 10A/250V, 3 pin Cast Aluminium body socket with procelain insertion & procelain connector with brass terminals  with two cable entries with plastic cable glands. Plastic/ Metallic cap with chain for socket when not in use. SS hardware. 2532/S ----Do---- cast Brass body 2613/S Same as per 2601/S suitable for 15A/250V with bekelite insertion 2535/S Same as per 2613/S - cast Brass body 2617/S 30 A. 415 V. 4 pin cast Aluminium body socket with porcelain insertion and porcelain connector with Brass terminals 2 Nos. Cable entries with Plastic cable glands. Aluminium / Plastic cap with chain for socket when not in use. Socket available with cast Aluminium 4 pin suitable plug. 2601/SF 10 A. 250 V. 3 pin female type socket. Cast Aluminium body socket with cap and chain. 2612/SF ----do----suitable for 15A. 250V

Products Details 1115/AL Die cast Aluminium body with Die cast Aluminium cover fix up with 4 nos. of screws Oblong shape milky polycarbonate shade with rubber gasket and protective S.S. wire guard. 2 way connector, 2 nos. cable entries opposite side with PG cable glands. S.S. hardware. Fitting for 15W. 240V. LED with Suitable Electronic LED Driver Fitting in the line of IP 65 protection. 1115/BR Same as per Above ... But with Cast Brass body 1106/AL Surface / Recess type Die Cast Aluminium body with Die Cast Aluminium frame with Opal Polycarbonate shade. Decorative type LED Fitting with 2nos. cable entries with 2 nos. PG cable glands opposite side. S.S. hardware. Fitting for 6W. 24V. LED with Suitable Electronic Circuit. Fitting in the line of IP 55 protection. Fitting use Mainly in emergency. (Available in 110V / 240V also). 1106/BR Same as per Above ... But with Cast Brass body

Products Details Catalogue No.Specification 2611/SS 10A. 230V. 3 pin Aluminium body socket with porcelain insertion with Brass terminals and 10A. 230V. double pole rotary switch with nylon knob for On/Off. 2 nos. Cable entries with Plastic cable glands. Plastic/Metallic cap with chain for socket when not in use. SS Hardware. 2533/SS --do-- with cast Brass body. 2614/SS Same as per 2611/SS - suitable for 15A. 230V. with bakelite socket insertion. 2536/SS Same as per 2614/SS - with cast Brass body. 2619/SS 30A, 415V. 4 pin (3pin & E) cast Aluminium body socket with porcelain insertion and suitable T.P. Rotary switch. 2 nos. cable entries with brass cable glands. Aluminium/Plastic cap with chain for socket when not in use. SS hardware. Switch-socket available with cast Aluminium 4 pin suitable plug top.

Products Details Catalogue No.Specification 2690 Cast Aluminium body light fitting with clear toughened front glass with Aluminium ring with rubber gasket fitting with Aluminum polished reflector and MS bracket for movement and fixing the fitting. Porcelain ES (screw type) lamp holder. Suitable up to 100W. lamp. 2691 --do-- Suitable up to 200W. lamp. 2692 --do-- Suitable up to 300W. lamp 2693 --do-- suitable up to 500W. lamp 2711 Aluminium body weatherproof metal halide fitting with Aluminium polished reflector and MS bracket. Clear toughened glass. Suitable for 250W, 230V lamp fitting with integral ballest. 2712 --do-- suitable up to 400W. lamp 2861 Cast Aluminium body with toughened rectangle protective glass and Aluminium polished reflector and MS bracket for movement & fixing fitting. Hinged type frame and glass with rubber gasket. Porcelain connector. Suitable for 1000W. Halogen tube. 2862 --do-- suitable for 500W. halogen tube.

Marine Watertight Deck/Well Glass/Pendent Light Fitting   Products Details Catalogue No.Specification 1151 Die cast Aluminium body and die cast protective wire guard with clear U shape glass with rubber gasket, porcelain BC or ES holder, 2 way connector with 2 nos. cable entries with plastic cable glands. SS Hardware suitable upto 60W Lamp. 2541 Same as per 1151 with cast Brass body and Brass / SS wire guard. 1152 Same as per 1151 - suitable upto 200W Lamp. 1161 Same as per 1151 -top entry. 1162 Same as per 1161 - suitable for 200W. lamp 1171 Same as per 1151 - suitable for side wall mounting arrangements with 2 nos. cable entries Brass glands opposite side. 1371 --- do --- cast Brass body with Brass / SS protective wire Guard. 1181 Cast Aluminium body with MS/SS protective wire guard with clear U shape threaded glass porcelain BC / ES lamp holder with 2 way connector with 2 nos. suitable upto 100W Lamp. 1182 Same as per 1181 - suitable for side wall mounting arrangement with 2 nos. opposite side cable entries with Brass cable glands. 1381 Same as per 1181 - Cast Brass body with Brass/ SS protective wire guard. 1382 Same as per 1381 - suitable for side wall mounting arrangement with 2 nos. Opp. side cable entries with Brass cable glands. 1154 Cast Aluminium body with die cast Aluminium protective wire guard with clear U shape glass with rubber gasket. SBC Brass holder for 24V. 25W. pigmy lamp. 2 nos. cable entries with plastic cable glands. Fitting mainly useful for emergency LED Light Fittings. 1354 ---do--- cast Brass body.

Current : 10A

Country of Origin : 250 V

Body Material : Plastic

Products Details 9212/F Vibration resistance and drip proof Engine room light fitting suitable for LED 24W. 240V. 50 hz The fitting made from Fiber body & provided with one piece hinged Polycarbonate milky cover is firmly secured to the housing with stainless steel toggles and fitted with rubber gasket to make totally insect free. The fitting with 24W. LED PCB with aluminium sheet for proper heat dissipation. The fitting provided with 2 nos. 12W LED Heavy Duty Electronic Driver with power factor imp., 2 nos. cable entries PG. cable glands etc. Duly wired up to a suitable connector with provision for earthing 2 nos. MS brackets for vibration mounting. 9212/AL ... do ... but fitting made from Aluminium sheet body duly powder coated. 9212/MS ... do ... but fitting made from CRCA body duly powder coated. 9209/F/AL/MS Same as per 9212 but fitting with 2 nos. 9W. LED retrofit 2' tubes. 9218/F/AL/MS Same as per 9209 but fitting with 2 nos. 18W. LED retrofit 4' tubes.

Products Details 6109 Mirror light fitting suitable for 9W 2' LED retrofit tubes. CRCA body finished, duly powder coated wired up with 1 no. 2 pin socket and switch. Clear / Opal Polycarbonate shade.

Products Details 7218 Cronic well decorative fitting suitable for LED 18W 240V, 50hz, made from CRCA MS sheet, duly powder coated with opal/Clear polycarbonate diffuser. Fitting provided with 2 nos cable entries, Fitting With 2 nos. 9W. LED tubes.

Products Details 5106 Aluminium body decorative type. 6W. 240V. LED light fitting with on / off piano switch. Adjustable top lid to control flow of light duly powder coated with opal shade finish. 6W LED PCB with suitable LED driver.
