Raimondi - Angle cutting Device to perform 45 degree.
29,500 / piece
Brand NameRaimondi - Imported BY MM 2 MM,Raimondi - Imported BY MM 2 MM,Raimondi - Imported By MM 2 MM
MaterialAluminium
ConditionNew
UsageIndustrial, Metal Cutting, Bar Cutting, Tile Cutting
Packaging TypeCarton Box, Sturdy Cardboard Box With Bubble Wrap
Cutting Capacity20 mm thickness
Dimension (LxWxH)31x27x h 13 cm
Machine Weight3.9 kg
Place of OriginItaly
TypeTile & Furniture Seam Setter Device

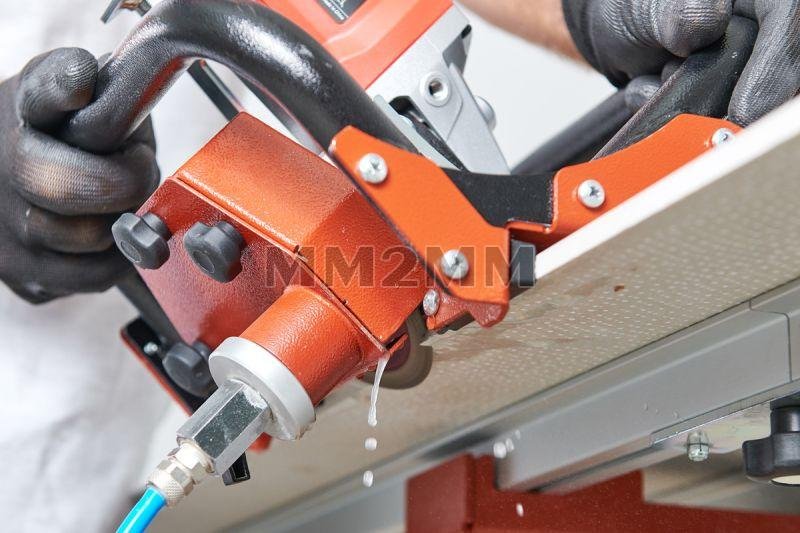

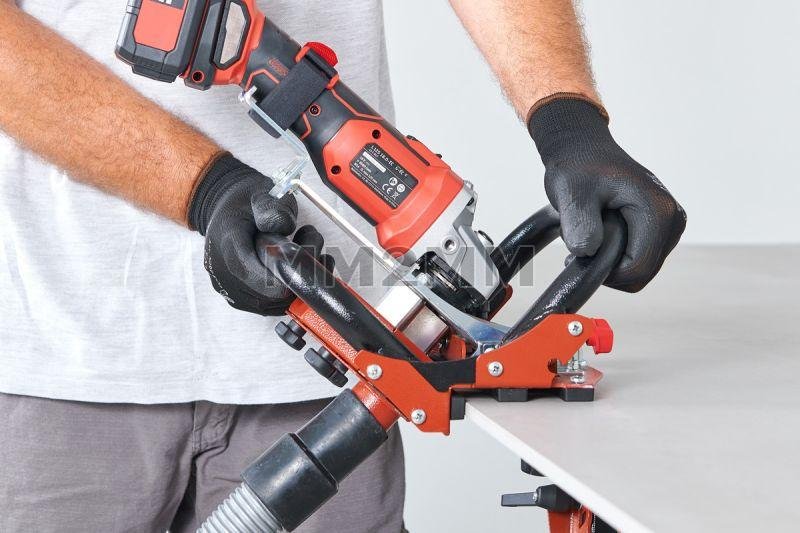

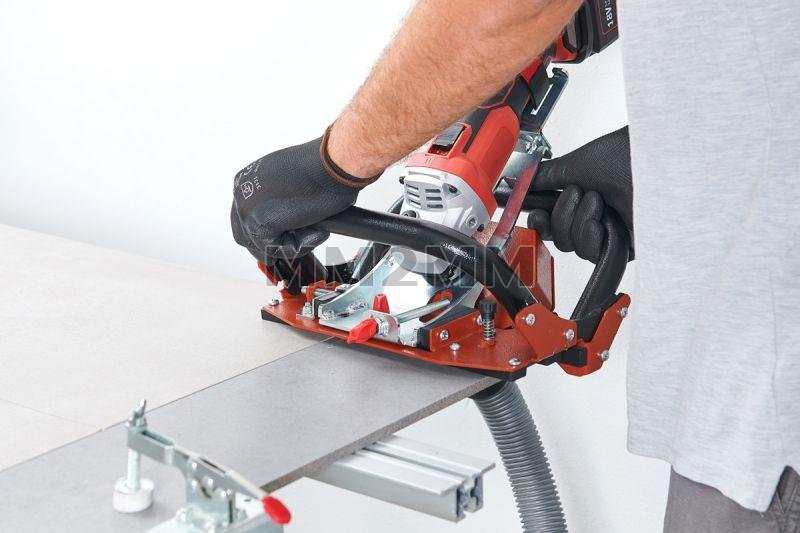

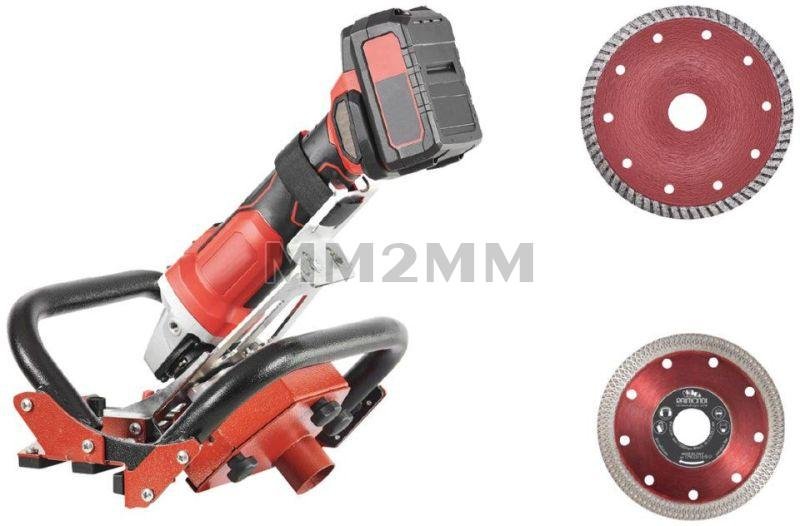

Device to perform 45° miter cut high quality finishing (“jolly”) directly on construction site (actual
miter angle: 47°).
• It works leaning and sliding on the edge of the tile (or slab): this guarantees a fast and precise
work execution and allows to work without any limit on length.
• The anti-scratch plastic slides ensure optimal smoothness on the slab/tile.
• Maximum slab/tile thickness: 16 mm (0.63”) with Ø115 mm (4 1/2”) blade; 20 mm (0.79”)
with Ø125 mm (5”) blade.
• The two handles are designed to easily allow the necessary pressure during the entire length of the
miter cut (entrance, slab side, exit) to guarantee both optimal results and maximum ergonomics.

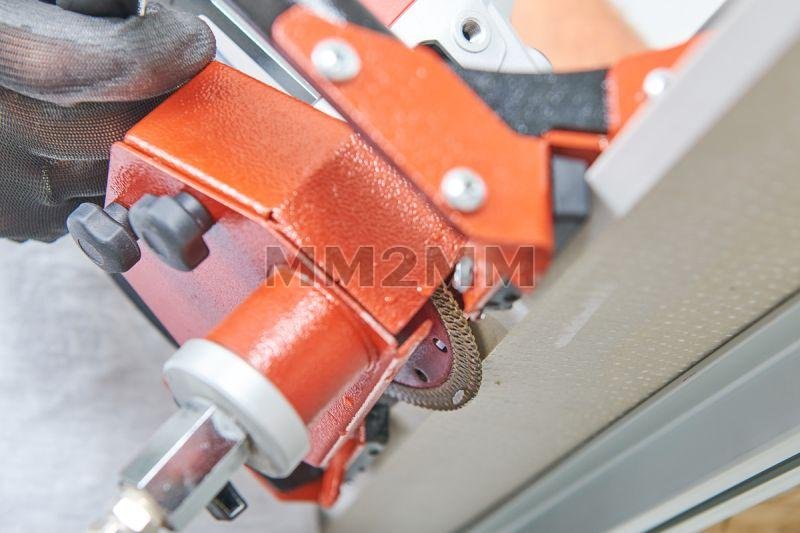

• Cutting depth adjustment: by adjusting the dedicated knobs, it is possible to determine the amount
of material to be removed (farther or closer to tile glaze). Once the adjustment is set, it stays for
any tiles/slabs thicknesses.
• Blade tilt adjustment: by acting onto dedicated screw, blade can be tilted to prevent its rear chipping
the edge of tiles/slabs.
• Suitable with almost all angle grinders with power between 600-1100W
