Controlwell India Private Limited Sanpada, Navi Mumbai, Maharashtra

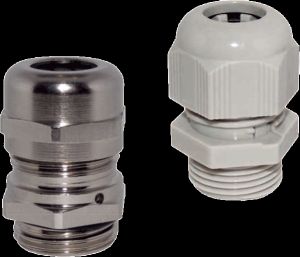

Ventilation plugs are used for pressure compensation and moisture protection. This is achieved with the help of an integral membrane. It can be used on control panels, motor frames, ensclosures, underground lights, etc.

These stainless steel glands are liquid tight, offer excellent strain relief and have lameller designed plastic inserts for protection against distortion. These glands are suitable for use in tunnel lighting and chemical industry where high mechanical and chemical resistance is required.

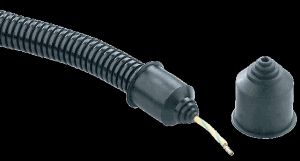

Tube End caps provide an IP66 covering at the end of corrugated tubes. The cap can be cut to accomodate pass through of different size wires.

Surface mount type housings are used where a cable terminates into the male or female insert housed inside it. i.e. It is mounted on a plain surface with a cable coming into the housing via a cable gland mounted on the body of the housing. In this case a single lock mechanism ensures IP 65 class protection to the inserts after mating with the appropriate hood.

Surface mount type housings are used where a cable terminates into the male or female insert housed inside it. i.e. It is mounted on a plain surface with a cable coming into the housing via a cable gland mounted on the body of the housing. In this case the double locking mechanism ensures IP 65 class protection to the inserts even if one of the locks accidentally opens up.

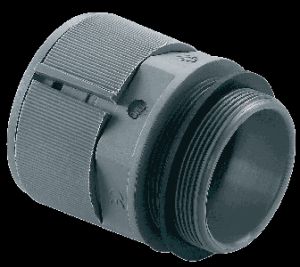

These connectors are used to clamp flexible corrugated conduits. They offer IP67 protection. These connectors are available with mounting holes for fixing on the panel or equipment surface.

These connectors are used to clamp flexible corrugated conduits. They offer IP67 protection and are available in Pg, Metric, PF and NPT threads.

These stainless steel glands are liquid tight, offer excellent strain relief and have lameller designed plastic inserts for protection against distortion. These glands are suitable for use in tunnel lighting and chemical industry where high mechanical and chemical resistance is required.

These Conduits are made of self extinguishing Polyamide 6. They are flexible, halogen-free and have a small bending radius. They offer good impact resistance and are suitable for various applications such as ship and train building, machine building, tramway, movable machine parts, etc. These Conduits offer IP 67 protection in combination with Conduit Glands. UV resistant Conduits are also available on request. These Conduits are available in grey and black colours and comply with EN 60529 and IEC 61386 standards.

These glands are liquid tight, easy to assemble and offer good strain relief with wide clamping range. The lamellar construction of glands provide an excellent grip on the cable. These glands offer gas and water tight sealings. Cable glands with reduced clamping range are also available on request.

The S.L.I. Conduits made of stainless steel are highly flexible and mainly being used as an instrumentation hose. The S.L.I. Conduit is also used in steel and aluminium foundry industry, machine and apparatus-building. The S.L.I. is very popular in the fibre optics industry also. These hoses are used where chemical and mechanical protection is needed and high temperatures are involved.

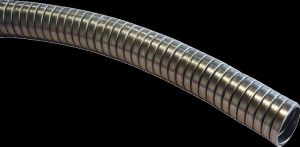

S.L.B. Conduit is very useful for situations where a robust metal conduit along with high flexibility is demanded. This conduit has a square-locked construction in combination with a stainless steel braid. In combination with the special fittings this conduit is easy and quick to install. Type S.L.B. is particularly used in (mechanical) critical situations, such as machine building, steel works and also in transport systems and security. The S.L.B. is excellent in protecting cables against metal particles, vandalism, rodents and offers high level of shielding.

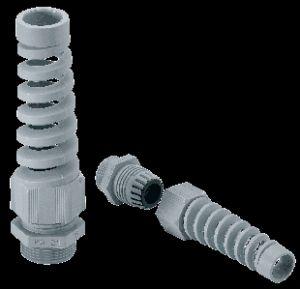

Spiral glands offer maximum protection against conductor fatigue caused by flexing cables, Designed for kink protection and mainly used for moving machine assemblies.

Distributors made of Polyamide can be used instead of a distribution box. These special connectors are used to clamp standard corrugated conduits. They can be configured into the basic shapes of Y (TYC), T (TTC), V(TVC) and straight through (TSC).

In various applications a bank (group) of male or female identical connectors are placed side by side. In such applications it is difficult to couple the connectors in the right sequence. Coding pins are used to prevent such false coupling possibilities. Coding pins are used in place of normal insert fixing screws. In this way coupling of correct connectors is ensured. Single code pins offer coding possibilities for a maximum of 6 identical connectors placed side by side.

Simpleseal are special grommets which are simple to use and require no tools for installation. They differ from conventional grommets as they provide IP 67 protection. They can be installed from one side of the panel without any need for installation of lock nuts from the other side as in conventional cable glands. With these grommets necessity of blind stops is removed as in these grommets the opening is always sealed until the membrane is pushed out by the cable. These are suitable for enclosures with wall thickness from 0.5 to 4.0 mm.

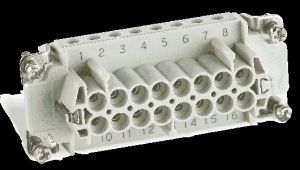

These inserts are available from 4 to 48 poles. These are polarized to prevent incorrect coupling between the male and the female inserts. The screw terminals are provided with wire protectors to prevent damage to the conductors.

These inserts are available from 4 to 48 poles. These are polarized to prevent incorrect coupling between the male and the female inserts. The screw terminals are provided with wire protectors to prevent damage to the conductors.

Rutaseal and Simpleseal are special grommets which are simple to use and require no tools for installation. They differ from conventional grommets as they provide IP 67 protection. They can be installed from one side of the panel without any need for installation of lock nuts from the other side as in conventional cable glands. With these grommets necessity of blind stops is removed as in these grommets the opening is always sealed until the membrane is pushed out by the cable. These are suitable for enclosures with wall thickness from 0.5 to 4.0 mm.

These are used for threaded holes on machines or equipment housing which are too large or too small for the necessary glands.

These inserts are available from 6 to 216 poles. These are polarized to prevent incorrect coupling between the male and the female inserts. The conductors need to be crimped with appropriate male crimp contacts and then made to enter the insert where they are held in place with the help of a flexible locking device.

Protection Tabs made of Polyamide 6 are used in assembly work for instruments, machines etc., where only Cable Glands are mounted and cable connection is made later. This prevents dust and moisture from penetrating the enclosure or equipment.

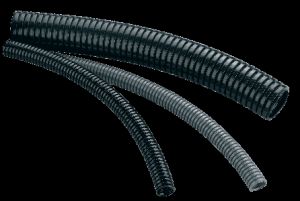

These Conduits are made of soft polyethylene (PE). They are flexible, and have a small bending radius offering good impact resistance. They are suitable for various applications such as machine tool, industrial machinery, chemical machinery etc. These Conduits offer IP67 protection in combination with Conduit Glands. UV resistant Conduits are also available on request. These Conduits are available in grey and black colours.

In certain applications, installing cable glands directly on enclosure or equipment wall surfaces is not possible. In such situations Hexagonal Lock Nuts are used to secure cable glands.
