Earth Moving Vehicle Dealers in Sai Nagar, Navi Mumbai

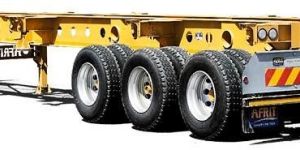

Being one of the distinguish names in the market; we are highly indulged in manufacturing an inclusive array of Triple Axle Heavy Trailer for our prestigious customers. Our offered trailer is fabricated at our end by making use of quality approved components which is sourced from the reliable and authentic supplier of the market. Further, these products are delivered to our patrons within promised time frame.   Features: High on demand Quality approved Cost effective Salient features of our trailers are as follows: Rigid in construction Corrosion resistance Easy installation. Size 26 Feet

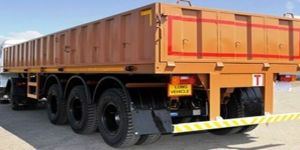

9 M TRIDEM AXLE SIDE WALL TRAILER TECHNICAL SPECIFICATIONS Trailer weight (Unladen) 6.4 T ( APPROX ) Chassis All steel welded construction. 2 Nos. Main longitudinal members are high strength lighter weight Parallel flange Beam of ST 52 (or) Equivalent grade steel running along full length of the trailer. Cross members - Rolled or Folded of material IS-2062/ST-52 are positioned at suitable locations. 3.15 MS chequered sheet platform. Fixed front and side panel, drop down rear door shall be provided. 1 window shall be provided at middle on both sides. Landing leg Two speed landing leg shall be provided at the front end. Axles 3 Nos. 13T Axle Shall be provided King pin 2” king pin equivalent to IS : 6763 Part I provided Suspension 12T capacity Tandem axle leaf spring suspension with load equalizing brackets. Tyre Wheel rim 10.00 x 20 – 16 PR – 12 Nos. 7.50 x 20 – 12 Nos. Brakes Twin line air brake system coupled to tractor brake system. Trailer brakes are actuated from tractor. T24 brake chamber shall be provided on all axles. Limiting & Quick Release Valve shall be provided for brake efficiency. Parking brake shall be manually actuated. Electrical 24V DC electrical include tail lamp, brake lamp and direction indicator lamps fitted at rear end of trailer. Side Marker lamps shall be provided on both sides. Surface preparation Trailer surface shall be Shot blasted and cleaned. Painting Two coats of mono coat finish paint with colour of customer choice. Other fitments Fitments such SUPD, RUPD, reflectors on both sides and rear shall be provided as per CMVR
