ApplicationElectronic Goods, Power Supply, Research, Testing, Repairing
CertificationISO 9001:2008 Certified

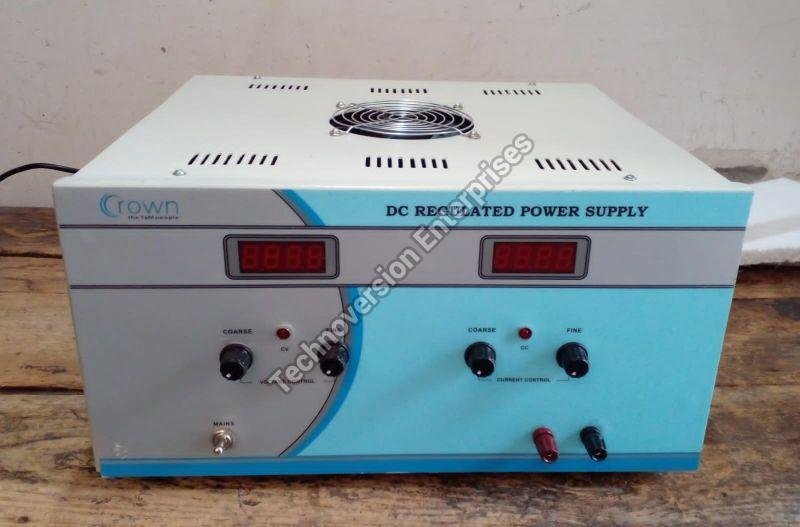

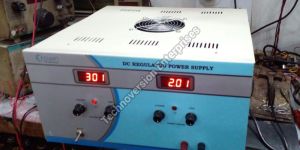

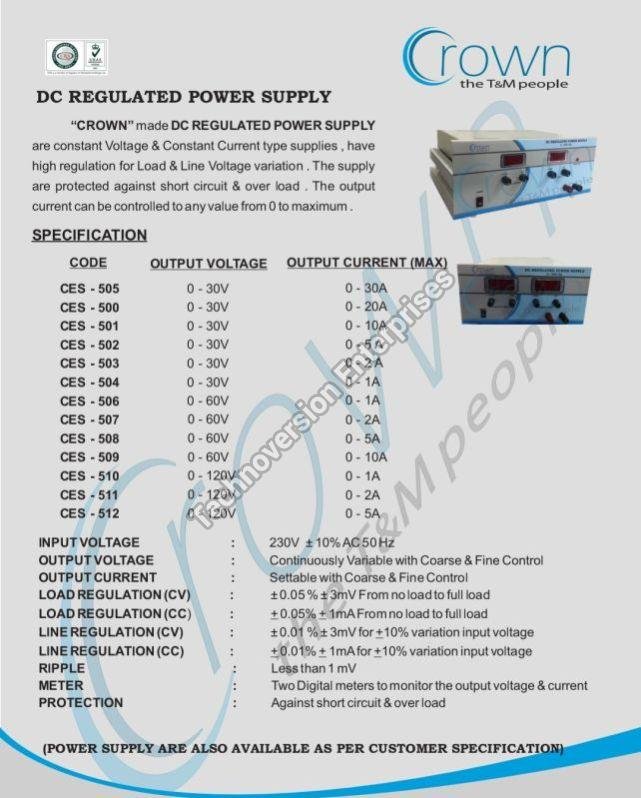

Input Voltage - 230V +/-10% AC 50 HzOutput Type - SingleOutput Voltage - 0-32VOutput Current - 0-10ALoad regulation(CV) - +- 0.05% +- 3mV From no load to full loadLoad regulation (CC) - +-0.05% +- 1mA from no load to full loadLine regulation(CV) - +- 0.01% +-3 mV for +-10% variation input voltageLine regulation (CC) - +- 0.01% +- 1mA for +-10% variation input voltageRipple Less than - 1 mVMeter - Two digital meters to monitor the output voltage and currentProtection - Against short circuit and over loadDC Power Supply 0-32V / 50Amp are constant Voltage & Current Constant type supplies, have high regulation for Load & Line Voltage variation. The supply is protected against short circuit & over load. The output current can be controlled to any value from 0 to maximum.
