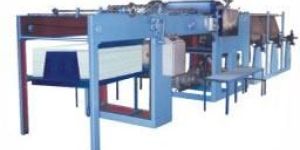

Simplex Rotary Sheet Cutting Machine
Get Price Quote
We are offering simplex rotary sheet cutting machine.
to cut paper from reel to sheet, multiple reel stands available, delivery table is auto lowered through motor.
technical specification
working width 40" (1000 mm) (also available from 30" to 60") with one - reel stand
floor space 40” with one reel stand 21 ft. X 7 ft with four reels stands 34 ft. X 7 ft.
working speed 85 mts. Per/ min (approx 90 stroke per/min) depending on cutting length
max unwind dia 40" (1000 mm) / 54" / 60" (1500 mm)
max. Stacking height 36" (915 mm) / 42" / 47" (1200 mm)
cutting length 12" (300 mm) (min) 48" (1220 mm) (max)
type of material paper from 50 gsm to 450 gsm (total of all paper)
power required 5 hp (up to 2 reel stand) 7.5 hp (up to 4 reel stand)
sheet length adjustment gear / servo motor / variable gearbox or any two as required.
optional side trimming / center cut / auto tension brake / web guiding / shaft less unwind unit.
