Speedfam ( India ) Pvt. Ltd Rabale, Navi Mumbai, Maharashtra

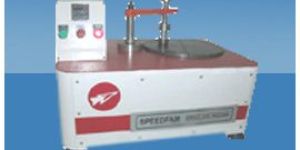

We offer table top sweeper arm machine. Table top sweeper arm machine armpositioned to process one seal at a time to a very high degree of flatness & surface finish. The specially graded lap plate with re-circulating slurry and sweeper arm swiveling at tandom achieves efficient cutting properties during the lapping process while attaining high degree of flatness & surface finish. Lapping machine can be conveniently converted to polishing machine for polishing operation on the same machine. Typical applications for this machine are mechanical seals etc

Table top sweeper arm machine armpositioned to process one Seal at a time to a very high degree of Flatness & Surface Finish. The Specially Graded Lap Plate with re-circulating Slurry and Sweeper Arm swiveling at tandom achieves efficient cutting properties during the Lapping Process while attaining high degree of flatness & surface finish. Lapping Machine can be conveniently converted to Polishing Machine for polishing operation on the same machine. Typical applications for this machine are mechanical seals etc

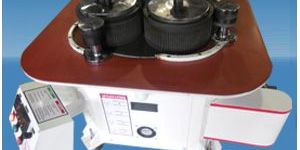

Lap/polish plates revolves at low RPM. The conditioning rings located in position on the machine plate also rotate freely. The work pieces are kept freely inside conditioning rings with the surface to be lapped mating the Lap Plate. The sharp abrasive particles which are continuously fed on the machine plate get impregnated in the Lap plate and cut the material from the surface of the work piece and creates replica of the plates flatness on to the same. These Machines are typically suited for R&D work.

Span Guage is with 3 legs presettable on a master Surface Plate. A Dial in the centre measures the flatness at various positions.

We are offering precision grinding machines. Precision grinding machines systems technology provides rapid stock removal and precision flat surface machining capability for processing a wide range of hard surfaced materials using either diamond pellet or cbn pellet plates. Precision grinding machines systems are designed for efficient control on rz, eco friendly fine honed sludge and high stock removal rate @ low cpp.

Polishing Pads cover the need of various types of materials to be polished. These pads are suitable for various rough and final polish operations to meet desired surface finish requirements. The pads impart desired surface finish when used in combination with suitable polishing media. Its napped structure helps to retain the polishing Media for a long time and facilitates to produce desired surface finishes. All pads are available with suitable adhesive backing with user friendly fixing and removal.

Size : Dia 305 to Dia 1400mm

Polishing Compounds confine to chemo mechanical polishing action. These are with controlled PH values to suit various applications. It contents uniformly suspended abrasive particles in slurry form and are soluble in water for dilution and used for polishing process. Several types os polishing compounds are to suit the various requirements. All polishing compounds are non-toxic and non-hazardous.

Optical flats provide the fast, sure and accurate method of obtaining flatness measurement under Monochromatic Checklite. It is always necessary to have reflective, clean and dry surface of finished component before measuring its flatness. Flatness measurements are accomplished by reading interference (light) bands which appear on the surface of the work piece when placed under a Speedfam optical flat. Fringes appear when the flat is placed gently on work piece surface under Monochromatic Checklite. The optical flats are available in various diameters.Optical flats are available in Borosilicate glass material with flatness accuracies as ?4, ?6, ?10. These are available either Single side or Double side surfaces. Sizes available are 1", 2", 3", 4", 5", 6", as standards and other sizes on request.

This is unique product developed by speedfam in order to have contamination free lapping oil for reuse. It has one abrasive mixture collecting tank in which the used abrasive mixture is poured. The abrasive is separated by baffling & settling process. The clear oil is recepted thru the final chamber from which oil can be taken out for reuse. Viewing windows are provided on the system to varify the level of abrasive settled & necessity of cleaning.

Monochromatic Check-lite measures the flatness of finished components in the range of 1 light band or 0.3 Micron with the help of speedfam optical flat. No skilled technician is required to measure the flatness accurately, using the speedfam monochromatic checklite. Its exceptional design prevents the penetration of extraneous multiwave Length Light from outside sources. It can be placed near the production operation.

Compound suitable for polishing is packed in 200 ml pressurized can. It helps in micronised spraying on polish plate, when sprayed. This prevents drying of the polish plates during polishing.

Packaging Type : Minimum Pack of 6 cans of 200ml

Applications : With polishing machines / manual polishing / polishing attachments

Hand Lapping and polishing plates are high quality products. Its homogenous distribution of material improves degree of processing accuracy. Plates are available in various diameters, Groove patterns and materials such as CI, Aluminium, Tin, Lead, Copper, Glass etc. & are available for Lapping, Hard Polishing and Soft Polishing applications.

speedfam free abrasive machines are versatile precision machines designed to produce lapping / polishing flat surface in the high degree of flatness and surface finish with absolute uniformity on all types of hard & soft materials. it is highly efficient technique, in which abrasive particles flow freely across the surface of a lapping plate without getting impregnated in the plate. this removes the material from component surface more efficiently, which result in producing flatness on the components. salient options 60 to 63 hrc hard speed alloy segmented plate for fast cutting water cooling jacket for plate to decipitate heat generated during the process. pneumatic pressure system for setting accurate & desired load on parts in-process manual conditioning facility with motorized as optional abrasive re-circulation system

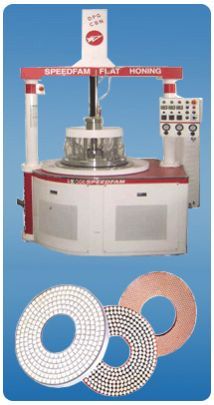

Flat Honing Machines Systems Technology provides rapid stock removal and precision flat surface machining capability for processing a wide range of hard surfaced materials using either Diamond Pellet or CBN Pellet Plates. Flat Honing Machining Systems are designed for Efficient Control On Rz, Eco Friendly Fine Honed Sludge and High Stock Removal Rate @ Low CPP. Flat Honing Machinesis equipped with distinctive features like High Pressure Pneumatic System which ensures precise pressure application for optimum stock removal and increased productivity. Variable Speed Drive System that ensures Selectable RPM to the wheels individually for all applications. The system is also equipped with Motorized forward Reverse System which maintains the plate flatness in process without any production loss, by controlling the RPM & direction of rotation of the carriers.

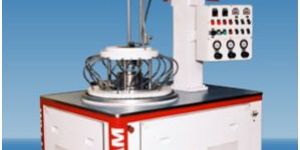

Features The key to the quality, speed and versatility of SPEEDFAM Double-sided Machine involves a principle known as the 4-way Motion. Utility of the 4-way Motion reduces machining time, surpassing the 2-way and 3-way Double sided machines. Here is how 4-way motion is achieved. Direction of rotation of the lower and upper plates in relation to the carriers (1 and 2) Rotational of the carrier in (3) Axial spin motion of the carrier about the Center of lower and upper plates (4) SALIENT OPTIONS 4 WAY MOTION TO THE COMPONENT 2 STAGE PRESSURE PNEUMATIC SYSTEM MOTORIZED FORWARD REVERSE SYSTEM FOR PLATE CONDITIONING SUN GEAR / RING GEAR UPDOWN INFINITELY VARIABLE RPM

Synthetic Diamond Powder is one of the hardest manmade abrasives used in variety of Lapping, grinding & polishing application.Diamond pellet lap to clean up the generation marks and smooth the surface so that it can be polished. Typically the diamond pellet is 10 or 12 microns. Micron powders are in well defined ranges of fine particles. The grade designation defines the micron size ranges of the abrasive particles. The shapes of the particles are blocky & hence it imparts efficient cutting properties with consistency in stock removals rates.

Number Of Flower : RESIN BOND,Diamond Powder

Offers retaining rings for flat lapping/polishing machines. These rings are made from graded cast iron. While retaining the parts to be lapped, these rings help maintaining lap plate flatness during process by removing unevenness from the lap plates. Retaining rings are manufactured under stringent quality standards to ensure efficient end results. The rings are available in various standard sizes as well as are custom made to suit.

Applications : On flat lapping machines.

Cerium Pad is a polishing pad of special hard polyurethane foam containing a cerium oxide polishing agent. This pad features superior durability large versatility, stability in quality and capacity of quick polishing.

Thickness : 0.5, 0.8, 1.0, 1.25, 1.5, 2.0, 3.0. (mm)

Size : 23" x 55"

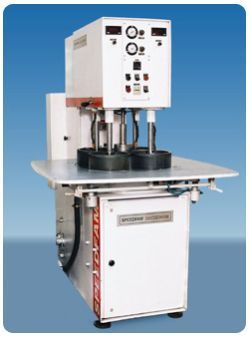

We are offering abrasive machines. Speedfam free abrasive machines are versatile precision machines designed to produce lapping polishing flat surface in the high degree of flatness and surface finish with absolute uniformity on all types of hard & soft materials.

Abrasive feeding system keeps the abrasive & vehicle mixture in homogeneous condition all the time to ensure optimum usage of abrasive particle in cutting process, which helps in imparting an efficient and uniform stock removal over a period of time. This also helps to reduce consumable cost & the cycle time & hence more output as compared to non recirculation type system. The stirrer in the system provides continuously stirring during & in between two cycles. The tank is equipped with the casters for easy movement of system for disposal.
