Nanubhai Mavbhai Patel Bilimora, Navsari, Gujarat

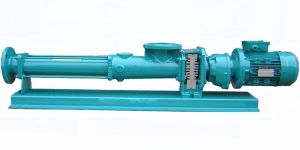

Displacement pumps suitable for pumping of non-abrasive substances, they can be regulated by a frequency converter.

Application : All Liquied Material Lifting Up To 80 Meter

Fuel : Electricity

Driven Type : Electric

Pressure : 200-300kg/cm2

Structure : Horizontal

Warrenty : 1year

Pump Speed : 100-1000RPM

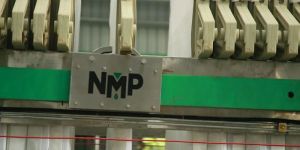

The system shifts the individual plates, opens the filtration chambers and allows the emptying of the filter press. Automatic shifting replaces manual handling of the plates. Benefits and fields of use: Designed mainly for filter presses with large plates or a great number of plates Significant facilitation of the filter press attendance – two workers are needed for manual shifting of large plates, only one worker is needed to check the process of emptying of the filter press during automatic extraction Process automation and shortened emptying period Adjustable speed of plates shifting Automatic plates shifting options: Individually plate by plate – gradual shifting of single plates until all the set is shifted. The process can be interrupted any time and the operator can remove possible impurities from the cloth. Simultaneous shifting of several plates – shifting is carried out by a stroke of the hydraulic cylinder during the filter press opening. The single plates are fixed to the steel plate connected with hydraulic cylinder at certain distances and when the steel plate moves, the particular groups of plates are shifted at once. The process is fully automatic.

The filtration chambers of the filter presses with frames consist of two types of filter plates: frame and filtrating. The frame defines a filtration chamber and it is closed on both sides by the adjacent filtration plates with drainage draining filtrate. The thickness of the frame plate determines the thickness of the filtration cake – it usually ranges between 10 – 50 mm. After passing clothes installed on the filtration plates, the filtrate is drained by drainage to channels drilled inside the plate and it is discharged out of the filter press. The working pressure usually ranges between 6 – 15 bars.

Certification : CE Certified

Availability : 100-1000kg

Country of Origin : 110V

Power : 1-3kw

Total Carbohydrate : 1year

The working room of the membrane filter press consists of chambers, limited by two adjacent plates with recesses in the central part. Unlike the chamber plates, the drainage draining the filtrate is located on movable membranes serving for pressing and “wringing” of the filtrated cake. Water or air under pressure is used to compress the membranes. Once the filter press is filled with the suspension, this medium is fed to the room under the membranes and its subsequent lifting compresses the cake and pushes out the residual liquid. The liquid passes through the cloth and is discharged out of the filter press. The thickness of the filtration chamber is usually 30 – 50 mm before compressing, by compressing the membrane it is reduced most often by 20 – 40%.The suspension is fed via a central or corner inlet passing through the whole set of plates. The filtrate is drained by drainage on the membrane surface (under clothes) and then by channels drilled inside the plates out of the filter press. Filtrating (filling) pressure before the start of the membrane compression is usually 8 bars, it rises up to 15 bars during compressing (structurally, we manufacture filter presses to a maximum pressure of 30 bars).The filter presses are equipped with a security system, which will not enable opening of the filter presses if the system of membrane compression was not previously decompressed. This prevents from damaging to the membranes by accidental opening of the filter press. The filtration plates including membranes are standard made of polypropylene, another material can be chosen.

These hydraulic power units (HPUs) consist of a base power unit, low-pressure manifold, and a high-pressure manifold. The base power unit includes a hydraulic oil reservoir, an electric motor, and a low-pressure hydraulic pump. High-speed models also include a high-pressure pump driven by the same motor. The low-pressure pump supplies hydraulic fluid to the low pressure manifold for the operation of automatic hydraulic plate shifters, drip trays, cloth washers, and the main cylinder.

Certification : CE Certified

Country of Origin : 110V

Power : 1-3kw

Driven Type : Hydraulic

Total Carbohydrate : 1year

Weight Capacity : 1000-2000kg

lifting type : Flat

Filter press cloth Selection is one of the important elements in filtration using filter press. Based on our years of experience and lab testing, we can make an expert recommendation to you. NMP offers a wide ranges of Woven, Non woven and felted synthetic cloth. Woven construction of multi and monofilament fabrics having different air permeability or pore sizes. Thermal treatment (calendaring) results in unique surface properties that enhance filtration performance and cake release characteristics. The range of synthetic materials used comprises PP, PA, PET, PE and other polymers. We also offer antistatic cloth. Fabrication and assembly of filter cloth plays an important role to the fabric design in achieving optimum performance. A precise fit assures highest performance. NMP filter fabrics have been designed to meet with all and specific conditions in the filter press. The choice of correct fabrics, their assembly and fabrication techniques are tuned to the requirements of different sludge, products and industries. Easy Cake release, ease-of cleaning, extended life-time, particle retention and service costs are basic requirements to be taken into consideration.

Application : Industrial Use

Length : 1-5mtr

Technics : Machine Made

Pattern : Plain

Density : Low Density

Width : 12inch, 14inch

Feature : Impeccable Finish

Electric hydraulics are controlled by the NMP Electric Hydraulic Control System (EHCS), which monitors the status of the system and provides an emergency stop push button, disconnect switch and touch screen control of the filter press hydraulics.

Certification : ISI Certified

Application : Industries

Frequency : 50Hz

Connection Type : 4 Way

Feature : Dust Proof

The drip trays catch spills off the cloth, or washing water during the cloth washing and drain it to the collection trough. They are installed under the set of filtration plates. Materials The most frequent material is PP, the plates can also be made of stainless steel or other materials as requested. Benefits and fields of use: Used mainly for large filter presses Major facilitation of the filter press attendance– the plates need not be removed manually before shifting, which would be very difficult with the large filter presses (large sizes and heavy weights, limited room for

Size : 10x10Inch, 14x14Inch

Shape : Rectangular

Certification : ISO 9001:2008 Certified

Feature : Durable

Technics : Machine Made

Packaging Type : Plastic Box

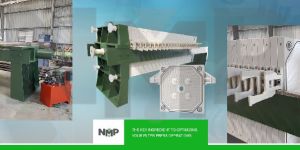

These are advance version of Recessed Chamber Closed configuration plates, where Filter Cloth is caulked in the caulking groove around the recess plate. Major benefits of this design are Zero leak Recess Type Filter Plate because ‘O’ Ring seats around the sealing edge and filtrate hole secure tight seal when the plate pack is closed. Cloth caulking groove provide easy installation and least maintenance of the filter cloth. CGR plates are recommended and necessary for leak proof conditions like toxic substance, acidic solutions etc. ‘O’ Ring are available in the different elastomers like EPDM, Neoprene, viton etc. These plates are available with center, top, bottom and corner feeding with adaptable diameter and designed at 8 and 16 bar operating pressure.

Availability : 100-1000kg

Condition : New

Automatic Grade : Automatic

Power : 1-3kw

Driven Type : Mechanical

Total Carbohydrate : 1year

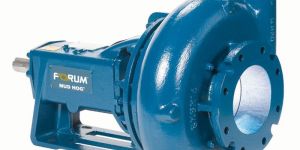

Pumps suitable for high flow rates. Ideal for high-speed filtration and for slurry pumping.

Country of Origin : 110V

Condition : New

Operating Type : Manual

Power : 1-3kw

Driven Type : Electric

Total Carbohydrate : 1year

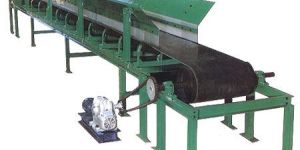

The dropping cake can be conveyed via the hopper to a conveyor, which usually transports the cake to a container. Benefits and fields of use: The container does not have to be installed directly under the filter press, but it can be outside the building, or in another room, which is easily accessible for Lorries transporting the containers.

Thickness : 40-50mm, 60-70mm

Certification : CE Certified

Condition : New

Application : Moving Goods

Feature : Easy To Use, Long Life

Loading Capacity : 10-15kg

Air operated diapharm pump. It is the best pump for small filter press. It is work by pressurized air. Main advantage of this pump is no over feeding happened in filter press.

Number Of Flower : Air Operated Diaphragm Pump

Application : Acidic Material

Country of Origin : 110V

Condition : New

Power : 1-3kw

Driven Type : Air Operated

Pressure : 0-10Bar

Total Carbohydrate : 1yr

NMP recessed plate filter presses can be used in a wide range of application due to the numerous application in the set of NMP Filter Press. A grate number of combination are possible depending on size, chamber depth, filtration area and filter volume, resulting in optimum filter lay-outs for any applications. The installation of our plate shifting system, together with our automatic filter cloth cleaning system is an important feature for the use of recessed plate filter pressure in automated process operations. Either over huge filter cloths which are fixed on the slurry inlet, or put-through cloths are use.   Benefits: Simple design Long service life High reliability Advantages of recessed filter plates Single element and therefore cheaper than separate plates and frames. Suitable for high filtration temperatures. Robust design with reinforced edges. The recessed filter has a special piped surface to protect the filter cloth and ensure excellent filtration.
