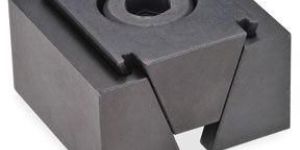

Clamping with the wedge clamps GN 920.1 is achieved via the socket head cap screw and the clamp wedge which cause both clamping jaws to move outward. When loosening the screw, the clamp wedge is returned via an internal return spring which, in turn, loosens the tension. Wedge clamps are ideal for multiple clamping operations, but they are also suitable for clamping individual workpieces. The long hole in the clamp wedge serves to compensate tolerances in the workpiece.

Visual flow indicators Polypropylene based (PP) technopolymer, red colour.Maximum visibility of the flow from all angles. In case of mounting on rigid tubes, it is recommended to place the indicator perfectly aligned with the tubes.The indicator operates with two-way liquid flows.

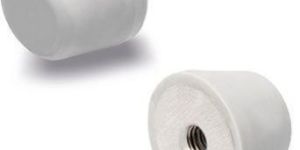

Vibration-damping elements Silicone rubber (MVQ) RAL 7040 grey colour, in compliance with FDA (U.S. Food and Drug Administration), giving the possibility to use in the food and medical industry.

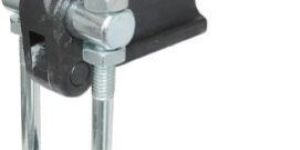

Vertical hook type toogle clamps The U-bolt latch of GN 852.1 vertical hook type toggle clamps is adjustable within the adjusting range. Once in the clamping position, the latch bolt is perpendicular to the clamping arm and to the mounting base of the toggle clamp.

we offer u handle. we have gained expertise in retailing and wholesaling a wide range of u handle.

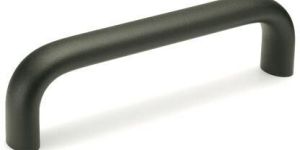

U-Handles black, RAL 9005, UV-resistant, textured finish SWU, U“ handles are made from a bent aluminum profile and have excellent stability and ergonomic design. Due to the production process, special designs, In addition to the standard surfaces, these cabinet „U“ handles are also available with a functional coating.

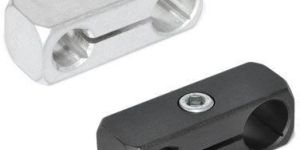

Two-way clamp mountings The standard version of the clamping screw is a socket cap screw with hexagonal socket DIN 912. It can be replaced by a clamping kit GN 511 .

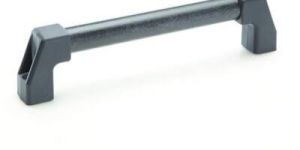

Tubular handles for electrical insulation Glass-fibre reinforced polyamide based (PA) technopolymer, black colour, matte finish.Supplied assembled. The seat for housing the tube in the shank is shaped so as to prevent its rotation. Glass-fibre reinforced polyester, black colour with high resistivity. High resistance to wear, scratches and agents.

The two end-cap parts have some reference pins which are housed in special counter-seats. Two cavities inside the end-cap are provided for housing two hexagonal nuts DIN 934. Thanks to the tapered shape of the cavity, the end-cap exerts a pressure on the inner walls of the tube, due to the tightening of the nuts, thus ensuring the tensile strength of the connection. The level of the tensile strength depends on the tube dimensional tolerances, the condition of the tube inner surfaces and the tightening torque applied. The end-cap enables the joining of round tubes with other elements or the installation of wheels or levelling elements with locking nut. The installation of a simple levelling element does not enable the expansion of the end-cap: for this kind of applications the use of NDL.T end-caps is a more proper alternative. The assembly can be performed simply by positioning the end-cap inside the tube, with no need of screws or other fasteners.

Tube Clamp Connectors The clamping bores of GN 131 two-way connector clamps are mechanically machined and designed for construction tubes GN 990 or DIN 2391, DIN 2395 and DIN 2462 respectively. The standard version of the clamping screws are socket cap screws with hexagonal socket DIN 912. They can be replaced by clamping kits GN 911 GN 911.3 (article code see table of dimensions).

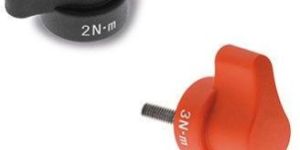

Torque limiting wing knobs Glass-fibre reinforced polyamide based (PA) technopolymer, black (C9) or orange (C2) colour, matte finish. The torque transmission from the wing knob to the clamping element takes place by means of a spring-based mechanical system which prevents the overcoming of the established torque. Upon exceeding the established torque, a "click" sound will be heard to indicate that the maximum tightening has been reached. By turning the knob anticlockwise the mechanism unlocks.

Torque knurled knob screws When turned clockwise, the torque mechanical system of the knurled knob triggers an „over-engagement“ as soon as the specified torque is reached. When turning anti-clockwise, the mechanical system locks such that the torque is not limited. When tightening, this will ensure that the maximum permissible torque is not exceeded. On the other hand, the torque necessary for releasing will always be transferred reliably.

Torque amplifier collar Glass-fibre reinforced polyamide based (PA) technopolymer, black colour, matte finish. handles type L.652, CMC torque amplifier collars double the clamping force applied at equal torque due to the presence of a bearing acting to reduce friction.

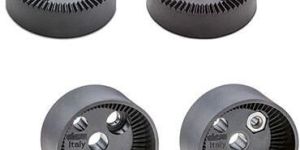

Toothed clamping elements Special glass-fibre reinforced polyamide based (PA) SUPER-technopolymer, black colour, matte finish. The toothed clamping elements RDB-F and RDB-B, coupled between them or with the executions RDB-CF or RDB-CB, allow to lock the position of two components rotating around an axis.

Toggle, Power and Hook Clamps GN 810 vertical acting toggle clamps work according to the toggle principle: lever and clamping bar move in the same direction. In the clamped position the operating lever is in its vertical position. Vertical acting toggle clamps in the U-bar version with two flanged washers (Type A) can accommodate an application specific clamping screw. A spindle assembly with neoprene rubber tip is also included for Type C.

Threaded plugs The gaskets in types AC and AA correspond to the gaskets DIN 7603, zinc plated, nano-passivated, ultrasonically and tensile tested, Tensile strength class 5.8.

Threaded flanges Threaded flanges GN 3490 are used in connection with T-slot profile systems and allow elements to be assembled on or underneath the profiles, e.g. levelling feet. Depending on the threaded flange, thread size and thread depth dimensions that are available can exceed the dimensions of the profile groove.

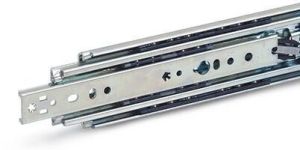

Telescopic slides Telescopic slides GN 1440 are installed vertically and in pairs. The stroke reaches ≈ 100 % of the nominal length l1 (full extension). Patented plastic ball cages ensure extremely smooth running of the slide.All mounting holes are easy to reach through auxiliary holes. Only the mounting holes are shown, but other production-related holes may be present.

Tapered handles Fit the P.390 handle onto slight chamfered shaft end and push as far as possible by hand or by means of a small press. Alternatively it is possible to tap the handle with a plastic or wooden mallet until firmly in place. In this case we strongly recommend to use a cloth or other suitable soft material over the product to avoid any surface damage.

Swivel clamp connector bases The center to center mounting hole distance m of the swivel clamp connector bases GN 485 matches the base plate clamp mountings GN 473, clamp mountings GN 477, flanged bolts GN 480 as well as retaining magnets GN 51.6. Swivel clamp connector bases GN 485 can be combined with swivel clamp mountings GN 482, T-swivel clamp mountings GN 483 and attachment clamp mountings GN 484 with the same k dimensions into swivel clamp mounting joints. Clamping kits GN 511.1 with screw (type S) and adjustable hand lever (type K) are available to connect the joints and bases (code no. for ordering is shown in the dimensional table).

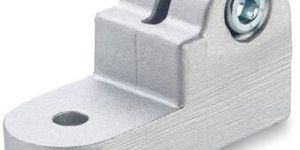

The clamping bore of GN 275 swivel clamp connectors is mechanically machined and designed for construction tubes GN 990 or DIN 2391, DIN 2395 and DIN 2462 respectively. The standard version of the clamping screw is a socket cap screw with hexagonal socket DIN 912. It can be replaced by a clamping kit GN 911 (article code see table of dimensions). GN 275 swivel clamp connectors can be assembled with swivel clamp connectors GN 271, GN 273 or GN 277 to create swivel clamp connector joints.

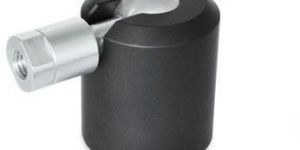

Swivel ball joints GN 784 swivel ball joints allow precise and variable adjustment of the ball pivot within the rotation range. This is a particular advantage when adjusting scanners, cameras, lighting, monitors, etc. Thanks to the efficient clamping mechanism, only small amounts of torque on the clamping screw result in comparatively strong clamping pressure on the ball. This force is easily applied by the clamping lever (Identification no. 1).

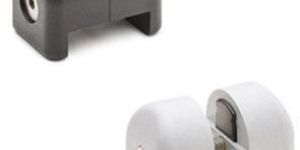

Support clamp for panels and electro-welded mesh AISI 304 stainless steel countersunk head screw (UNI 5933) and M5 nut. PPR: for the mounting of panels, without vibration-damping elements.
