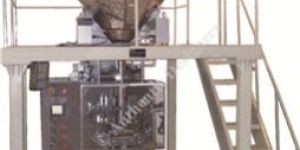

We are offering granule pouch packing machine.
Fully automatic mechanical operated vertical pouch form fill & seal high speed collar type machine to pack 'granules products' such as grains, rice, wheat, pulses, sugar & other essential commodities etc in any heat seal-able centre seal pillow laminated poly pouches via-a-vise polyester/ polyethylene/ai-foil etc. With telescopically volume adjustment volumetric cup filler system. Machine supported on angular steel structure wrapped with stainless steel cabinet all contact parts, hopper etc are made out of stainless steel.
application : ideal to suit to pack free flow granules products like grains, rice, wheat, pulses, sugar, coffee beans, dust tea, nuts, agriculture seeds & other essential commodities etc.
optional attachments: nitrogen gas flushing system, perforation / strip cutting system, batch printing device, inclined belt feeder, poking device etc.,
technical specification
feeding head
telescopically volume adjustable volumetric cup filler
production speed
40 —45 sachets / min.
Packing range
50, 100 & 250grams
film width
up to 290 mm.
Film thickness
75 to 100 micron.
Film material
any laminated films
sealer heating system
continues
filling accuracy
+/- 2 grams
inner core dia. Of film roll
70mm.
Outer dia. Of the film roll
upto 350mm
pouch style
over lap center seal pillow type.
Pouch width
up to 130 mm
pouch length
up to 240 mm.
Power consumption
1kw/hour
peak power
2.5kw.
Power requirement
three phase, 415v, 50hz + neutral
pouch counter
provided.
Photocell
inclusive
batch coding
optional
machine dimensions
2715 (h) x 1100 (w) x 1910 (depth)
net weight
750 kgs (approx).
note : due to continues r & d and to match specific application technical parameters are subject to change without any prior notice.
Payment Mode TermLC(Letter of credit)TT(Bank Transfer)
ShippingRoad/Air/Sea
Port of DispatchDelhi
PackingStrong Wooden Packing
Delivery Time30 Day
application:
kurkure, chips,namkeen ,seeds,wafers,dry fruits ,kaju ,badam ,pishta ,kismis,whole spice ,khajur ,aloo bhujia ,poha penuts ,rice ,rajma ,chole ,tea & suger all products
feature:
sealing: center seal type.
p.l.c. Controlled system.
pneumatic technology used for efficient pouch sealing.
filling system: 10 head multi weigher.
digital temperature controller (pid type).
touch screen display for parameter setting.
all contact parts are of stainless steel.
all around stainless steel covering.
bulk & fine feeding by mode of vibrators.
compact and robust machine.
microprocessor based digital panel.
very simple operation and low maintenance
multi head weigher specification
max weight: 1000 grams (per single dump).
measuring method: load cell based combination weighing
weighing accuracy: ±0.5 – 5 gram.(depending on the grain size of various
variety of products)
digitals sensors enhance the speed, accuracy & anti jamming capability.
perfect combination of high speed & high accuracy.
the opening and closing speed of weigher happens can be adjust to be avoiding material
falling into pieces or being blocked.
stainless steel with ip65 water proof, dust proof and erosion proof design keeps the
accessories hygienic.
step motor drive with speed control.
the function of data statistics an make records such as pack no pass rate average error
of each pack etc.
each linear feeder amplitude can be auto / manual adjustable will ensure the product’s
easy flowing with high accuracy.
liquid crystal and touch screen with optional language makes it easy to operate.
speed: up to 25 – 35 packs per minutes. (depending on the grain size of various variety of products)
filling heads: 10 heads. Structure: stainless steel.
power: 1.0 kw.
frame protection: ip – 65.
preset program: 50
display screen: color display, 5.7” lcd with digital input keypad.
power supply: 220 v, 50 hz.
optional
nitrogen fleshing systems
bucket elevator
flap conveyor
