                TFS 2100E -TRAVELLING WAVE FAULT LOCATOR SYSTEM     The new ISA TFS 2100E system is the most accurate and easy to install travelling wave fault locator system. The all-in-one solution for the HV network fault location, the system is made of: TDU 100E: the device installed at substations. TAS 2100E: the software installed into the Master Unit. Main features: The all-in-one solution for the HV network fault location Accuracy: location error less than ± 50m (less than one tower) Fast: the fault is located in few milliseconds Unaffected by fault resistance The GPS synchronization is embedded into TDU 100E Suitable for all kind of power lines AC and DC Automatic distance to fault calculation The Wide area fault location collects data from the whole network The location is performed directly on the network map Unlimited number of monitored lines Reduce overhead lines outage time Non intrusive installation and easy to set up Master Station software for distance to fault calculation and analysis Connection types available: INTERNET, MODEM and POINT TO POINT Substation connection also via the IEC61850-8 interface.

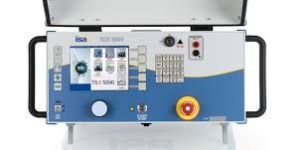

TDX 5000 is developed as a compact solution for high voltage Capacitance and Tan Delta (Dissipation Factor) measurements. Using the reactor option, TDX 5000 can also perform tests on rotating machines.

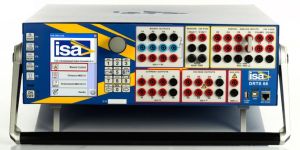

This protective relay test set is designed to give the commissioning engineers a multitasking and highly reliable testing equipment. Test results and settings saved into local memory TD 1000 Plus model with two current outputs and high power at 15 Hz.

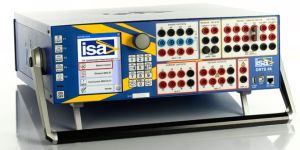

DRTS 66 - THE NEW GENERATION OF TEST EQUIPMENT FOR PROTECTIVE RELAYS, ENERGY METERS, TRANSDUCERS AND POWER QUALITY METERS     This advanced secondary injection relay test system and power system simulator is designed to satisfy all the needs related to commissioning and maintaining substations and to testing protection relays, energy meters, transducers and power quality meters. Main features: Manual control with color display Simultaneously available: 6 Current and 6 Voltage plus 1 battery simulator outputs   High current outputs : 6 x 32 A, 3 x 64 A,1 x 128 A High power outputs: 6 x 430 VA, 3 x 860 VA, 1 x 1000 VA Voltage outputs: 6 x 300V at 100 VA High accuracy outputs: better than 0.05% IEC 61850 protocol interface USB and Ethernet interface Pen drive interface End to end test with GPS or IRIG-B Advanced testing and data management software TDMS Complete library of relays from the major manufacturers.

Fully automatic RCTD - compensating reactor module allows increasing the test current and getting the maximum test voltage with high capacitive burdens Tan Delta, capacitance, dissipation factor measurements and for exciting current test Variable output frequency: 15 - 500 Hz 2000 V AC high-pot test Local control by large color display PADS - Power Apparatus Diagnostic Software for automatic testing, assessment and report IEC 61850-9-2 communication protocol Patented technology for Capacitance and Tan Delta measurement USB interface and Ethernet interface for PC connection Compact and lightweight. For USA and Germany only STS 3000 light with TD 5000 and/or TDX 5000 models are available.

This substation testing device is designed to grant high current output when needed in substation commissioning activities. Designed for primary injection testing of protection relays and circuit breakers, for commissioning and revamping of substations and electrical network Modular design for easy transport

This advanced secondary injection relay test system and power system simulator is designed to satisfy all the needs related to commissioning and maintaining substations and to testing protection relays, energy meters, transducers and power quality meters. Main features: High accuracy outputs: better than 0.05% IEC 61850 protocol interface USB and Ethernet interface Pen drive interface End to end test with GPS or IRIG-B Advanced testing and data management software TDMS Complete library of relays from the major manufacturers.

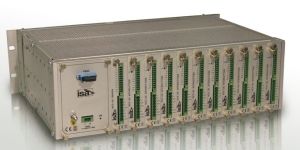

CB Monitor is a cost-effective on line diagnostic system specifically designed to monitor up to 10 MV and HV circuit breakers simultaneously. CB Monitor verifies continuously the following parameters: Auxiliary contacts opening and closing time Auxiliary contacts bouncing times SF6 Density trend (optional) Temperature (optional) Accumulated fault current during arcing time (I2t) Open and close current profiles Mechanism operating time (optional) Battery voltage.

SFRA 5000 is a standalone sweep frequency response analyzer for the high accuracy transformer analysis and integrates the STS and TD 5000 family test sets. The SFRA 5000 offers both high precision and portability in a single package, providing all the accessories required for fast, easy to use, reliable and repeatable measurements. Without the need for a PC to compare transformer fingerprints, the SFRA 5000 decreases test time enabling the engineer to complete testing in a much shorter period of time than previously possible. SFRA 5000 is provided with its own embedded software, giving the possibility to the engineer to zoom into a portion of the sweep in order to inspect any differences in the plot in more detail during or after a sweep. This enables diagnosis of transformer faults early on in a transformer sweep, without the need for a PC.

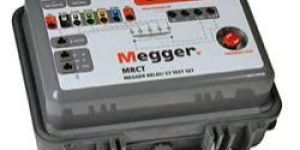

This portable current transformer test set allows to perform many different measurements such as saturation, ratio and polarity tests and CT winding resistance test. Substation maintenance and commissioning test equipment T 2000 is extremely appreciated by electrical engineers for its high accuracy and portability.

The ultimate all-in-one circuit breaker analyzer: safer, faster and more accurate than ever. It allows any timing test, motion and speed analysis, multiple contemporary static and dynamic contact resistance measurements, Both Sides Grounded (BSG) tests, Undervoltage condition test and more. All these functions are integrated in a single lightweight test case without the need of connecting additional external modules.

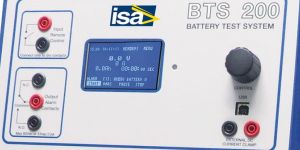

This testing and maintaining battery system allows to perform measurement of battery voltage, discharging current test and testing of battery capacity. BTS 200 can be connected with external load unit ELU 200. High power battery capacity test system Discharging current up to 1300A with external loads (up to 9) Graphical display showing test parameters, curves and results Internal memory Light and easy to carry, with handles and wheels Shunt or clamp metering of an additional current Suitable for all battery types.

The ultimate all-in-one circuit breaker analyzer: safer, faster and more accurate than ever.  It allows any timing test, motion and speed analysis, multiple contemporary static and dynamic contact resistance measurements, Both Sides Grounded (BSG) tests, Undervoltage condition test and more. All these functions are integrated in a single lightweight test case without the need of connecting additional external modules. Faster: one single connection set up to perform automatically all possible Circuit Breaker tests Safer: Both Side Grounded feature without any additional external boxes/modules Three/Six/Nine static and dynamic contact resistance measurement – 200A DC output each Three phase first trip measurement 16 or 24 fully user configurable Main/PIR and auxiliary input contacts 2, 4 or 6 Open / Close coil commands 3 analog linear/rotary transducers and 3 digital transducers inputs for travel/ speed analysis 8 analog input measurements: battery voltage, motor current, pressure transducers and other measurements Minimum voltage trip coil test, fully automatic On-screen control and test results evaluation TDMS software suite for analysis, archiving and test report creation Library of standard test plans available with the test sets

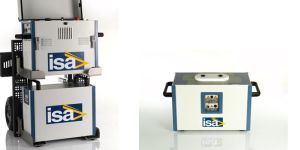

                  STS 5000 -MULTIFUNCTION SUBSTATION MAINTENANCE & COMMISSIONING TEST SYSTEMS FOR CURRENT, VOLTAGE AND POWER TRANSFORMERS     This primary current injection testing system is designed to perform primary tests requested in substations commissioning. It allows to perform accurate tests on CTs, VTs, PTs and ground grid. Fully automatic Primary injection testing capabilities: up to 800 A or up to 5000 A / 7000 A, with the optional module BUX 5000 Variable output frequency: 15 - 500 Hz Power dissipation factor test with the optional module TD 5000 ( voltage up to 12 kV) 2000 v AC high-pot test Local control by large color display PADS - Power Apparatus Diagnostic Software for automatic testing, assessment and report IEC 61850-9-2 communication protocol Patented technology for Capacitance and Tan Delta measurement USB interface and Ethernet interface for PC connection. Compact and lightweight. For USA and Germany only STS 3000 light with TD 5000 and/or TDX 5000 models are available.
