Power System Control Noida, Uttar Pradesh

TYPE : Current Transformers are normally categorized as Ring / Bar type and Wound Primary Ring / Bar type current transformer : A current transformer where primary winding is provided by ‘the user. Wound primary current transformer : A current transformer having a primary winding of more than one full turn wound on core. Current Transformers are wound on Toroidal cores which virtually eliminates error due to leakage flux. Adjusting the number of secondary turns may compensate for some errors

Accuracy Class : 1 or 3

Rated Voltage : 0.66 KV

Brand Name : POWER SYSTEM CONTROL

Material : CRGO

TYPE : Current Transformers are normally categorized as Ring / Bar type and Wound Primary Ring / Bar type current transformer : A current transformer where primary winding is provided by ‘the user. Wound primary current transformer : A current transformer having a primary winding of more than one full turn wound on core. Current Transformers are wound on Toroidal cores which virtually eliminates error due to leakage flux. Adjusting the number of secondary turns may compensate for some errors.

Core Type : Ring Core Type CT

Rated Voltage : 0.66 KV

Brand Name : POWER SYSTEM CONTROL

Material : CRGO

Brand Name: Power System Control Model Number: PSC-OSG Usage: Electronic Phase: Single Phase Coil Structure: TOROIDAL Coil Number: AUTOTRANSFORMER Input Voltage Range: 220V Frequency: 50-60Hz Output voltage: 200V, 110V or custom output efficiency: 98% Protection: Overvoltage, Low-voltage, Overload, overcurrent Protection system: Over Voltage, Low Voltage Color: Gray Working Temperature: 20~45℃ humidity: 0-95%

Usage : Electronic

Phase : Single Phase

Coil Structure : TOROIDAL

Frequency : 50-60Hz

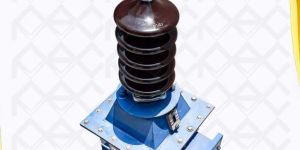

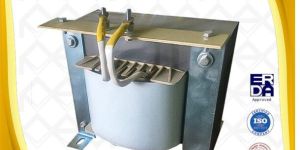

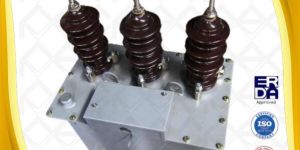

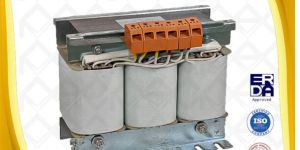

direct measurement of voltage in high voltage system is not possible because of insulation problem of measuring instruments. it is also not possible to use direct voltage for the system protection purpose due to its high value and high insulation problem protective relays. therefore voltage transformers are used to step-down the high system voltage to low standard value accurately in proportion to their ratio. in order to retain remarkable position in this industry, we are providing a wide array of 11kv ht voltage transformers

Brand Name : POWER SYTEM CONTROL

Secondary Voltage : 110V/220V

Phase : Three  Phase

Input Voltage : 11KV

Accuracy Class : 1.0, 3P

Output Voltage : 110V-190V

Direct measurement of voltage in High Voltage System is Not possible because of insulation problem of measuring instruments. It is also not possible to use direct voltage for the system protection purpose due to its high value and high insulation problem protective relays. Therefore voltage transformers are used to step-down the high system voltage to low standard value accurately in proportion to their order to retain remarkable position in this industry, we are providing a wide array of 33KV HT VOLTAGE TRANSFORMERS

Output Voltage : 110V

Accuracy Class : 3P, 0.5, 10, 0.2

Input Voltage : 33KV

Phase : Single Phase

Secondary Voltage : 110V/220V

Brand Name : POWER SYTEM CONTROL

Power : 20VA 30VA 50VA 100VA,36KV

Our team is delicately engaged in offering an assortment of Wound Primary Current Transformer. These products are made-up using the best quality raw material and modern technologies following international norms. We perform rigorous quality check based on various parameters to eliminate defects, if any. This product is highly demanded among customers owing to its reliable performance. We offer this product to our valuable customer at reasonable rates.

Number Of Flower : Wound Primary Current Transformer

Material : Best Quality Raw Material

Usage : Current Measurement

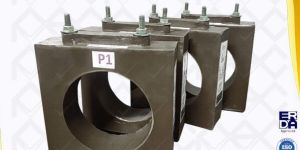

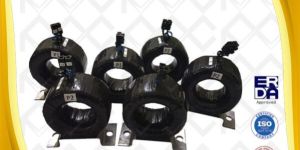

A range (6 standard silicon steel core models) tape wrapping current transformer. It is low cost. This model current transformer is also wildly used in Southeast Asia countries. It can be operated with or without foot and plastic cover.

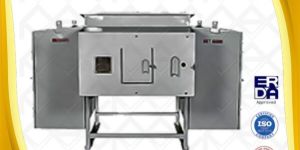

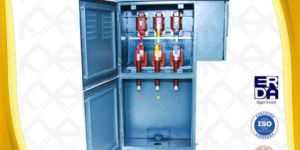

We manufacture and supply Metering Cubicles upto 33KV as per DISCOM standards where metering is done in 3 phase 4 wire system employing 3 current transformers and 3 voltage transformers. Required space is provided for entry of H. T. cable from the bottom through detachable gland plates. Bus bars are epoxy encapsulated. Canopy will be provided for outdoor type metering cubicles. The Current and Potential Transformers used in these panels are Accuracy tested at National Accredited testing laboratory The panel contains the equipment and components complete with: Bus bar interconnections Control wiring Designation labels Caution notices Electricity Board sealing Pad locking facilities Dimension 33KV

Phase : Three Phase

Brand Name : Power System Control

direct measurement of voltage in high voltage system is not possible because of insulation problem of measuring instruments. it is also not possible to use direct voltage for the system protection purpose due to its high value and high insulation problem protective relays. therefore voltage transformers are used to step-down the high system voltage to low standard value accurately in proportion to their ratio. in order to retain remarkable position in this industry, we are providing a wide array of 11kv ht voltage transformers

Power : 12KV

Brand Name : POWER SYTEM CONTROL

Secondary Voltage : 110V/220V

Phase : Three  Phase

Input Voltage : 11KV

Accuracy Class : 3P, 0.5, 10, 0.2

Output Voltage : 110V

Transformer Type : Oil Cooled

Brand Name: Power System Control Model Number: PSC-OSG Usage: Electronic Phase: Single Coil Structure: TOROIDAL Coil Number: AUTOTRANSFORMER Input Voltage Range: 220V Frequency: 50-60Hz Output voltage: 200V, 110V or custom output efficiency: 98% Protection: Overvoltage, Low-voltage, Overload, overcurrent Protection system: Over Voltage, Low Voltage Color: Gray Working Temperature: 20~45℃

Usage : Electronic

Phase : Single

Frequency : 50-60Hz

Output Voltage : 200V, 110V Or Custom

Brand Name: Power System Control Model Number: PSC-OSG Usage: Electronic Phase: Three Phase Coil Structure: TOROIDAL Coil Number: AUTOTRANSFORMER Input Voltage Range: 220V Frequency: 50-60Hz Output voltage: 200V, 110V or custom output efficiency: 98% Protection: Overvoltage, Low-voltage, Overload, overcurrent Protection system: Over Voltage, Low Voltage Color: Gray Working Temperature: 20~45℃ humidity: 0-95%

Usage : Electronic

Frequency : 50-60Hz

User friendly design Trouble free performance Longer service life Maintenance free Durable finish Direct measurement of voltage in High Voltage System is Not possible because of insulation problem of measuring instruments. It is also not possible to use direct voltage for the system protection purpose due to its high value and high insulation problem protective relays. Therefore voltage transformers are used to step-down the high system voltage to low standard value accurately in proportion to their ratio. In order to retain remarkable position in this industry, we are providing a wide array of 11KV FIVE LIMB RESIDUAL VOLTAGE TRANSFORMER.

Power : 12KV

Brand Name : POWER SYTEM CONTROL

Secondary Voltage : 110V/-1900V

Phase : Three  Phase

Input Voltage : 11KV

Accuracy Class : 3P, 0.5

Output Voltage : 110V

When the ratio is low it becomes difficult to obtain good results with the single primary turn. For that purpose wound primary CT’s are used where both primary and secondary turns is wound on the toroidal core. The ranges available are from 5/5 A to 100/5 A. Also Secondary 1 A can be provided. Optional mounting arrangements are provided as the CT is mounted between two bakelite plates and brass terminals are provided for connections of primary & secondary.

Core Type : Ring Type CT

Phase : Single Phase

CT Ratio : Customized

Rated Voltage : Customized

Rated Power : Customized

Material : Mild Steel

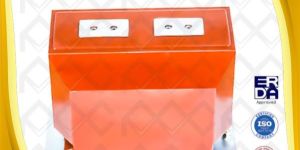

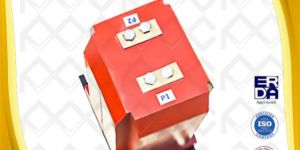

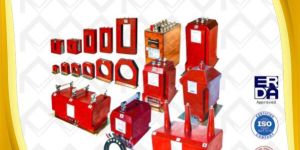

We are recognized as a successful manufacturers, exporters and traders of Current Transformers – CT. It is a static machine used for transforming power from one circuit to another without changing frequency. it is generally used in transmission network which is normally known as power transformer, distribution transformer is used in distribution network and this is lower rating transformer and current transformer & potential transformer, we use for relay and protection purpose in electrical power system and in different instruments in industries are called instrument transformer.

Phase : Single Phase

Brand Name : Power System Control

Material : Epoxy Resin Cast

CT Ratio : 800-400/5A,Bar CT, Ring Core Type CT, Wound CT

We are recognized as a successful manufacturers, exporters and traders of Current Transformers – CT. It is a static machine used for transforming power from one circuit to another without changing frequency. it is generally used in transmission network which is normally known as power transformer, distribution transformer is used in distribution network and this is lower rating transformer and current transformer & potential transformer, we use for relay and protection purpose in electrical power system and in different instruments in industries are called instrument transformer.

Phase : Single Phase

Brand Name : Power System Control

Material : Epoxy Resin Cast

CT Ratio : 800-400/5A,Bar CT, Ring Core Type CT, Wound CT

We are recognized as a successful manufacturers, exporters and traders of Current Transformers – CT. It is a static machine used for transforming power from one circuit to another without changing frequency. it is generally used in transmission network which is normally known as power transformer, distribution transformer is used in distribution network and this is lower rating transformer and current transformer & potential transformer, we use for relay and protection purpose in electrical power system and in different instruments in industries are called instrument transformer.

Core Type : Bar CT

CT Ratio : Bar CT, Ring Core Type CT, Wound CT

Phase : Single Phase

Brand Name : Power System Control

Material : Oil Cooled

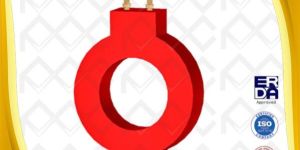

These transformers are used for over current and undercurrent relaying for power circuit protection TYPE : Current Transformers are normally categorized as Ring / Bar type and Wound Primary Ring / Bar type current transformer : A current transformer where primary winding is provided by ‘the user. Wound primary current transformer : A current transformer having a primary winding of more than one full turn wound on core. Current Transformers are wound on Toroidal cores which virtually eliminates error due to leakage flux. Adjusting the number of secondary turns may compensate for some errors.

Core Type : Ring Core Type CT

Rated Voltage : 0.66 KV

Brand Name : POWER SYSTEM CONTROL

Material : CRGO

user friendly design trouble free performance longer service life maintenance free durable finish direct measurement of voltage in high voltage system is not possible because of insulation problem of measuring instruments. it is also not possible to use direct voltage for the system protection purpose due to its high value and high insulation problem protective relays. therefore voltage transformers are used to step-down the high system voltage to low standard value accurately in proportion to their ratio. in order to retain remarkable position in this industry, we are providing a wide array of 11kv ht voltage transformers

Output Voltage : 110-190V

Phase : Three Phase

Accuracy Class : 0.5, 0.1, 3P

Frequency : 50HZ

Country of Origin : Made in India

Minimum Order Quantity 1 Unit Accuracy Class 0.5, 0.2, 0.2S/5P10/5P15/5P20/PS, 10 Power Rating 33KV Core Type OUTDOOR TYPE Brand Power System Control Phase One Phase Rated Voltage 36KV Material MS CT Ratio 400-200/5-5A Color As per your requirement 36KV HSV Rated Power (VA) 15VA 20VA 30VA 40VA 50VA Rated Burden 15VA 30KV 40KV 50KV 100KV Frequency 50-60Hz Certification ISO Standard IS 2705/1992, IEC 60044-1

Core Type : OUTDOOR TYPE

Brand Name : Power System Control

Phase : One Phase

Rated Voltage : 36KV

Material : MS

CT Ratio : 400-200/5-5A

Packaging Type : As Per Your Requirement

Frequency : 50-60Hz

Certification : ISO

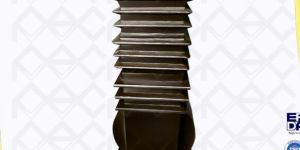

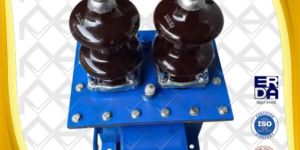

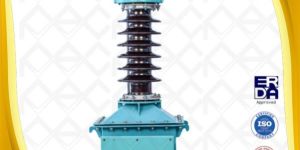

33KV Cooled Outdoor type Current Transformers are used for electrical measuring instruments and / or electrical protective devices. They are very useful in high power circuits where the current is large. Our range of transformer know for their efficiency and better performance. MEASURING CURRENT TRANSFORMERS These transformers are used in measuring and indicating current, that is to reduce the line current to a value which is suitable for standard measuring instruments, relays etc. PROTECTIVE CURRENT TRANSFORMERS These transformers are used for over current and undercurrent relaying for power circuit protection TYPE : Current Transformers are normally categorized as Ring / Bar type and Wound Primary Application: Electronic, Instrument Type: Current Transformer Phase: Single Operation Condition: Oil Cooled Outdoor Type Usage: Protection, Measurement Winding Form: Single Layer & Tightly Wound Type Frequency : 50Hz Year of Mfg. 2022 Standard: IS 2750/1992, IEC – 60044

Phase : Single

Frequency : 50Hz

Minimum Order Quantity 1 Unit Accuracy Class 0.5, 0.2, 0.2S/5P10/5P15/5P20/PS, 10 Power Rating 33KV Core Type OUTDOOR TYPE Brand Power System Control Phase One Phase Rated Voltage 36KV Material MS CT Ratio 800-400/1-1A Color As per your requirement 36KV HSV Rated Power (VA) 15VA 20VA 30VA 40VA 50VA Size 1000MMX300MM Rated Burden 15VA 30KV 40KV 50KV 100KV Frequency 50-60Hz Certification ISO

Core Type : OUTDOOR TYPE

Brand Name : Power System Control

Rated Voltage : 36KV

Material : MS

CT Ratio : 800-400/1-1A

Packaging Type : As Per Your Requirement

Frequency : 50-60Hz

Certification : ISO

We manufacture and supply Metering Cubicles upto 33KV as per DISCOM standards where metering is done in 3 phase 4 wire system employing 3 current transformers and 3 voltage transformers. Required space is provided for entry of H. T. cable from the bottom through detachable gland plates. Bus bars are epoxy encapsulated. Canopy will be provided for outdoor type metering cubicles. The Current and Potential Transformers used in these panels are Accuracy tested at National Accredited testing laboratory The panel contains the equipment and components complete with: Bus bar interconnections Control wiring Designation labels Caution notices Electricity Board sealing Pad locking facilities Dimension 33KV

Country of Origin : 33KV

Material : Epoxy Encapsulated Bus Bars

Usage/Application : Metering

System Voltage 33KV Ip Up to 1200A uIs = 5 or 1 A Up to 3 cores Ith up to 36kA Burden : Up to 50VA Accuracy : 0.2/0.2S/0.5/0.5S/1.0 Lightning Impulse Voltage 36/75/170 kVp. Brand : Power System Control Country of Origin : India Category : Current Transformer Group : Instrument Transformer Standard: IS 2705, IEC-60044 Category: Current Transformer

System Voltage : 33KV

Number Of Cores : Up To 3

Manufacturing and trading of supreme quality 33KV Current Transformer have helped us achieve a very high level of trust in the market. These are designed with smaller cores and VA capacities than power transformers. This causes metering power transformers to saturate at lower secondary voltage outputs saving sensitive connected metering devices from damaging large voltage spikes found in grid disturbances. They are designed to present a negligible load to the supply being measured and have an accurate voltage ratio and phase relationship to enable accurate secondary connected metering.

Core Type : OUTDOOR TYPE

Brand Name : EREVA ABB CROMPTON SCHNEIDER SIEMENS L&T

Phase : One Phase

Rated Voltage : 36KV

Material : MS

CT Ratio : 3000-1500/1-1-5-5-0.577A

Packaging Type : 36KV HSV
