Precocity Automation System Sector 1, Noida, Uttar Pradesh

Even for the need to test the vibration resistance of components and assemblies, we have suitable equipment designed especially for such purpose – Vibration Test Branches. We are one of the top-notch Manufacturers and Suppliers of Vibration Test Benches in Noida, Uttar Pradesh. These Test Benches are fitted with the latest technology to conduct the tests. And for quality, they undergo stringent testing stages. And, the best part is that these Test Benches are economically priced. Some Specifications of Vibration Test Benches are as Follows : Control : Nagano keiki sensor and controller Check loose part if any part is loose during assembly of component. Check part missing during assembly of component. Tactile types system for part missing.

*Signal Isolation Transducer / Universal         Converter*Single or dual outputs*Auxiliary Supply - Self Powered, 110/240VAC, 24/48/110/220V DC*Power Consumption - 3.5 VA - AC,4 VA - DC*Accuracy - 0.5%Input Value*I in - 0-1,0-5,0-10,0-20,4-20mADC Signals*mV DC in - 0-30,0-60,0-75,0-100mV DC*V DC in - 0-1,0-5,0-10,0-30,0-150,0-300,0-600V DCOutput Value*DC Output(Single / Dual) - 0-5,0-10V*DC Output(Single / Dual) - 0-1,0-10,0-20,4-20mA

Pressure Pulsation Test Bench are coming to the aid of industries that are engaged in performing pressure pulsation testing of dischargers, suction hoses, condensers, tank receivers, heat exchangers, tube liquids, etc., which are fitted in the A/Cs. These Test Benches are 100% compliant with quality standards. We are often called as the best Manufacturer and Supplier of Pressure Pulsation Test Benches in Noida, Uttar Pradesh. Main Features of the Machine are : PC based system with Lab VIEW software & NI data acquisition cards for measuring process parameters. Safety chamber with temperature control up to 140oC and oil temperature control to simulate real test conditions for components under test. Pressure pulsation testing up to four components at a time of max. 1500 ml capacity. Hydraulic power pack for generating test pressure up to 14 - 100 bar, pressure pulsation control using accumulators. Pressure from pulsation testing acquired, displayed and controlled under set time and pressure limits for different models. Components are put under test for settable number of cycles normally ranging up to 1, 00,000 & above. Data logging of Parameter for analysis

We have specialized in fabricating high-quality Power Window Test Benches for testing the endurance and fatigue provision of motors that are used in power windows. We are emerging as the promising Manufacturer and Supplier of Power Window Test Benches in Noida, Uttar Pradesh. The Test Benches are innovatively designed and precisely developed. They are engineered to deliver optimal performance throughout their span. To avail them at economical prices, contact us!Main Features of the Test Bench are : PC Based system with NI DAQ cards and Lab VIEW software for data acquisition and interactive user interface. Motor to be Tested are employed on power windows with all 4 doors and motor performance is monitored for set number of cycles, thus simulating real test conditions. Current being drawn by motors monitored as per set limits. Speeds of power windows are also monitored. Data logging being done for motor performance analysis.

* Molded Panel Hole Mount USB-3.0 1     Connector* Model - PAS PM USB3.0 1

* Unmolded Panel Hole Mount USB-3.0 0     Connector* Model - PAS PM USB-3.0 0

* Molded Panel Hole Mount USB-2.0 1   Connector* Model - PAS PM USB2.0 1

* Unmolded Panel Hole Mount USB-2.0 0   Connector* Model - PAS PM USB2.0 0

* Panel Hole and Screw Mount USB Connector* Model - PAS-DH-USB3.0               PAS-DH-USB3.1

* Panel Hole and Screw Mount USB Connector* Model - PAS-LP-USB-PE01               PAS-LP-USB-SX01

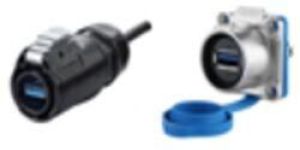

* Panel Hole and Screw Mount USB Connector* Model - PAS-LP-USB-P3.0               PAS-LP-USB-S3.0

Our Motor Test Benches are ideal for testing the performance of motors that come fitted in the blowers of automobiles. These Test Benches are appreciated for conducting crucial measurements and tests. They are also trusted for bringing about reliable results. We make them available all over the country in time-efficient manner. We are recognized as the renowned Motor Test Benches’ Manufacturer and Supplier in Noida, Uttar Pradesh. Main Features of the Test Bench : Measurement of Motor current & waveform at No Load. Measurement of current, RPM, direction of rotation at specified load as per different models. Insulation Resistance test at 600 Volts AC. Test parameters input conditions programmable. Hysteresis powder brakes for motor loading. PLC controlled operation, Oscilloscope for displaying measurements. “OK” & “NG” output after completion of test.

Based in Haryana, India, we are manufacturing and supplying vibration and bump test machine, also known as vibration test benches that are used to test the components and assemblies for vibration resistance.  Burst Pressure test bench is designed for testing hoses, evaporators, heat exchangers etc. used in auto air conditioning systems.  The Burst Test is used to determine the component’s weakest point.  It  is  performed  by  internally  pressurising  the  component  until  it  bursts  for Dynamic/ Static burst thus determining its "Burst Strength Resistance".   Main Features of the Test Bench are: Some specifications of hydrostatics burst test benches are as follows : PC based system with NI data acquisition cards for controlling with Hydrostatic pressure Interactive user interface is provided on a touch screen panel for an operator to set test parameters and interact with the system during the test. Hydrostatic test pressure ranging from 0 - 315 Kgf/cm2 for condenser and (0 – 10 Kgf/cm2) for radiator testing pressure control using air pressure control using electronic accessory. Safety chamber for component testing with the door. “Burst Pressure” capturing and displaying Interactive user interfaces for setting/editing test parameters Report generation after each Test as per requirement. “OK” and “NG” output after competition of test.

We bring forth the best-in-class HVAC Test Bench for the market across the country. We are one of the accomplished Manufacturers of Blower Motor Test Benches in Noida, Uttar Pradesh. These Test Benches come loaded with properties such as innovative design, durability, high performance, and longevity. They produce reliable test results. Count on us! Main Features of the Machine are : Checks the presence of 1, 2 or 3 resistances as well as MOSFET (as per models). Checks the current drawn by the blower with upper and lower limits band. Checks the position and current drawn by the FAD, Air Mix, Mode Servo Motor with upper and lower limits band with current limits as per applied constant voltage. PC Based system with NI DAQ cards, Lab VIEW software for monitoring and editing setting of different model test parameters. "OK” and “NG” Output after completion of test.

We cater to the demand for on-line machines for testing stator coils, which act as a component in automobile’s AC compressors, with our world-class HV Stator Test Benches. We are enlisted with the premier Manufacturers and Suppliers of HV Stator Test Benches in Noida, Uttar Pradesh. These Test Benches, which roll off our manufacturing units, are every inch the compliant machines. Buy them at competitive prices from us!Main Features of the Machine are : Fully PC based system, with NI Data acquisition cards & Lab VIEW software. Conducts 3 standard tests to check the quality of coil. Continuity & coil resistance test, checks the current drawn by coil with set limits. Insulation resistance test @ 600V AC - 1000V AC to check insulation quality of coil. High voltage layer short test @ 1500 V DC to check for any internal layers short or turns present in coil, by comparing acquired ringing waveform developed from coil under test with the master coil. “OK” & “NG” output after performing all tests and auto stamping on coil. Data logging for every coil tested during each shift for analysis point of view.

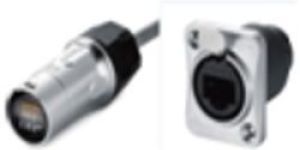

* Ethernet Panel Screw Mount Connector* Model - PAS-RJ45-11-01               PAS-RJ45-18-01

* Ethernet Panel Hole Mount Connector* Model - PAS-RJ45-10-01               PAS-RJ45-17-01

* Ethernet Panel Hole Mount Connector* Model - PAS-RJ45-05-01               PAS-RJ45-07-01

* Ethernet Panel Hole Mount Connector* Model - PAS-RJ45-03-01               PAS-RJ45-04-01

* Ethernet Panel Hole Mount Connector* Model - PAS-RJ45-13-01              PAS-RJ45-02-01

* Ethernet Panel Hole Mount Connector* Model - PAS-RJ45-01-01               PAS-RJ45-04-02

* SSR(Solid State Relay)Base With Heat Sink       W*L*H-53*82*60mm* Housing Material - Steel,Nickel Plated Finish* Mounting Thread - M6* Din Rail Size - 35mm versatile design* For Use With - Solid State Relay

  *Din-Rail Power SocketW*L*H53*82*60mm * Socket Housing Material - Polycarbonate * Din Rail Frame Material - ABS * Wire Clamp & Contact Material - Brass * Voltage Rating - 250V * Current Rating - 16A

* Din-Rail Power Socket W*L*H 53*82*60mm * Socket Housing Material - Polycarbonate * Din Rail Frame Material - ABS * Wire Clamp & Contact Material - Brass * Voltage Rating - 250V * Current Rating - 16A
