Roto Pumps Ltd. Sector 81, Noida, Uttar Pradesh

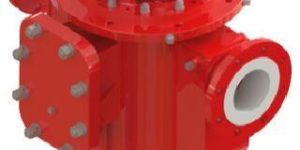

Roto’s Vertical Twin Screw Pumps are available in both external & internal bearing configuration. Pumps with steam jackteing as an option is also available. The suction & discharge ports are in a line. Mechanical seals are standard. Option for gland packing is also available. Pumps are fitted with relief valves suitable for 100% bypass. Brand Name - Roto Pumps Ltd. Vertical Internal / External Bearing RV series Capacities upto 500 m3/hr Pressures upto 40 bar These pumps are designed to suit the areas where space is a constraint. They are available in internal as well as external bearing configurations. These pumps can handle fluids with high temperatures upto 3500C / 6600F with or without steam jacketing, electrical/steam tracing arrangement as an option. API 682 type seals can be mounted. Built in safety relief valve designed for 100% bypass. MOC CASING: • Cast Iron, • Cast Steel, • Fabricated Steel • Fabricated Stainless Steel. LINER: • Case Steel, • Stainless Steel. SCREWS: • Alloy Steel • Stainless Steel, • Hardened Steel. TIMING GEARS: • Hardened Steel. OTHER EXOTIC MATERIALS: • Duplex • Super Duplex . SCREW SURFACE COATING: • Hard Chrome Plating. Price Range: Rs. 1.25 Lacs to Rs. 50 Lacs* * Minimum prices are mentioned for smallest model Bare Shaft Pump. Prices may vary for complete Pump set with motor & accessories and for exotic material options or customized pumps.

Material : Cast Iron

Pressure : 40 Bar

Brand Name : Roto Pumps

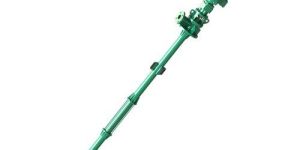

these vertical pumps are designed to operate with the pumping elements immersed in the product. These pumps are compact and space saving. They are custom designed and are manufactured for varying column length to suite the pump depth. The suction port of all the pump sizes are designed so that a strainer can be attached to prevent and large solids entering the pump. these pumps are available in only close coupled configuration. A variety of material of construction, shaft sealing options are also available. brand name - roto pumps ltd. single stage pump capacities upto 500 m3/hr pressures upto 12 bar these vertical pumps are designed to operate with the pumping elements immersed in the product. These pumps are compact and space saving. They are custom designed and manufactured for varying column lengths to suite the sump depth. vertical-single-stage multi stage pump capacities upto 500 m3/hr pressures upto 12 bar these vertical pumps are designed to operate with the pumping elements immersed in the product. These pumps are compact and space saving. They are custom designed and manufactured for varying column lengths to suite the sump depth. material options wettable housing components: • fabricated steel • fabricated stainless steel. stator: • natural • nitrile • high nitrile • epdm • chloro-sulphonated rubber • fluoroelastomer • aflas • hnbr. rotor: • tool steel • case hardened steel • alloy steel • stainless steel. coupling rod: • alloy steel • stainless steel. shaft: • alloy steel • stainless steel. other exotic materials: • duplex • super duplex • alloy 20 • haste alloy. rotor surface coatings: • ceramic coatings • tungsten carbide • hard chrome plating. protective coatings: • rubber lining • epoxy coatings. price range: rs.25000 to rs. 50 lacs* * minimum prices are mentioned for smallest model bare shaft pump. Prices may vary for complete pump set with motor & accessories and for exotic material options or customized pumps.

Country of Origin : 415V

Application : Industrial

Pressure : 48 Bar

Temperature : UP TO 150 DEG C

Roto’s horizontal external bearing Twin Screw Pumps find its suitability for handling fluid that shows different characteristics at different temperatures. These pumps are available in standard foot mounted & center-lined mounted configuration with or without steam jacketing arrangement. Guarantees reliable running and long life for all liquids whether it is neutral or aggressive. Mechanical seals are standard. Option for gland packing is also available. Pumps are fitted with relief valves suitable for 100% bypass. The suction and discharge ports are in-line. Brand Name - Roto Pumps Ltd. Web Link - https://www.rotopumps.com/pd-pumps/twin-screw-pumps/horizontal-external-bearing/External Bearing RE Pump Due to its external bearing mounted design, the product does not come in contact with the bearings and ensures long service life even with the corrosive or abrasive nature fluids. These 0 pumps can handle fluids with high temperatures up to 3500C / 0 6600F. API 682 type seals can be mounted. Built-in safety relief valve designed for 100% bypass. Material Options:Casing:• Cast Iron, • Cast Steel, • Fabricated Steel • Fabricated Stainless SteelLiner:• Case Steel • Stainless SteelScrews:• Alloy Steel • Stainless Steel, • Hardened SteelTiming Gears:• Hardened SteelOther Exotic Materials:• Duplex • Super DuplexScrew Surface Coating:• Hard Chrome PlatingPrice Range: Rs. 1.5 Lac-Rs. 50 Lacs* * Minimum prices are mentioned for smallest model Bare Shaft Pump. Prices may vary for complete Pump set with motor & accessories and for exotic material options or customized pumps.

Number Of Flower : Twin Screw

Material : Cast Iron

Application : Handling Industries

Pressure : 40 Bar

Brand Name : Roto Pumps

Brand Name : Roto Pump

Brand Name - Roto Pumps Ltd.pumps/tirrana-agricultural-pump/ Tirrana Agricultural Range Capacities 360 LPM Pressures 120 Meter Built on heavy duty and proven platform, The Tirrana range of helical rotor pumps offers a peace of mind solution to all types of surface water transfer duties Material Options Wettable Housing Parts: Cast Iron Rotor: Stainless Steel – 410, Hard chrome plated Stator: Natural, Nitrile Shaft and Coupling Rod: Stainless Steel – 410** * Above material options are standard for Tirrana Range, contact Roto for other material requirement ** With gland packing, Shaft is Hard chrome plated under gland area. Applications: · Ideal for tank filling or stock watering from dams, creeks, wells and rivers. · Can handle clean water, brown water, dirty water with sand, silt or algae. Price range: Rs. 25000 to Rs. 10 Lacs* * Minimum prices are mentioned for smallest model Bare Shaft Pump. Prices may vary for complete Pump set with motor & accessories and for exotic material options or customized pumps.

Country of Origin : 415V

Pressure : 12 Bar

Application : Ideal for tank filling or stock watering from dams, creeks, wells and rivers

Roto’s Dosing Pumps – The best choice for precise metering applications These pumps are developed for low flow applications that demand high accuracies and repeatability with unique advantages of smooth, laminar & pulsating free flow. These pumps can handle clean and clear liquids. A range of dosing pumps offering an efficient and reliable solution for applications where accurate dosing is required. The pump is ideal for either intermittent or continuous dosing duties. Product manufactured as per ISO 9001:2015 quality assurance standards and performance ranges available from 0.68 litres per hour (0.0029 GPM )to 460 litres per hour (2.02 GPM) and upto 24 bar pressure (348 PSI). Brand Name - Roto Pumps Ltd. Features & Benefits · Linear flow with low shear · Capacity is directly proportional to speed · Inherently self-priming · No internal valves – no clogging · Low NPSH required · Reversible · Suction lift capacity upto 9.5 meter water column · Easily changing pumping element for different capacities · Simple to operate · Highly efficient RJ Series Pump Capacities between 0.68 – 500 lph Pressures upto 24 bar These pumps are developed for low flow applications that demand high accuracies and repeatability. These pumps can handle wide variety of fluids ranging from clean and clear liquids to abrasive, corrosive, viscous and solid laden media. The repeatability accuracy has less than 1% fluctuation. Available in 6 capacities and 3 pressure ranges. Material Options WETTABLE HOUSING COMPONENTS: • Cast Stainless Steel. STATOR: • Natural • Nitrile• High Nitrile • EPDM• Chloro-Sulphonated Rubber • Fluoroelastomer • Aflas • HNBR. ROTOR: • Stainless Steel. COUPLING ROD: • Stainless Steel. SHAFT: • Stainless Steel. OTHER EXOTIC MATERIALS: • Duplex • Super Duplex • Alloy 20 • Haste alloy. ROTOR SURFACE COATINGS: • Ceramic Coatings • Tungsten Carbide • Hard Chrome Plating.   Price Range: Rs.25000 to Rs. 100,000** Minimum prices are mentioned for smallest model Bare Shaft Pump. Prices may vary for complete Pump set with motor & accessories and for exotic material options or customized pumps.

Number Of Flower : Chemical Dosing Pumps

Application : Chemical Supply

Availability : 50-100kg

Country of Origin : 415V

Condition : New

Total Carbohydrate : 1year

Brand Name : Roto Pumps

Application : Chemical Industry

Application : Chemical Supply

Pressure : 24 Bar

Structure : Single Screw Pump

Brand Name : Roto Pumps

Material : AS PER CUSTOMER REQUIREMENT

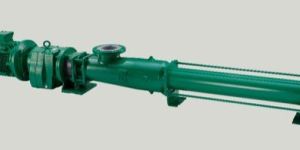

roto xtra value progressive cavity pumps are of heavy-duty construction and are designed to pump ‘tough – to – handle’ fluids with ease. These pumps are used in many areas of industry. The construction of these pumps is based on the modular concepts and incorporates next-generation pumping elements (molded to metal) stator, solid shaft and double sealed cardan universal joints for improved performance and longer service life. These pumps are available in bare shaft and close coupled configuration. 6 and 8 stages in select sizes. A variety of material of construction, shaft sealing options are also available. Brand Name - Roto Pumps Ltd. Web Link - https://www.rotopumps.com/pd-pumps/progressive-cavity-pumps/ single stage pump: this heavy-duty cost effective pumps use the extended rotor, stator geometry and result in lower rubbing velocities which are ideal for the sewage & effluent treatment applications. These pumps are available in close-coupled & bareshaft configuration. multi-stage pump: these heavy-duty pumps are designed for continuous or intermittent duty and are suitable to perform efficiently even for the most difficult fluid handling applications in wastewater,chemical, and food industries. These pumps are available in bare shaft and close coupled configurations. 6 and 8 stage pumps are also available in select sizes. wettable housing components: cast iron • cast stainless steel • fabricated steel • fabricated stainless steelstator: natural • nitrile • high nitrile • epdm • chloro-sulphonated rubber • fluoroelastomer • aflas • hnbrrotor: tool steel • case hardened steel • alloy steel • stainless steelcoupling rod: alloy steel • stainless steelshaft: alloy steel • stainless steelother exotic materials: duplex • super duplex • alloy 20 • haste alloyrotor surface coatings: ceramic coatings • tungsten carbide • hard chrome platingprotective coatings: rubber lining • epoxy coatings price range: rs. 25000 to rs. 20 lacs* * minimum prices are mentioned for smallest model bare shaft pump. Prices may vary for complete pump set with motor & accessories and for exotic material options or customized pumps.

Number Of Flower : Progressive Cavity Pumps

Certification : ISO 9001:2008 Certified

Pressure : 48 Bar

Structure : Screw Pump

Temperature : 150 Deg Cel

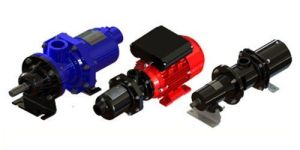

the most versatile pump for light industrial, agricultural & domestic applications uv resistant acetyl-co-polymer housing for pump sizes 11, 12 & 31 cast iron casing for pump sizes 41& 51.  brand name - roto pumps ltd.pump/features & benefits: flow is directly proportional to the speed suction lift capacity up to 8m minimal pulsation avoids damage to shear sensitive products can handle liquids with fine solids minimum impacts with efficiencies with varying heads simple in design and easy to dismantle low maintenance cost price range: rs. 10,000-rs. 30,000* * minimum prices are mentioned for smallest model bare shaft pump. Prices may vary for complete pump set with motor & accessories and for exotic material options or customized pumps.

Country of Origin : 236V

Brand Name : Roto Pumps

Material : As per customer

Frequency : 50/60 hz

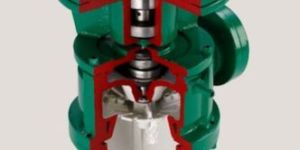

Brand Name - Roto Pumps Ltd. Web Link - https://www.rotopumps.com/pd-pumps/macerator/ cost effective way to protect pumps macerate the solid and fibrous components in pumped products . Increases operational safety, extends service life of downstream equipment and reduces operating costs. advantages to end users : optimal cutting performance less spare parts fewer spare parts reduced downtime for routine servicing process creation of pre-conditioned medium lower running costs typical applications : food products and waste slaughterhouse waste mud contaminated drill cutting municipal and industrial effluent treatment price range: rs.100000- rs.10,00,000*  * minimum prices are mentioned for smallest model bare shaft pump. Prices may vary for complete pump set with motor & accessories and for exotic material options or customized pumps.

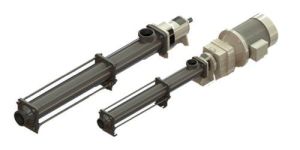

These pumps are designed for handling food applications. All metallic parts in contact with the medium being handled are fabricated in smooth finish stainless steel. These pumps are provided with metal bonded aseptic food grade elastomeric stator resistant to oil & fats. These pumps are standard with closed universal joints enabling it to handle fluids which are poor lubricants like aerated or dematerialized water as well as lubricating type applications. Available in close coupled and bare shaft configuration. Sealing is by Hygienic quality packed gland or Mechanical Seal. These pumps are also available with CIP port configuration. For high viscous and difficult to flow liquids these pumps are also available with wide throat configuration. Brand Name - Roto Pump Ltd. Single Stage Pump: These Heavy Duty semi-hygienic pumps are specifically designed for beverage transfer applications and can also be used for other Food & Beverages applications. Standard connections include IDF, SMS & RJT. Multi Stage Pump: These Heavy Duty semi-hygienic pumps are specifically designed for beverage transfer applications and can also be used for other Food & Beverages applications. Standard connections include IDF, SMS & RJT. Material options: Wettable Housing Components:• Fabricated Stainless Steel Stator:• Nitrile Black • Nitrile White • EPDM Black • EPDM White • Fluoroelastomer Rotor:• Stainless Steel Coupling Rod:• Stainless Steel Shaft:• Stainless Steel. Other Exotic Materials:• Duplex • Super Duplex • Alloy 20 • Haste alloy. Price Range: Rs. 50,000-Rs. 500,000* * Minimum prices are mentioned for smallest model Bare Shaft Pump. Prices may vary for complete Pump set with motor & accessories and for exotic material options or customized pumps.

Country of Origin : 415V

Pressure : 24 Bar

Temperature : UP TO 150 DEG C

Head : 24 meter

Power Source : Electric Motor

Fluid Temperature : 150 DEG C

Capacity : 86 m3/hr

Viscosity : UP TO 5000 cSt

Frequency : 50/60 HZ

Material : Stainless Steel

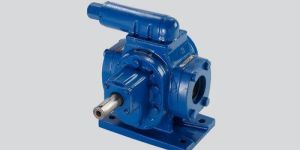

Gear Pumps are one of the most common types of positive displacement pump. They operate by an unchanging volume of fluid passing between the teeth of two meshing gears and their casing at a constant rate. As the gears rotate and the meshed teeth separate, a partial vacuum is formed that fills with fluid. As the gears continue to rotate, they trap the liquid and move it around the casing from the suction to the discharge point. Brand Name - Roto Pumps Ltd.

Number Of Flower : External Gear Pumps

Application : Commercial, Industrial

Availability : 0-25kg

Frequency : 50Hz, 60Hz

Driven Type : Electrical

Pressure : 10-15Bar

Phase : Single Phase, Triple Phase

Temperature : 0-100°C

Pump Speed : 1440Rpm

Flow Rating : 0-3000 LPH

Brand Name : Roto Pumps

Application : Oil Transfer

Power : AC Powered

Structure : External Gear

Brand Name - Roto Pumps Ltd. Web Link - https://www.rotopumps.com/pd-pumps/aodd-pump/ Fetaures and Benefits : Low Vibration Excellent abrasive liquid resistance very compact design up to 35% lower air consumption Operating in each position Dry running capability Low maintenance cost High strock frequency means low liquid pulsation Equipped with PEEK flat valves Low Noice Price Range: Rs.30000-Rs.100000*  * Minimum prices are mentioned for smallest model Bare Shaft Pump. Prices may vary for complete Pump set with motor & accessories and for exotic material options or customized pumps.

Number Of Flower : Air Operated Pump

Brand Name : Roto Pumps

Certification : ISO 9001:2008

Condition : New

Application : Industrial Use

Feature : Durable, Easy To Fit, Premium Quality, Rust Proof

Pressure : 10 Bar
