We are engaged in offering a wide array of CNC Turning Machine.
Price Range:Rs. 12.50 Lakh/Unit
Technical Specifications :
Working area
X axis 1300 mm
Y axis 2500 mm
Z axis 200 mm
Table size 1300mm*2500mm
Accuracy Processing precision 0.02mm Repositioning precision 0.02mm
Drove mode
X axis rack gear
Y axis rack gear
Z axis ball screw
Speed Max travel speed 30000mm/minMax engraving speed 20000mm/min
Spindle(Air-cooling) Spindle power 6 KW- Spindle speed 0—24000r/min
Running mode stepper/Servo
Operating voltage AC220V/50HZ
Command code G code
Operating system DSP/NC Studio/Delta/Centroid CNC System
General properties:

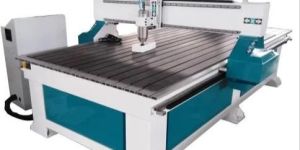

1. ModeL TCIPL 300 machine is specially designed for Advertisement and Woodworking. It has high precision, fast speed, cost-effective.
2. DSP/NC Studio/DELTA/Centroid (USA) Controller
3. Using automatic lubrication system, it’s convenient for maintenance.
4.Functions of power-off restoration, continuation on break point, Work Resume Function
5. XYZ axis adopt high-precision linear and square rail from Hiwin Taiwan. High-precision and durable no-clearance rolling ball screws for Z axis, it’s imported from Hiwin brand in Taiwan, rack
drive for X Y axis, high-precision, faster and better efficiency.
