2 Colour Lead Edge Feeder Flexo Printer Slotter Die Cutting with Stacker
4,000,000 - 15,000,000 / Set
- MOQ1 Set(s)
- Number Of FlowerFlexo Printer Slotter Machine, Automatic
- CertificationISO 9000
- Availability2000-3000kg
- Country of Origin380V
- ConditionNew
- Automatic GradeFully Automatic
- Total Carbohydrate1year,1year
- Brand NameNagpal Natraja
- ApplicationCorrugated Box Making
- After-Sales Service ProvidedYES
- flexo printer slotter die cutting with stackerprinter slotter die cutting with Stacker

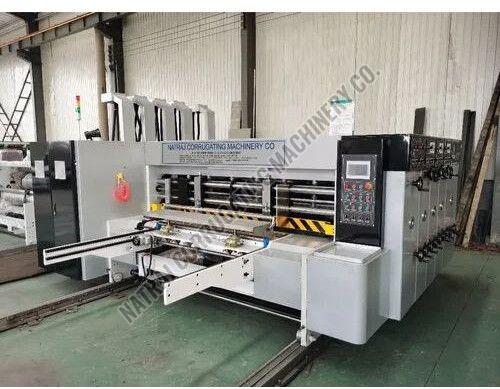

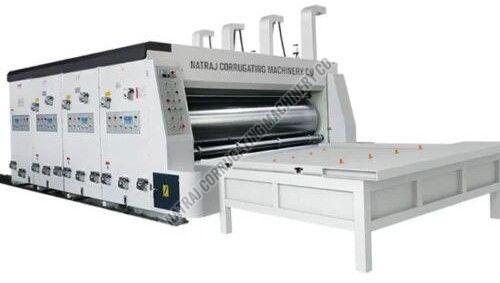

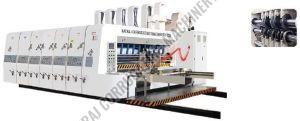

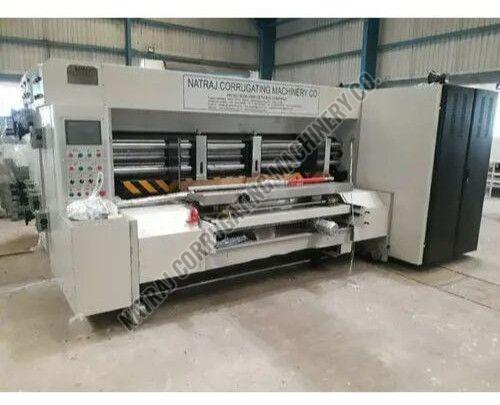

- This versatile, high-speed flexo printing and die-cutting line is engineered to meet diverse customer demands for printing on 3-ply, 5-ply, and 7-ply corrugated board across flute types A, B, C, and E. With customizable printing units, Siemens PLC control, and advanced automation, it’s a powerful solution for modern box plants requiring precision, efficiency, and low maintenance.\r\n\r\n⚙️ Main Technical Specifications:\r\n\r\n\r\n\r\n\r\nParameterSpecification\r\n\r\n\r\n\r\nMachine Speed\r\nUp to 140 sheets/min\r\n\r\n\r\nMax. Paper Size\r\n1200 × 2400 mm\r\n\r\n\r\nMax. Printing Size\r\n1200 × 2200 mm\r\n\r\n\r\nMax. Die-Cutting Size\r\n1200 × 2350 mm\r\n\r\n\r\nMin. Paper Size (Positive Knife)\r\n350 × 680 mm\r\n\r\n\r\nMin. Paper Size (Inverse Knife)\r\n350 × 760 mm\r\n\r\n\r\nPrinting Registration Precision\r\n±1 mm\r\n\r\n\r\nPrinting Plate Adjustment (L/R)\r\n±10 mm\r\n\r\n\r\nPrinting Plate Thickness\r\n4–9 mm\r\n\r\n\r\nCardboard Thickness\r\n2–12 mm\r\n\r\n\r\nMax. Slitting Corner Width\r\n50 mm\r\n\r\n\r\nMax. Stack Height\r\n1600 mm\r\n\r\n\r\nPrinting Roller Diameter\r\nØ410 mm (incl. plate thickness)\r\n\r\n\r\n\r\n \r\n\r\n\r\n\r\n🌟 Key Features:\r\n🧠 Advanced Control System\r\n\r\n\r\nSiemens PLC with order memory function: Store and recall production orders to reduce changeover time.\r\n\r\n\r\nTouchscreen interface for intuitive operation and troubleshooting.\r\n\r\n\r\n🧲 Vacuum Feeder System\r\n\r\n\r\nStable, accurate feeding using vacuum suction.\r\n\r\n\r\nRubber upper roller with floating suspension to prevent board damage.\r\n\r\n\r\nAir cylinder adjustment for consistent feeding pressure.\r\n\r\n\r\n🎨 Printing Unit\r\n\r\n\r\nHigh-quality anilox roller and rubber roller ensure vibrant and uniform printing.\r\n\r\n\r\nDoctor blade system (optional) for precision ink control.\r\n\r\n\r\nAutomatic ink washing system:\r\n\r\n\r\nConnects to plant water supply\r\n\r\n\r\nWashes anilox roller automatically\r\n\r\n\r\nTime-controlled via relay system\r\n\r\n\r\nIncludes fast ink collecting and recycling setup\r\n\r\n\r\n\r\n\r\n✂️ Automatic Slotter\r\n\r\n\r\nComputerized setup for box length, width, and height\r\n\r\n\r\nRubber-coated creasing wheels protect board integrity\r\n\r\n\r\nFast format change for short runs and multiple box styles\r\n\r\n\r\n🪚 Die-Cutter Section\r\n\r\n\r\nIndependent servo drive (K.E.B. Germany) for die-cutting precision\r\n\r\n\r\nSurface speed compensation for accurate cuts\r\n\r\n\r\nDie cylinder shifting prolongs rubber anvil life\r\n\r\n\r\n⚙️ Durability & Build\r\n\r\n\r\nAll gears made from hardened chrome steel, ground for high precision\r\n\r\n\r\nUses premium bearings and branded electrical components from Taiwan and China\r\n\r\n\r\n\r\n✅ Optional Add-ons:\r\n\r\n\r\nDoctor blade system\r\n\r\n\r\nInk viscosity controller\r\n\r\n\r\nLead edge feeder upgrade\r\n\r\n\r\nStacker automation integration\r\n\r\n
...more
