FeatureLower Cups Welded, Upper Cups Moveable With Fixed Stop, Drilled For Spigot Joint Fixing, Bolt For Restraining Upward Forces
ApplicationPropping, Access
Connection TypeCuplock
Verticals are Available to Suit Any Propping or Access Application Economically. the Connection Point is Set At 500 / 1000 Mm Vertical Intervals for Maximum Venatility in Use. the Lower Cups are Welded in Position, the Upper Moveable Cups are Retained By a Fixed Stop. the Verticals are Drilled for the Fixing of Spigot Joint. a Bolt Can Be Used to Restrain Upward Forces if Required. These are Available in Different Sizes 3000 Mm, 2500 Mm, 2000 Mm, 1500 Mm, 1000 Mm or as Required.
Verticals are Available to Suit Any Propping or Access Application Economically. the Connection Point is Set At 500 / 1000 Mm Vertical Intervals for Maximum Venatility in Use. the Lower Cups are Welded in Position, the Upper Moveable Cups are Retained By a Fixed Stop. the Verticals are Drilled for the Fixing of Spigot Joint. a Bolt Can Be Used to Restrain Upward Forces if Required. These are Available in Different Sizes 3000 Mm, 2500 Mm, 2000 Mm, 1500 Mm, 1000 Mm or as Required.
Country of Origin : India
Type : Vertical Cuplock
Material : Steel
Color : Silver
Packaging : Box
Size : 3000mm, 2500mm, 2000mm, 1500mm, 1000mm
Feature : Lower Cups Welded, Upper Cups Moveable With Fixed Stop, Drilled For Spigot Joint Fixing, Bolt For Restraining Upward Forces
ApplicationConstructional, Industrial,Support Structures, Construction
Thickness15-20mm
Country of OriginIndia
TypeTelescopic
Dimensions75x75x10 Mm
ShapeLattice

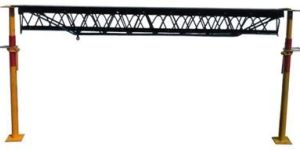

Manufactured out of sheet, Lattices of 10mm dia bar, main bar 14 mm dia, bearing angle 75x75x10 mm, one no. of eye bolt with additional angle stiffener welded to the sheet and bearing angle from inside.
Manufactured out of sheet, Lattices of 10mm dia bar, main bar 14 mm dia, bearing angle 75x75x10 mm, one no. of eye bolt with additional angle stiffener welded to the sheet and bearing angle from inside.
Finishing : Polished
Application : Constructional, Industrial,Support Structures, Construction
ApplicationScaffold Tube Connection,Construction Industry
PackagingBox
Connection TypeButt Joint Connection
Tube Size48.3 Mm
DurabilityHigh Durability, Long Lasting
Sleeve Coupler designed with wrapping facility for end to end connection of any Scaffold tube to form a butt joint connection. Suitable for joints where tension will be developed in the tubes.For Pipe OD 48.3 mm (EN 74 / BS 1139)
Sleeve Coupler designed with wrapping facility for end to end connection of any Scaffold tube to form a butt joint connection. Suitable for joints where tension will be developed in the tubes.For Pipe OD 48.3 mm (EN 74 / BS 1139)
Condition : New
Type : Sleeve Coupler
Material : Steel
Finishing : Galvanized
Application : Scaffold Tube Connection,Construction Industry
ApplicationSupporting Man, Materials, Tools, And Tackles During Construction, Alteration, Demolition, And Maintenance Works

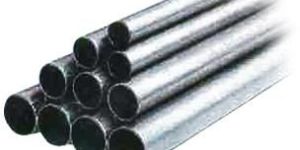

Tubes and Fittings Scaffolding are Widely Used for Supporting Man and Materials, Tools and Tackles During Construction, Alteration, Demolition and Maintenance Works Because of Their Several Advantages Over Conventional Type of Timber /bamboo Scaffolding.features : Ease and Speed in Erection and Dismantling. Scopes for Multiple and Varied Re-use (life and Flexibility in Use) Rigidity and Stability During Erection. Ease in Storing and Maintenance Reliable Assessment of Performance with Adequate Scopes for Safety. Eco-friendly.
Tubes and Fittings Scaffolding are Widely Used for Supporting Man and Materials, Tools and Tackles During Construction, Alteration, Demolition and Maintenance Works Because of Their Several Advantages Over Conventional Type of Timber /bamboo Scaffolding.features : Ease and Speed in Erection and Dismantling. Scopes for Multiple and Varied Re-use (life and Flexibility in Use) Rigidity and Stability During Erection. Ease in Storing and Maintenance Reliable Assessment of Performance with Adequate Scopes for Safety. Eco-friendly.
Finishing : Polished
Shape : Round
Thickness : 1.2 - 12 Mm
Country of Origin : India
Type : Construction Material
Material : Steel
Color : Silver
Application : Supporting Man, Materials, Tools, And Tackles During Construction, Alteration, Demolition, And Maintenance Works
ApplicationIndustrial Use,Support For Formwork, Slabs, Beams, Walls, Columns
FeatureDurable, High Strength
Country of OriginIndia
TypeAdjustable Prop
MaterialHigh Tensile Steel
ColorAvailable in Many Colors
Unique FeaturesHigh Tensile Steel Pin For Coarse Adjustment,Cast Collar For Fine Adjustment,Self-cleaning Device On Collar Nut,Hole Boss On Collar Nut For Easy Turning,Base Plates And Head Plates With Holes For Slab Formwork,TPI ACME Square Thread For Load-bearing Stren
Care InstructionsRegular Inspection And Maintenance Recommended

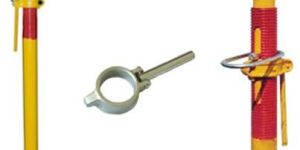

Props provide the ideal and the most economic method of support for all kinds of formwork, slabs, beams, wall & columns. They are also invaluable for a wide variety of applications in general building construction and repair work. Props eliminate the costly labour and time consumer in cutting timber to length, wedging and nailing when used in the vertical as a prop.Unique Features : The high tensile steel pin is located through a slot in the outer section and a hole on the inner section for coarse adjustment.The cast collar located below the pin gives fine adjustment for lending and striking.A self-cleaning device on the collar nut, which automatically clears the thread of concrete, and dirt where the nut is rotated thus assuring quick and easy adjustment.A hole boss on the collar nut which makes it easy to turn in confined spaces. By inserting a bar in the hole.Base plates and head plates are holed for use with slab from work.TPI ACME square thread ensure load bearing strength at this critical point Standard special shores pins are also available on request. Beam type or U-head Props are also available according to customer's requirement.
Props provide the ideal and the most economic method of support for all kinds of formwork, slabs, beams, wall & columns. They are also invaluable for a wide variety of applications in general building construction and repair work. Props eliminate the costly labour and time consumer in cutting timber to length, wedging and nailing when used in the vertical as a prop.Unique Features : The high tensile steel pin is located through a slot in the outer section and a hole on the inner section for coarse adjustment.The cast collar located below the pin gives fine adjustment for lending and striking.A self-cleaning device on the collar nut, which automatically clears the thread of concrete, and dirt where the nut is rotated thus assuring quick and easy adjustment.A hole boss on the collar nut which makes it easy to turn in confined spaces. By inserting a bar in the hole.Base plates and head plates are holed for use with slab from work.TPI ACME square thread ensure load bearing strength at this critical point Standard special shores pins are also available on request. Beam type or U-head Props are also available according to customer's requirement.
Application : Industrial Use,Support For Formwork, Slabs, Beams, Walls, Columns
ApplicationConnecting 40 Mm NB Tubes At Any Angle, Diagonal Bracings
ColorYellow,Black
Pressed Swivel Coupler is used for connecting 40 mm NB tubes at any angle other tubes, ledgers or props for diagonal bracings. Size: 48.3 X 48.3 mm O.D. 48.30 X 60.30 mm O.D.
Pressed Swivel Coupler is used for connecting 40 mm NB tubes at any angle other tubes, ledgers or props for diagonal bracings. Size: 48.3 X 48.3 mm O.D. 48.30 X 60.30 mm O.D.
Finishing : Polished
Condition : New
Feature : Durable, Easy To Fit
Country of Origin : India
Bolt Length : 40mm
Type : Swivel Coupler
Material : Steel
Size : 48.3 X 48.3 Mm O.D.,48.30 X 60.30 Mm O.D.
Application : Connecting 40 Mm NB Tubes At Any Angle, Diagonal Bracings
Pressed Double Coupler is Used for Joining 40 Mm Nb Tubes At 90 Degrees Angle to other Tubes, Ledgers or Props.size :48.3 X 48.3 Mm O.d.48.30 X 60.30 Mm O.d.
Pressed Double Coupler is Used for Joining 40 Mm Nb Tubes At 90 Degrees Angle to other Tubes, Ledgers or Props.size :48.3 X 48.3 Mm O.d.48.30 X 60.30 Mm O.d.
They are a Rolled "t" Section with Wedge Fixing Device On Each Ends. also Available with Back to Back Angles of 50 X 50 X 5 Mm to Form a "t" These Transoms Engaged with "v" Pressing.
They are a Rolled "t" Section with Wedge Fixing Device On Each Ends. also Available with Back to Back Angles of 50 X 50 X 5 Mm to Form a "t" These Transoms Engaged with "v" Pressing.
Secondary Business TypeManufacturer / Exporters / Wholesale Suppliers
Year of Establishment2001
No. of Employees51 - 100
Annual TurnoverRs. 5 to 25 Crore Approx.
Opening Hours
SUN : Closed
MON : 9:30 AM - 6:30 PM
TUE : 9:30 AM - 6:30 PM
WED : 9:30 AM - 6:30 PM
THU : 9:30 AM - 6:30 PM
FRI : 9:30 AM - 6:30 PM
SAT : 9:30 AM - 6:30 PM
Wheels Fabricators Pvt Ltd Established in 2001 is Retailer of Scaffolding Tubes, Telescopic Spans, Scaffolding Prop, Adjustable Stirrup Head Jacks, Adjustable Base Jack, Universal Jack, Vertical / Standard Cuplock, Horizontals / Ledgers, Spigot, Top Cup in Panchkula, Haryana.
