Exhaust Gas Analyzer
Get Price Quote
We are recognized as one of reputed Manufacturers and Exporters of Exhaust Gas Analyzer from India. The Automotive Exhaust Gas Analyzer is light weight, portable enabling easy mobility. Nearly 1000 installations are working well across in India and abroad. Digital Exhaust Gas Analyzer is certified by the ARAI in India.
Measuring CO, HC, CO2 & O2
NOx measurement
NDIR technology
RS232C serial port for PC interface
Portable light weight
Model

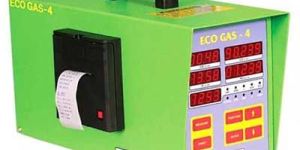

Eco Gas - 4
Salient Features
RPM Measurement facility using inductive pickup
7 Segment LED Display
Automatic condensate discharge
Automatic zero calibration
Digital span calibration
DC Operation suitable for "Road Tests" using vehicle battery
Display of Lambda / AFR / PEF
Petrol / CNG / LPG selection
Indication for Low / High flow & Low voltage
Electronic Leak Check facility
HC Residue Test
Optional Features
NOx measurement as Fifth Gas
Engine Oil Temperature measurement
Battery Based RPM measurement suitable for all vehicles
Technical Specifications
Measurement ParametersRangeResolutionCarbon monoxide - CO0-9.99 %0.01%Carbon Dioxide - Co20-9.99 %0.10%Hydro carbon - HC0-15000 PPM1 PPMOxygen O20-25%0.01%Nox0-5000 PPM1 PPMOil Temperature0-1500 C1 0AFR7-23%1 0CLambda0.50-1.500.01%Engine RPM400-9990 RPM0Measuring gas IntakeMeasuring gas Intake10 RPMLeak TestElectronicCondensate DischargeAutomaticResponse Time< 15 sec (for sample probe length of 3m)Warm Up time< 3 MinZero & Gas Span CalibrationAutomaticSpan CalibrationDigitalPrinter (Optional)24 column dot matrixPower Supply12V DC(or) 100V - 265V AC Single Phase, 50 HzPower consumption25 WOperating temperature+50 to +450 C
Standard Accessories :
Sampling Probe Assembly : 1No.
Battery Cables : 1Set
Inductive Pickup Cable Assembly : 1No
Optional Accessories :
Universal Probe Adapter kit for 2/3 wheelers : 1 Set
NOx Sensor : 1 No.
Oil Temperature probe : 1 No.
Gas test software : 1 No.
RS232 PC Interface cable : 1 No.
24 Column Dot matrix Printer : 1 No.
...more
