Abhinav Cranes Chinchwad, Pune, Maharashtra

Special Features Design conforms to IS-807, IS-3177. Forged runner wheels on spherical roller bearings, resulting in long trouble free service. Hobbed and run-in heat treated gears from high carbon & alloy steels for long trouble free service. Standardised unit sub-assemblies used for complete range, ensuring possibility of spares supply from stock. Wide range of lifts, hoisting, cross & long travel Optimum design ensuring minimum dead weight, wheel loads, head rooms and clearances, reducing building costs. Speeds to suit every operational requirement. Quick deliveries and prompt service after sales. Design Amply proportioned main girder of box section, fabricated from tested quality IS-2062 plates, all butt welds 100% radiographed. Main girder further stiffened with long and short diaphragms. End carriages, either from rolled sections or fabricated from plates. Well proportioned rotating axle type runner wheels on "L" type bearing housings. Rope Drum fabricated from seamless pipes to ASTM A-106 Grade B or from IS-2062, stress relieved & long seams 100% radiographed. PaintingAll exposed parts primed with Red-Oxide Zinc Chromate Primer and finished with Enamel paint to customer's colour scheme.Bridge Drive Single/Twin drive with squirrel cage/slip ring induction motors. Through totally enclosed, oil immersed, helical gearboxes. All single drive units, Provided with amply proportioned line shafting, supported on self aligning bearings, housed in plummer blocks. BrakeElectro hydraulic thrusters for all motions. DC/ AC EM brakes or additional brakes on request.MotorsFoot mounted, ICE, frame size, crane duty motors for hoisting/auxiliary hoisting, cross travel and long travel.Crane ControlFrom Floor through Pendant Push Buttons/ Open Cabin / Totally Enclosed Cabin, operating at 110/ 24 V. Electrical switch gears mounted inside dust proof control panels, with suitable access for maintenance.Power Supply SystemTo hoist & cross travel through trailing cables. To crane through trailing control / shrouded conductors/ bare copper conductors to customer's choice.

Certification : CE Certified, ISO 9001:2008

Application : Construction, Industrial

Feature : Capable For Load, Customized Solutions, Easy To Use, Heavy Weight Lifting, Strong

Condition : New

Power : 100-300bhp, 300-500bhp

Power Source : Electric

Load Capacity : 10-15tons, 15-20tons, 20-25tons, 25-30tons, 30-35tons

Country of Origin : India

Height : 20-30feet, 30-40feet, 40-50feet, 50-60feet, 60-70feet

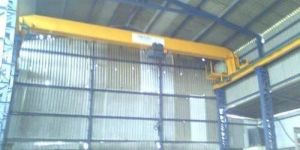

Crane Type : Single Girder

Certification : CE Certified, ISO 9001:2008

Availability : 100-1000kg, 1000-2000kg

Country of Origin : 110V, 220V, 380V

Power : 1-3kw, 3-6kw, 6-9kw, 9-12kw

Country of Origin : India

Loading Capacity : 10-15Tons, 15-20Tons

Features Tough and tensile Easy to use Low maintenance Greater load capacity Long lasting

Certification : CE Certified, ISO 9001:2008

Application : Construction, Industrial

Feature : Capable For Load, Customized Solutions, Easy To Use, Heavy Weight Lifting

Condition : New

Automatic Grade : Electric

Power : 100-300bhp, 300-500bhp

Country of Origin : India

Features Excellent construction Easy to use and helpful Reliable and efficient Long lasting and low maintenance High tensile strength Heavy load capacity

Certification : CE Certified, ISO 9001:2008

Application : Construction, Industrial

Feature : Capable For Load, Customized Solutions, Easy To Use, Heavy Weight Lifting

Condition : New

Power : 100-300bhp, 300-500bhp

Power Source : Electric

Load Capacity : 10-15tons, 15-20tons, 20-25tons, 25-30tons

Country of Origin : India

Features Robust and tensile Heavy load capacity Long lasting Corrosion resistant Easy to use and maintain

Certification : CE Certified, ISO 9001:2008

Application : Construction, Industrial

Feature : Capable For Load, Customized Solutions, Easy To Use, Heavy Weight Lifting, Strong

Condition : New

Automatic Grade : Electric

Power : 100-300bhp, 300-500bhp

Load Capacity : 0-50Tons, 100-150Tons, 150-200Tons

Country of Origin : India

Main Applications Ports and dockyards Warehouses Construction

Material : Metal

Certification : ISI Certified, ISO 9001:2008

Condition : New

Finishing : Polished

Country of Origin : India

Specific Features Anti abrasive finish Superior weathering resistance Smooth surface design Long functional life

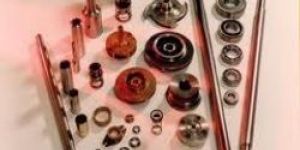

Size : Customize, Standard

Material : Metal

Certification : ISO Certified

Application : Engine Use

Availability : 1-5kg, 5-10kg

Surface Finishing : Polished

Country of Origin : India

Certification : CE Certified, ISO 9001:2008

Availability : 100-1000kg, 1000-2000kg

Country of Origin : 110V, 220V, 380V, 440V

Condition : New

Power : 3-6kw, 6-9kw, 9-12kw

Driven Type : Electric

Country of Origin : India

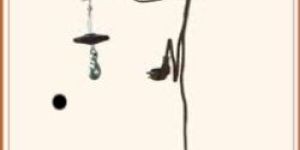

Special Features Totally enclosed Class "F" insulated conical rotor, crane duty motor. Simple and robust braking system. No additional connections for the braking system, the normal motor connection sufficient. Modular construction and assembly facilitate easy maintenance. Built-in conical disc brake for hoist and cross travel completely mechanical. There is no magnetic coil therefore no chance of coil burning. No downtime, and no need to keep stock of brake coils. A large number of starts per hour, because starting against a delayed brake release is impossible and the motor is not additionally heated by a brake coil. Trolley is so designed, that is adaptable to wide variations in I-beam sizes. Limit switches to prevent accidental overhoisting and overpowering are standard features. All shafts mounted on anti-friction bearings. Micro speed attachment will be provided with WVF Drive on request at extra price.

Certification : CE Certified, ISO 9001:2008

Application : Weight Lifting

Availability : 100-1000kg, 1000-2000kg

Country of Origin : 110V, 220V, 380V

Condition : New

Power : 1-3kw, 3-6kw, 6-9kw, 9-12kw

Country of Origin : India

Loading Capacity : 10-15Tons, 15-20Tons

Certification : CE Certified, ISO 9001:2008

Application : Weight Lifting

Availability : 100-1000kg, 1000-2000kg, 2000-3000kg

Country of Origin : 110V, 220V, 380V

Condition : New

Country of Origin : India

Driven : Electric

Loading Capacity : 10-15Tons, 15-20Tons

Special Features Design conforms to IS-807, IS-3177. Forged runner wheels on spherical roller bearings, resulting in long trouble free service. Hobbed and run-in heat treated gears from high carbon & alloy steels for long trouble free service. Standardised unit sub-assemblies used for complete range, ensuring possibility of spares supply from stock. Wide range of lifts, hoisting, cross & long travel Optimum design ensuring minimum dead weight, wheel loads, head rooms and clearances, reducing building costs. Speeds to suit every operational requirement. Quick deliveries and prompt service after sales. Design Amply proportioned main girder of box section, fabricated from tested quality IS-2062 plates, all butt welds 100% radiographed. Main girder further stiffened with long and short diaphragms. End carriages, either from rolled sections or fabricated from plates. Well proportioned rotating axle type runner wheels on "L" type bearing housings. Rope Drum fabricated from seamless pipes to ASTM A-106 Grade B or from IS-2062, stress relieved & long seams 100% radiographed. PaintingAll exposed parts primed with Red-Oxide Zinc Chromate Primer and finished with Enamel paint to customer's colour scheme.Bridge Drive Single/Twin drive with squirrel cage/slip ring induction motors. Through totally enclosed, oil immersed, helical gearboxes. All single drive units, Provided with amply proportioned line shafting, supported on self aligning bearings, housed in plummer blocks. BrakeElectro hydraulic thrusters for all motions. DC/ AC EM brakes or additional brakes on request.MotorsFoot mounted, ICE, frame size, crane duty motors for hoisting/auxiliary hoisting, cross travel and long travel.Crane ControlFrom Floor through Pendant Push Buttons/ Open Cabin / Totally Enclosed Cabin, operating at 110/ 24 V. Electrical switch gears mounted inside dust proof control panels, with suitable access for maintenance.Power Supply SystemTo hoist & cross travel through trailing cables. To crane through trailing control / shrouded conductors/ bare copper conductors to customer's choice.

Certification : CE Certified, ISO 9001:2008

Application : Construction, Industrial

Feature : Capable For Load, Customized Solutions, Easy To Use, Heavy Weight Lifting, Strong

Condition : New

Power : 100-300bhp, 300-500bhp

Power Source : Electric

Load Capacity : 10-15tons, 15-20tons, 20-25tons, 25-30tons, 30-35tons

Country of Origin : India

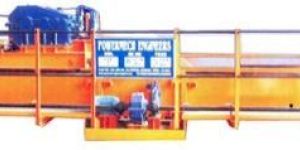

Crane Type : Double Girder Eot

We produce high maintenance of hoists in multiple capacities at cost competitive prices.Key Features Optimum performance Compact design Durable Optimum performance Standard material

Service Mode : Offline

Service Period : 1 Day

We provide machine repairing, installation and up-gradation services at market leading prices.Specific Properties Adherence to set quality norms Timely completion Smooth operation

We are using high standard raw material and modern technology in the manufacturing process. They are perfectly designed in modular construction, which can greatly simplify for maintenance.Specifications Low maintenance Optimum performance Standard material Innovative design Durable

Service Mode : Offline
