Accurate Engineering Co. Pvt. Ltd. Hadapsar, Pune, Maharashtra

We are offering tool set. Pneumatic clamping for positive gripping. spindle taper: iso 50 iso 40 iso 30 bt 50 bt 30 hsk 63 hsk 100 hsk 50 hsk 40 work table is provided with storage facility. height measuring range: 400550 mm for tool set 1 and 2 respectively maximum diameter: 300400 mm presetter accuracy: < 0.02 mm< 0.025 mm

we offer precision measuring instruments. the compact roundness measurement systems precirond 1000 is designed to operate on shop floor with granite base and isolation pads. complete with powerful data analysis software win round and enhanced functionality and ease of operation. roundness, concentricity, runout,flatness parallelism, squareness,co-axility. test dia 300 mm. measuring height 350 mm. work table dia.160 mm. resolution 0.01 μm. roundness error : 0.05 +0.0005hμm (h in mm )

We are offering four channel lcd display unit. Four channel lcd display with input keypad. absolute comparative measurement auto calibration facility singledouble master calibration facility individual red, green and red led’s individual status of four parameters(red-reject, green ok, yellow-rework). one tri colour led for combined status of four parameters (red reject, green ok, yellow-rework) rs- 232 output metric inch measurement static dynamic reading mode- max, min, avg, tir resolution 0.1μm 0.5μm1μm 5μm10μm

We are offering floating carriage micrometer. Offers effective calibration of thread plug gauges and taps. provides major, minor diameters calibration of threads. mechanical electronic model range: 0-100mm0-4” & 0-175mm0-7”. resolution: 0.0002mm 0.0001 mm repeatability: 0.002 mm0.0002 mm accuracy: 0.004mm 0.002mm with p10 probe accessories: thread measuring wires, prisms, cylindrical masters & taper thread plug attachment.

we offer electronic display unit. twin channel digital display & six digit display auto calibration facility. rs 232 output static dynamic reading mode max, min, avg, tir. metric inch measurement absolute comparative measurement. single double master calibration facility. one tri colour led for component status (red-reject, green ok, yellow-rework).

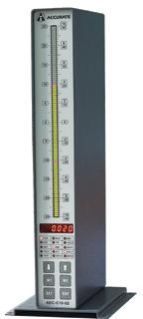

we offer Electronic Column Gauge. Twin Channel Dual Display bar graph and Six Digi Display. Absolute Comparative Measurement RS 232 Output Static Dynamic Reading Mode Max, Min, Avg, tir. Metric Inch Readings Single Tri Colour LED for component status.(Red-Reject, Green Ok, Yellow-Rework). Tolerance Indicator Pointer. Tri colour bar craft available. Tri-Colour Column available Auto Calibration Facility. Single Double Master Calibration Facility.

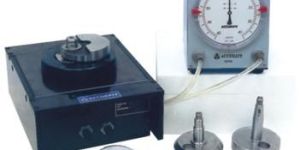

We are offering crank shaft. Crankshaft of two wheeler non contact gauging technique cost effective and fast inspection operator’s skill is not required to measuring center distance between bearing od diameter and crank pin hole diameter, bearing od diameter and crank pin hole diameter

We are offering air plug. Air plug-gauge consists of a cylindrical hardened steel body, hardchrome plated and precisely ground to provide the guide needed for the air jets positioning inside the bore. The nozzles through which the air is guided are recessed below the body diameter of the plug. This has a two fold function, one to protect the jets from damage by direct contact and secondly make the air gauge measurement essentially non-contact. The flow of air also has a self-cleaning effect on the gauging surface. The hard chrome provides excellent wear resistant property.

We are offering co-ordinate measuring machine, entry level machine with power packed features for 3d measurement,.

We are offering air ring. Air ring is made of hardened hchc steel; precision ground to provide designed clearance between the shaft and the jets. The backpressure is generated when the component is inserted into the ring and this backpressure correspondingly is read as the comparative size of the part. Air rings are supplied from 4 mm to 160 mm as per the requirement for measuring a through or a shouldered shaft. Two jets rings to measure size, taper and ovality or with three jets to measure size, taper and lobing. Special air rings for checking multiple diameters and multiple lobing or taper etc. Can be provided.
