Air Control India PVT. LTD. Baner, Pune, Maharashtra

Carrier Transicold 5F and 09RH water-cooled condensers help provide Comfortable air conditioning for your crew or refrigeration for your cargo Wherever you're bound. Refrigerants: 134A, 404A, 407C Cooling Capacities: 5-200 tons ( 17.6-703.4 kW ) Features: Choose 5F for small load applications, 09RH for medium to heavy Loads. Non-ferrous integral finned tubes. Bell mouth ends. Removable heads on Shell-and-tube models. Spring-loaded pressure relief valves or frangible discs as Safety devices. Models 5F20 and 30:90/10 copper-nickel tubes, steel shell. Models 5F40, 5F60, and 09RH: 90/10 copper-nickel tubes and tube sheets. Double liquid outlet drains. 09RH shown.

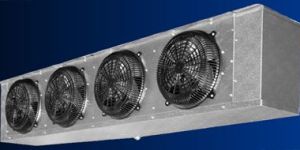

Freezer room unit coolers complete with auto defrost and drain heaters. Refrigerants: 404, 407C,

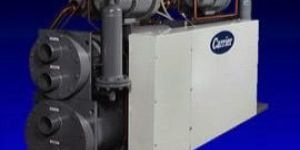

30HXC Screw Chiller Multiple Semi-hermetic Screw Compressors Controls Dual Refrigerant Circuits 30HXA- shell & tube evap - remote cond. 30HXC- shell & tube evap - 90/10 Cu/Ni shell & tube cond. Features:  Common platform 70 to 265 tons Dual circuit, HFC-134a Marine condenser with 90/10 Cu/Ni tubes and tubesheets and cast bronze heads NEMA 4/4X Enclosures for main control box, compressor junction boxes, and pressure sensors Built-in dual chiller control Isolation valves standard Factory installed flow switch standard Oil pump ensures compressor lubrication (start & low lift) Leaving temp set point resolution of 0.1F EXV re-calibrates with every start. Wye-Delta or XL start Fits anywhere, very compact in size, in fact its the Narrowest chiller in its class.

90 Y "Sea Horse" packaged marine Condensing Units Available in a wide range of capacities, the 90 YF, YH include marine condenser, motor and control panel all in a single, factory-assembled unit. Availability: Insulated or non-insulated Refrigerants:134A 404ACapacities: 0.94-15 tons (3.30-52.75 kW) Features: Utilizes a full line of compressors with internal capacity control and pressure lubrication. Quiet operation. Oil pressure safety switch. Contactors and overload protection. Refrigerant suction and discharge gauges. Oil pressure gauge. Single pump-out control. Time-guard circuit. Crankcase heater relay. Across-the-line starting. Marine construction throughout 90YK shown.

Sea water and chilled water pumps. Sea water pumps available in bronze or stainless steel, Also available in explosion proof motors

Number Of Flower : Automatic

Certification : CE Certified

Country of Origin : 220V

Theory : Axial Flow Pump, Centrifugal Pump

Pressure : High Pressure, Medium Pressure

Structure : Single Stage Pump

Total Carbohydrate : 1 Year

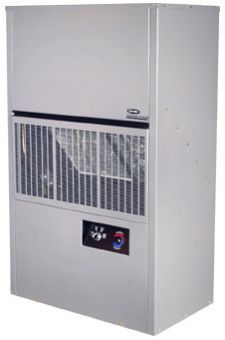

90 MA Single-package Marine Cooling Units Available in four sizes (004-012), the 90 MA cools, heats, dehumidfies, and filters. Refrigerant: 134A Cooling: 3-10 tons (10.6-35.2 kW) Heating: 7.9-24.7 kW Features: Seawater cooled. Quiet, high capacity fans accessory plenum for free-blow system. Heavy gauge galvanized steel cabinet. Easy-to-remove panels for simple maintenance. Low cost installation. Tube-in-tube condenser of 90/10 coppernickel. Permanent cleanable filters, double drains and seawater regulating valve are standard.

G.I mushroom hoods with water tight arrangement. These hoods are treated with special anti rust coating for the harsh marine conditions.

Custom made water tight hatches for marine applications are available in various sizes. Air louveres are provided in the hatche

Shape : Rectangle

Feature : Durable Life, Load Bearing Capacity

Inline duct fans for compact installation for toilet ventilation, laundry etc. Available in GI and FRP light weight construction Performance: Ranges from 100m3/hr to 3000m3/hr

Goose necks with water tight arrangement. Available in round or square cross section.

Class approved fire dampers with electric or pneumatic operations. Automatic operation with fusible link.

42 D Ducted Fan-Coil Unit Capacities: 600-2,000 cfm ( 283.1-943.8 L/s )Features: Heavy gage galvanized steel. Uses minimum space. Quiet operation. Fully insulated cabinet to muffle noise sound direct - drive, forward - curved fan. Easy access. Insulated condensate pans. Select 3,4,5 or 6 row coils. For 2,3 or 4-pipe system. 42D shown 42B System Fan-Coil Unit   Capacities: 800-4,000 cfm ( 377.5-1, 887.6 L/s )Features: Heavy gage cold rolled or galvanized steel. Removable side panels. Fully insulated to muffle noise and prevent sweating. Belt-driven, adjustable motor. Single or 3-phase motors standard from 1/6 to 2 hp ( .124 to 1.49 kW ). Select 4 or 6 row cooling coils. Forward-curved, centrifugal, double-inlet fan wheels.   42V, C Room Fan-Coil Units Capacities: 150-1, 200 cfm ( 70.8-66.3 L/s )Features: 42V is vertical, 42C horizontal. Cabinet or furred-in units. Numerous control systems. Select up to 5 row coils. For 2, 3, or 4-pipe system. Quiet operation. Low fan speed. Uses minimum space. Available with 3-row DX coil (R134, R404), sheathed electric heaters, double drains, and special-design drain pans. 42V shown

Certain shipboard areas onboard chemical tankers, oil tankers, gas carriers and special cargo ships have class requirements of spark proof and explosion proof fans. Air control offers a wide range of special fans for installation in this type of areas.

Electrical control panels with a user friendly interface. IP 56 panels are standard.

Cabin diffusers and return air grills with dampers for regulating airflow.

90 Y "Sea Horse" packaged marine Condensing Units Available in a wide range of capacities, the 90 YF, YH include marine condenser, motor and control panel all in a single, factory-assembled unit. Refrigerants: 134A Capacities: 0.94 -135 tons (3.3-474.7 kW) Features: Utilizes a full line of compressors with internal capacity control and pressure lubrication. Quiet operation. Oil pressure safety switch. Contactors and overload protection. Refrigerant suction and discharge gauges. Oil pressure gauge. Single pump-out control. Time-guard circuit. Crankcase heater relay. Across-the-line starting. Marine construction throughout 90YK shown.

We are the main supplier of this product.

Number Of Flower : Automatic

Material : Matel

Certification : CE Certified

Packaging Type : Metallic

Country of Origin : 220V

Frequency : 60Hz

Power Source : Electric

Total Carbohydrate : 1 Year

Centrifugal fans for ventilation of areas such as galley etc. Available in different materials, primed and painted steel, galvanised steel, marine-corrosion-resistant aluminium and stainless steel. Performance Ranges from 500m3/hr to 250000m3/hr and static pressure up to 125mm.   Accessories Mounting Feet Wire Guards Anti-Vibration Mountings Sound Attenuators

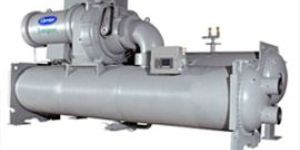

19XR Centrifugal Chillers High capacity and Maximum Efficiency with R-22 and R134 a refrigerants Most technologically advanced centrifugal chillers for shipboard duty. Compact modular design, high efficiency, trouble free operation, and a choice of environmentally responsive refrigerants add to the exceptional versatility of every carrier 90 XR Chiller. Superior quality and reliability for long-life operation. High performance, high efficiency. High capacity, 200 to 520 ton (700 to 1,830 kW). Semi-hermetic design for maximum system reliability. Automatic self diagnostic operation for safety and easier servicing. Small footprint. Up to 35% more compact than conventional chillers. Microprocessor controls maximize unattended unit operation. Simplified integration with ship's control systems. Compatible with carrier advanced air-quality improvement product, such as heat recovery devices and smoke and fume filtration systems. Modular design facilitates chiller disassembly/reassembly for installation in extremely tight spaces. Ideal for ship retrofit programs. Worldwide service and parts support.

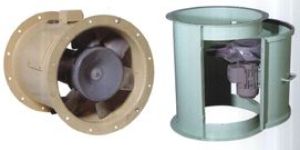

Axial flow fans for ventilation areas such as engine room, bow thruster etc. Available in different materials, primed and painted steel, galvanised steel, marine-corrosion-resistant aluminium and stainless steel. Performance Ranges from 100m3/hr to 250000m3/hr and static pressure up to 125mm. Available from sizes 150mm to 2000mm diameter.   Accessories Mounting Feet Inlet Cone Matching Flanges Wire Guards Anti-Vibration Mountings Sound Attenuators

Available in a wide range of blow-thru and draw-thru arrangements and constructed for long life and top performance in large heating and cooling applications.Refrigerants: 134A, 407CCooling/Heating Coils: Chilled Water, Direct Expansion, Hot Water, Steam.Capacities: 1,000-55,000 cfm ( 478-25,960 L/s )

30GT, GN, GX Air-cooled Reciprocating Liquid Chilling Packages Floating drydocks, oil rigs, and inter-coastal vessels which require air Conditioning on board demand an economical 30G. All units offer significant Cost-saving advantages at installation, over years of operation, and reduce service and maintenance costs too. Choose from many economical sizes, ranging from 15-420 tons ( 52.7-1, 477 kW ) 30GTRefrigerant: 134Cooling Capacities: 15-420 tons ( 52.7-1, 477 kW )Features: Completely factory wired, assembled and charged. Easy access to Compressor, cooler. Suction cutoff unloaders. 30GT units use the Carrier Flotronic control system. Marine copper condenser coils available 30GNRefrigerant: 134Cooling Capacities: 40-420 tons ( 140.6-1,477 kW )Features: Easy access to components. Standby protection. Compressor crankcase Heaters. All 30GN units use the Carrier “Flotronicâ„¢ II” control system. 30GXRefrigerant: 134aCooling Capacities: 80-175 tons ( 281.3-615.3 kW ) Features: 30GX uses the Flotronic II control system. Multiple screw compressors use R-134a. Marine copper condenser coils available.
