Cad Mech Engineering Private Limited Narhe, Pune, Maharashtra

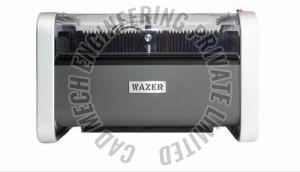

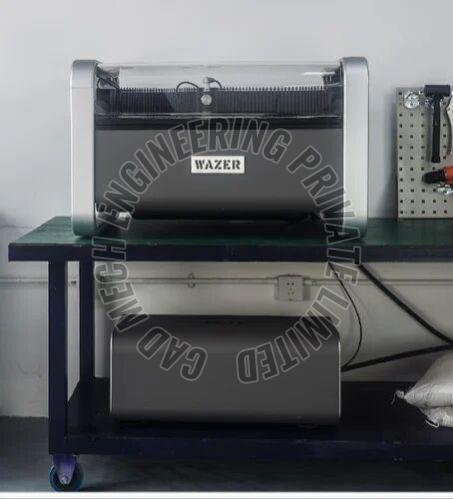

Product Description The Wazer, is small-footprint, industrial caliber CNC waterjet that can cut almost anything .Easily fits on desktop

Usage/Application : Industrial

Material : Any Metal

Country of Origin : Made in India

Brand Name : Wazer

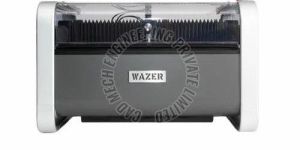

P;roduct Description The WAZER, is small-footprint, industrial caliber CNC waterjet that can cut almost anything .Easily fits on desktop. Additional Information: Production Capacity: 2 Delivery Time: 6-8 Weeks Packaging Details: Regular Packing

Brand Name : Wazer

Material : Any metal

Usage/Application : Industrial

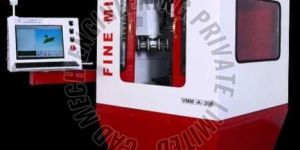

Product Description In order to cater the variegated demands of our precious clients, we are offering an excellent quality range of VMM-A-200 CNC Lathe Mill Trainer Machine. Features: Rugged Machine with Ground Bed 12 Station Programmable ATC Industrial Motion Controller Latest Technological Platform for Software Interactive CNC Part Programming Software 3D Material Removal Simulation STL Import / Export Facility Innovative live View on Screen Customizable Tool Library Customizable STK Design Manual Pulse Generator (Optional) FMS & CIM Compatibility FMS & CIM Compatibility Hydraulic Chuck (Optional) Auto Door (Optional)   Specifications:ModelVMM-A- 200Automatic Lubrication PointsProvidedInterpolationLinear, CircularProgrammable Feed Rateø - 800 mm/Min.0- 800 mm/Min.( X,Y,Z )Rapid Feed Rateø - 1200 mm/Min.( X,Y,Z )Control SystemPC Based SystemAutomatic Tool Changer12 Station ( Pneumatic )LubricationCentralized ( Programmable )Axis MotorStepper MotorMains Supply230 V AC, 1 Phase For Machine and 3 Phase 415 V AC for ATCMachine DimensionsApprox. 1200 x 1200 x 1800 mmTotal WeightApprox. 1200 Kg.

Brand Name : Cad Mech

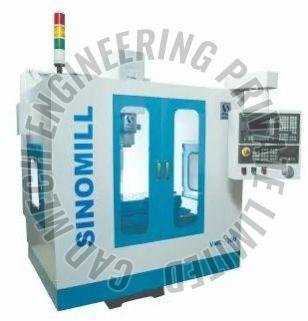

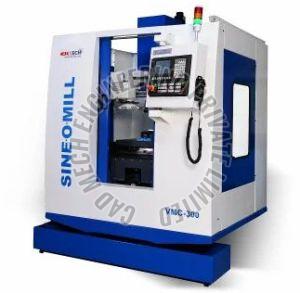

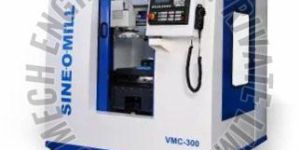

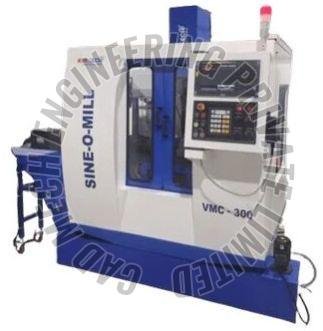

Cadmech’s Vertical Milling Machines deliver high-precision machining with advanced control and durable design. Ideal for industrial applications, they ensure efficiency and superior performance. Explore Cadmech’s cutting-edge solutions for precision milling today!

Number Of Flower : Vertical Milling Machine

Material : Metal

Usage : Industrial Applications

Brand Name : Cadmech

Product Description   Key Features Auto tool clamp –decamp  Counterweight for vertical milling head to avoid drop during power failure  Brake motor for vertical axis  LM guide ways and ball-screws for all axes  Centralized oil lubrication for guide ways and ball-screws  Metallic covers and telescopic covers for guide way protection Machine lamp  Table guards Additional Information: Delivery Time: 8-10 Weeks Packaging Details: Wooden packing

Country of Origin : Made in India

Power : 415 V

Application : For Training

Material : Mild Steel

Brand Name : Cad Mech

Product Description   Key Features Auto tool clamp –decamp  Counterweight for vertical milling head to avoid drop during power failure  Brake motor for vertical axis  LM guide ways and ball-screws for all axes  Centralized oil lubrication for guide ways and ball-screws  Metallic covers and telescopic covers for guide way protection Machine lamp  Table guards Additional Information: Delivery Time: 8-10 Weeks Packaging Details: Wooden packing

Brand Name : Cad Mech

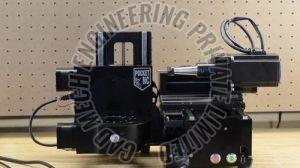

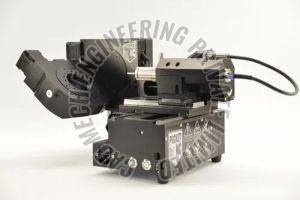

Product Description Max Travelex : 4.55 in (115.5mm)Y: 5.05 in (128.3 mm)Z: 3.55 in (90.1mm)A: -25° to 135°B: Continuous Rotation(-9999° to 9999°)Accepts standardG Code. Test G Codeat sim.pocketnc.comTested on G5 titanium,6061 aluminum, 303stainless, machinablewax   Additional Information: Production Capacity: 4 Delivery Time: 10-12 Weeks Packaging Details: Wooden

Country of Origin : Made In India

Brand : Pocket BC

Spindle Speed : 1,000-50,000 RPM

Product Description Max Travelx: 4.55 in (115.5mm)Y: 5.05 in (128.3 mm)Z: 3.55 in (90.1mm)A: -25° to 135°B: Continuous Rotation(-9999° to 9999°) Tested on G5 titanium,6061 aluminum, 303stainless, machinablewax, acetal Accepts standardG Code.   Additional Information: Delivery Time: 10-12 Weeks

Brand : Pocket NC

Spindle Speed : 2,000-10,000 RPM

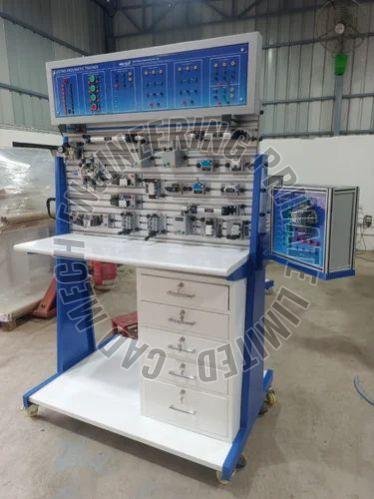

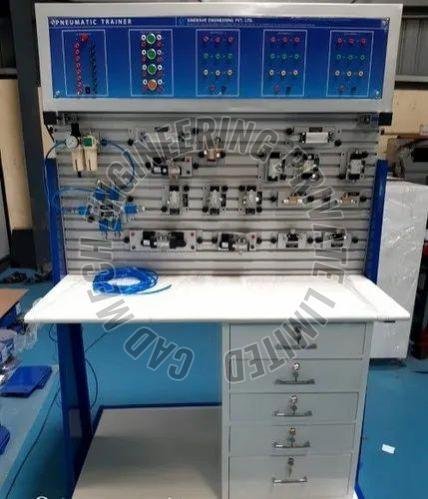

Product Description   SR. NO. COMPONENTS  BASIC 1 Trolley with Caster wheels 1 2 Quick Push-Pull connection 12 3 High Pressure Tubing (PU6) 5m 4 5/2 way lever operated valve 1 5 5/3 way Lever operated DC valve 1 6 Pressure Gauge 4” Dial 1 7 5/2 way Single Pilot operated  Direction control valve 1 8 5/2 way Double pilot operated Direction control valve 1 9 AND Gate valve 1 10 OR Gate valve 1 11 Time delay valve NA 12 Quick exhaust valve 1 13 One way flow control valve 2 14 Single acting cylinder 1 15 Double acting cylinder 1 16 FRL unit  1 17 Manifold 1 18 Connecting plates 1 set

Brand Name : Sinewave

Country of Origin : Made in India

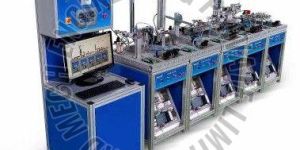

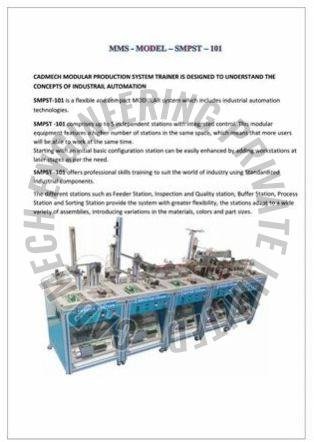

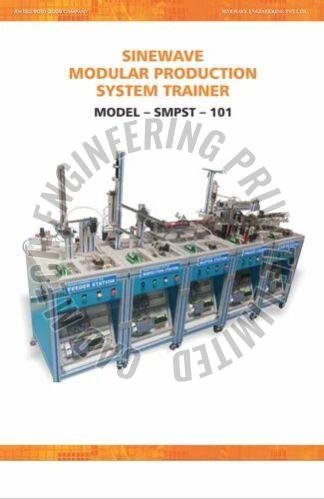

Product Description MMS shall be capable of demonstrating industry processes such as feeder, inspection, buffer, process and sorting. Automation concept, electrical wiring logic control, PLC programming, Sensors and Alarms

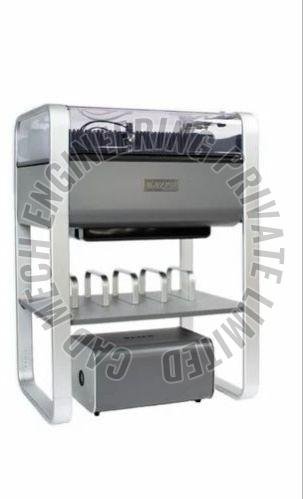

Product Description The WAZER, is small-footprint, industrial caliber CNC waterjet that can cut almost anything .Easily fits on desktop.   Additional Information: Production Capacity: 4 Delivery Time: 6-8 Weeks Packaging Details: Regular

Usage : For Training

Material : All Metals

Brand Name : Wazer

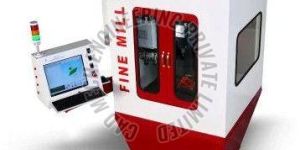

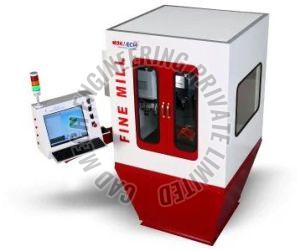

Product Description   We are successfully meeting the varied requirements of our clients by providing the best quality range of VMM-IA-200 Tabletop CNC Mill Machine.   Features:   Rugged Machine with Ground Bed 12 Station Programmable ATC Industrial Motion Controller Latest Technological Platform for Software Interactive CNC Part Programming Software 3D Material Removal Simulation STL Import / Export Facility Innovative live View on Screen Customizable Tool Library Customizable STK Design Manual Pulse Generator (Optional) FMS & CIM Compatibility Auto Door (Optional) features of cnc Mill trainers         Specifications: Model VMM-IA- 200 Automatic Lubrication Points Provided Interpolation Linear, Circular Programmable Feed Rate ø - 800 mm/Min.0- 800 mm/Min.( X,Y,Z ) Rapid Feed Rate ø - 1200 mm/Min.( X,Y,Z ) Control System PC Based System Automatic Tool Changer 12 Station ( Pneumatic ) Lubrication Centralized ( Programmable ) Axis Motor Stepper Motor Mains Supply 230 V AC, 1 Phase For Machine and 3 Phase 415 V AC for ATC Machine Dimensions Approx. 1200 x 1200 x 1800 mm Total Weight Approx. 1200 Kg.

Material : Cast Iron

Brand : Sinewave

Application : Training

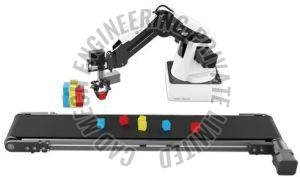

Product Description World 's first child-friendly,Al-infused and multi functional intellegent robotic arm for K12 educators and students.Designed for users of all experience levels and provides everything that teachers or educators need to instruct students on how to apply the key concepts of AI and STEAM to real-world problems.   Additional Information: Item Code: 02 Production Capacity: 4 Delivery Time: 4-6 Weeks

Brand Name : Cad Mech

Model No. : SCR-01

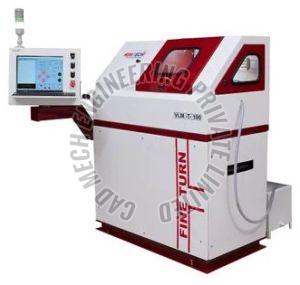

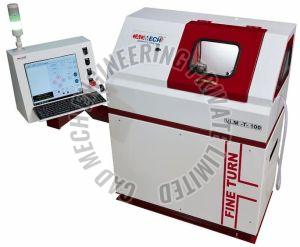

Product Description   We are successfully meeting the varied requirements of our clients by providing the best quality range of VLM-T-100 Educational CNC Lathe Trainer.   Features:   Rugged Machine with Ground Bed 8 Station Programmable Turret Industrial Motion Controller Latest Technological Platform for Software Interactive CNC Part Programming Software 3D Material Removal Simulation STL Import / Export Facility Innovative live View on Screen Customizable Tool Library Customizable STK Design Manual Pulse Generator (Optional) FMS & CIM Compatibility Hydraulic Chuck (Optional) Auto Door (Optional) features of cnc lathe trainers

Country of Origin : Made In India

Brand : Sinewave

Product Description   With sincere intentions to uplift our reputation in the market, we bring a distinguished assortment of CNC Mill Trainer. Provided mill trainers are manufactured with high quality component and high end equipment. These mill trainers are used to design modules and other purposes. Our offered mill trainers are available in numerous specifications as per the market standards. We provide these mill trainers to our clients in the committed time and affordable prices.   Features:   Sturdy construction Reliable Fine finish   Other Details:   CAD-CAM compatibility FANUC emulated keyboard Machine is directly linked to PC, hence loading of program on micro -controller is not required Easy maintenance with spore cord system by layman Table locking facility with stepper motor brakes Powerful stepper motors for axis control Variable speed DC drives for spindle with DC motor Burn in components test at 150% load Rugged machine with ground bed Wear resistant turcite material is provided on beds Stick slip motion is totally avoided Powerful PC software for graphics High speed integer interpolation system for circular interpolation Display of actual feed rate, spindle speed in execution & simulation mode Automatically detects wrong steps in programming Safety functions with emergency stop, over travel limits Alarm & self diagnostic functions are provided   Additional Information:   Production Capacity: 4 Delivery Time: 6-8 Weeks

Country of Origin : Made In India

Model Number : VMM-A-200

Color : Grey

Condition : New

Max Spindle Speed : 3000

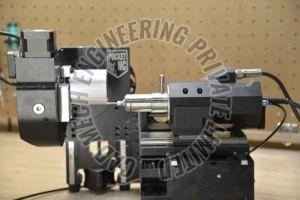

Product Description MAX TRAVELX: 4.55 in (115.5mm)Y: 5.05 in (128.3 mm)Z: 3.55 in (90.1mm)A: -25° to 135°B: Continuous Rotation(-9999° to 9999°)Accepts standardG Code. Test G Codeat sim.pocketnc.comTested on G5 titanium,6061 aluminum, 303stainless, machinablewax,  Additional Information: Delivery Time: 10-12 Weeks

Machine Weight : 14 Kg

Spindle Speed : 1, 000-50000 RPM

Brand Name : Pocket NC

Product Description Max Travelex: 4.55 in (115.5mm)Y: 5.05 in (128.3 mm)Z: 3.55 in (90.1mm)A: -25° to 135°B: Continuous Rotation(-9999° to 9999°) Tested on G5 titanium,6061 aluminum, 303stainless, machinablewax, acetal Accepts standardG Code. Additional Information: Delivery Time: 10-12 Weeks

Material : Stainless Steel

Brand : Pocket NC

Spindle Speed : 2,000-10,000 RPM

Spindle Power : 200 W (Max Power)

Automation Grade : Semi-Automatic

Product Description Max Travelex : 4.55 in (115.5mm)Y: 5.05 in (128.3 mm)Z: 3.55 in (90.1mm)A: -25° to 135°B: Continuous Rotation(-9999° to 9999°)Accepts standardG Code. Test G Codeat sim.pocketnc.comTested on G5 titanium,6061 aluminum, 303stainless, machinablewaxv

Brand Name : Pocket NC

Phase : Single Phase

Country of Origin : Made in India

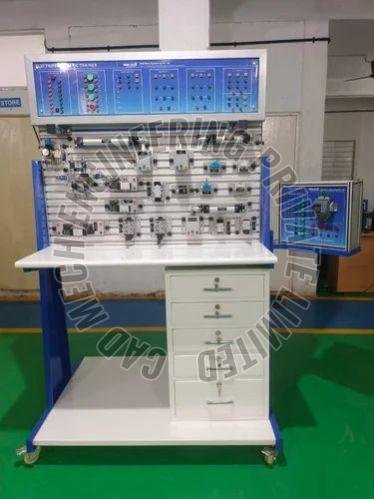

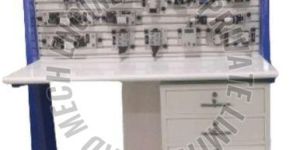

Features:- Mobile and self-contained unit, only electrical connections are required. Simplicity of operation and designed for amateur use. Built in safety valve is fitted. Modern Industrial components from reputed manufacturers are used Realistic Industrial circuits are demonstrated. Special fixture used for pipe bending and ferrule fitting arrangement. System is flushed with very high velocity (4 times the working) by separate oil which maintains class cleanliness of system. All valves, cylinder are tested at 150% working pressure. Cylinder from precision honed tube, hardened ground, hard chrome plated piston rod and imported quality seals. Flow measurement is possible in different lines. Training of Trainers offered at regular intervals. Potential free  contacts for limit switches.

Product Description Mini Cnc Turning Machine   Additional Information: Item Code: VTC-135 Delivery Time: 6 - 8 Week

Country of Origin : 415 V

Country of Origin : Made in India

Brand Name : Cad Mech

Model : VTC 135

Product Description   Leveraging upon our technologically-advanced production facility we provide a super quality Educational CNC Drill Tutors Machine. Offered drill trainer is manufactured with the help of high grade component and modern technology by our experienced professionals. The provided drill trainer is used in the industry for different applications. Apart from this, offered drill trainer is available in different sizes and shapes as per the demands of our clients.   Features:   Rigid structure Easy to use Precise design   Additional Information:   Production Capacity: 4 Delivery Time: 4-6 Weeks

Brand Name : Sinewave

Country of Origin : Made in India

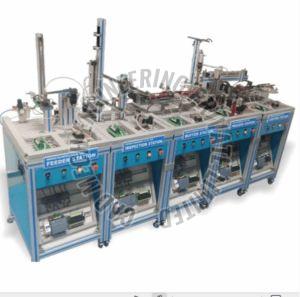

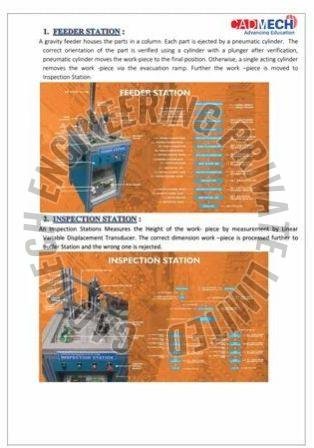

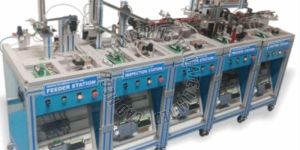

Product Description   MMS shall be capable of demonstrating industry processes such as feeder, inspection, buffer, process and sorting. Automation concept, electrical wiring logic control, PLC programming, Sensors and Alarms   Feeder StationTo separate out work pieces from the stack magazine by pushing the bottom one out with a pistonTo transfer work pieces to a downstream station by means of a changer module with a rotary arm with a pneumatic suction cup   Inspection StationEstablish the material characteristics of a work piece; check the work piece and;Either separate out a work piece or make it available for a subsequent station.   Buffer StationTransport and separate out work pieces.   Processing StationProcess the different work piece types such as aluminium or  plastic work piece andCheck the result of processing after the processing cycle.   Robot Station Pick and Placing material.Assembly StationAssembles the part materials Sorting StationThe sorting station segregates the work pieces based on the material type and colour.   Feeder Station: A gravity feeder houses the parts in a column. Each part is ejected by a pneumatic cylinder.  The correct orientation of the part is verified using a cylinder with a plunger after verification, pneumatic cylinder moves the work-piece to the final position. Otherwise, a single acting cylinder removes the work -piece via the evacuation ramp. Further the work –piece is moved to Inspection Station.   Inspection Station An Inspection Stations Measures the Height of the work- piece by measurement by Linear Variable Dsplacement Transducer. The correct dimension work –piece is processed further to Buffer Station and the wrong one is rejected. Buffer Station The Buffer station can buffer and separate up to five work-pieces. Diffuse sensors at the beginning of the conveyor detect the inserted work-pieces. Light barriers upstream and downstream of the separator control the process: If the transfer point is free, the separator passes on a work-piece. The separator is actuated by a short-stroke cylinder with a deflecting mechanism. The end positions of the short-stroke cylinder are detected by means of end-position sensors. The work –piece is transferred to Process Station. Processing Station: In the Processing station, work-pieces are tested and processed on a rotary indexing table. The rotary indexing table is driven by a DC motor. The table is positioned by a relay circuit, with the position of the table being detected by an inductive sensor. On the rotary indexing table, the work-pieces are tested and drilled in two parallel processes. A solenoid probe with an inductive sensor checks that the work-pieces are inserted in the correct position. During drilling, the work-piece is clamped by a solenoid actuator. Finished work-pieces are passed on via the sorting gate to Sorting Station. Sorting Station: This station sorts work-pieces onto three slides. Work-pieces placed on the start of the conveyor are detected by a diffuse sensor. A pneumatic stopper with integrated valve stops the work-piece before the sorting process. Sensors upstream of the stopper detect the work-piece features (black, red, metal). The cylindrical work-pieces are sorted onto the appropriate slides via electric deflectors. A retro-reflective sensor monitors the fill levels of the slides.

Product Description   MMS shall be capable of demonstrating industry processes such as feeder, inspection, buffer, process and sorting. Automation concept, electrical wiring logic control, PLC programming, Sensors and Alarms   Feeder StationTo separate out work pieces from the stack magazine by pushing the bottom one out with a pistonTo transfer work pieces to a downstream station by means of a changer module with a rotary arm with a pneumatic suction cup   Inspection StationEstablish the material characteristics of a work piece; check the work piece and;Either separate out a work piece or make it available for a subsequent station.   Buffer StationTransport and separate out work pieces.   Processing StationProcess the different work piece types such as aluminium or  plastic work piece andCheck the result of processing after the processing cycle.   Robot Station Pick and Placing material.Assembly StationAssembles the part materials Sorting StationThe sorting station segregates the work pieces based on the material type and colour.   Feeder Station: A gravity feeder houses the parts in a column. Each part is ejected by a pneumatic cylinder.  The correct orientation of the part is verified using a cylinder with a plunger after verification, pneumatic cylinder moves the work-piece to the final position. Otherwise, a single acting cylinder removes the work -piece via the evacuation ramp. Further the work –piece is moved to Inspection Station.   Inspection Station An Inspection Stations Measures the Height of the work- piece by measurement by Linear Variable Dsplacement Transducer. The correct dimension work –piece is processed further to Buffer Station and the wrong one is rejected. Buffer Station The Buffer station can buffer and separate up to five work-pieces. Diffuse sensors at the beginning of the conveyor detect the inserted work-pieces. Light barriers upstream and downstream of the separator control the process: If the transfer point is free, the separator passes on a work-piece. The separator is actuated by a short-stroke cylinder with a deflecting mechanism. The end positions of the short-stroke cylinder are detected by means of end-position sensors. The work –piece is transferred to Process Station. Processing Station: In the Processing station, work-pieces are tested and processed on a rotary indexing table. The rotary indexing table is driven by a DC motor. The table is positioned by a relay circuit, with the position of the table being detected by an inductive sensor. On the rotary indexing table, the work-pieces are tested and drilled in two parallel processes. A solenoid probe with an inductive sensor checks that the work-pieces are inserted in the correct position. During drilling, the work-piece is clamped by a solenoid actuator. Finished work-pieces are passed on via the sorting gate to Sorting Station. Sorting Station: This station sorts work-pieces onto three slides. Work-pieces placed on the start of the conveyor are detected by a diffuse sensor. A pneumatic stopper with integrated valve stops the work-piece before the sorting process. Sensors upstream of the stopper detect the work-piece features (black, red, metal). The cylindrical work-pieces are sorted onto the appropriate slides via electric deflectors. A retro-reflective sensor monitors the fill levels of the slides.

Brand Name : Cad Mech

We are a leading Manufacturer, Exporter, and Supplier offering the LCD PLC Trainer for Laboratory by Cad Mech. This educational equipment is housed in an Aluminium Frame, ideal for laboratory training. The model 107 comes packaged in a box and operates on electric power. Enhance your learning experience with this high-quality product designed for educational purposes.

Application : Laboratory Training

Material : Aluminium Frame

Brand Name : Cad Mech
