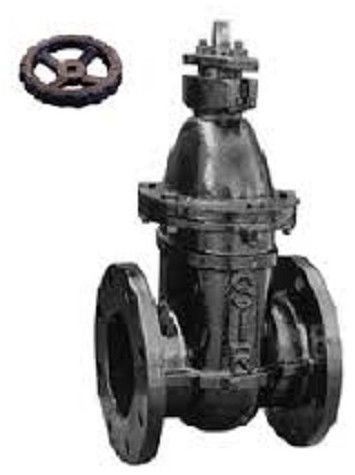

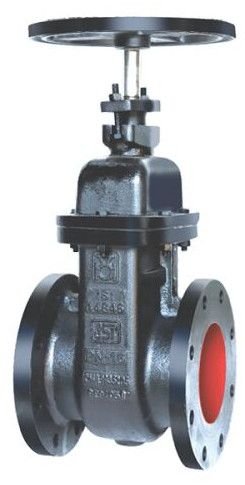

Sluice Valve (Gate Valve) Description:
A Sluice Valve, commonly referred to as a Gate Valve, is an isolation valve used to start or stop the flow of fluid in a pipeline. It operates by raising or lowering a gate (wedge) inside the valve body to control fluid passage. When fully open, the gate is completely drawn up into the bonnet, allowing an unobstructed flow path with minimal pressure drop. When closed, the gate seats tightly against the body to ensure a leak-proof seal.
Key Features:
Type: Rising or Non-Rising Stem
Body Material: Cast Iron / Ductile Iron / Cast Steel / Stainless Steel
Pressure Rating: PN10 / PN16 / Class 150
End Connection: Flanged (as per IS 14846 / BS / ANSI standards)
Operation: Handwheel / Gearbox / Electric Actuator
Size Range: 50 mm to 1200 mm (or as required)
Applications:
Water supply and distribution systems
Sewage and wastewater treatment plants
Firefighting networks
Irrigation and industrial pipelines
Power plants and process industries
Advantages:
Provides full bore flow with minimal pressure loss
Reliable shut-off for long service life
Suitable for both above-ground and underground installations
Easy maintenance and operation
we are dealing in this product cast iron sluice valves which provide Body Bonnet Wedge Yoke Gland Stuffing Box Hand Wheel
Cast Iron ASTM A126 ClassB EN 1561 NO, EN-JL 1040
Yoke Sleeve
S.G.IRON EN 1563 NO,EN-JS 1050
Stem
Steel ASTM A276 Type 410 304 316
Disc Disc Ring Wedge Face Ring Seat Ring
ASTM A217Gr. CA15 Bronze
Packing
Graphited Asbestos
