Digital Temperature Gauges Dealers in Pune

(6 products available)

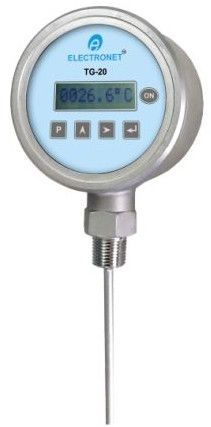

  • Tg 20 Digital Temperature Gauge

    Tg 20 Digital Temperature Gauge

    Get Price Quote

    • MOQ10 Piece
    • TypeDigital Temperature Gauges
    • Immersion Length Range25mm, 100mm, 300mm, 500mm
    • Display Accuracy+/-0.25% Of F.S For TC Input, +/-0.1% Of F.S For RTD Input
    • Process PressureUp To 100 Bar
    • Power SupplyBattery Operated
    • Battery Life1500 Hrs With Backlight, 2000 Hrs Without Backlight
    • Response Time<500 MSec
    • EnclosureDie Cast Aluminium
    • Electronics Protection ClassIP65
    • Dimensions100mm (Diameter) X 55mm / 140mm (Depth)
    • Mounting2 Inch Pipe Mount, Direct Line Mount
    • Weight1Kg
    • Ambient ConditionsTemperature -20 To 55°C, Humidity 5 To 95% Non Condensing
    • Digital Temperature Gauge (TG-20)  Key Features Local or remote sensor compatibility Auto display shut-off to extend battery life Battery-operated, portable design Weatherproof electronics protection: IP65 / IP67 Unit conversion: °C / °K / °F Handy, maintenance-free operation Reliable and cost-effective temperature monitoring Product Description Electronet TG-20 Digital Temperature Gauge is designed for fast, accurate, and hassle-free temperature monitoring. It is cost-effective and ideal for various industrial applications. The gauge includes a display shut-off feature, allowing users to activate the display only when needed via a push button. This significantly saves battery power and ensures long operational life. Technical Specifications Input & Sensor Details Type of Input: RTD, Thermocouple, Resistance, mV (0 to 100 mV) Sensor Type: RTD: PT-100, PT-200 Thermocouple: J & K Immersion Length: 25 mm / 100 mm / 300 mm / 500 mm Range: As per selected input Display & Performance Display: LCD Accuracy: RTD Input: ±0.1% of F.S Thermocouple Input: ±0.25% of F.S Response Time: <500 mSec Temperature Coefficient: ±0.01% per °C Process Pressure: Up to 100 bar max Display Lock: Activated via push button Stays ON for 20 seconds before auto shut-off Power & Battery Power Supply: Battery operated Battery Life: With backlight: 1500 hours Without backlight: 2000 hours Construction & Protection Enclosure Material: SS316 / Die-Cast Aluminium Protection Class: Weatherproof IP65 Dimensions: 100 mm (Diameter) × 55 mm 140 mm (Depth) Process Connection: ½" BSP (M) standard (others on request) Mounting: 2" pipe mount or direct line mount Weight: 1 kg Environmental Conditions   Ambient Temperature: -20°C to 55°C Humidity: 5% to 95% RH (non-condensing)
    ...more
    www
  • Digital Temperature Gauge

    Digital Temperature Gauge

    Get Price Quote

    • Sensor Type RTD, Pt-100
    • Sensor Length As per requirements
    • Range 0 to 400oC.
    • Display 8 x 1 LCD
    • Accuracy ± 0.5% F. S.
    • Process Pressure 100 Bar max
    • Temperature Range 100oC max
    • Display Lock Display can be made ON for 20 sec & then it will get OFF
    • Power Supply 5 V, Rechargeable Battery Operated
    • Back up time 1500 hrs continuous operation
    • Response time < 500 msec
    • Temperature Coefficient ± 0.01% peroC
    • Enclosure SS
    • Dimensions 100 mm (Diameter) x 80 mm (Depth)
    • Mounting Direct Line mount
    • Process Connector ½’ NPT (M)
    • Weight 1 kg
    • Operating Conditions Temperature 0 to 55oC / Humidity 5 to 95% non condensing
    • Features : • In-built RTD, Pt-100 Sensor• Measuring Range 0 to 400oC• Indication through LCD• Display auto shut-off facility• Battery Operated• Handy & maintenance free• Reliable & cost effective Description :Electronet’s series TG-20 are digital temperature gauges for fast, easy & trouble free operation. These can be cost effective & ideal for monitoring the temperature. Display shut-off facility is provided so that display can be made ‘ON’ only if required through push button. Thus it saves the power & results in long lasting battery operation.
    ...more
  • Digital Temperature Gauge

    Digital Temperature Gauge

    Get Price Quote

    These can be cost effective and ideal for monitoring the temperature. Display shut-off facility is provided so that display can be made 'ON' only if required through push button. Thus it saves the battery power and results in long lasting battery operation.
    ...more
  • Digital Temperature Gauge

    Digital Temperature Gauge

    Get Price Quote

    Specifications:- Input :- RTD (Pt-100) & Thermocouple ‘K’ (Cr-al). Range :-As per your requirement. Indication :- 3½ Digit Seven Segment LCD ½”size. Accuracy of Indication :- ±0.5% of FSD ± 1digit Operating Temperature :- 0ºc to 50ºC Supply :- 9VDC (Battery) Probe Dia. :- 6.35mm, 8mm, and 9.5mm or as per your application.
    ...more
  • Digital Temperature Gauges

    Digital Temperature Gauges

    Get Price Quote

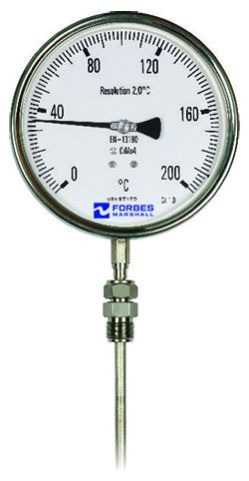

    The Gas Filled Dial Thermometer consists of a stem, capillary, and bourdon tube in a case. These parts are connected to form a unit. The complete measuring system is filled with an inert gas such as nitrogen, as standard,under pressure. A temperature change causes the internal pressure and volume in the stem to change. The deflection of the bourdon tube thus caused is transmitted to the pointer by a movement. A bimetallic element is fitted in between the movement and bourdon tube to compensate for fluctuations of ambient temperature at the case.
    ...more
  • Digital Temperature Gauges

    Digital Temperature Gauges

    15,000 - 25,000 / Piece

    • CertificationISI Certified
    • Brand NamePioneer
    • ApplicationTemperature Measurement
    • MaterialSS/MS
    • Digital Temperature Gauges
