Drytech Engineers Dhankwadi, Pune, Maharashtra

Small Wonder - compact, Silent Screw compressor Power : 5 hp onwards, Pressure : 5 bar and onward, Capacity : Starts from 15 cfm Vessel Size : Chnges model to model

Number Of Flower : Silent Air Compressor

Certification : ISO 9001:2008

Application : Industrial

Power Source : Electric

Brand Name : Drytech

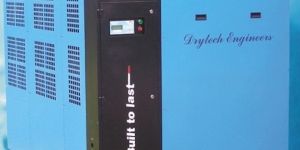

Introduction : We the team of 'Pneumatic engineers, from"Drytech" offers RD Series refrigerated drying unit can deliver the compressed air with quality of air as per ISO specification recommended to various applications.Exessive leakages in compressed air piping ! Sluggish pneumatic tools / machines operation !! Malfunctioning of precious pneumatic instruments !!! Etc. Are unlimited problems faced by compressed air users in industries. The root cause of these problems is moisture, oil and dust particles in compressed air. We the team of 'Pneumatic engineers, from "Drytech" offers RD Series refrigerated drying unit (RDU). the RDU can deliver the compressed air with quality of air as per ISO specification recommended to various applications.     Salient Features : •  Compact and Suitable for indian atmospheric conditions.•  Complete dryer operation overview through front panel display.•  Inlet / outlet digital Compressed air temp indication as an option.•  Least pressure drop.•  Adopted enviorment friendly refrigerant system.•  Reliable, automatic drain valve with by pass arrangement.•  Compact design with maintenance friendly work man ship.  Operation : We Compressed air enters into Compact, highly, efficient corrugated fin & tube 3 in 1 type heat exchanger, where Compressed air is cooled by refrigerant cycle upto +30c. At this temperature moisture from gasious form to into liguid form and separates by in-built moisture separator. This condensate will be effectively removed by automatic drain valve, further air is filtered by fine filter combination and dry air is delivered to down application.

Brand Name : Drytech

The presence of oil, moisture and dust particles in compressed air is a well known fact for industrial applications. As the technology advanced with inducation of sophisticated modern machineries working on compressed air, the usage of recommended quality class of air as per machines manufacturer or international Standard Organisation (ISO) or Pneurope recommendation has become necessary. The usage of filtered, dry air as per above recommendations results in reduced wear and tear, increased machine uptime, lower rejections, better product quality and above all considerable saving in energy.

Brand Name : Drytech

Country of Origin : 230 V

Automation Grade : Automatic

Number Of Flower : Air Dryers

Availability : 10-50kg

Brand Name : Drytech

Material : MS

Country of Origin : 220-240V

Number Of Flower : Air Dryers

Availability : 10-50kg

Brand Name : Drytech

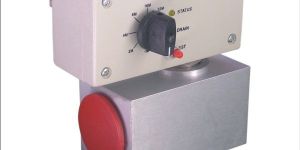

Manufacturer & Exporter of Electronic Auto Drain Valves(EADV), Electronic/Mechanical Electronic Drain, Compressed Air Heat Exchanger/After Coolers, Compressed Air Filters compressed air dryers-Dessiccant/Refrigerated type. Pressure Vessel/Air Receiver, Dealing in Screw/Reciprocating/Oil free compressors.The entrainment of condensate along with air flow in compressed air system to end use applications are extremely harmful, if system not drained regularly. The ideal solution for regular effective draining oil & moisture form compressed Air System is Drytech Electronic Auto Drain Valve. ( E A D V ).Salient Features Easy replacement of timer card only and not full assembly. Longest drain time frequencies for saving compressed air energy. Individual application capacities like receivers, filters and separators etc. Longer service life by way of having supplied with inlet 'Y' type strainers. LocationAir receiver, After Cooler, Moisture separator, Filters, Dryers & Drop Legs etc.Advantages Prevents moistures / oil carry over to pneumatic equipments. Discharges Condensate with high velocity without clogging. Lesser maintenance cost of pneumatically operated equipments Increased operation efficiency of pneumatically operated equipments.

Working Pressure : Max 12 Kg. / Cm2g

Brand Name : Drytech

The presence of oil, moisture and dust particles in compressed air is a well known fact for industrial applications. As the technology advanced with inducation of sophisticated modern machineries working on compressed air, the usage of recommended quality class of air as per machines manufacturer or international Standard Organisation (ISO) or Pneurope recommendation has become necessary. The usage of filtered, dry air as per above recommendations results in reduced wear and tear, increased machine uptime, lower rejections, better product quality and above all considerable saving in energy.

Brand Name : Drytech

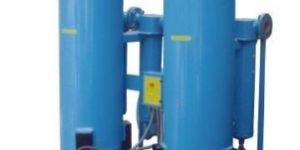

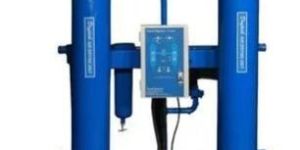

The presence of oil, moisture and dust particles in compressed air is a well known fact for industrial applications. As the technology advanced with inducation of sophisticated modern machineries working on compressed air, the usage of recommended quality class of air as per machines manufacturer or international Standard Organisation (ISO) or Pneurope recommendation has become necessary. The usage of filtered, dry air as per above recommendations results in reduced wear and tear, increased machine uptime, lower rejections, better product quality and above all considerable saving in energy.Drytech Air Drying Unit - HD series (Heatless) type offers quality class of air desired as per various recommendations for different pneumatic applications. The stationary air drying unit with negligible maintenance, lesser operating cost and longer service life is the right selection for pneumatically operated machines which needs purified compressed air.Salient Features Operating on ADSORP principle; Hence prevents entrainment of moisture in the pipe line however long is may be The most compact skid mounted unit supplied in READY FOR USE state by connecting compressed air at inlet and outlet The stationary working system and requires negligible maintenance Assured atmospheric dew point equal to (-) 40 deg. C. or (-) 70 deg C as required Ideal purging as per desiccant manufacturers instruction for regeneration Lesser pressure drop in total unit Modified purge silencer causing less noise Designed for Indian atmospheric condition Easy for installation and commissioning Sequence of Drying Operation : It is as per following three stagesPrefiltration : The dust particles, condensed oil and moisture in liquid droplets and aerosol from is per-filtered by set of pre-fine filter combination, The Compressed air with only vapourised from of moisture is permitted to enter the desiccant bed tower.Drying : The Saturated Compressed air is dried in desiccant bed tower.Postfiltration : The dry compressed air is refiltered in after filter for removal of residual fine particles if any.Operation : The complete ADU operates in following three modes.Drying Mode : The wet saturated compressed air coming from set of pre filters is led through one of the inlet valve (Operated by electronic timer) to the desiccant bed tower. The highly hygroscopic desiccant bed with sufficient air resident time due to proper velocity results in absorbing the moisture vapour and dries the air to desired level of dew point.Regeneration Mode : The small amount of dried air at almost atmospheric pressure is led through purge line to the saturated desiccant bed tower. The absorbed moisture in desiccant bed at earlier drying mode is desorbed in purged dry air and regeneration takes place.Pressurisation Mode : To avoid the pressure fluctuations at outlet of dryer, the regeneration mode tower is put in for pressurisation before it switches to drying mode. The entire operation is electronic timer controlled and automatic at various modes shown above for proper sequence and timing. The total cycle time is 10 minutes or 4 minutes as per timer selection for required dew point.

Brand Name : Drytech

We the team of 'Pneumatic engineers, from "Drytech" offers RD Series refrigerated drying unit can deliver the compressed air with quality of air as per ISO specification recommended to various applications. Exessive leakages in compressed air piping ! Sluggish pneumatic tools / machines operation !! Malfunctioning of precious pneumatic instruments !!! Etc. Are unlimited problems faced by compressed air users in industries. The root cause of these problems is moisture, oil and dust particles in compressed air. We the team of 'Pneumatic engineers, from "Drytech" offers RD Series refrigerated drying unit (RDU). the RDU can deliver the compressed air with quality of air as per ISO specification recommended to various applications.

Brand Name : Drytech

Manufacturer & Exporter of Electronic Auto Drain Valves(EADV), Electronic/Mechanical Electronic Drain, Compressed Air Heat Exchanger/After Coolers, Compressed Air Filters compressed air dryers-Dessiccant/Refrigerated type. Pressure Vessel/Air Receiver, Dealing in Screw/Reciprocating/Oil free compressors.The entrainment of condensate along with air flow in compressed air system to end use applications are extremely harmful, if system not drained regularly. The ideal solution for regular effective draining oil & moisture form compressed Air System is Drytech Electronic Auto Drain Valve. ( E A D V ).Salient Features Easy replacement of timer card only and not full assembly. Longest drain time frequencies for saving compressed air energy. Individual application capacities like receivers, filters and separators etc. Longer service life by way of having supplied with inlet 'Y' type strainers. LocationAir receiver, After Cooler, Moisture separator, Filters, Dryers & Drop Legs etc.Advantages Prevents moistures / oil carry over to pneumatic equipments. Discharges Condensate with high velocity without clogging. Lesser maintenance cost of pneumatically operated equipments Increased operation efficiency of pneumatically operated equipments.

Brand Name : Drytech

Application : Remove Small Particles From Water

Pressure : High, Medium

Material : Metal

Brand Name : Drytech

The presence of oil, moisture and dust particles in compressed air is a well known fact for industrial applications. As the technology advanced with inducation of sophisticated modern machineries working on compressed air, the usage of recommended quality class of air as per machines manufacturer or international Standard Organisation (ISO) or Pneurope recommendation has become necessary. The usage of filtered, dry air as per above recommendations results in reduced wear and tear, increased machine uptime, lower rejections, better product quality and above all considerable saving in energy.

Certification : ISO 9001-2008 Certified

Application : Vapor Removing

Condition : New

Automatic Grade : Automatic

Driven Type : Electric

Total Carbohydrate : 1yrs

Country of Origin : India

Brand Name : Drytech Engineers

Brand Name : Drytech

It is a heat exchanger designed & manufactured to reduce / cool the compressed air temperature to desired level, so the condensation takes place & vaporized moisture & oil in air gets converted in liquid droplets which further separated by moisture separator. The after cooler substantially reduces the moisture & oil load coming on down stream at the initial stage. The cooling media can be water or air.

Brand Name : Drytech

Storage Capacity : 250-500 ltr

Material : SS

Tank Orientation : Vertical

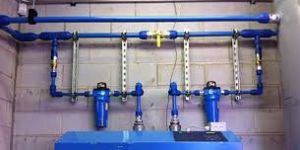

Installs faster than other piping, No threading, welding and brazing pipe, Simple to use, mounting and connecting hardware, Can connect to existing systems with other pipes, Easy to add on to or disassemble for your changing needs, Corrosion free hence do not generate any contamination & develops with pinholes.

Brand Name : Drytech

he presence of oil, moisture and dust particles in compressed air is a well known fact for industrial applications. As the technology advanced with inducation of sophisticated modern machineries working on compressed air, the usage of recommended quality class of air as per machines manufacturer or international Standard Organisation (ISO) or Pneurope recommendation has become necessary. The usage of filtered, dry air as per above recommendations results in reduced wear and tear, increased machine uptime, lower rejections, better product quality and above all considerable saving in energy.

Brand Name : Drytech

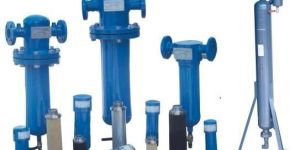

The Presence of oil, moisture and dust particles in compressed air is a well know fact for industrial applications. As the technology advanced with induction of sophisticated modern machineries working on compressed air, the usage of recommended quality class of air as per machine manufacture or international Standard Organisation (ISO) or Pneurop recommendation has become necessary. The usage of Drytch Fine Filters helps to achive Quality air as per above recommendation; which results in reduced wear and tear, incressed machine life/up time, lower rejections, better product quality and above all considerable saving in energy. Housing are manufactured & tested to operate at 16 bar (max) working pressure at max 60°C temp. Filter with higher temp. also can be supplied if required. End Conn. Supplied upto model 007 is BSP female. End conn. Supplied model 009 V onward are of flanges ASA-150# or as per purchasers choice. All models are supplied with manualdrain. Auto drain is optional at extra cost. WarrantyFilter elements are warranted for one year. Filter housing are warranted for 5 years against defect in design, manafucturing and material Subject to maintenance of the air contamination within level at inlet of filter combination. Maximum flow handled by individual mode will be equal to the nominal flow of next higher   To filter compressed air upto following level. Dust - Up to 0.01 µ Oil - Upto 0.005 ppm Moisture - Upto liquid & aerosol form. Efficiency - 99.9999 % Media PF - Sintered Bronze FF - Borosilicate micro glass fiber ACF - Fine Activated Carbon

Number Of Flower : Pre Filters (PF) : Coarse Filters, Fine Filters (FF) : Micro Filters

Brand Name : Drytech

Automation Grade : Automatic

End Connection : Flanged, Screwed

Country of Origin : Made in India

Material : Aluminium

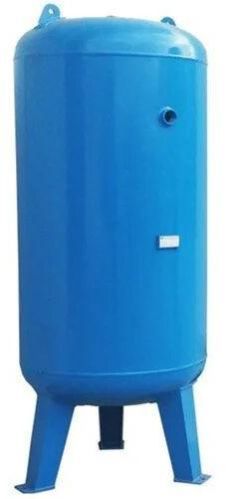

Compressed Air Receivers plays very important role in compressed air system with multi purposes by value of its design and rightly selected. Compressed Air Receivers or Air pressure Vessel also enhance the service life of compressor.   Pressure vessel plays very important role in compressed air system with multi purposes by value of its design & rightly selected Air Receiver also enhance the service life of Compressor.     Purpose : • Stores the pressurised compressed air. • Helps to maintain constant pressure at downstream. • Cools the compressed air.• Helps to separate oil & moisture from compressed air. • To allow compressor have optimum level of rest.     Types :   Location : Vertical and Horizontal.   After Compressor & After cooler. Range :   MOC : Upto 10 M³ at 7 Kg/cm2 operating pressure.   As per national & international standards of pressure vessel code.

Brand Name : Drytech

Country of Origin : 220-240V
