Electronica Machine Tools Ltd. Satara Road, Pune, Maharashtra

Features :- Integral design with compact footprintTwo – door, large work tankLarge table traverseWork tank :- 800 x 500 x 350 mmX x Y x Z : 300 x 200 x 250mmS 50 ZNC Generator with built – in‘EZ GURU’High – speed jumpHand – held, full function remote controlSafe machining circuitProgrammable EDM parametersAdaptive Arc controlEqui-energy pulse for uniform finishIn-built technology chart availableProgrammable Z-axisEDM parameters through 'EZ-GURU'DC Servo for Z-axis Click Here For More Details Technical Specifications :- Machine Tool Leader-1 /ZNC Work tank internal size (W x D x H) 800 x 500 x 350 mm Work table dimensions 550 x 350 mm Traverses (X,Y,Z) 300, 200, 250 mm Maximum electrode weight 100 Kg Maximum Job Weight 300 Kg Maximum job height above table 250 mm Feed motor (Z axis) DC Servo Position measuring system (X,Y,Z) Incremental linear scale Dielectric system Integral with machine tool Dielectric capacity 400 ltrs. Filter element 10 µ paper filter cartridge Pulse Generator S 50 ZNC Pulse Generator type MOSFET Max. working current 50 A ± 5 A Max. MRR Cu-St 350 mm3 /min. Max. MRR Gr-St (GR-1) 500 mm3 /min. Best surface finish (Cu-St) < 0.3 µ Ra Min. electrode wear (Cu-St & Gr-St) < 0.2% Power supply 3 phase, AC 415 V* 50 Hz Connected load 4.5 kVA / 6kVA

Material : Metal

Power Supply : 3 Phase, AC 415 V* 50 Hz

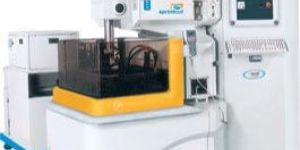

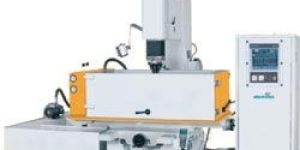

We provide Metal Cutting Machine most compact footprintdirectly coupled ac servo motorswire spool capacity 8 kglarge surface area paper filter specially designed by mann, germanywide cross-section of wire guide armcentralised lubricationstainless steel, non-corrosive hardened worktableresin bowl - large capacity of 20 litersauto-alignlcd touch panelcompact wire chopperde-coiler unit upto 45 kg wire (optional)high-precision 5 axes cncewin cnc - advanced windows based cnc controller with pmac motion control technologycapability of machining poly crystalline diamondaverage power consumption 12kvalow wire consumption technology based on moderate wire feedsae2 pulse technology16-step programmable flushingwindows-based elcamethernet for networking and remote monitoringprogram transfer through usb and rs 232cauto power recoverybest surface finish : 0.39 µ ramax. Cutting speed: 200 mm2/min.auto wire threading (optional) technical specifications :- machine toolultima 2stable size910 x 580 mmmaximum workpiece height 350 mmmaximum workpiece weight 1000 kgmain table traverse (x, y)600, 400 mmaux. Table traverse (u, v)100, 100 mmmaximum taper angle± 35o / 50 mmmaximum jog speed2000 mm / minresolution 0.0005 mmmaximum wire spool capacity8 kg (16-45 kg optional with de-coiler)wire electrode diameter0.25 mm (standard) 0.1, 0.15, 0.20, 0.30 mm (optional)pulse generatorpulse peak voltage2 steps cnc controlleremt 100 w - 5controlled axesx, y, u, v, z simultaneous / independentinterpolation linear and circularleast input increment0.001 mmleast command input (x, y, u, v)0.0005 mmmaximum programmable dim. (x, y, u, v)± 99999.999 mminput power supply3 phase, ac 415v*, 50 hzconnected load14kva includes dielectric system and cooling systemstandard ascii keyboard, mouse, data input / outputisolated rs 232 c serial interfaceusb port, ethernet (lan)(alternate rating available on request)dielectric unitdieelectric fluidde-ionised watertank capacity500/1300 litersfilterationpaper filterdielectric cooling capacity2100 kcal.

Number Of Flower : Metal Cutting Machine

Material : Stainless Steel, Resin

Usage : Cutting Metal With High Precision

Power Supply : 3 Phase, AC 415V, 50 Hz

We are providr Metal Cutting Machine Most compact footprintdirectly coupled ac servo motorswire spool capacity 8 kglarge surface area paper filter specially designed by mann, germanywide cross-section of wire guide armcentralised lubricationstainless steel, non-corrosive hardened worktableresin bowl - large capacity of 20 litersauto-alignlcd touch panelcompact wire chopperde-coiler unit upto 45 kg wire (optional)high-precision 5 axes cncewin cnc - advanced windows based cnc controller with pmac motion control technologycapability of machining poly crystalline diamondaverage power consumption 12kvalow wire consumption technology based on moderate wire feedsae² pulse technology16-step programmable flushingwindows-based elcamethernet for networking and remote monitoringprogram transfer through usb and rs 232cauto power recoverybest surface finish : 0.39 µ ramax. Cutting speed: 200 mm2>/min.auto wire threading (optional) technical specifications :- machine toolultima 1ftable size800 x 540 mmmaximum workpiece height 270 mmmaximum workpiece weight 500 kgmain table traverse (x, y)500, 300 mmaux. Table traverse (u, v)100, 100 mmmaximum taper angle± 35o / 50 mmmaximum jog speed2000 mm / minresolution 0.0005 mmmaximum wire spool capacity8 kg (16-45 kg optional with de-coiler)wire electrode diameter0.25 mm (standard) 0.1, 0.15, 0.20, 0.30 mm (optional)pulse generatorpulse peak voltage2 steps cnc controlleremt 100 w - 5controlled axesx, y, u, v, z simultaneous / independentinterpolation linear and circularleast input increment0.001 mmleast command input (x, y, u, v)0.0005 mmmaximum programmable dim. (x, y, u, v)± 99999.999 mminput power supply3 phase, ac 415v*, 50 hzconnected load14kva includes dielectric system and cooling systemstandard ascii keyboard, mouse, data input / outputisolated rs 232 c serial interfaceusb port, ethernet (lan)( alternate rating available on request)dielectric unitdieelectric fluidde-ionised watertank capacity500/900 litersfilterationpaper filterdielectric cooling capacity2100 kcal.

Number Of Flower : Metal Cutting Machine

Material : Stainless Steel, Resin

Packaging Type : Multicolor

Usage : Metal Cutting, Machining Poly Crystalline Diamond

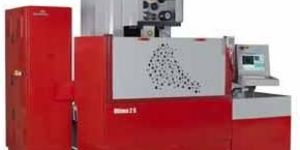

Features :- 4 axes cncprecision lm guideways for all axesmax. Cutting speed : 160mm2/min0.25ø special soft brass wire on 50 mm thick hchcr (steel) workpiece)best surface finish : 0.8 µ rataper : ± 30°/ 50 mme pluse technologyelcam - powerful part programming softwaretable size - 440 x 650 mmsurface finish: 0.8 µ ra.complex profile cuttingauto job setting parameters click here for more details technical specifications :- machine tooldesignfixed column, moving table table size440 x 650 mmmax.workpiece height200 mmmax. Workpiece weight500 kgmain table traverse (x, y)300, 400 mmauxiliary table traverse (u, v)80, 80 mmmax. Taper cutting angle ± 30o/50 mmmax. Jog speed900 mm / minmax. Wire spool capacity6 kg (upto din 160 / p5)wire electrode diameter0.25 mm (standard)0.15, 0.20 mm (optional)generator elpuls-40 a dlxpulse peak voltage1 stepcnc controller emt 100w-4controlled axesx y, u, v simultaneous / independentinterpolationlinear & circularleast input increment0.0001mmleast command input (x, y, u, v)0.0005mmmax. Programmable dim± 99999.999 mminput power supply3 phase, ac 415 v*, 50 hzconnected load 10kvaaverage power consumption6 to 7 kva

Number Of Flower : CNC Wire EDM Machine

Material : Steel

features :- incorporates psr znc 35 pulse generator40 programmes, 10 steps per programmbackground programmingbar graph display for programmed depth3 axes position displaysleep modereverse servo machiningmultistage anti – arc technical specifications :- machine tool500 x 300 / zncwork tank size725 x 415 x 315 mmwork table size500 x 300mmt slots for fixing3 of 10 mmlongitudinal travel (x) 280 mmtransverse travel (y) 200 mmquill travel (z)250 mmmax. permitted load on the table175 kgmax. electrode weight 50 kgmax. height above the table250 mmservo system (z axis)dc stepper servodielectric capacity250 litresfilter element10 µ paper filter pump motor rating1.5 hp, 3 phaseoverall dimensions1420 x 1140 x 2100 mm pulse generator max. working current35 + 2 ampno. of power settings99 x 9max. mrr (copper to steel)(graphite to steel)(steel to steel)220 mm3 / min.370 mm3 / min.130 mm3 / min.min. electrode wear< 0.1 %surface finish (copper to steel)0.8 µ raconnected load3 kvapower supply3 phase, 415 v* ac, 50 hz

Number Of Flower : Edm Machines

Material : Metal

Power Supply : 3 Phase, 415 V AC, 50 Hz

features :- very low power consumptionlike - to - like machiningmosfet for superior finishcarbide cuttingoptimum performancenrb for co-ordinate tableimpulse flushingergonomically designed control panelday/ night mode for 24hrs operationauto positioning for audiovisual signalreverse servo for reverse sparkingreverse polarity for every operationadjustable overflowmultistage anti – arc in – built technical specifications :- machine tool500 x 300work tank size725 x 415 x 315 mmwork table size500 x 300mmt slots for fixing3 of 10 mmlongitudinal travel (x) 280 mmtransverse travel (y) 200 mmquill travel (z)250 mmmax. permitted load on the table175 kgmax. electrode weight 50 kgmax. height above the table250 mmservo system (z axis)dc stepper servodielectric capacity250 litresfilter element10 µ paper filterpump motor rating1.5 hp, 3 phaseoverall dimensions1420 x 1140 x 2100 mm pulse generator max. working current35 + 2 ampno. of power settings99 x 9max. mrr (copper to steel)(graphite to steel)(steel to steel)220 mm3 / min.370 mm3 / min.130 mm3 / min.min. electrode wear< 0.1 %surface finish (copper to steel)0.8 µ raconnected load3 kvapower supply3 phase, 415 v* ac, 50 hzdielectric unit dielectric capacity250 litresfilter element10 µ paper filter

Number Of Flower : Edm Machines

Size : 500 X 300 Mm

Material : Carbide

Power Supply : 3 Phase, 415 V AC, 50 Hz

features :- nrb for co-ordinate tableimpulse flushing (optional)ergonomically designed control panelday / night mode for 24hrs operationreverse servo for reverse sparkingreverse polarity for easy operationauto positioning for audiovisual signal technical specifications :- machine tool400 x 250work tank600 x400 x 280 mmwork table size400 x 250mmtable traverse250 x 170 mmmax. workpiece weight100 kgmax. workpiece height 160 mmmax. electrode weight 50 kgz axis traverse150 mmtypes of table assemblyneedle roller bearingsneedle no. of t slots3t slot size10 mmleast count of vernier0.005 mmdaylight 410 mmshut height260 mmthroat320 mmgenerator max. working current20 + 2 ampno. of power settings99 x 9max. mrr (copper to steel)(graphite to steel)(steel to steel)120 mm3 / min.250 mm3 / min.80 mm3 / min.min. electrode wear< 0.1 %surface finish 0.8 µ raconnected load2 kvaservo systemdc stepperpower supply3 phase, 415 v* ac, 50 hzdielectric unit dielectric capacity150 litersfilter element10 micron paper filterdielectric pump motor rating 1 hp 3 øtotal weight700 kgmachine dimensions (w x d x h) 1130 x 1040 x 1800 mm

Number Of Flower : Edm Machines

Power Supply : 3 Phase, 415 V AC, 50 Hz

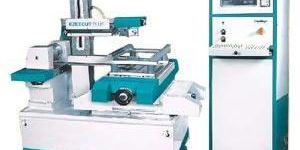

features :- lowest running costsclosed loop x, y with linear scalesreciprocating brass/ molybdenum wiremax. cutting speed 50 mm²/min. on steel (hchcr / wps)120 mm²/min. on aluminiumsurface finish : 2.5 ~ 3.0 µ rataper : ± 3°/100 mminbuilt 2 axes drocoolant oil is used as dielectric click here for more details technical specifications :- machine toolezeecut plusmax. workpiece size360 x 600 mmmax. z height400 mmmax. workpiece weight300 kgmain table traverse (x, y)320, 400 mmauxiliary table traverse (u, v)25, 25 mmmax. taper cutting angle ± 3o/100 mmwire diameter0.2 to 0.25 mm (brass)0.12 to 0.25 mm(molybdenum)generatorez-01display15" vga colour crtmin. input command0.001mmmin. increment0.001mminterpolation functionlinear & circularsimultaneously controlled axesx, y, u, vmin. resolution for x, y, u, v0.001mmdata input / output1.44 mb floppy discinput power supply3 phase, 415v* ac, 50hz connected load1.5 kva

Number Of Flower : Wire EDM Machine

Material : Brass, Molybdenum

Power Supply : 3 Phase, 415V AC, 50Hz

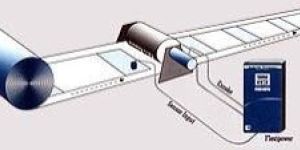

we provide effective solution for all your printing needs, in the form of rotary printing systems that are widely used in paper printing, textile printing where synchronization is the need of the production process. our rotary paper printing systems are fitted with separate motors that are used to control individual rollers. our world class printing systems have placed us among the apex rotary textile printing machine suppliers from pune. application requirements :- precise registration sensing and synchronizationmulticolour printingtension controlaccuracy in printing features :- precise position synchronization of individual rollsregistration mark sensinghigher line speedencoder feedback for tension controlbuilt-in plc for process interlockselimination on un-winder brakeuser friendly man-machine interface application solution in the scheme offered the draw roller is precisely controlled by a vector controlled ac induction motor or by a servo motor. precise position control is achieved through encoder feedback. build-in plc i/o's are provided for synchronized process operation and safety interlocks.

Number Of Flower : Printing System

Material : Paper, Textile

Usage : Paper Printing, Textile Printing

Purity : Position Synchronization Of Individual Rolls, Registration Mark Sensing

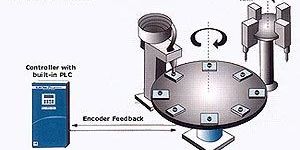

we manufacture and supply premium rotary indexer, which is widely used in industrial applications, where it is required to index the table in angular control or conveyer in packaging and pharmaceutical industry. our rotary table indexer is made from wear resistant parts, which last longer then that of other rotary machines available in markets. the quality of our rotary index makes us one of the prime programmable rotary indexer manufactrurers, from pune. application requirements :- angular programmingholding torque at zero speedsynchronized operationssmooth acceleration and deceleration features :- programmable acceleration and decelerationangular degree programmingprogrammable software cam switchessequencing of operations through built-in plcuser friendly operator interfaceelimination of complicated mechanical parts application solution we offer a standard ac induction motor with a vector controlled drive and a dsp based motion controller for this application. the encoder mounted on the rotary table gives 10,000 pulses per revolution and it is possible to rotate the table by 0.036 degree. a holding torque delivered by the motor at zero speed allows to eliminate geneva type mechanical arrangements. the resolution can be increased by selecting different encoder.

Number Of Flower : Programmable Rotary Indexer

Material : Wear Resistant Parts

Application : Industrial Applications For Indexing Tables Or Conveyors

Feature : Programmable Acceleration And Deceleration, Angular Degree Programming, Programmable Software Cam Switches, Sequencing Of Operations Through Built-in PLC, User-friendly Operator Interface, Elimination Of Complicated Mechanical Parts

Features :- Small hole drilling in hard metalsBoth brass and copper electrode tubes can be usedLarge drilling rangeTap water is used as dielectric fluidGranite work table ensures longer lifePrecision DC servocontrol to maximise drilling stabilityand speedCompact footprint Click Here For More Details

Number Of Flower : Electric Drill

Purity : Small Hole Drilling In Hard Metals, Large Drilling Range, Granite Work Table

Material : Metal, Brass, Copper, Granite

Packaging Type : Multicolor

Usage : Drilling Small Holes In Hard Metals

Power Source : Electric

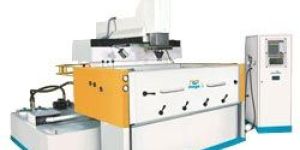

We provide Metal Cutting Machine.x x y : 1000 x 600 mm z : 450 mmmax.workpiece weight : 4500 kgpulse generator in manual / zncfixed table, moving columnx, y, z-axis with lm guidesx, y-axis motoriseddc servo motor for z-axisadaptive anti-arc controlequi-energy pulse for uniform finishin-built technology chart with ez-gurusafe machining circuit technical specifications :- machine toolmega 3work tank internal dimensions (w x d x h)2000 x 1300 x 700 mmwork table dimensions1250 x 800 mmlongitudinal travel (x)1000 mmtransverse travel (y)600 mmmax. Workpiece weight4500 kgmax. Workpiece height500 mmback slide traveln.a. Mmquill travel (z)450 mmmax. Electrode weight ( with accessories)300 kgservo system for z axisdc servopulse generatorps 100 & s 100 zncpulse generator typemosfetmaximum working current100aimpulse voltage150vpulse on time0.5 to 4000 µ sec pulse frequency0.1 to 500 khzmax. Mrr (cu-st)600 mm3 /min.max. Mrr (gr-st edm 1) 1000 mm3 /min.best surface finish (cu-st) 0.3 µ ramin. Electrode wear (cu-st & gr-st)

Number Of Flower : Metal Cutting Machine

We are offering Metal Cutting Machine X x Y : 550 x 450 mm Z :220 + 330 mmMax.workpiece weight : 1500 kgPulse generator in manual / ZNCWork tank : 800 x 500 x 350 mmWork tank available in different sizesMoving table, fixed columnZ-Axis with cross roller bearingsDC servo motor for Z-axisX, Y guideways with turcite coatingX, Y, Z-axis with Linear scale (5 micron)Back slide to accommodate bigger jobsAdaptive Anti-Arc controlEqui-energy pulse for uniform finishIn-built technology chart with Ez-GURUSafe Machining Circuit Technical Specifications :- Machine ToolMega 2Work tank internal dimensions (W x D x H)1750 x 1060 x 600 mmWork table dimensions1100 x 650 mmLongitudinal travel (X)650 mmTransverse travel (Y)550 mmMax. workpiece weight2000 kgMax. workpiece height450 mmBack slide travel350 mmQuill travel (Z)280 mmMax. electrode weight (with accessories)200 kgServo system for Z axisDC ServoPulse GeneratorPS 70 & S 70 ZNCPulse generator typeMOSFETMaximum working current70AImpulse Voltage150VPulse on time0.5 to 4000 µ sec Pulse frequency0.1 to 500 kHzMax. MRR (Cu-St)400 mm3 /min.Max. MRR (Gr-St EDM 1) 700 mm3 /min.Best Surface finish (Cu-St) 0.3 µ RaMin. electrode wear (Cu-St & Gr-St)

Number Of Flower : Metal Cutting Machine

Usage : Metal Cutting And Machining

We are offering Metal Cutting Machine X x Y : 550 x 450 mm Z :220 + 330 mmMax.workpiece weight : 1500 kgPulse generator in manual / ZNCWork tank : 800 x 500 x 350 mmWork tank available in different sizesMoving table, fixed columnZ-Axis with cross roller bearingsDC servo motor for Z-axisX, Y guideways with turcite coatingX, Y, Z-axis with Linear scale (5 micron)Back slide to accommodate bigger jobsAdaptive Anti-Arc controlEqui-energy pulse for uniform finishIn-built technology chart with Ez-GURUSafe Machining Circuit Technical Specifications :- Machine ToolMega 1 MWork tank internal dimensions (W x D x H )1440 x 860 x 500 mmWork table dimensions900 x 500 mmLongitudinal travel (X)550 mmTransverse travel (Y)450 mmMax. workpiece weight 1500 kgMax. workpiece height350 mmBack slide travel330 mmQuill travel (Z)220 mmMax. electrode weight ( with accessories)120 kgServo system for Z axisDC ServoPulse GeneratorPS 70 & S 70 ZNCPulse generator typeMOSFETMaximum working current70AImpulse Voltage150VPulse on time0.5 to 4000 µ sec Pulse frequency0.1 to 500 kHzMax. MRR (Cu-St)400 mm3 /min.Max. MRR (Gr-St EDM 1) 700 mm3 /min.Best Surface finish (Cu-St) 0.3 µ RaMin. electrode wear (Cu-St & Gr-St)

electronica machine tools ltd is a premium manufacturing unit specializing in roller flow forming machine that is made from best quality materials to ensure long life and sturdy structure. our two roller flow forming machine has created a huge demand among the industrial houses because of its high operational output and easy operations. our world class product has earned us place among the eminent two roller flow forming machine manufacturers and suppliers from pune. features :- head stocklongitudinal slides (z axis)cross slidesindexing head assemblyroller headslubrication system click here for more details

Material : Metal

Number Of Flower : Roller Flow Forming Machine

Packaging Type : Card Board Box

Application : Industrial

Purity : Reliable and Durable

we are listed among the most reputed electrical discharge sawing machine manufacturers and suppliers from pune. our electric discharge sawing machines can easily cut through electrically conductive materials irrespective of its hardness. the electrical discharge sawing machine provided by us is made from quality raw materials, which offer its durability and strength. features :- it can cut any electrically conductive material irrespective of its hardnesssawing of spherical or slanting surfacesfaster than band saw in case of hard materialsminimum loss of material, as the cutting width is less than 1.5mmno deformation of work piecegood sawing efficiency irrespective of hardness & resistant strengthonly small zone gets affected due to heat generationvery low running expenses click here for more details technical specifications :- machine tooleds200eds400eds600eds1000maximum cutting limits (cross-section of work piece) 200mm x 200mm400mm x 400mm600mm x 600mm1400mm x 1000mmwork table dimensions400mm x 600 mm600mm x 800 mm800mm x 800 mm1400mm x 1000mmlongitudinal travel (y)600mm600mm600mmnavertical saw travel (z)250mm450mm650mm1150mmrapid free rate600mm/min600mm/min600mm/min600mm/mincutting (working) saw servo feed40mm/min40mm/min40mm/min40mm/minaverage cutting speed10 -15cm2/min10 -15cm2/min10 -15cm2/min10 -15cm2/minsaw speed 16m/sec16m/sec16m/sec16m/sectension on saw belt300kg300kg300kg300kgelectrode material--mild steel-axis measurement y & z with encoder0.005mm0.005mm0.005mm0.005mmnet weight4500kg5000kg6000kg1000kgmachine tooleds200eds400eds600eds1000maximum output30 v, 200 a30 v, 400 a three stages change30 v, 400 a 30 v, 800 a output amperage adjustment methodsaturated reactor typeelectrode servo feeding methoddc servo type (ac servo optional)input power supply* 3 phase, ac, 415 v, 50 hz*connected load20 kva45 kva45 kva140 kva note :- alternate power supply rating available on request.

Number Of Flower : Electrical Discharge Sawing Machine

Material : Metal

Purity : Cut Any Electrically Conductive Material,Sawing Of Spherical Or Slanting Surfaces,Faster Than Band Saw For Hard Materials,Minimum Loss Of Material,No Deformation Of Workpiece,Good Sawing Efficiency,Low Running Expenses

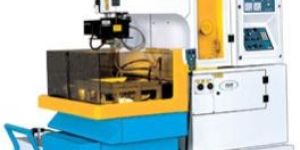

We are offering Metal Cutting Machine Integral design with compact footprintCutting speed : 70mm2/min 0.25Ø special soft brass wire on 50 mm thick HCHCr (steel) workpiece)Best surface finish : 1.2 µ RaTaper : ± 5o/100 mmHand held remote controle pluse technologyTable size - 370 X 600 mmMax. cutting speed: 70mm3 /minMachines with no FrillsCompact size Technical Specifications :- Machine ToolMax. table size370 x 600 mmMax.workpiece height200 mmMax. workpiece weight300 kgMain table traverse (X, Y)250, 350 mmAuxiliary table traverse (u, v)30, 30 mmMax. taper cutting angle ± 5o/100 mmMax. wire spool capacity6 kgDry run speed80 mm/min0.25 mm (Standard)0.2 mm (Optional)Generator ELPULS - 10Display Colour CRTMin.input command0.001mmInterpolation function Linear & CircularSimultaneously controlled axes X,Y, u, vMemory 1000 blocks with battery back upData input / output RS 232 C isolated serial interface1.44 MB floppy diskSpecial function sealed keyboardInput Power supply 3 phase, AC 415 V*, 50 HzConnected load 3KVAAverage power consumptionpower 1.3 to 2.3 kVADielectric Unit Dielectric fluidWaterTank capacity140 LitersPaper filter10 µ Single Cartridge

Number Of Flower : Metal Cutting Machine

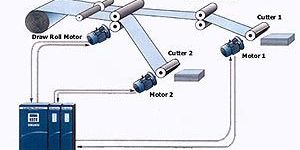

we manufacture and supply best quality simplex duplex rotary cutter, which is widely used in paper conversion, finishing& printed film processing industries. our simplex duplex rotary material cutters that cut the material to required preset lengths, with accuracy and repeatability. a simplex duplex rotary material cutter system comprises of a draw roller and one or two rotary cutters, which are synchronized with the draw rollers to give the desired cut length. we are reputed as one of the topmost rotary cutter exporters from pune. application requirements :- variable length settingaccuracy and consistencyminimum setting timehigh speed operationsimple to operate features :- zero setting timerexcellent accuracy & repeatabilitynegligible paper wastageenergy efficientmaintenance freeprogrammable length settingeliminates piv gear boxes, prone to maintenancecutting with registration mark application solution two separate ac induction motors are used. one motor is coupled to the draw roller and another is coupled to the rotary cutter. the operator sets the line speed which decides the draw roller rpm. the rotary cutter is electronically geared with the draw roller. the rotary cutter exactly follows the draw roller with a set ration. the ratio remains undisturbed during acceleration. this feature is called the zero backlash electronic gearing, with programmable gear ratio. this close loop control system measures sheet length accuracy at every cut. the number of controlled motors depends on the application, as well as either simplex or duplex.

Material : Metal

Number Of Flower : Rotary Cutter

Usage/Application : Paper Conversion, Finishing & Printed Film Processing Industries

Specialities : Zero Setting Timer, Excellent Accuracy & Repeatability

features :- integral design with compact footprintmoving head, fixed tablehigh speed jump (upto 2.5 m / min)built - in 'guru'definable erosion axisadaptive anti-arc & flushing controlsafe machining circuitcanned orbiting cyclesintegrated 'c' axis (optional)automatic tool changer (optional)rise and fall work tank (optional)linear optical scales of 0.0005mm resolution on all axes (optional) click here for more details technical specifications :- machine toolxepert1work tank internal dimensions (w x d x h)900 x 600 x 350 mmwork table dimensions600 x 400 mm longitudinal travel (x)400 mmtransverse travel (y)300 mmquill travel (z)300 mmmax. workpiece height250 kgmax. permitted load on the table1000 kgmax. electrode weight50kg - without 'c' axis25kg - with 'c' axis (in static mode)pulse generator e pulse 50 cncpulse generator typemofsetmaximum working time50 apulse on time0.25 -3000 p/secpulse frequency0.22 1492 khzmax mrr (cu - st)350mm cube /minmax mrr (gr - steel)500mm cube /minbest surface finish (cu - st)0.3 ramin. electrode wear (cu - st & gr- st)

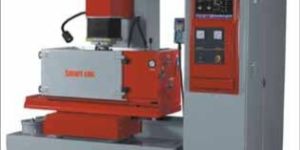

We offer smart cnc. Features :- High Speed jumpBuilt-in GURUDefinable erosion axisCanned orbiting cyclesAdaptive anti-arc and flushing controlSAFE machining circuitBall screws on X, Y, ZC axis (optional) Click Here For More Details Technical Specifications :- Machine ToolSmart CNCWork tank internal dimensions (W x D x H) 800 x500 x 350 mmWork table dimensions550 x 350 mm Transverse(X,Y,Z) 300, 200, 250 mmMaximum job weight 300 kgMaximum electrode weight 70 kgMaximum job height above the table250 mmDielectric unitDielectric capacity400 LitresFilter element10 µ paper cartridge 2 nos.Pulse Generator S 50 CNCPulse generator type MOSFETMaximum working time50 AMax MRR (Cu - St) (GR-1) 350mm cube /minMax MRR (Gr - Steel)500mm cube /minBest surface finish (Cu - St) 0.29 µ RaMin. electrode wear (Cu - St & Gr- St)

Number Of Flower : Electrical Discharge Machining (EDM) Machine

Speciality : High Speed Jump,Built-in GURU,Definable Erosion Axis,Canned Orbiting Cycles

Material : Metal

Usage : Machining Metal Parts With High Precision
