Energy Tech Engineers Pisoli, Pune, Maharashtra

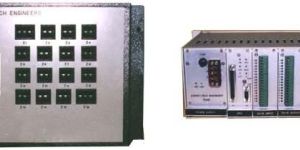

general features sturdy aluminium housing for harsh industrial environment. slots configurable for the card used. facility to connect bcd thumbwheel inputs. easy ladder programming. non-volatile eeprom storage for user program. front end io terminations. easy replacement of cards without disturbing the connections. rs-232 serial interface for connectivity to pc. ibm-pc compatible software package with full documentation facility. online monitoring on ibm-pc.     technical specification configuration no of inputs : 64 maximum (24vdc optically isolated) no of outputs : 48 maximum (24vdc optically isolated pnp type) no of analog channels : 4 channels per slot (± 10v dc) no of thumbwheel inputs : 80 maximum (bcd) instruction set bit instructions : no , nc , series , parallel, rising edge, falling edge, jump, master reset, coil, set, reset, flip-flop special functions: timers : on delay , off delay, 0.01 , 0.1, 1 sec. Programmable monoshots : retrigerable 0.01, 0.1, 1 sec timebase counters : up, down comparison : < , > , , = arithmetic : +, - , x , / conversion : bcdbinaryasciihex word type : incr, decr, set, reset, move logical word : and, or, xor, neg

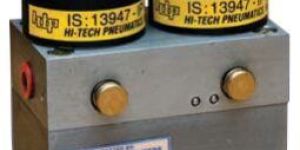

Type 5/2 Way Pilot Operated Double Coil, Impulse Operated Poppet type design   Port Connection 1/4" BSP   Mounting Suitable for sub base mounting   Media Air Operating Temprature 80°C max   Operating Pressure 2-10 bar   Orifice 6 mm   Flow Factor 12 KV   Coil 230 VAC / Class 'F' Insulation / Size 1 / IP65 Protection   Coil Power Consumption Inrush VA-18 / Hold On VA-12 / Wattage - 6W   Valve Body Material Aluminium alloy hard anodised   Manual Override Push button type   Operating Pressure Solenoid Valve for Double Acting Cylinder, where port is required to be latched when power fails

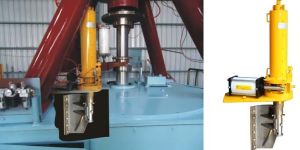

the pneumatic plough discharger developed by us is an innovative design, which offers many advantages over the conventional design currently available in the market. Several independent mechanical and electrical interlocks provided, prevents inadvertent entry into sugar layer.   features compact and very sturdy design. Height above monitor casing cover is 1000mm. easily suite to any make and any size of batch type flat bottom centrifugal machine shorter discharging period. because of smooth movement total cycle time can be reduced stainless steel plough blade, hence no contamination of the product. non rotating polymer seal gives more life .( low maintenance cost ) as against conventional u cup seals adequate interlocking prevents improper operation. separate brass tip for proper alignment with the basket.

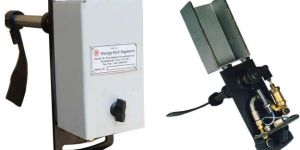

The pneumatic massecuite thickness controller developed by us is an innovative design, which offers many advantages over the conventional design currently available in the market. The system designed by us is unique sturdy design following the simple principle of mechanical displacement when it touches the rotating massecuite level. The system is pneumatically operated so that there is very less wear and tear as well as electrical hazards. The level adjustment is on the topside of monitor case only; such that it can be adjusted when machine is running.   Features PNEUMATIC ACTUATION HENCE NO ELECTRICAL HAZARDS COMPACT AND VERY STURDY DESIGN. VERY POSITIVE SENSING. SELF LUBRICATING PTFE BUSH GIVES LESS MAITENANCE STURDY SENSING ARM DOESNOT GET DAMAGES BY ANY MASSECUITE CONDITION. BROAD SENSOR CAN EASILY SENSE ANY TYPE OF MASSECUITE. LEVEL ADJUSTMENT IS FROM TOP. BROAD SENSOR REQUIRES VERY LESS PUSHING FORCE, HENCE FAST SENSING.

We, being a prime Manufacturer, Supplier and Exporter in the industry, offer Massecuite Thickness Controller. It is craved for by our customers. We ensure to deliver within stipulated time frame. The striking features of this product are effectiveness and durability. The quality on offer is in compliance with the industry quality requirements. We offer this range to our customers at market leading prices. Additional Information:The pneumatic massecuite thickness controller developed by us is an innovative design, which offers many advantages over the conventional design currently available in the market. The system designed by us is unique sturdy design following the simple principle of mechanical displacement when it touches the rotating massecuite level. The system is pneumatically operated so that there is very less wear and tear as well as electrical hazards. The level adjustment is on the topside of monitor case only; such that it can be adjusted when machine is running.   Features: Pneumatic actuation hence no electrical hazards Compact and very sturdy design. Very positive sensing. Self lubricating PTFE bush gives less maintenance Sturdy sensing arm does not get damages by any massecuite condition. Broad sensor can easily sense any type of massecuite. Level adjustment is from top. Broad sensor requires very less pushing force, hence fast sensing.

To improve the capacity of continuous centrifugal machine, it requires automation of massecuite feed and water wash.The IRIS flow control valve (centrally opening as camera aperture) can easily control the massecuite feed. The automatic massecuite feeding system controls loading of the centrifugal (motor load) by adjusting the opening of IRIS Valve.The IRIS Valve provided (of size DN 125 to DN 200) is operated by an electro pneumatic actuator. For a high control precision, the pneumatic actuator is designed for a high number of operations. To control the desired quantity of water wash needle valves are to be adjusted manually.   Advantages Optimized sugar yield; wash water and steam quantity are set to optimum performance; the quantity of massecuite is corrected Due to IRIS Valve massecuite flow is concentric and finely controlled. Optimized centrifugal throughput (higher than 10% to 20% of manual control) Gentle centrifugal oepration for a longer service life No overflow of massecuite in motor trip condition as valves closes automatically in motor off/ trip condition Reduced dilution of molases and direct sugar losses Saves electricity and steam Very user friendly and robust design Easy to install and commission Can be retrofitted easilty with the existing panel

We are Manufacturer, Supplier and Exporter of Iris Flow Control Valve. It is manufactured from unmatched quality raw materials and following world class standard. Our valued customers can get it delivered at their doorsteps at their ease and comfort. Demand of our product is increasing day by day owing to its precise processing, high effectiveness and immaculate quality. We offer this safely packed product at affordable rate. Additional Information:To improve the capacity of continuous centrifugal machine, it requires automation of massecuite feed and water wash. The IRIS flow control valve (centrally opening as camera aperture) can easily control the massecuite feed. The automatic massecuite feeding system controls loading of the centrifugal (motor load) by adjusting the opening of IRIS Valve. The IRIS Valve provided (of size DN 125 to DN 200) is operated by an electro pneumatic actuator. For a high control precision, the pneumatic actuator is designed for a high number of operations. To control the desired quantity of water wash needle valves are to be adjusted manually. Advantages: Optimized sugar yield, wash water and steam quantity are set to optimum performance, the quantity of massecuite is corrected Due to IRIS Valve massecuite flow is concentric and finely controlled. Optimized centrifugal throughput (higher than 10% to 20% of manual control) Gentle centrifugal operation for a longer service life No overflow of massecuite in motor trip condition as valves closes automatically in motor off/ trip condition Reduced dilution of molasses and direct sugar losses Saves electricity and steam Very user friendly and robust design Easy to install and commission Can be retrofitted easily with the existing panel

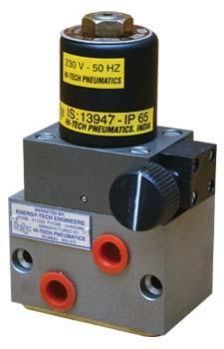

We offer a vast range of exclusive quality 5/2 Way Pilot Operated Single Coil Solenoid Valve, which is made with high grade raw materials and modern technologies. We as a leading Manufacturer, Supplier and Exporter provide an outstanding performance in the form of this immaculate quality which is highly demanded and praised among the customers. We manufacture it in different specifications and can customize according to clients requirement. Get your hands on the impeccable quality for minimal rates. Additional Information: Type: 5/2 Way Pilot Operated Single Coil, Poppet type design Port Connection: 1/4" BSP Mounting: Suitable for sub base mounting Media: Air Operating Temperature: 80°C max Operating Pressure: 2-10 bar Orifice: 6 mm Flow Factor: 12 KV Coil: 230 VAC / Class 'F' Insulation / Size 1 / IP65 Protection Coil Power Consumption: Inrush VA-18 / Hold On VA-12 / Wattage - 6W Valve Body Material: Aluminium alloy hard anodized Manual Override: Knob type lockable arrangement Operating Pressure: Solenoid Valve for Double Acting Cylinder

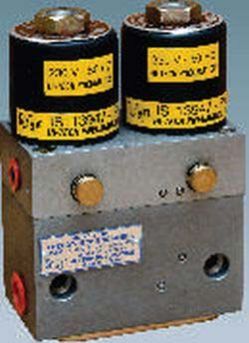

We are one of the most sought after Manufacturers, Exporters as well as Suppliers of 5/2 Way Pilot Operated Double Coils in national territory. Made up of the finest grade materials, our Solenoid Valves can be used up-to 80°C. Further, we also provide customized solutions for our Valves. With us, buyers are free to place orders, we ensure timely deliveries.   Features Type : 5/2 Way Pilot Operated Double Coil, Impulse Operated Poppet type Design Port Connection : 1/4" BSR Mounting : Suitable for sub base mounting Media : Air Operating Temperature : 80oC max. Operating Pressure : 2-10 bar. Orifice : 6mm Flow Factor : 12 KV. Coil : 230 VAC/ClassV Insulation/ Size 1/ IP65 Protection. Coil Power Consumption : Inrush VA-18/ Hold on VA-12/ Wattage- 6W. Valve Body Material : Aluminium alloy hard anodised. Manual Override : Push Button type. Application : Solenoid Valve for Double Acting Cylinder, where Port is required to be latchico when power fails.

Riding on our experience in the industry, we, as a Manufacturer, Supplier and Exporter have positioned us in the higher echelons of the industry. The 5/3 Way Hand Operated Manual Valve on offer is acknowledged among customers owing to its impeccable quality. Our distribution network allows us to facilitate quick and convenient delivery in a matter of time at your doorstep. Contact us to get it for cheaper rates.   Additional Information: Type: 5/2 Way hand operated manual valve Port Connection: 1/4" BSP Mounting: Independent Media: Air Operating Temperature: 80°C max Operating Pressure: 2-10 bar Orifice: 6 mm Valve Body Material: Aluminium alloy hard anodized

As an eminent enterprise, we Manufacturer, Supplier and Exporter offer 3/2 Way Pilot Operated Solenoid Valve. Moreover, our provided valve is available at cost effective prices. It is widely applauded and cherished because of its longer life and optimum design. For manufacturing it, we make use of only the first-rate raw material. A team of qualified experts strictly matches the quality to industrial quality standards to ensure there is no drop in the quality. Additional Information: Type: 3/2 Way Pilot Operated NC, Poppet type design Port Connection: 1/4" BSP Mounting: Suitable for sub base mounting Media: Air Operating Temperature: 80°C max Operating Pressure: 2-10 bar Orifice: 6 mm Flow Factor: 12 KV Coil: 230 VAC / Class 'F' Insulation / Size 1 / IP65 Protection Coil Power Consumption: Inrush VA-18 / Hold On VA-12 / Wattage - 6W Valve Body Material: Aluminium alloy hard anodized Manual Override: Knob type lockable arrangement Operating Pressure: Solenoid Valve for Single Acting Cylinder

Captivating our customers with our excellent performance, we have maintained our status as a top figure in the industry. As a Manufacturer, Supplier and Exporter, we take pride in presenting Centrifuge Spare Parts to our customers. These are manufactured by skilled experts to make sure there is no compromise with the quality. Their durability and effective performance make them an attractive alternative. The quality on offer is available to our customers for economical prices.Contents: Basket Bearing Housing assembly Shaft Product distributor Water spray pipe and nozzles Rubber buffer and rubber packing Supporting and working screen Water flow meter (Rota-meter) Automatic massecuite feeding system with IRIS valve C I drive and driven pulley Rubber V seals and rubber flexible hoses
