Excel Enclosures Dehu, Pune, Tamil Nadu

Material : SS

We Offer Wall Mounting Boxes. 01) Welded Body: It's Body is Closed from Sides, Rear Top & Bottom in 1.5/2.00 Thk Folded Crca Sheet 02) Base: It is Optional 03) Front Single /split / Partial Doors: Made in 2.00 Thk Crca Sheet. with Support Frame, Sheet Metal Special Hinges, Cam Lock. 04) Gland Plate: At Top or Bottom in 2.00 Thk Crca 05) Component Mounting Plate: in 2.00/3.00 as per Requirement. - Size (width -55) X (height - 55) Mounting On Welded Bushes At Rearmost Position. 06) Wall Mounting Bracket: 4 No's Wall Mounting Bracket (in 3.00 Thk) per Enclosures 07) 19'' Rack: Din Standard 19” Equipments Mounting Arrangement is Possible. 08) 19"swing Frames: Suitable for 19” Mounting in Width and Height as per Requirement. standard Size of the Enclosures: width : 300mm ~ 800mm (pitch of 100mm) depth : 100mm ~ 600mm (pitch of 50mm) height : 300mm ~ 1200mm (pitch of 100mm) base :as per Requirement.

Material : CRCA Sheet

Number Of Flower : Wall Mounting Enclosure

Application : Wall Mounting

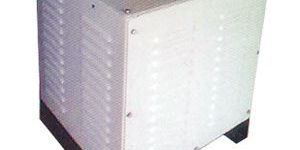

Transformer enclosures Welded body with sides, top and bottom closed in 1.52.00 thk folded CRCA sheet or modular frame structure in 3.00 thk.Canopy can be mounted on top.Sides can be covered with covers with punched ventilation lovers.It can be manufactured in GI sheets or stainless steel sheet for outdoor use

Width : 300mm -2000mm

Height : 300mm-2200mm

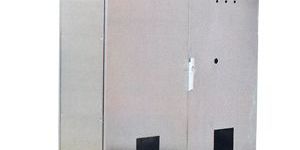

Stainless steel enclosure These are manufactured in JB, WMM, MFS & MFSE Contrustion. SS 304, SS 316 material grade are available. Surface finish is available in matt or glossy. Refer respective page for size variables.

We Offer Pc Enclosures. features : 1) Pc Enclosure Systems Can Be Manufactured in all the Three Designs I.e. Modular Frame Structure or Modular Closed Side or Single Body Design 2) Better Ip Protection (up to Ip55-67) it Mainly Comprises : 1) Monitor Compartment Door Can Be Operated By Gas Spring Cylinder (for Hands Free Operation). 2) Rubber Bidding Less Glass/acrylic Gives Attractive Look & Fits Easily. 3) Sliding Keyboard Drawer 4) Depending Upon the Facilities Required There are Four Different Types of P.c. Enclosures.

Number Of Flower : PC Enclosure Systems

Feature : Monitor Compartment Door Operated By Gas Spring Cylinder,Rubber Bidding Less Glass

Material : Steel

Application : Protecting PC Components

IP Rating : 67

Brand Name : Excel Enclosures

Material : MS

Width : 300 mm - 1200 mm

Height : 300 mm-2200 mm

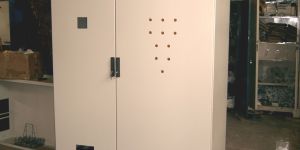

We Offer Modular Frame Structure Enclosures. sub-assemblies: 01) modular Frame Structure: made of 3.00 Thk Folded Crca Sheet with Vertical and Horizontal (depth Wise) Indexing Holes Dia 9 & Dia 4.2 in 12.5 Mm Pitches. 02) base: made in 3.00 Thk Folded Sheet with Removable Front and Rear Covers in 2.00 Thk. Base Cover Can Be Slotted for Ventilation from Bottom (if Required). 03) door: front & Rear Single Door / Split Doors / Partial Doors in 2.00 Thk Crca Sheet. with Support Channels, Sheet Metal Special Hinges, 3/4 Point Handle lock. 04) cover: front Fixed Bolted Cover in 2.00 Thk for Instrumentation Panels in Place Of Door. When Door Not Necessary At Rear Screwed Cover in 1.5 Thk. 05) bottom Gland Plates: in Varying Combination in 2.00 Thk Folded Crca Sheet. Slotted or Perforated Bottom Covers in 1.5 Thk (for Ventilation from Bottom if Required). 06) side Cover: screwed Side Covers in 1.5 Thk Crca Sheet 07) top Cover: in 1.5 Thk Crca Bolted in Lifting Eye Bolts Itself. 08) component Mounting Plate: in 2.00/3.00 as per Requirement. - Size (width -100) X (height - 100) with Depth Wise Adjustable Mounting In 25 Pitch. - Partial Component Mounting Plates in Any Size Within Maximum Size Range. 09) inter Panel Separator: made in 1.5 Thk When Two or More Enclosures Joined Together. 10) lifting Eye Bolts: hooks are Used for Normal Weight and Heavy Duty Angles for Bigger Enclosures. 11) 19'' Rack: din Standard 19” Equipments Mounting Arrangement is Possible. 12) 19"swing Frames: suitable for 19” Mounting in Width and Height as per Requirement. standard Sizes: width: 500mm ~ 2000mm (pitch of 100mm) depth: 400mm ~ 1000mm (pitch of 50mm) height: 1000mm ~ 2200mm (pitch of 100mm) base: 75mm, 100mm, 150mm and 200mm * Up to 1000mm Width Single Door Can Be Provide Above 1000mm Split Doors are Recommended * Up to 1200mm Width Single Welded Structure Can Be Provide & for Width Above 1000 Mm Two Separate Structures or Twin Welded Together Structure is Recommended.

Material : CRCA Sheet

Number Of Flower : Enclosures

Material : Mild Steel

Shape : Rectangular

Width : 400 mm - 1200 mm

Height : 500 mm - 2000 mm

We Offer Control Panel Enclosure. features: 1) a Stronger Design Available in Enclosures 2) Good Strength to Weight Ratio 3) Better Ip Protection (up to Ip55) 4) Quite Economic Design sub-assemblies: 01) as this is Closed Side Design Sides are Not Removable 02) Top Cover is also Not Removable Cutout with Removable Plate Can Be Provided for Cable Entry from Top and for Ventilation Purpose We Can Either if Required. 03) Two or More Enclosures May Be Joint Together if Required 04) Base, Doors Gland Plates, 'c' Plates, Lifting Arrangement, 19" Rack, 19'' Frame Swing Frame Same as that for Modular Frame Structure Design standard Size the Enclosures: width: 500mm ~ 1200mm (pitch of 100mm) depth: 400mm ~ 600mm (pitch of 50mm) height: 1000mm ~ 2200mm (pitch of 100mm) base: 75mm, 100mm, 150mm and 200mm * Up to 1000mm Width Single Door, Above Sizes Will have Split Doors.

Number Of Flower : Control Panel Enclosure

Material : Metal

Packaging Type : Multicolor

Feature : Stronger Design,Good Strength To Weight Ratio,Better IP Protection (up To IP55),Economical Design

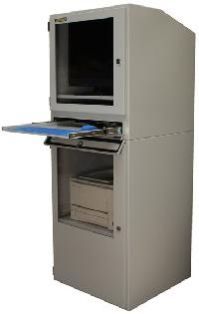

Computer cabinets Decorated monitor compartment. Monitor tray adjustable in height for better vision. Toughened glass clear acrylic fitted on monitor door. Gas springs used for monitor door opening and for holding it upwards. Enables hands free operation.
