Fine Handling & Automation Pvt. Ltd. Khed, Pune, Maharashtra

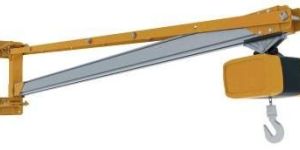

Utilizes existing structures can be mounted on existing column, beams or any metal structure if mounting on wall is not possible Simple construction and Modular design of Jib Crane makes them extremely easy to install. Fine Handlings Jib cranes are extremely easy to handle and smooth in operations. Jib cranes from Fine Handling are extremely compact and requires minimal space Can pick and place material in radius of 8 mts. with rotation up to 270° Safety features like Rotation locking and sensing can be integrated as per requirement

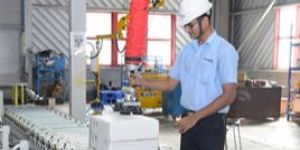

Lifting load, repetitively & Fast, with poor postures does not require to be heavy to cause injuries or pain. Vacuum tube lifters from Fine Handling is a easy option to action above points, it is an easy and simple operate and reliable equipment. Vacuum tube lifters are extremely user friendly and require no or minimum training.

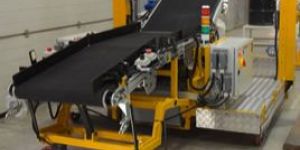

Truck loadingunloading system designed by Fine Handling is a specialized equipment to improve speed, ease and reduce manpower in loading or unloading for trucks. Robust design and rigid built makes it ideal in instances where continuous multi-shift operation is required.

Truck loadingunloading system designed by Fine Handling is a specialized equipment to improve speed, ease and reduce manpower in loading or unloading for trucks. Robust design and rigid built makes it ideal in instances where continuous multi-shift operation is required. Inclined belt conveyor at both ends of the machine are equipped with excellent flexibility to move the belt conveyor vertically as well horizontally. Combination of truck loading equipment with collapsible roller conveyor and vacuum tube lifter makes it complete truck loadingunloading system which not only reduces manpower and time consumption but also reduces the fatigue. Features Engineered to travel over inclined slopes (approx. 5 - 8°) Adjustable inclined belt conveyor - Vertical and horizontal movement LED lighting with swivel base Operator presence sensing mat.- works only when operator is present Operator Platform - vertical height adjustable with rubber ergo mat tread surface

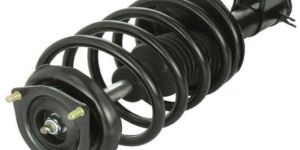

Suspension struts need to be placed exactly below the wheel arch. Further, bolts are to be aligned to bore so struts can be fixed quickly without much hassle to the operator. Fine Handling's gripping solutions are being used on assembly lines of several leading automobile companies to ensure fast handling and precise positioning of struts. Fine Handling has developed a variety of customized grippers to handle suspension struts as per customer's specific needs:

Feature : Tilt arrangement for easy entry of suspension strut below wheel arch. Manual rotation operation for easy alignment of bolts to bolt holes.

Every production activity has its unique material handling needs. At Fine Handling, we put our in-depth expertise to work and create a customized material handling solution that perfectly fits into your existing production set-up and solves its material handling challenges. Exhaustive understanding and analysis of your challenge along with thorough testing of the solution ensures that each of your unique needs is precisely met.

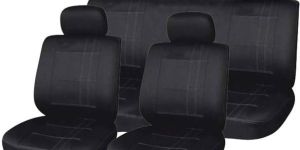

Seats are heavy, bulky to handle and oddly shaped for easy placement. On the assembly line, the seats need to be inserted through the door aperture and precisely positioned for quick and easy bolting on the automotive body without any damage. Further, many times, the same gripper needs to be compatible to handle multiple variants of seat. Here is a glimpse of some of the gripping systems, conceptualized, designed and engineered by Fine Handling for efficient, expedited and ergonomic handling of seats as per the specific needs of the customer's process:

Feature : Front Seats Rear Seats Middle Seats (in case of SUV / MUV Captain Seats, 60:40 or 40:60 seats and Pool Seats) Rear Seats

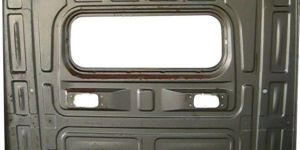

On a welding line, Rear wall needs to be move from one fixture to another with a 90° orientation change. Rear wall is relatively bigger in size and are sharp on the edges, like all body shop components. Fine Handling’s gripping solution for rear walls perfectly picks rear wall and places the same on the fixture in the required orientation.

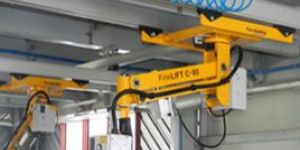

Our comprehensive and modular range of Rail System serves as the backbone of your handling system. Rails systems from Fine Handing are ergonomic, safe, cost effective and easy to operate. Available in Aluminium and Steel options, Fine Handling's Rails are able to carry load up to 3 MT (using various rail combinations) with extreme ease thus reducing the human fatigue and increasing the material handling efficiency.

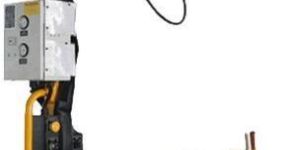

Overhead Rail Mounted Manipulators from Fine Handling are ideal for activities like assembly line, production line etc. Manipulator is mounted on Fine Rail Systems which enables the movement of manipulator across the line. Rail mounted manipulator avoids any encumbrances on the ground; it’s an excellent solution in places where erecting a column on the floor is not possible due to space constraints.

Purity : Excellent solution in case of movement of manipulator. Arms to achieve maximum ergonomic reach and lift. Each Manipulator is designed to suit the space in which it operates

Portable Manipulator from Fine handling is extremely useful in moving and lifting component or load from one place to other across shop floor, factories, warehouse with extreme ease and with minimum effort. Various operations can be included with inclusion of variety of Pneumatic, hydraulic or electronic solution or with combination of these. Gripper attached to portable manipulator can be customized as per the component.

Feature : Easy to move across plant, factory with excellent ease Ideal in cases where availability of space on ground and overhead is limited Comprises of heavy duty trolley

Paper and Printing Industry, in present scenario is one of most competitive industry with extreme pressure in maintaining profitability. Pick and Place transfer and further loading of paper on to the spool is tedious, time consuming & labor intensive tasks. Movement of other materials is also equally crucial. Fine Handling with innovative solutions offers various gripping system for effective handling of material in paper industry in order to assist the operatorsend users to reach their material handling goals ahead of schedule and safely.

Feature : Gripping systems for Reels Vacuum tube lifter for pick and place requirements

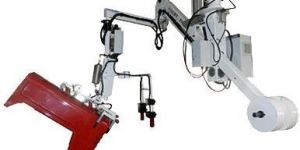

Fine Handling's Overhead mounted manipulator is specifically designed for places with space constraint. This manipulator enables the avoidance of any encumbrances on the ground. Overhead manipulator from Fine Handling is ideal for moving variety of loads. Capable to moves smoothly within 360° and option of infinite rotation can be provided.

Purity : Arms to achieve maximum ergonomic reach and lift Each Manipulator is designed to suit the space in which it operates Modular Design with Ergo controls, switches for ease of operations

Number Of Flower : Monorail

Material : Metal, Stainless Steel

Condition : New, Old

Finishing : Polished, Non Polished

Total Carbohydrate :  1 Yr, 2 Yrs

Purity :  Good mechanical strength,- Robust design, Seamless finish,Good Quality

Recognized for extreme ease of use, the Mono rail system from Fine Handling is one of the simplest forms of load transformation. Mono rails have a low rail profile which also make it highly cost efficient.

Purity : Easy alignment possible for smooth movement of material Proven as zero maintenance rail systems

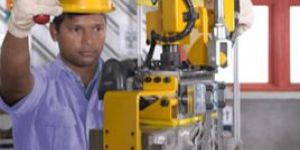

Fine Handling and Automation is a leader in the design and manufacture of manipulators with vast experience and an extensive customer list. Manipulators with customized grippers are very helpful for various material handling needs on assembly lines, machining shops etc., where lifting, positioning, orientation change of the component is critical. It works on zero-gravity principle i.e. a balancing cylinder nullifiesbalances the weight of the component, so that operator can lift and handle the weight with almost zero efforts.

Cockpits or Instrument Panels are typically assembled on a separate sub-assembly conveyors, Cockpits are required to be inserted through door aperture. cockpits are lengthy and heavy weighing around 80 kg including all the mountings on it such as HVAC, Steering column etc. This makes insertion a difficult task, Fine Handling’s Gripping solution for handling of Instrument Panel has successfully handled various types of Instrument panels cockpits such as

Feature : Instrument Panel for Cars Instrument Panel for SUV / MUV

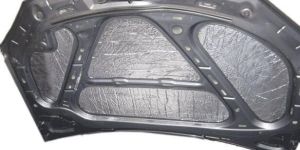

Hood and tail gates are difficult to handle because of large size and higher weight. Sharp edges around the corners make them equally risky to handle and use of simple tackle in handling increases the risk of injury. Fine Handling’s gripping solution makes handling of gates quick, easy and safe. Operator can easily pick the component from one fixture and place it on to the other without any hassles.

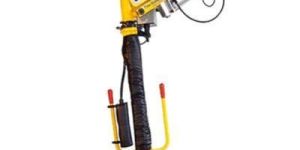

Every gripper is Simulated in CAD, extensively tried and tested before delivery Control logic of the gripper is designed and well coupled to ensure seamless functionality and operations The pneumaticvacuum gripper (or combination of both) designed according to application Use of wear-pads (NylonPU) in the grippers to hold the component prevents component damage Incase of specific requirement magnetic gripper or even a tackle can be used to hold the component Grippers can be equipped with Intelligent Electro-pneumatic control sensors to enhance the functionality.

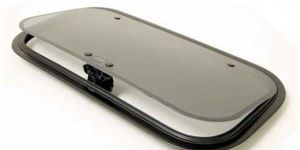

Handling glass components, on a fast moving assembly line, is very critical typically because of the weight, delicate nature of the components and mechanism for the opening and closing after placement. Operator safety is a key concern in handling glass components. Fine Handling's gripping solutions have helped automotive companies to solve all the above challenges, while raising the efficiency and safety for the operators several notches higher. Fine Handling has developed specialized, customized grippers for its customers to handle components such as:

Feature : Front and rear wind shield Sunroof

Fine Handling offers innovative solutions to problems in glass handling in order to assist the operatorsend users to reach their material handling goals ahead of schedule and safely. Fine Handling offers a variety of solutions for glass handling including:

Feature : Ergonomic handlers with mobile options Glass manipulator

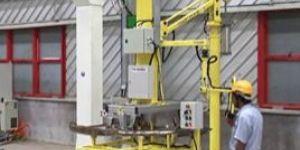

Fine Handling and Automation has specialized in the design, development and manufacture of station-to-station component handling gantry systems. These are fully automated PLC-based family of gantries that are used to transfer components from one station to the next while maintaining the takt time of the process.

Sheet metal walls need to be placed from one fixture to another during manufacturing. The components are bulky and sharp edges across make handling of these components difficult and unsafe. Fine Handling’s customized grippers are designed to suit the specific needs of your work in sheet metal. The handling equipment can be totally customized to meet your process needs and can include rotation, easy pick and place, movement from one station to another etc. as per your needs.

Fine handling offers pick and place solutions which are developed to reduce labor, increase productivity, minimize wastage and ensure safety. Vacuum tube lifters for safe and effortless pick and place requirement Drum handling Solutions with orientation change arrangement for effortless poring of liquid material without any wastage Truck loading unloading systems for fast and safe loading and unloading of trucks
