HI-TECH TRANSDUCERS & DEVICES Katraj, Pune, Maharashtra

Thermocouple For Molten Aluminum Temperature (Continuous Dip) Cast Iron Sensor Type: CR/AL (K) Construction Type : Angular Shape, Std. Available Dia. : 50mm & Length : 18”, 24”, 30”. Economical Version Easy Handling Rough & Tough Model Life: Aprox. 30 days ( if Alucoat Has applied) Temperature Range : 0 to 1000 Deg.c.

Barrel Thermocouple for Injection / Extrusion Moulding Machine HTD make Adjustable spring loaded K or J Type Ungrounded Thermocouple, Model No. HT – 13 Protection Tube : Seamless SS316 Having 1.2mm W.T Dimensions in mm : OD – 4.5 / 6 / 8 mm, L – 15 mm Cable : Original FG/FG/SS Braided,conductor Size : 7x36 , lenth 3 / 6 mtr. Nipple : Brass Nipple having thread Size : 1/8 / ¼ “ BSP Termination Style : U type lugs / Omega Mini plug Operating Temp : 0 – 400 Deg.C

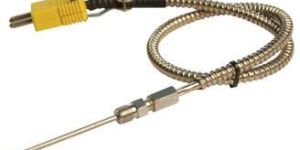

exhaust thermocouple for after & before turbine, cac inlet, exhaust cylinder & boost temperature measurement sensor type : cr/al ( k )for after & before t u r bine, cac inlet, exhaust cylinder & boost temperature measurement dimensions : od - 3 mm or 6 mm , length – 100 mm protection tub : mi ss310 cable : compensating tf/fg/ss braided/ss conduit, conductor size – 7*36, l – 0.5 mtr comp fittings : adjustable ss304 material swage lockable type having process thread size : 1/8” bsp / ¼” bsp. termination : omega heavy duty plug with clamp operating temp : 0 – 1000 deg.c. .

Microprocessor Base Dual Display Digital Temperature Indicator with2 Set Point Controller Microprocessor Base Dual Display  Digital Temperature Indicator with2 Set Point Controller Display : 3 & ½” 12.5 mm Height LED Temperature & Input :0 – 1200 Deg.C, I/P : Universal Indication Accuracy : +/- 0.25% FSD Mode of Control : ON / Off Mode of Control Setting : Membrane Key Pad Control Output : Relay rated for 230 AC , 5 Amp, 2 NO / NC,potential free contact Supply Voltage : 230 V AC +/- 10% Variation Dimensions in MM : 96 * 96 * 125 D

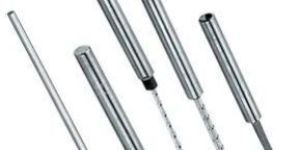

To heat any kind of substance or material, such as oil, air, or sugar. Cartridges are widely used in the Plastics Industry (hotrunner systems, moulds) The Packaging Industry (sealing, welding, and cutting), The Textile Industry (cutting, sealing, embossing) and To heat up steel parts, & Many More cartridge heater is a tube-shaped, heavy-duty, industrial heating element used in the process heating industry, usually custom manufactured to a specific watt density.

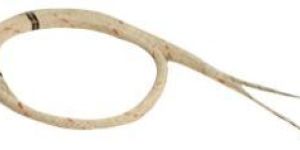

Available in type RTD / J / K / R / S / T Insulation : Inner Fiber & overall asbestos Conductor size : 3 x 24swg or customized Cable accuracy : as per IS 8784
