Hydraulic Chucks Dealers in Pune

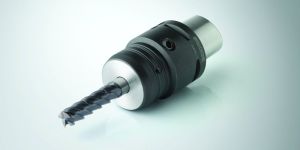

Hydraulic chucks offer high clamping forces and run-out qualities of up to 3µm at 3xD (Standard 3 µm, Strong 4µ, Slim 5µ) which makes them an excellent solution for HSM, rough and fine machining applications. The EPB 5831, a new slim profile version, even makes it easy to perform semi-finishing and finishing operations in confined spaces such as narrow mould cavities. Very easy-to-use, the tool is clamped using one single pressurizing screw. An internal piston pressurizes hydraulic fluid into a chamber surrounding the holder bore, uniformly applying high pressure to grip 360° around the tool shank. This holds cutting tools with excellent precision. Fine balanced as standard, hydraulic chucks can reach rotation speeds up to 40,000 rpm. The stop end screw allows the projection of the tool to be easily set, while reduction sleeves, acting as a split collet, allow the chuck to grip more shank sizes and types, including Weldon and Whistle Notch. To prolong tool life and enhance precision, the bore has a helical groove where dirt, oil or grease can collect when it has inadvertently been left on the tool shank.

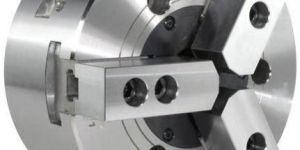

Hydraulic Power Chucks are used in CNC as well as conventional Lathe machine. We are engaged in manufacturing 2 jaw, 3 jaw, 4 jaw, 6 jaw Hydraulic Power Chucks of diverse diameter such as 135, 165, 210, 250, 315, 400, 500. The range of Power Chucks is strictly tested by our quality auditors. We offer built in type Power Chuck, which are used in VMC (Vertical Machining Centre).

Hydraulic Chuck, Power Chucks, Chuck Jaw, Rotating Cylinder

Hydraulic chucks Option of Hydraulic chuck (135mm and above) as well as Hydraulic tailstock. Automatic Lubrication and Automatic Coolant.

Hydraulic Chuck, Air Angle Grinder, Indexable U Drill, Pcd Inser

3 Jaw Hydraulic Power Chucks, Double Clamp Vise, Digital Read ou

Hydraulic Chuck, Solo Spot Facing Tool, Vdi Tool Holder
