Innovative Packaging Machines Chikhali, Pune, Maharashtra

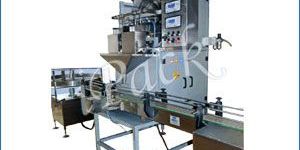

Applications:for Farsan packaging, All types of food grains, all types of seeds, tablets on weight basis chiwda packing, bhujiya packing, cheese balls packing Chocklets etc     Features: IPACK machines give best solution for packaging of snacks items like Farsan, Bhuijiya, Wafers, Kurkure, Cheese Balls, Sev, Chivada, Chana Nut, Ground Nuts, Corn Flakes, Popcorns etc,. Weighmetric filling system load cell based. The Snacks packaging machine has Various types of packaging solutions Depending upon the type of products and required speed accuracy, particular filling system is used. IPACK Machines provides custom engineered solutions for packaging for various types of industries.

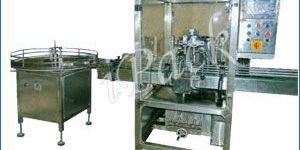

This filling machine is best suited for viscous products that are paste, semi paste, or chunky with large particulates. These machines also used to fill heavy sauces, salsas, salad dressings, cosmetic creams, heavy shampoo, gels, and conditioners. They are also used for viscous, chemical preparations like paste cleaners and waxes, adhesives and epoxys, heavy lubricant oils and greases.   Features: Volumetric piston filling technology PLC controlled system. Heat resistant & Corrosion Resistant Pneumatic Cylinders for Special Applications. Filling Range 100 ml to 1 Ltr .without any change parts. Capable of multi-filling up to 5 Ltrs. Same machine can be used for smaller volumes 10 ml to 100 ml with suitable change parts. Diving nozzle mechanism avoids foaming & spillage. Positive shut-off Nozzle helps in keeping the filling area clean. Available as standalone Machine. And also as complete Auto-line with 2, 4 & 6 Filling Heads.

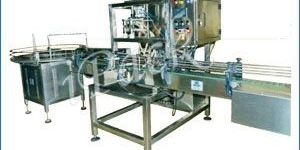

This filling machine is best suited for Ketchups & all types of sauces. These machines also used to fill heavy sauces, In this machine Vacuum pump used as filler. during filling, diving nozzle seals the top of the bottle, sucks the inside the bottle and replaces the ketchup up to top leveLThis machine best suited for products contains sugar Like all types of sauces, ketchups, syrups, juices, crush etc   Features: Vacuum filling technology. (Air sucks from the bottle and replace the product) Filling upto top of the bottle irrespect of bottle volume. Volume adjustment is on HMI. PLC controlled system. Capable of hot filling upto 80 degrees Filling Range 100 ml to 1 Ltr .without any change parts. There is no wastage of product, access product goes to return tank. Positive shut-off Nozzle helps in keeping the filling area clean. Available as standalone Machine. And also as complete Auto-line with 2,4 & 6 Filling Heads.

Applications:This machine is most suitable for filling tooth powder, talcum powder, baby powder, dry syrups, coffee powder and food, pharmaceutical, chemicals or cosmetic products in powder form.     Features: Compact design Standalone and automatic lines configurations  Variable speed drive for stirrer Stainless steel (SS 316/SS 304) contact parts and externals are claded Quick-release tool-free auger and funnel removal Independent stirrer drive Less tools for removable change parts  Large capacity hopper Also available in GMP Models. Filling Range 10 Gms to 1000 Gms (1 .0 Kg) Speed 100 Gms-20 BPM, 500 Gms-15 PPM, 1000 Gms-10 PPM (Depending upon product properties, fill weight) Special model with servo motors instead of clutch / brake unit available for better output & accuracy.

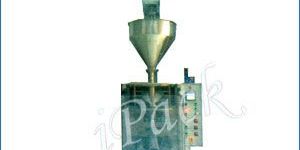

A vertical form, fill and seal machine for producing centre sealed pouches handling all types of free flowing/non-free flowing powders.The model AF-1000 handles a single reel film stock. Max. reel dia. is 530 mm on 76 mm core. The machine has the facility to be provided with a variety of filling heads. Draw down of the film is through draw down belts controlled through a Variable Frequency Drive. The length of the bag is controlled by print registration system which is PLC based. For unprinted film, the bag length can be adjusted from the single touch key pad provided on the front panel. Applications:Powders (Free and Non-free flowing), such as Spices, Soup Mixes, Detergents, Yeast, Desserts, Pharmaceutical and Agricultural Powders, Flour (Atta), Cocoa Powder, Drinking Chocolate, Coffee, Sugar.   Features: PLC controls with HMI Draw-Dawn Belts Driven by Variable Frequency Drive. Adjustable draw down belts Detachable perspex and stainless steel guards. Easy for fault finding PC uplink facility (optional) Password protection for settings (optional) Hourly production data.

General Information    A vertical form, fill and seal machine for producing 3/4 side Sealed sachets handling all types offree flowing flowing Liquids. The modellPM-50 handles a single reel film stock. Max. reel width is 300 mm on 76 mm core. The Product is dosing through Volumetric syrange Pump, Block Pump for viscous products & Cup Filler for powder. All Contact parts is in SS 304/316 quality & The machine is made with GMP Model. The speed ofthe machine is 35 to 40 Sachets per Minute.   Applications:All types of free flowing Granules, Powders, liquids, & Viscous Liquids Like, Pesticide Liquids, Pharma powders, Hair Oils, Shampoo, Ditergent Liquids, Lotions, Sauces, Ketchups, Jams etc.     Features: Total Mechanical Machine runs on Gears with very less maintenance. 0.5 Hp, Single phase, 1400 Rpm Motor. Fully automatic Photocell control system All types of Heat sealable laminates can be used. Sealing patters:Plain, Lining Serrated, diamond Knurling etc,. Very compact and mounted on the wheels for easy shifting.

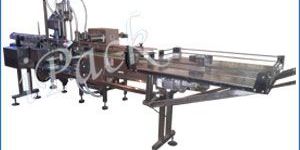

Applications:This machine can be used to fill Water, Solvents, Alcohol, Liquid Chemicals, Pesticide Liquids, Biotech Liquids, Coolants,Pharmaceutical Formulations, Juices, Coconut Oils, Edible & Lubricating Oils etc.       Features: Volumetric piston filling technology PLC controlled system. Heat resistant & Corrosion Resistant Pneumatic Cylinders for Special Applications. Filling Range 100 ml to 1 Ltr . without any change parts. Capable of multifilling up to 5 Ltrs. Same machine can be used for smaller volumes 10 ml to 100 ml with suitable change parts. Diving nozzle mechanism avoids foaming & spillage. Positive shut-off Nozzle helps in keeping the filling area clean. Available as standalone Machine. And also as complete Auto-line with 2,4 & 6 Filling Heads.

Applications:Fills all types of Pickles, Murraba, Curry Pastes, Chawanprsh and other High Viscous Liquids.   Features: Volumetric Pneumatic-Piston Filling Technology Capable of cutting any hard shell during filling. Overhead hopper filling pump with level controller. Special stirrer in the hopper. Settling device removes air gaps from the filled bottle.  Online Oil topping Machine. Fills from 100-1000 gms with Maximum Accuracy. No change parts and very less maintenance. PLC ( Programmable Logic Controller ) controlled system. nti-drip system helps in keeping the filling area clean. (Available as Standalone machine and    also a complete auto line with 1,2 and 4 Nozzles.)

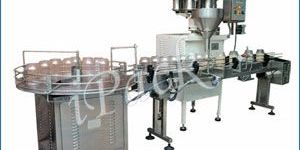

Applications:Free-flow products of consistent density such as popcorn, granulated sugar, beans, nuts, seeds, coffee, rice, pulses & whole spices etc.   Features: Capable of filling multiple pack sizes & large product range with no change of parts. Accurate & friction less telescopic adjustment of cup to adjust fill volume of the cup. "Unipressure" product collector & product specific scrappers to achieve High accuracy Cup drop counter with auto/manual dual setting to achieve predetermined number of cups    dropping product into single pack. All contact parts made of SS304/316 with six/three telescopic cups. Model CF-500 is fined with both clutch 1 brake arrangement and variable speed drive to    optimise filling speed Automatic bottlel tin Icontainer filling line with unscramble Iturn table to    feed containers automatically to auto conveyor with auto stopping & "Intelligent Filling" which    activate filler only when container is present and only per container.

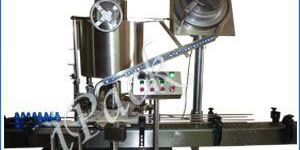

Single Head Rotary Capping Machine that places and tightens the pre-threaded plastic caps on bottles of any shape and size. It works on the principle of intermittent rotary motion with Geneva mechanism and has facility for changing over to R.O.P.P. caps. Output upto 2000 containers / hr depending upon size and shape of bottles. The tightening torque can be adjusted to ensure leak-proof capping. A vibratory/ bowl feeder controls the infeed of caps on to the bottles. "No Bottle - No Cap "mechanism is provided. Bottle guides and parts coming in contact with the containers are made out of stainless steel.   Applications:This Types of machines can be used in Oil Industries, Paint Industries, Cosmetic Products, Pharmaceuticals, Pesticide Liquids, Food products, and all types of liquids.     Features: This machine is fully automatic and is complete with vibrator type cap feeding hopper and built-in slat conveyor. Specially designed to suit requirement of small and medium scale industries. Synchronized movement of bottles and sealing machine enables perfect pilfer proof and leak proof sealing. Sturdy fabrication ensures durability and long life.
