Ishicon Engineering Kondhwa, Pune, Maharashtra

An assembly that consists of rigid welded frame of two Vertical and Horizontal pipes which are interconnected by scissor type Cross Braces through Pins and Spring Clips is called as an 'H' Frame Scaffolding System.

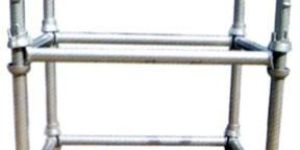

Cuplock Verticals / Standards Cuplock Verticals are the principal load bearing members comprising of Sets of Top and Bottom Cups. The Bottom Cups are welded in position at 500/1000 mm distance. The Top Cups are movable and retained by a fix stop. The Verticals are made of 40NB Medium/Heavy class pipes and are drilled for the fixing of Spigot Joints at both the ends. Being a quality centric firm, we are engaged in manufacturing,and supplying Cuplock Scaffolding. In order to manufacture the offered scaffolding in tune with defined quality norms, we make use of premium quality basic materials with the help of sophisticated techniques. Tested on various parameters to assure its flawlessness, this scaffolding finds its wide applications at construction sites. Furthermore, the offered Cuplock Scaffolding is available with us at the mostaffordablerates.   Features Superior finish makes easy installation Withstand against adverse conditions Can bear high pressure due to strong construction Utmost resistant against corrosion Sturdy design ensure its high durability   Highlights Quick fastening in a horizontal manner. Four horizontal bars can be attached at one time in order to assure the firm clamping action of top cup for further strength and rigidity of the joint. It has advantages like expeditious assembling and dismantling, thus saving time and labor. Flexible application in construction, dis-assemblage and maintenance works for any type of structure : Straight or Curved. Easy assemblage is possible without the use of many components. It features Lightweight yet greater load-bearing capacity up to 57 KN per vertical, Minimal maintenance, Reliability with proven track record.

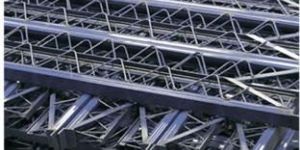

Used for supporting beam bottoms and centering sheet. The adjustable span is assembled with an outer sliding & one inner Spans are considered an integral structural construction scaffolding components of a construction scaffold & provide support to the entire structure. AS per the need they can be adjusted & are extensively used support floor forms during lying of slabs. Key Features Simple, Different adjustments, High load bearing capacity. Maximum strength & safety, any inner with any outer combination.   Technical Specification Main body of outer & Inner members are made up of 14/12 Gauge M.S.Sheet. Bottom of the Outer member is made up of 50x6 mm m.s.plate. Bottom of the inner member is produced using 40x40x6 mm T angle. Lattice is made of 10mm dia .M.S.Round Bar Bearing angle are of 75x75x8 mm size.

We manufacture robustly designed range of ROLL THREADED ADJUSTABLE STEEL PROPS. Fabricated using 60.3mm od tubes for outer and 48.3mm OD of tubes for inner part. These props are used for beams and slabs as well as supporting for formwork, column also. Our range can easily carry varying range of load bearing in accordance with the construction industry's requirements. The range offers solutions to the construction industry for different varieties of building construction and repair. We are dealing in Maharashtra, Goa, Andhra Pradesh, Karnataka, Gujarat, Rajasthan.With stringent quality control and paying attentions to the details, our professionals make sure to deliver this prop as per the requirements of our valuable clients. This prop is extensively used in construction industry for supporting different devices. Further, our esteemed customers can avail this Adjustable Prop from us in numerous specifications as per their requirements at market leading prices.   Features Robust design with dimensional accuracy Corrosion resistant surface Withstand any misalignment and jerks Highly durable and low maintenance required User-friendly design for easy handling Resistant to rust and fine finish
