Power Electronics Lab
STUDY OF SCR CHARACTERISTICS Or (Mosfet Characteristics) (LGS PE-1)The set up comes in to parts with provision for high voltage variable power supply (0 to 500 volts), 0 to 10 volts with voltmeter and provision for gate current measurement, anode current measurement in the range of 0 to 10 mA. The part (A) houses variable power supply and part B provides facility to connect various SCR or MOSFET,diac,triac,IGBT along with load. Various characteristics of the device with measurement of latching current, holding current for SCR can be performed. STUDY OF SCR FIRING CIRCUITS: (LGS PE-2)Study of SCR firing circuits can be done with the help of five methods namelyi) Basic D.C. firing circuit.ii) Resistance firing circuit.iii) R-C phase shift-firing circuit.iv) Ramp and pedestal with anti parallel connected SCRs circuit.Scope of supply:This set up having top anodized plate, with printed circuit diagrams, includes ammeter & voltmeter for load current & voltage measurement.Panel Dimensions:1. 61cm(L) 40cm W), 10cm(H)2. Panel provision3. Facility for observation of waveforms on C.R.O. 4. Provision for varying firing angle of SCRs.5. Load control facility.6. Appropriate test points are provided on panel. JONES CHOPPER (LGS PE-3)30 V d.c. 1A fixed power supply for the chopper and d.c. Voltage is chopped down by main thyristor and commutating thyristor for variation of output from voltage of 5 to 25 volts b varying the on time control and frequency control of the chopping frequency circuit of the main thyristor. Optional analog voltmeter provided for measurement of output voltage. Appropriate test points provided. Size: 52 * 31*10cm (L*B*H) MORGAN’S CHOPPER (LGS PE-4)A fixed d.c. Voltage of 30 volts provided for the input of chopper and the same is chopped down to vary from 5 to 25 volts by a single thyristor and resonating L-C circuit. Variable load facility provided. The frequency of chopping also can be varied. Waveforms can be observed with the test points provided on the panel. It is a self-contained unit. Panel size:52*31*10 CM.(L*B*H)

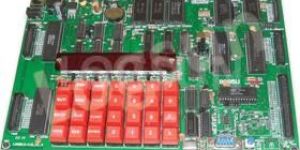

...moreMICROPROCESSOR LAB
Micro Controller Trainer
14,000 Per Piece
Model Number : Model LGS U-MCU
Brand Name : Logsun Systems
Display Type : 16X2 LCD Display 8 bit & 4 Bit mode,4 Digit 7 segment Display
Power : 9-12V DC
...moreAnalog Signal Sampling Unit
LGS ADC01 Analog Signal Sampling & Reconstruction Unit LGS ADC02 Time Division Multiplexing & Demultiplexing Unit LGS ADC03 PCM Transmitter & LGS ADC04 PCM Receiver Pulse Code Modulation & Demodulation (PCM) with Error Detection / Correction LGS ADC05 Transmitter Coder/Modulator LGS ADC06 , Receiver Decoder/Demodulator Band Pass Modulation / Demodulation (ASK,FSK,PSK,DPSK) with Channel Coding / Decoding LGS ADC07 Analog Pulse (PAM,PWM,PPM) Modulation & Demodulation Unit LGS ADC08 Delta (Linear & Adaptive, CVSD) Modulation & Demodulation LGS ADC09 QPSK Modulation Demodulation LGSADC10 Frequency Division Multiplexing Demultiplexing LGSADC11 QAM Modulation Demodulation
...moreInterface And Peripheral Cards
Embedded Boards And Tools
Digital Electronics Lab
Digital Trainer DT3000x series are most suitable for Digital Laboratory. Digital Design up to 6 IC’s are possible. All Require resources are available on Board. Five Different Models to select. Built in Regulated power supply with short circuit protection 5V @ 1.5A (Optional ±12V and -5V) Easy Interconnections through BS4 type sockets ZIF (zero insertion force) sockets with protections for long life operations of ZIF 8/10/16 nos. of switches for inputs with LED indications 8/10/16 nos. outputs with LED indications 7 segment LED displays with decoder input Built in Logic pulser and Logic probe Fixed Clock in six steps Variable Clock with 50% duty cycle Less/no wiring from inside, easy to handle, long life operation of kit. Best Quality patch cords Operational manual with numerous examples
...moreDigital Communication Lab

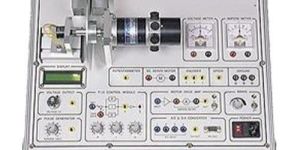

Control Trainer
22,000 Per Piece
Brand Name : Logsun Systems
Power : 3 to 3.6 Watts
ARM7 Development Board
9,000 Per Piece
Application : Laboratory

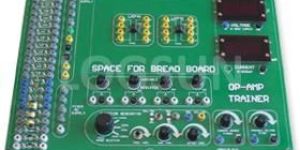

Analog Communication Lab
Electronics Components
