Marsh Automation Pvt Ltd Hadapsar, Pune, Maharashtra

The racks can easily roll out by hand and is perfect for storage of engine parts, dyes, fixtures, tooling or items that require secure storage with simple access. The shelves will be locked in the comprehensive position for utmost safety and the basic starter unit can be extended to meet ever-changing storage requirements with add-on units.

Regeltek Electric Actuators are manufactured with German Technology. These units are most suitable for control/regulating duty applications of various types of valves such as Globe, V-notch ball, butterfly, diaphragm and single/multi louver dampers. The actuators are supplied with various types of accessories & can directly work on the control signal of 4-20 mA & also give feed back signal of 4-20 mA with respect to the actual mechanical position of the final control element.

The various Types of electrical Actuators from Marsh have been developed specially for the quarter turn operation of small size Butterfly, Ball, Plug valves and dampers. Thanks to their design simplicity to achieve low-cost automation. They are provided with single phase motors which considerably saves the cost of electrical hardware and other accessories. Also as the actuators are installed directly on final control element and are provided with stall-duty motors, the units become completely maintenance free, that is Fit and Forget type. The units are supplied with all necessary features to operate the final control element in ON/OFF or modulating modes.   STANDARD Limit Switches (1No.+1Nc) - 2 Nos. (Rating 10 A - 250 VAC) Hand wheel Local position indicator Adjustable mechanical stoppers OPTIONAL Auxillary limit switches - (1No + 1Nc) - 4 Nos. Torque limit switches (1No + 1Nc) - 2 Nos (for QT10 onwards) Three position switch for ON/OFF operation Field/Panel mounted Feed back Potentiometer Valve positioner - Field / Panel mounted Input : 4-20mA/0-10 V DC. Output : Proportional Two wire transmitter field /Panel mounted Input : From potentiometer in actuator - 100 to 235 ohms or 0-1000 ohms Output : 4-20 mA - Two wire IP 67 Protection Remote position indicator-Digital Space heater Special accessories on request

polypropylene wheel Popular, lightweight and durable wheels used in the number of retail industry, shopping carts, platform carts etc.

Marsh offers Motorised Butterfly Valves from size 50to 1000NB with line pressures of 6 to 16 Bar in wafer or flanged types, similarly Motorised Ball Valves from size 10 to 500 NB in the class of #150, #300,#600 & #800 and connection of screwed, socket weld or flanged types as detailed below:

Feature : • Integrally moulded body liner• Longer Valve Life • Fit and Forget Valve • Low Torque • No need of separate gasket between the valve face & companion flange • Tight Shut off • Easy Installation

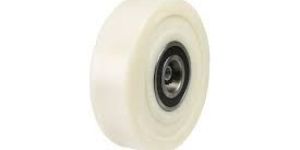

Nylon wheels can withstand solvents, corrosive environments and extreme temperatures.Customization and special application are also available.

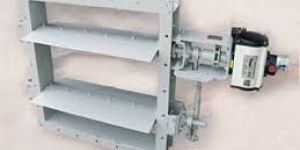

We also undertake the assignment for complete designing & Manufacturing of various types of dampers such as Motorised Butterfly type single flap dampers Multi louver dampers 3 way DiverterMaterial DivertersSlide GatesGuillotine dampers in IS 2062, IS 2002, SA 516, SS 304, SS 310 etc. We also manufacture High Temperature & High PerformanceDampers. ElectricallyPheumatically Operated Butterfly ValvesBall ValvesSlide Gates, Electrically Operated Guillotine & Other Varieties of Dampers.

The Sluice valves generally confirm to IS 14846 and having fkangesdrukked as per IS 1538 Table 4 & 6 or can be customized in various pressure ratinga such as PN 1.0, PN 1.6 etc. These valves are either rising or non rising spindle type. The Sluice valve body confirms to Cast Iron IS 210 Gr. FG 200DI etc, The size are 50mm to 1000mm etc.

Size : 50mm to 1000mm etc.

Marsh Offers Various types & sizes of Valves such as Butterfly, Ball, Sluice, Globe & Dampers with Electrical Actuators. These units will be offered in "Ready for use" condition with backup services of installation & Commissioning assistance.Marsh can also offer the allied electrical & electronic accessories such as control panels, feedback & positioning devices required in close-loop system.• Integrally moulded body liner• Longer Valve Life • Fit and Forget Valve • Low Torque • No need of separate gasket between the valve face & companion flange • Tight Shut off • Easy Installation

The Sluice valves generally confirm to IS 14846 and having fkangesdrukked as per IS 1538 Table 4 & 6 or can be customized in various pressure ratinga such as PN 1.0, PN 1.6 etc. These valves are either rising or non rising spindle type. The Sluice valve body confirms to Cast Iron IS 210 Gr. FG 200/DI etc, The size are 50mm to 1000mm etc.   The Cate Valves Generally confirm to Amercan standard in ASME Class 150, 300 etc. The Gate Vaflve Body confirm to Cast Steel ASTMA 216 Gr. WCB/SS304/SS316/F22 etc. The size are 50mm to 300mm. The Forged steel Gate Valves Confirm to ASTM A105 are offered in the smaller range in Screwed, Socket Weld #800 & Flanged #150,#300 & #600 (Different types of Materlal of construction can be offered). The sizes are15mm to 50mm, All the valves are Hydrostatic tested as per the pressure testing standard.

Globe Valves in various sizes & pressure ranges sultable for On/Off and control applications in the process Industry can be offered duly mounted with Electical Actuators, dependiing upon the thrust requirements the actuators can be offered in Single or Three Phase Electric supply. The accessories such as Positioners, Feedback Transmitters, which are required for close loop systems can also be offered as a complete system.

Marsh Offers Various types & sizes of Valves such as Butterfly, Ball, Sluice, Globe & Dampers with Electrical Actuators. These units will be offered in "Ready for use" condition with backup services of installation & Commissioning assistance.Marsh can also offer the allied electrical & electronic accessories such as control panels, feedback & positioning devices required in close-loop system.Marsh offers Motorised Butterfly Valves from size 50to 1000NB with line pressures of 6 to 16 Bar in wafer or flanged types, similarly Motorised Ball Valves from size 10 to 500 NB in the class of #150, #300,#600 & #800 and connection of screwed, socket weld.

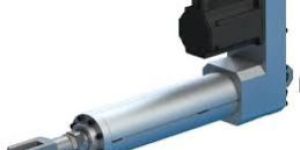

The Basic design of the Emtork Actuator consists of an electric motor, reduction gear unit and control compartment. Various models have been developed to suit operating torque, speed, process parameters, area of operation etc. Additional supplementary spur and worm gear boxes are offered to get higher operating torques and quarter turn motion. Linear motion actuators have been developed to impart the required thrust to operate globe valve.Various indications & alarms are available on the remote control panel & also on the unit.

We also undertake the assignment for complete designing & Manufacturing of various types of dampers such as Motorised Butterfly type single flap dampers Multi louver dampers 3 way DiverterMaterial DivertersSlide GatesGuillotine dampers in IS 2062, IS 2002, SA 516, SS 304, SS 310 etc. We also manufacture High Temperature & High Performance Dampers.

The "Emtork" Electric Actuators are electromechanical units used for operating the final control elements like valves or dampers to control the flow of fluids flowing thru the pipes or ducts. The specific advantages of using these units are : Ease of operation. Remote control facility. Proportional action of final control element in close loop system. Attaining & holding the desired preset position of the valve/damper. Various indications & alarms are available on the remote control panel & also on the unit. Emergency manual operation possible in case of power failure. Works on most convenient & easily available source of energy i.e. electricity. Models available to cover wide range of valves & dampers. Units with Integral starter will save cost of cables. Units with Electronic controller will facilitate field programming. Design The Basic design of the Emtork Actuator consists of an electric motor, reduction gear unit and control compartment. Various models have been developed to suit operating torque, speed, process parameters, area of operation etc. Additional supplementary spur and worm gear boxes are offered to get higher operating torques and quarter turn motion. Linear motion actuators have been developed to impart the required thrust to operate globe valves. The models are available for on / off and regulating duly and also for hazardous area application.

The "Emtork" Electric Actuators are electromechanical units used for operating the final control elements like valves or dampers to control the flow of fluids flowing thru the pipes or ducts. The specific advantages of using these units are : Ease of operation. Remote control facility. Proportional action of final control element in close loop system. Attaining & holding the desired preset position of the valvedamper. Various indications & alarms are available on the remote control panel & also on the unit. Emergency manual operation possible in case of power failure. Works on most convenient & easily available source of energy i.e. electricity.

We also undertake the assignment for complete designing & Manufacturing of various types of dampers such as Motorised Butterfly type single flap dampers Multi louver dampers 3 way DiverterMaterial DivertersSlide GatesGuillotine dampers in IS 2062, IS 2002, SA 516, SS 304, SS 310 etc. We also manufacture High Temperature & High Performance Dampers.
