MeasurementsPursuant to DIN EN 2004-1 and ASTM E 1004
Operating temperature0-40 degree C
Model NumberSMP350
Power SupplyVia Mains Electricity or Battery
Display TypeLCD
Our Electrical Conductivity Measurement instrument - sigmascope SMP350 is designed with utmost precision to measure the electrical conductivity of metallic conductor accurately and precisely. Our Electrical Conductivity Sigmascope SMP350 is also used for assessing hardness and strength of various heat treated materials. Electrical conductivity is a basic material property which gives information about metal's ability for conducting electrical current.Features
Rapid and easy on-the-spot conductivity calculation of non-ferromagnetic metals as per DIN EN 2004-1 and ASTM E 1004
Windows CE operating system
High-resolution touch screen with virtual keypad
Conductivity probes
Different measurement frequencies from 15 kHz up to 1 MHz
Automatic temperature and automatic curvature compensation
Certified traceable calibration standards (MS/m, IACS)
Typical areas of application are
Airplanes
Complete measurement of electrical conductivity throughout the production process of aluminum copper, etc
Mints
Testing of electrical conductivity before anodizing aluminum
Thermal sprayed coatings of non-ferromagnetic metals, e.g. Cu
Technical data
Measurements pursuant to DIN EN 2004-1 and ASTM E 1004
Measurement frequencies from 15 kHz to 1 MHz, as per the probe
Measurement range from 0.5 to 65 MS/m or 1 - 112% IACS
Measurement accuracy at ambient temperature: +0.5% of reading
Smallest diameter measurement without visible influence on the reading: 13 mm
Operating temperature: 0-40 oC
Lift-off compensation to 500m
Connector for electrical conductivity probe, without or with integrated temperature sensor
Connector for optional temperature sensor TF100A
USB communication
Printer port
Power supply via mains electricity or battery

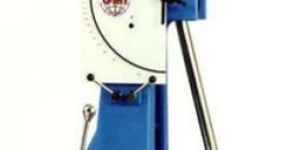

We are offering material testing machine.
Universal testing machine (utm), also known as a universal tester, materials testing machine or materials test frame, is used to test the tensile strength and compressive strength of materials. The "universal" part of the name reflects that it can perform many standard tensile and compression tests on materials, components, and structures
