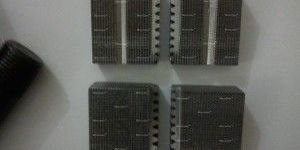

SPECIFICATIONS: Hardened Pyramid serrated jaws – 50 X 35 mm surface for clamping Opening 0 ~ 13 mm Hardened V jaws with 50 mm clamping height and 3 to 13 mm diameter for cylindrical Specimen Standard M 27 X 2 mm internal thread for attaching grip to Machine Stud Machine Stud M 27 X 2 mm SPECIAL FEATURES OF THE SYSTEM Suitable for Metallic and Plastic Specimens Level arrangement for Quick Loading and Unloading of Specimen 0 to 130 degree Celsius of operation Heat treated body and grips

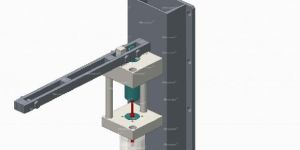

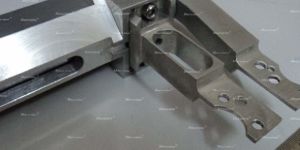

APPLICATION: Horizontal/ Vertical Submerged Setup in order to study Hydrogenation not only precipitated from extension, but from all contact surface Ring or Tubular Specimen With Cathode Mesh SPECIFICATIONS: Specimen Type: Cylindrical with or without V Notch; Square cross section with or without notch; Flat Specimen Gauge Length: 50 mm Effective Axial Tensile Load: Max up to 2000 kilograms Clamping: Sockets of M 12 X 1.75 P or M 16 X 2 P for Cylindrical/ Square Specimens; Pyramid serrated jaws for Flat Specimen or Wedge Grips- Refer to Wedge Grip Power Supply: Output: 0 to 30 V and 0 to 5 amp variable; Input 230 V AC I Phase 15 amp. (Other Power Supply on reques   The Me DESCRIPTION: Mchanism is for loading Test Specimen (Under Tensile Load) with extension for Electrolytic Charging for Hydrogenation in order to study the effect of Hydrogen on the Mechanical Properties of various steel.

SPECIAL FEATURES OF THE SYSTEM: Easily removable from mounting stand APPLICATION: Plastic/ Rubber/Thread Testing Hydrogen Embrittlement Studies for Metallic Specimens

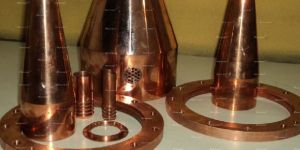

SPECIFICATIONS: Design and Development of Jigs and Fixtures for Machining of component/s. Process Chart and Assembly Fixtures Development In process and Final Inspection SPECIAL FEATURES: Design and Development of parts as per Instrument/ Machine/ Process or Experimental  Requirement POSSIBLE INTEGRATION: Scope of Supply – Parts or Assembled Unit Integration with Control Unit and System Testing

APPLICATION: Switching ON/ OFF the field instruments based on errors received from the instruments or preceding instruments for Protection. Manual Error Elimination Automation Unattended Operations Machine Tools/ Instruments with Predefined Sequence of Operation

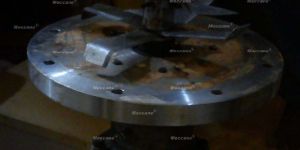

APPLICATION: Powder agglomerates breaking and mixing Food Industry – Heavy duty mixers Garbage Disposal for recycling Medical/ Chemical Industry lades: Shear type/ Four Blades or Multi blade stack up Motor: AC Induction POSSIBLE INTEGRATION: Vessel with Lid Heavy Conical Blender for agglomerates breaking

APPLICATION: High Temperature Metal Studies High Temperature Fermentation Units

APPLICATION: Heavy Component assembly at elevation with alignment facility Component line transfer Four wheeler Lifting/ Test line SPECIAL FEATURES: Collapsible Z axis for Minimum Shut Height and Maximum Day Light POSSIBLE SYSTEM INTEGRATION: Remote operation to avoid exposure to hazardous conditions Rail system for handling multiple equipment in laboratory to reduce manual manoeuvre Different type of clamping arrangement for handling different equipments Axes can be configured with AC/DC Motors

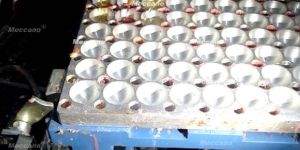

APPLICATION: In Medical/ Chemical application In Food Industry  SPECIAL FEATURES: Programmable discharged for achieving exact weight of Product Continuous Close Loop Temperature System Low Level Liquid Sensor for safety Double Filtration for avoiding any solid particle contamination Protection against overheating in order to maintain the properties of liquid Compact foot print OV/UV Protection Mode of Operation: Auto/ Manual SUB SYSTEMS/ ACCESSORIES: Multi cavity die Plate – Customized for Size and Shape of cavity X-Y Axes Coordinate table Electrical Oil Heating System with Low Level Cutoff and with Agitator for mixing Flexible Tube Heating System with common/ differential Temperature Control Industrial Freeze for fast curing of Dispensed

APPLICATION: Machine Tool X-Y Axes Automation Material Handling SPECIAL FEATURES OF THE SYSTEM: No obstacles in Material handling area below the slide. Can provide clamping at specific datum in order to avoid overhead loads Rigid and Robust Slides with negligible deflection on load POSSIBLE SYSTEM INTEGRATION: Motor Drive – AC Ind/ AC/DC Servo Stepper With 2 Axes Controller With Linear Scales/ Encoder for close loop system With Work table With Centralized Lubrication System Base frame with trolley manual/ motorized driven

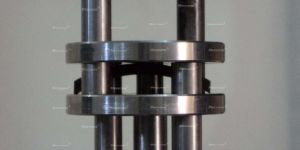

APPLICATION: Deflection under Compression Load Measurement Compression Tests POSSIBLE INTEGRATION: Setup with Displacement Transducer/ Linear Encoder With Uni Axial Loading Setup With Enclosure for working with hazardous conditions SPECIFICATIONS: Maximum size of Specimen: Diameter 25 mm Measurement: Dial Gauge or Linear Encoder/ Displacement Transducer Attachment Socket: M 27 X 2 P for Testing Machine (others on request)

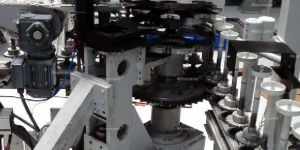

APPLICATION: Overhead Component Line Shifting Production Line Component Shifting SPECIAL FEATURES Unattended component line shifting Driven by main line, hence no separate drive is required Extremely robust driven system. Supported at by four bearings at two different datum in back to back (“O”) arrangement to avoid any driving line jerks. POSSIBLE INTEGRATION: Electric Drive with Feed Back System

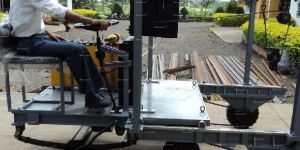

APPLICATION: Material Handling System in hazardous area where Combustion fuel are avoided Shop Floor Material Handling System Non Polluting Material Handling system Fixed Path – Rail Material Handling System SPECIAL FEATURES OF THE SYSTEM: No obstacles in Material handling area. Can lift the material from trench. (Overhead Hoists but with supported structure to ensuring safe lifting) Electromagnetic Braking System – Instantly brakes when Accelerator pedal is released Steering system to rear wheel Parabolic Leaf Suspension System   POSSIBLE SYSTEM INTEGRATION: Robotized Arm for Pick and Place of component Hydraulic Operated Winch/ Fork lift Environmental / Shielded Chamber to carry sensitive material Remote Control Material Handling System SPECIAL FEATURES OF THE SYSTEM: No obstacles in Material handling area. Can lift the material from trench. (Overhead Hoists but with supported structure to ensuring safe lifting) Electromagnetic Braking System – Instantly brakes when Accelerator pedal is released Steering system to rear wheel Parabolic Leaf Suspension System POSSIBLE SYSTEM INTEGRATION: Robotized Arm for Pick and Place of component Hydraulic Operated Winch/ Fork lift Environmental / Shielded Chamber to carry sensitive material Remote Control Material Handling System
