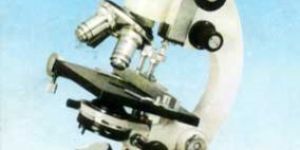

Medical Microscopes
Get Price Quote
We are known as the chief Medical Microscope Supplier in India. The company enjoys a good reputation all over the world for their Medical Microscopes and Optical Measuring instruments. All Medical Microscopes are latest in design, precision-engineered with the finest features, usually found only in high-priced models. The operational function of our Medical Microscope can be carried out without any difficulty and provide so crisp and clear image that even advanced scientific studies are routinely possible.
Stand
Robust, stable and aluminum die-cast base
Body
Monocular body tube inclinable up to 90° degreesMechanical Tube length 160 mm
Nosepiece
Quadruple revolving with positive click stops for smooth accurate
Stage
Fixed square stage 120 x 120 mm with detachable mechanical stage having travel range 40 x 75 mm with graduated scales and verniers
Condenser
Abbe (NA 1.25) condenser focusable with rack-pinion, continuously variable iris diaphragm with built-in swing out filter holder and removable blue filter, allows fine adjustment of illumination.
Focusing
By vertical movement of body tube, Coarse adjustment by rack-pinion movement. Fine adjustment by screw- lever mechanism having right side knob graduated each division showing 0.002 mm.
Illumination
Plano-concave mirror diameter 50 mm. Also available attachable 20 watts lamp for 220 volts or 6 volts, 15 watts lamp as optional with transformer.
Objectives
Achromatic 10x, 45x and 100x oil immersion
Eye Pieces
5x, 10x, 15x (any two) or WF 10x
Safety
Adjustable down stopper to prevent accidental breakages of the specimen slides
Accessories
Vinyl cover, Duster, Blue filter and operating manual
Packing
In styrofom container or wooden carrying case
Optional Accessories
Draw Tube, Co-axial Mechanical stage, sub-stage lamp etc,
