This is optional accessory for almost all electronic measuring units manufactured by us Wireless data transfer from electronic unit to PC inexcel sheet Can be supplied upto 30-50 meters Data of multiple units can be collected in one single PC 1 Set will be supplied with one transmitter & one receiver

Pin, Tri-Lock and Taper-lock gauges have a number of features which can be added to suit a particular application. MGM’s experienced, specialist gauge makers have considerable experience in applying these features against the customer’s component drawing requirements. Extended length gauge members. Progressive (Stepped) gauge member, Go, No Go. Progressive (Stepped) gauge member for inspecting concentricity. Hexagonal gauge members. Air Release flat on the Go member. Depth steps on the Go member Pilot Entry lead-in chamfers. Leading face on Go member relieved to clear a protrusion. Extended length handles. Handles marked with customer specific information.

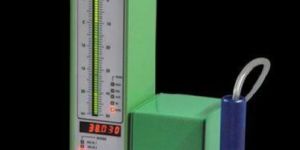

Run chart for process capability USB module for easy data output Low Air pressure signal displayed on screen Instrument housed in Robust and aesthetically designed outer Case. (Anodized / Powder coated) Metric / Inch measurement Upper and Lower Limit Indicators. (In run chart and Dial) Every unit comes along with Regulator and Membrane type air dryer User friendly operation Air saving facility as a standard feature for saving costly air External relay output   Crystal clear digital display 7” LCD with capacitive screen touch Transducer and Probe not required Dial indication on touch screen System can not take wrong mastering System itself will remind for calibration after checking of 50 components Available in 1 channel and 1-2-3-4 air gauges can be connected (Only one can be used at a time) Absolute or comparative measurement Important / Volatile information is password protected

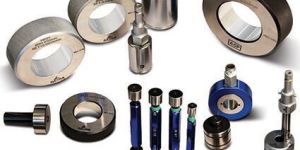

Cylindrical plain ring gages are used to check outside diameters of parts as well as for mastering measuring instruments. Plain ring gages are used to set electronic bore gages, air gages, internal micrometers and length measuring instruments. Plain ring gages are ideal for gaging the outside diameter of parts. The go ring gage is used to verify the high limit of the part and the no go plain ring gage is used to verify the low limit of the part Manufacturing Capabilities:- Plain Ring Gauges6mm to 150mm Blank DesignIS-3485 / DIN 2250 C /ANSI B.47  Gauging PracticeAS PERIS3455.Class. X as per ASME B89.1.5

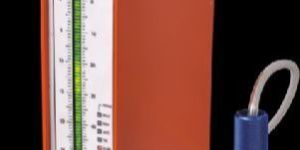

Bright tri colour LED bar graph with 6 digit display Metric / Inch, Absolute or relative 4 measuring ranges Single Chanel unit RS-232 serial port for PC connectivity Auto calibration and auto zero Auto calibration disable facility to avoid inadvertent changes in calibration Static & Dynamic (max., min., average, TIR, Ovality) measurement Generally accommodates all leading manufacturers jet diameters of Air Gauges User friendly operation Supplies with quick connectors to suit all leading manufacturer air gauges Air saving facility as a standard feature for saving costly air External relay output Fixture selection or model selection facility provided. 16 fixture data saved Optional — 5000 readings storage facility

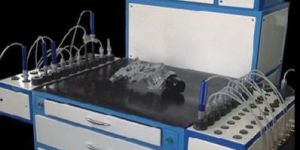

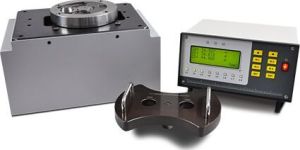

We can manufacture multi gauging stations as per customers requirement for checking multiple diameter (ID/OD), with multiple iterations, taper, ovality, thickness, width, height, runout, length,flatness, squareness, CD checking, perpendicularity, PCD runout,taper cone-gauge.   Product Catalog

We can manufacture multi gauging stations as per customers requirement for checking multiple diameter (ID/OD), with multiple iterations, taper, ovality, thickness, width, height, runout, length,flatness, squareness, CD checking, perpendicularity, PCD runout,taper cone-gauge.

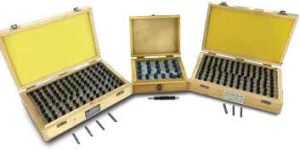

High Precision Custom Built Pin Sets to suit Customer specified size ranges and incremental steps for use in quality control or checking/setting measuring instruments. The number of pins in a set can range from 6 to 250.   The pins are produced to ANSI Class X (0.00125mm), lapped to 0.03m finish and supplied in a high quality wooden box or cabinet. Gauge life and dimensional stability are guaranteed based on well proven manufacturing processes and a robust quality management system.

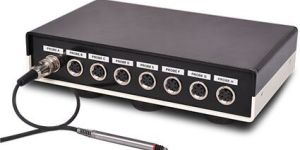

Interface with half / full bridge inductive LVDT probes Serial data communication between PC and interface with RS 232 serial PC com port or with USB port This interface box equipped with analog signal conditional and analog to digital conversion Digital measurement value tagged with individual input Liniearity 0.05% FSD Resolution 16 bit 8 digital input, 8 output for automation purpose Smart, versatile and durable for harsh environments

  These tranducers precisely manufactured for the use in Dial type air gauges or Air electronic gauges. Two setting knobsare provided for precise control of air for setting. Tranducers without flow control valves are also available for1.50mm and 2.07mm of jets of air gauge. Free Core Probes Range ±1mm Body Ø 9.5mm Length 55mm

Bright 6 digit tricolour LED display Metric / Inch relative absolute measurement Least Count 0.0001 / 0.001mm and 0.00001 / 0.0001 inch Auto calibration and auto zero Static & Dynamic (max., min., average, TIR) measurement RS-232 serial port for PC connectivity External relay output Fixture selection or model selection facility provided. 16 fixture data saved Optional — 5000 readings storage facility

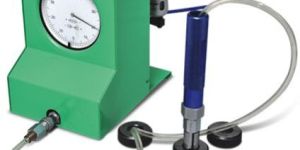

  Model 1 A gives most economical solution to inspection needs High speed of response and self cleaning of gauging areaensures accurate reading of parameters High accuracy and linearity Non-contact gauging so, no or minimum frictional wear. Requires Two setting masters for correct linear setting Minimum line pressure requires 4.5 bars Air consumption 50 LPM Every gauge carries a calibration certificate

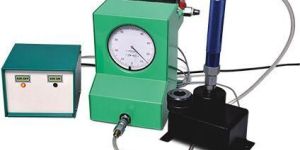

The new air saver can easily pay for itself in a short time. Measurement with air is still a very stable and accurate way to inspect parts. Instead of having the air supply on continuously, the air saver can control when and how long the air will remain on. It will automatically time out or shut off the air when the gage is not being used. You can connect this instrument to your existing air gauge unit, even dial type air gauge.

  AIR PLUG Checking internal measurement 2 Jet Air plug from 4 to 100mm Hard chrome plated   AIR RING Checking external measurement Air Ring with two jets tomeasure size, taper and ovalityand three jets Range for diameter 4 mm to100mm   AIR SNAP Checking external measurement for shafts,crankshafts Pin and Journal diameter Corner jet or middle jet Tungsten Carbide measuring faces and rest pads Range 10mm to 100mm

  Single Channel tri color bar graph and Six Digit Display Inch and metric Ranges Compatible with Half bridge and full bridge LVDT probe Absolute / Comparative measurement Static / Dynamic measurement Pneumatic converter with 1 input when supplied with this module Pneumatic converter without flow control valves RS-232 serial port for PC connectivity External relay output Sleek and thin enclosure design Fixture selection or model selection facility provided. 16 fixture data saved Optional — 5000 readings storage facility
