mohite electronics PVT. LTD Dhankwadi, Pune, Maharashtra

U V CURING MACHINE, This machine is used to apply films to both sides of pcb, Power Consumption : 5 KW 10 KW, Overall Sizes : 105"L X 48"W X 48"H, COMPACT DESIGNED MACHINE FABRICATION, MEDIUM PRESSURE MERCURY VAPOUR U.V.LAMPS, 400 WATTS INCH CAN ALSO BE RUN AT 250 WATTS INCH.

Power : 430 Volt AC, 3 Phase

ROLLER TINNING MACHINE, TECHNICAL DATA: Maximum Board Size : 325 mm. Maximum Board Thickness : 0 to 5 mm. Electrical Supply : Single Phase 240 V. 20 Amp.

Used for Solder Plating for PCB Total Interior is made by Stainless Steel. This Sheet Leveler Machine is useful for small to medium volume industry & prototype. HAL - 080 Micro Processor Controlled Automated The system allows processing of board up to 3.2 mm. Thick & Hole size 0.5 mm Diameter

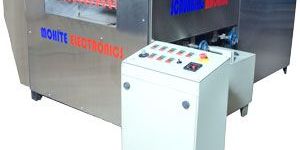

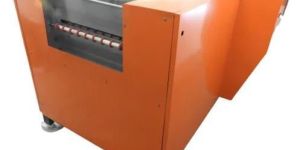

Single sided or double sided machine for deoxidizing, light deburring and surface finishing of printed circuit board. All types of brushes can be used on the machine. Brush changing is simpler. Deburring or scrubbing is complete by high pressure water rinsing ater recirculating system is also present. Total interior is made by PVC sheet and stainless steel. Each brush has independent drive and can be operated seperately. Conveyor speed is variable from 0.25m to 1.5mmin

Size : 850 x 750 x 700 mm

Application : Screen printing plate

Grade : Automatic

Capacity : 500-1000 L

Storage Material : Chemicals/Oils

Material : Polypropylene

Material : Maild Steel (MS)

Board Thickness : 0.8 to 3.2mm

Thickness of 0.8 to 3.2mm (with finished copper of 3 oz for outer layers and 2oz for inner layers), Line width and spacing of 6 6 mils (sample lots 55mils), Minimum finished hole size of 0.3mm, Surface finish of Solder leveling Lead free hot air leveling Chemical Tin ENIG,

Thickness of 0.2 to 3.2mm (with finish copper of 1-43 oz), Line width and spacing of 6 6 mils (sample lots 55mils), Minimum finished hole size of 0.3mm, Surface finish of Solder levelling Lead free hot air levelling ENIG. Laminate Tg- 130-180( normal). Mask finish- Green, White, Red, Blue, Black. Maximum board size- 850 mm x 450 mm.

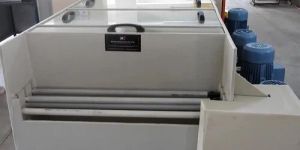

This machine is used for Chemical etching process for PCB. Machine is suitable for Chromicacid, Ferric, Alkaline solution etching. Conveyor speed can be varied as per requirement.

Thickness of 0.2 to 3.2mm (with finish copper of 1- 4 oz),Line width and spacing of 8 8 milsMinimum drilled hole of 0.5mm,Minimum punched hole of 0.9mm,Finish of UVSM PISM with lead and lead free hot air levelling or ENIG or lacquer,Mask colour- Green, Blue, Red, White and Black,

Thickness of 0.8 to 3.2mm (with finished copper of 3 oz for outer layers and 2oz for inner layers),Line width and spacing of 6 6 mils (sample lots 55mils),Minimum finished hole size of 0.3mm,Surface finish of Solder leveling Lead free hot air leveling Chemical Tin ENIG.

Thickness of 0.2 to 3.2mm (with finish copper of 1-43 oz),Line width and spacing of 6 6 mils (sample lots 55mils),Minimum finished hole size of 0.3mm,Surface finish of Solder levelling Lead free hot air levelling ENIG.,Laminate Tg- 130-180( normal).,Mask finish- Green, White, Red, Blue, Black.,Maximum board size- 850 mm x 450 mm..

This machine is used for Chemical etching process for PCB. Machine is suitable for Chromicacid, Ferric, Alkaline solution etching. Conveyor speed can be varied as per requirement.

Thickness : 0.4 to 5 mm
