Mohite Electronics Pvt. Ltd Ganesh Nagar, Pune, Maharashtra

We are offering a wide range of Hot Air Solder Leveling Machine. Used for Solder Plating for PCB Total Interior is made by Stainless Steel. This machine is useful for small to medium volume industry & prototype. HAL - 080 Micro Processor Controlled Automated The system allows processing of board up to 3.2 mm. Thick & Hole size 0.5 mm Diameter

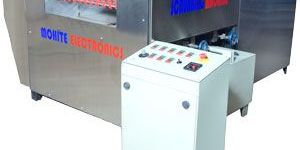

Single sided or double sided machine for deoxidizing, light deburring and surface finishing of printed circuit board. All types of brushes can be used on the machine. Brush changing is simpler. Deburring or scrubbing is complete by high pressure water rinsing ater recirculating system is also present. Total interior is made by PVC sheet and stainless steel. Each brush has independent drive and can be operated seperately. Conveyor speed is variable from 0.25m to 1.5mmin

This Machine is used as exposing machine for printing on preinted circuits boards. This Machine can be used for both dry film and PISM exposing. This is a double lamp (top & bottom) Machine consisting of Ultra violet tubes, control panel having separate switches for upper and lower tubes. It also has Timer and Vaccum meter.

Brand Name : Mohite Elecronics

Material : Stainless Steel

We are the leading manufacturers, exporters and supplier of this products.

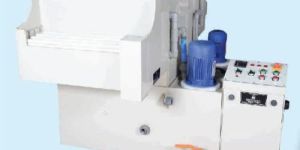

This machine is used for Chemical etching process for PCB. Machine is suitable for Chromicacid, Ferric, Alkaline solution etching. Conveyor speed can be varied as per requirement.

Thickness of 0.8 to 3.2mm (with finished copper of 3 oz for outer layers and 2oz for inner layers) Line width and spacing of 6 6 mils (sample lots 55mils) Minimum finished hole size of 0.3mm Surface finish of Solder leveling Lead free hot air leveling Chemical Tin ENIG

This machines is used for PCB Baking process (Indent, Masking etc.) Total fabrication of M.S. sheet thickness - 1.6mm

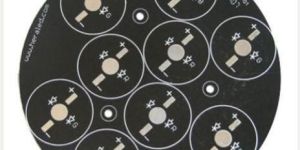

Material : Aluminium

Shape : Round

Diameter : 12 mm
