Multitech Hydrosystems Sadashivpeth, Pune, Maharashtra

Suitable for potable water, hot water heating and hydro-pneumatic well applications High quality replaceable EPDM / IIR(Butil) bladder according to DIN 4807-3    Blue or any desired color, Lead and TGIC free durable powder paint which is eco-friendly Temperature Max. 70°C / 100°C

Volume flow27 to 145 m³/h15.9 to 85.3 cfm Our new L-BV7 liquid ring pumps are high-powered and multitalented machines which save space and up to 50 % in operating liquids. They can easily convey eight times the quantity of liquid. The monoblock construction of the L-BV7/L-BV2 far surpasses conventional modular pumps and is particularly suited for use in the plastics and medical industries.The robustness and reliability is unparalleled in operation. The machines are available in various combinations of materials such as stainless steel, bronze, ceramic and cast iron with ceramic coating. This enables them to be tailored to the respective operating requirements and thus provides long-term resistance to erosion and corrosion. The entire L-BV range shines with quality: reinforced stainless steel shafts in the pump section and roller bearings with additional lubricant reservoir provide safe and maintenance-free operation even under heavy loads.

Rotary lobe blowers used to increase the capacity of the primary vacuum pumps when operating at their minimum suction pressure (as a booster). The RBSAV blowers must be used in series with a primary vacuum system ( VP ) and for pressures lower than 50 mbar absolute. the sealing between compression chamber and environment is ensured by O-rings seals, set between ground surfaces.The shaft end sealing is made by two seal rings in VITON with opposite lips lubricated by means of a fitted on oiler. The oil ring housing can be cooled by water circulation.

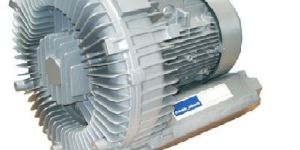

Elmo Rietschle Side Channel Blowers have proven their reliability in service for many decades, performing flawlessly day in and day out with virtually no down time. Available in a wide selection of performance ranges up to 3,000 m³/h and differential pressures of up to 1,000 mbar. They cover most requirements flexibly and powerfully. The G-Series side channel blowers feature voltage range motors for 50 /60 /87 and 100 Hz in protection class IP 55 or higher (IP56 or IP65) (insulation class F) and are UL 507 and CSA 22.2 No. 113 approved anda also available with ATEX certification.   Features:   Reliable and built-to-last virtually maintenance free Robust yet light weight For use worldwide (UL/CSA/IEC/EN approval) 50/ 60/ 87/ 100 Hz motors ATEX 94/9 EG

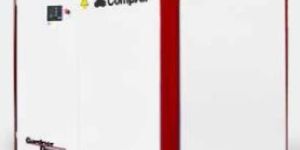

The LB series from CompAir represents a new generation of fixed speed rotary screw compressors, which incorporate the best of CompAir technology, design and quality, to deliver reliable, economical and efficient performance in a completely new package.Available in air or water cooled versions, the LB55 to LB90 fixed speed rotary screw compressors have a power range of 55 to 90 kW and deliver high quality air at volumes of 9.5 to 15.3 m3min, with a pressure range between 7 and 10 bar.CompAir‘s commitment to quality ensures that the LB series offer the highest levels of reliability and performance with low operating costs throughout the compressors life.

Rotary Lobe Blower (RBS/AV)   Rotary lobe blowers used to increase the capacity of the primary vacuum pumps when operating at their minimum suction pressure (as a booster). The RBS/AV blowers must be used in series with a primary vacuum system ( VP ) and for pressures lower than 50 mbar absolute. The main characteristics of these blowers are as follows:- two conjugate rotors which rotate inside a special design casing with tight clearances in all position, assuring gas sealing without contact between parts- the labyrinth seals avoid the atomized oil to enter into the compression chamber.- the sealing between compression chamber and environment is ensured by O-rings seals, set between ground surfaces.- The shaft end sealing is made by two seal rings in VITON with opposite lips lubricated by means of a fitted on oiler. The oil ring housing can be cooled by water circulation.- the shaft is protected by an hardened replaceable sleeve.- Suction of gases and vapours;- No sliding parts, therefore no wear;- Safe operation and minimum maintenance; Robuschi can supply primary vacuum systems consisting of liquid vacuum pumps with deliveries up to 4,200 m³/h.

Robox Evolution ES 5 ROBOX evolution is an integrated compression unit designed to convey gas at low pressure, based on the RBS lobe positive displacement rotary lobe blower, operated by an electric motor through a special belt drive, including all accessories and noise enclosure. These characteristics reduce: system costs thanks to the optimisation of space; running costs thanks to the low energy consumption and to the exclusion of all standstill risks ensured by the innovative electronic control system SENTINEL; maintenance costs thanks to the easy access to all parts for normal service operations. Silent Operation : The emitted sound level is in fact 7 dB(A) lower than the previous series, in all operating conditions. Simple Inspection : all the maintenance operations are performed from the front with the removal of the front panel or panels and/or the opening of the upper panel.  Monitored Operation : ROBOX evolution is ready-to-fit the exclusive SENTINEL electronic monitoring system. Compact :  it has reduced dimensions and limited overall sizes. For this reason several ROBOX evolution can be placed side by side thereby significantly reducing the space they require and therefore the dimensions of the blower room.

Specifications and Features 5 – 15 hp  16.5 – 49 acfm at 175 psig rating Two-Stage, Splash Lubricated Compressor Pump Factory filled with AEON AC lubricant

The LB series from CompAir represents a new generation of fixed speed rotary screw compressors, which incorporate the best of CompAir technology, design and quality, to deliver reliable, economical and efficient performance in a completely new package. Available in air or water cooled versions, the LB55 to LB90 fixed speed rotary screw compressors have a power range of 55 to 90 kW and deliver high quality air at volumes of 9.5 to 15.3 m3/min, with a pressure range between 7 and 10 bar. CompAir‘s commitment to quality ensures that the LB series offer the highest levels of reliability and performance with low operating costs throughout the compressors life. Key Benefits High reliabilityWith direct or gear drive coupling, the belt free drive LB series fixed speed rotary screw compressors not only reduce transmission losses but improve efficiency and noise levels. For the end user this translates into improved efficiency, greater reliability and reduced maintenance costs. Low noise levelsThe belt-free drive reduces noise vibrations making the LB series rotary screw compressors ideal for point of use applications. Reduced power consumptionThe LB series fixed speed rotary screw compressors are fitted with a high efficiency TEFC IE2 electric motor as standard. This reduces not only power consumption but also CO2 emissions. Maximum durabilityFor maximum durability, only high quality materials are used in the manufacture of the LB series rotary screw compressors. This also maximises service life, keeping maintenance costs to a minimum. Service friendlyService access is quick and easy with all doors able to be removed in seconds. Serviceable components are also easy to access making the LB series rotary screw compressors extremely service friendly. Optimised compressor performanceThe LB series fixed speed rotary screw compressors are supplied with intelligent, fully electronic controllers with efficient monitoring and user-friendly touch screen panel. Precise operational control is essential to reduce running costs and with the DELCOS BD controller, compressor performance is always optimised to meet system demand. Technical Data

OverviewMTR, SPK, MTH, MTA pumps are vertical multistage centrifugal pumps designed for pumping of cooling lubricants for machine tools, condensate transfer and similar applications.The pumps are designed to be mounted on top of tanks with the pump stack immerged in the pumped liquid.Grundfos MTR, SPK, MTH and MTA pumps come with various pump sizes and various numbers of stages to provide the flow, the pressure and the length required.The pumps consist of two main components: The motor and the pump unit. The motor is a Grundfos standard MG motor designed to EN standards.The pump unit consists of optimised hydraulics, various types of connections, a motor stool, a given number of chambers and various other parts. ApplicationsThe immersible pumps are suitable for liquid transfer in all applications where you have a tank. As main applications the following can be mentioned:     Lathes     Milling machines     Boring machines     Drilling machines     Machining centres     Grinding machines     Filtering systems     Swarf conveyors     Spark machine tools     Industrial washing machines     Cooling units. Features and benefits     Flexible installation length     Wide performance range     Reliability     Service-friendly     Simple installation.

Grundfos TP and TPE vertical in-line pumps are used in a variety of applications. The pumps are all single-stage,in-line centrifugal pumps with standard motors and mechanical shaft seals. The pumps are of the close-coupled type,i.e. pump and motor are separate units. Consequently, the pumps are less sensitive to impurities in the pumped liquidthan similar pumps of the canned rotor type. Two different models of vertical in-line pumps are available. Please note that there are a number of specific productvariants available for each model. Detailed information on these variants can be found in Grundfos WebCAPS.TP pump  model is notable for its high levels of reliability and efficiency.  Quiet, highly-efficient IE3 motors are standard components. All TP pumps are electro-coated to ensure high corrosion resistance.The main difference between TP and TPE pumps is the motor. TPE motors have a built-in frequency converter, allowing different control methods to be employed. TPE pumps offer benefits with respect to energy savings and increased comfort. ApplicationsThese vertical in-line pumps are used in commercial buildings for air conditioning and heating applications.The pumps are all single-stage, in-line centrifugal pumps with standard motors and mechanical shaft seals. The pumps are of the close-coupled type, i.e. pump and motor are separate units. Consequently, the pumps are less sensitive to impurities in the pumped liquid than similar pumps of the canned rotor type. Features and benefits     Optimised hydraulics for high efficiency     Reduced power consumption     High-efficiency motors     TP pumps are fitted with high-efficiency motors     High-efficiency motors provide reduced energy consumption     2-pole and 4-pole TP pumps from 0,75 kW to 375 kW have IE3 motors (By March 2012)     Top-pull-out design     Easy dismantling for service     In-line design    Unlike end-suction pumps, in-line pumps allow the use of straight pipework, which often results in reductions    cost and amount of space occupied     Hydraulically and mechanically balanced impeller (Series 300 and 400).     The impeller is hydraulically and mechanically balanced to increase the life of motor bearings and shaft seals.     Pump housing and pump head/motor stool are electro-coated     Improved corrosion resistance     TPE, TPED – pumps with built-in frequency converter     Reduced power consumption     TPE and TPED motors are based on IE3 motors (except 18.5, 4-pole).

Grundfos SP submersible pumps are renowned for their high efficiency and reliability throughout the range. Made entirely of corrosion-resistant stainless steel, SP pumps are ideal for a wide variety of applications.Grundfos SP pumps represent state-of-the-art hydraulic design. Built to deliver optimum efficiency during periods of high demand, the SP pumps provide low long-term costs and high operating reliability regardless of the application.  The Grundfos SP range offers high efficiency, high resistance to sand and other abrasives, motor burnout protection,and easy maintenance. A complete monitoring and control system is available for constant optimisation of the pumping system. Applications The pumps are suitable for:     Groundwater supply to waterworks     Irrigation in horticulture and agriculture     Groundwater lowering     Pressure boosting     Industrial applications. Features and benefits     State-of-the-art hydraulics provide high efficiency and low operating costs     100 % stainless steel inside and outside     Sand resistant     Resistant to aggressive water     Motor burnout protection     Dry-running protection     Monitoring, protection and communication via the MP 204 protection unit and the R100 remote control

The SEG range of grinder pumps from Grundfos is specifically designed for pumping effluent and untreated sewage in small communities or sparsely populated areas with no sewer systems or where gravitation systems are unsuitable.Pressurised systems are the perfect choice for transfer of effluent and sewage, and the SEG range combines cost-effectiveness with maximum protection for the environment by facilitating the use of smaller pressure pipes for minimal investment costs.The SEG range is designed to reduce energy consumption and to keep downtime costs to a minimum, while maintaining peakperformance throughout the system life. Applications The Grundfos SEG pumps are specifically designed for pumping untreated wastewater from domestic, commercial or municipal sources. The high discharge pressure enables transfer of wastewater over longer distances. Features and benefits     Cable plug connection     Efficient grinder system     SmartTrim impeller adjustment     Unique clamp connection     Specially designed lifting handle     Unique cartridge shaft seal     Modular design     Heavy-duty ball bearings.

OverviewGrundfos NK/NKG pumps are used in water supply, industrial pressure boosting, industrial liquid transfer, HVAC (heating, ventilation and air-conditioning), irrigation and process industries. Grundfos end-suction pumps are multi-purpose pumps suitable for a variety of different applications requiring reliable and cost-efficient supply. End-suction pumps are used in five main areas of application: water supply, industrial pressure boosting, industrial liquid transfer, HVAC (heating, ventilation and air-conditioning), and irrigation. The pumps are all non-self-priming, single-stage, centrifugal volute pumps with axial suction port, radial discharge port and horizontal shaft. The Grundfos NK/NKG range comprises a complete series of long-coupled pumps that comply fully with either EN733 or ISO2858. The pumps are of the back pull-out design, enabling removal of the motor, coupling, bearing bracket and impeller without disturbing the pump housing or pipework. Even the largest pumps can thus be serviced by one person with a crane. The ISO2858 range of pumps are available with a bearing life of 100,000 hours, and can be fitted with double seals. They available in a stainless steel version as an option.ApplicationsGrundfos offers a virtually limitless range of long-coupled (NK) end-suction pumps. Their sturdiness and reliability make them ideal for use in demanding environments such as the following:     District heating plants     Heating systems for blocks of flats     Air-conditioning systems     Cooling systems     Wash down systems     Other industrial systems. Features and benefits     Optimised hydraulics in housing and impeller = unimpeded liquid flow     O-ring seal between pump housing and cover = no risk of leakage     Housing, impeller and wear ring in different materials = improved corrosion resistance, no sticking elements     Back pull-out design for easy dismantling for service     Pump is electro-coated to increase corrosion resistance     Available with IE1, IE2 and IE3  motors     PN 10/16 and 25 bar     Temperatures up to 180 °C     Available in a number of shaft seal and material variants.

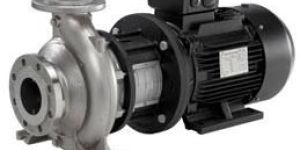

OverviewGrundfos end-suction pumps are used in water supply, industrial pressure boosting, industrial liquid transfer, HVAC (heating, ventilation and air-conditioning), and irrigation. Grundfos end-suction pumps are multi-purpose pumps suitable for a variety of different applications requiring reliable and cost-efficient supply. End-suction pumps are used in five main areas of application: water supply, industrial pressure boosting, industrial liquid transfer, HVAC and irrigation. The Grundfos NB/NBG pumps are all non-self-priming, single-stage, centrifugal volute pumps with axial suction port, radial discharge port and horizontal shaft. The NB/NBG range consists of close-coupled pumps with their main dimensions in accordance with either EN733 or ISO2858. ApplicationsGrundfos offers a virtually limitless range of close coupled (NB) end-suction pumps. Their sturdiness and reliability make them ideal for use in demanding environments such as the following:     District heating plants     Heating systems for blocks of flats     Air-conditioning systems     Cooling systems     Wash down systems     Other industrial systems. Features and benefits     Optimised hydraulics in housing and impeller = unimpeded liquid flow     O-ring seal between pump housing and cover = no risk of leakage     Housing, impeller and wear ring in different materials = improved corrosion resistance, no sticking elements     Pump is CED coated to increase corrosion resistance     Available with IE1, IE2 and IE3 motors     Available in a number of shaft seal and material variants     PN 10,16 and 25 bar     For temperatures up to 140 °C.

OverviewThe Grundfos Hydro MPC booster systems are made to the very highest standards. Thanks to the CU 351 controller, they handle even the most difficult boosting jobs with ease and accuracy. All components have been combined with focus on quality and efficiency. The Grundfos Hydro MPC booster systems are Designed to last: sturdy, compact units with easy access to all service parts.Grundfos Hydro MPC booster systems can be used wherever additional pressure is required. Each booster model has been designed to meet specific customer demands for capacity and control. The intelligent cascade control ensures that the optimum number of pumps required to meet the demand runs at any time.Together with the CR with IE3 motors, this makes the Hydro MPC the most energy-efficient solution for maintaining a constant pressure during changing flow demands. Applications     Offices     schools     hotels     blocks of flats     irrigation systems     industry     municipal supply systems. Features and benefits     Reliable     highly efficient     service-friendly     space-saving     easy to commission     perfectly adapting to the flow     low-flow detection     application-optimised software     BUS and Ethernet communication option     large, clear display     menus in plain text.

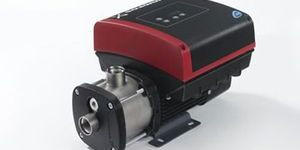

Overview   The horizontal multistage pump CM (=Centrifugal Modular) has been created with compactness and modularity as two of its central features, making numerous configurations possible. The pump is basically composed of a series of interchangeable modules, all of which have been designed to work together seamlessly, no matter what the application.     The pumps are of the close-coupled type.  The difference between the CM and the CME pump ranges is the motor. CM pumps are fitted with mains-operated motors, whereas the motors for CME pumps have an integrated frequency converter. Both CM and CME pumps have mechanical shaft seals. The CM and CME pumps are available in cast iron or stainless steel (AISI 304/DIN 1.4301 stainless steel, which is for water and non-corrosive liquids, and AISI 316/DIN 1.4401 stainless steel, which offers a high degree of corrosion protection against aggressive liquids). Applications  The CM or CME pump is a multi purpose pump for both industry and water boosting in general. It is compact, noiseless, reliable and flexible, and this make it an optimal solution for installation and interaction with other components in small and large systems or as a stand-alone pump. Features and benefit      Compact design     Modular construction/customised solutions     Worldwide usage     High reliability     Service-friendly     Wide performance range     Low noise level     High-performance hydraulics     Electro-coated cast-iron parts     Customised solutions     Grundfos motor     E-solutions     High efficiency.

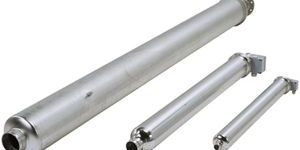

OverviewGrundfos high-pressure booster modules are used for boosting, liquid transfer and circulation in systems under high static pressure. Applications include reverse osmosis in domestic water supply, hospitals, laboratories, and the chemical, electronics and metals industries. The pumps are also used for ultrafiltration in the chemical and galvanising industries, painting workshops, and the metals and mineral industries.Available in three SS qualities, SS 304, SS 316, SS 904 L. ApplicationsThe booster modules are suitable for pressure boosting in such systems as:     reverse osmosis systems     water supply systems     water treatment systems and Industrial plants     Pressure boosting. Features and benefits     all stainless steel     low noise     simple installation     modular design     compact design     leakage-free.

OverviewNow, food industries can meet their strict hygienic requirements with a robust sanitary pump from Grundfos. The F&B-HYGIA pumps are single-stage, end-suction centrifugal pumps specially developed for the food and beverage industries – hence the "F&B" in the name. These compact units are designed for flexible use, allowing many different businesses to benefit from their reliable performance. F&B-HYGIA pumps are made from AISI 316 stainless steel in a compact design that makes them highly mobile and easy to fit into any system. One of the features that make this compact size possible is the plug-in shaft solution. This also makes service easier. Applications     Liquid transfer in breweries and dairies     Soft-drink mixing     Syrup and sugar solutions     Frying oil and blood processing     Fruit-drink and yeast pumping     Food processing     Transfer and circulation pump in water treatment systems and textile treatment systems     Nearly all kinds of transfer, circulating and process pumping.  Features and benefits     CIP- and SIP-capable (DIN EN 12462)     Materials: Rolled, deep-drawn steel AISI 316L (1.4404/1.4435) with electropolished surface     Gentle liquid handling for sensitive liquids such as fruit juice     Optimised hydraulics for high efficiency and low energy consumption     Various motor types     Shrouded pumps, especially useful for breweries and dairies     Various pipe connection types and connection sizes     Robust design for heavy duty operation     Easy service and maintenance – less downtime     Trolley-mounted version available     IE2/IE3 motors     Modular design concept.

OverviewGrundfos offers a wide range of dosing pumps representing state-of-the-art technology. Digital Dosing solutions (SMART Digital, DME, DDI) set new standards in liquid chemical handling and accuracy. The operator can easily install and set up the pump to discharge exactly the quantity of dosing liquid required for the process in a unique drive- and flow-control management concept. The setting of the pump is displayed in ml/h,l/h or gph, and the operation mode is easily identified by means of icons. The DMH mechanical hydraulic dosing pump range is the preferred choice for industrial and complex tasks. The DMH range is a series of extremely strong, robust pumps for applications where a substantial dosing range and high-pressurecapabilities are required.ApplicationsThe dosing pumps are designed for handling chemicals within the following applications, among others:     Drinking water treatment     Wastewater treatment     Cooling water treatment     Washing systems     Process water treatment     Chemical industry. Features and benefits     Precise and easy setting     Unique technology     Small number of variants will cover all needs     Full pulse control     Pulse batch control     Internal timer batch control     Analog 0/4-20 mA control     Level control     Fieldbus communication module.

  OverviewThe basic CR pump range, which can be applied in almost any industrial solution, is already in itself the broadest range available. Through our modular approach, we have made it even broader.The basic CR pump range is available in four different materials: cast iron, two grades of stainless steel, and all-titanium. There are eleven flow sizes, capable of producing up to almost 50 bar of pressure, and with a variety of shaft seals, rubber materials and supply voltages.Pump parts which are typically vulnerable to difficult liquids or particularly demanding operating conditions can be optimised for their purpose and designed for specific requirements. ApplicationsCR pumps provide a complete range of pump solutions so that all applications, industrial and domestic, can benefit from the Grundfos touch. The applications that can be covered include the following:     Process water systems     Washing and cleaning systems     Seawater systems     Pumping of acids and alkalis     Ultrafiltration systems     Reverse osmosis systems     Swimming baths. Features and benefits     Reliability     High efficiency     Service-friendly     Space-saving     Suitable for slightly aggressive liquids     High corrosion resistance     Single-pump solution making high pressures possible.

Overview The single and multistage end-suction stainless steel centrifugal pumps of the premium Contra range are designed for use in industries where hygiene and flexibility are top priorities. They are made from high quality materials to meet the world’s strictest hygiene standards, e.g. EHEDG, QHD and GOST. However, their most distinctive feature is their flexibility. Contra pumps can be adapted to suit any task where reliable, hygienic pumping is required. The Contra pumps are CIP- and SIP-capable, and they also meet the GMP requirements regarding FDA-approved materials.Their main applications are in breweries, the beverage and food industries and the pharmaceutical industry. Thanks to their flexibility, the Contra pumps can also be used successfully in all other industrial processes, including water treatment, chemical processes, surface treatment and textile industry processes. Applications     Liquid transfer in breweries and dairies     Soft-drink mixing, carbonising systems     Food processing     Pure water systems (WFI) Process pumping in the pharmaceutical industry     CIP (Cleaning-In-Place) systems     Process pumping in the chemical industry     Transfer pump in water and textile treatment systems     Surface treatment Nearly all kinds of transfer, circulating and process pumping. Features and benefits Unique hygienic design (EHEDG, QHD, GOST and FDA) CIP and SIP capable (DIN EN 12462) Greatest possible flexibility – customised solutions Materials: Rolled, deep drawn steel AISI 316L (1.4404/1.4435) with electropolished surface down to Ra < 0.4µm Gentle liquid handling for sensitive liquids such as fruit juice Optimised hydraulics for high efficiency and low energy consumption Various motors, including explosion-proof motors (ATEX), motors with integrated frequency inverter (variable peeddrive)   and high efficiency motors Multiple sealing systems including sterile seals, double mechanicalseals (tandem and back-to-back) with various material options Pump variants include short-coupled pumps, base-plate mounted pumps and the Adapta version in vertical and horizontal installations Shrouded pumps, especially useful for breweries and dairies Various pipe connection types and connection sizes Easy service and maintenance, modular design concept – less downtime Trolley-mounted version available.

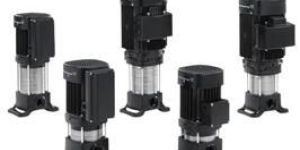

OverviewEnabling numerous customised solutions. The pump basically consists of a series of interchangeable modules, all of which have been designed to work together seamlessly, no matter the application.The pumps are of the close-coupled type, with a mechanical shaft seal.The CMV pumps are available with cast-iron base and discharge part whereas the remaining wetted parts are made ofstainless steel (AISI 304/DIN 1.4301). ApplicationsWhile each Grundfos CMV pump can be customised to meet individual requirements, the pump family is designed to be used in a wide variety of applications.These include     Pressure-boosting systems     Domestic water supply systems     Cooling systems     Air-conditioning systems     Horticultural irrigation systems     Small industrial applications. Features and benefits     Compact design     Modular design/customised solutions     High reliability     Low noise level     High-performance hydraulics     Grundfos motor

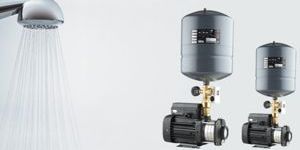

Overview The most robust pump designed ever for water pressure boosting It was once said that great things come in small packages. When you meet the Grundfos CM booster pump for the first time, you’ll certainly agree. This horizontal multi-stage pump has been created with compactness and modularity as two of its central features. Add reliability and quiet operation to the mix, and another innovative pump solution from Grundfos is born.Centrifugal modular. The pump is basically composed of a series of interchangeable modules, all of which have been designed to work together seamlessly, no matter the applicationAppliications:CM pump with pressure controller is used for constant water pressure. Can be ideal when space is constraint  near overhead tank. It also has dry running protection, incase of no water in the pipeline.CM pump is also supplied with pressure tank for constant water pressure. When the pressure drops to the pre-set level, the pump will start-up and when the water consumption drops again, the outlet pressure will rise to a pre-set stop pressure after which the pump will stop. Available from 8 lts to 100 lts tank range.Features: Liquid temperature from 20°C upto 120°C Built-in thermal protection F class installation 80 Start / Stop per hour Construction: Electro-coated cast iron parts - free from corrosion High efficient motor Horizontal multistage centrifugal pump Long life components are of corrosion and wear resistance stainless steel
