Pull Switch Dealers

(12 products available)

All India Delhi Pune Mumbai Kolkata Ahmedabad Rajkot Meerut Chennai Bangalore Coimbatore

Pull Cord Switch

1,700 - 4,400 / Piece

MOQ1 Piece(s)
Number Of FlowerPull Cord Switch
MaterialMetal
ShapeRectangular
CertificationISI Certified
ApplicationConveyor Safety
FeatureEasy To Fit, Proper Working, Rust Resitance, Sturdy Construction, Superior Finish, Water Proof
ConditionNew
Surface FinishingCoated
StandardIS
Total Carbohydrate1yesr
Puncture Voltage10amp
Country of OriginIndia
SizeRefer Drg
Brand NameSMARTsaa Protocontrol
Max. Current16
Max. Voltage440 V AC
Mechanical Life100000
Protection LevelIP65
After-Sales Service ProvidedYes

SMARTsaa offers Pull Cord Switch Series PC to stop the conveyor belt in the case of emergency. It is a safety device which when operated stops the belt conveyor motor and provides audio visual alarm.Pull Cord Switch is housed in dust and weatherproof cast aluminum enclosure with IP 65 Grade of protection. Sturdy & heavy duty cam-switch with robust contacts is used to give longer service life. Handle fitted with spring steel rings at both ends is provided for fixing the rope. The design of the rings gives maximum flexibility in operating condition. Enclosure is epoxy painted to give high corrosion resistance. The switch is designed with manual reset type of mechanism. Pull Cord switch is mounted on the walkway side of the conveyor belt, preferably at about every 30 meters of the length. Rope is tied to the end rings of the handle. When the rope is pulled from any side, the switch is operated. Unless and until the handle is reset to normal position manually, the switch remains in operated condition. Following models are available:PC 101: Pull Cord Switch with 1 NO + 1 NC contactPC 202: Pull Cord Switch with 2 NO + 2 NC contactAll above Switch are field mounting having IP 65 enclosure, available in various enclosures materials to suite site conditions:C: Cast Aluminum, D: Corrosion resistance DMC / FRP, CI: Cast Iron, F: FlameproofOptional Accessories:TS: With terminal strip inside the switchJB: With Separate Junction Box with terminal strip for ease of terminationMF: Mechanical flag indicationIL: Indicating Lamp for location indicator of operated switchCG: Cable glandBP: Base plate

...more
Protocontrol Instruments I Pvt Ltd

Midc, Pune

10 yrs
+1
Pull Cord Switch

1,150 / piece

MOQ1 Piece
MaterialDMC (Dough Mould Compound)
Surface FinishingPigmented Black
ShapeRectangular
ColorBlack
ConditionNew
ApplicationEmergency Stopping of Conveyor
TypeCS 101
Warranty01 Year
Brand NameR R ENGINEERS
VoltageUpto 440 VAC
CurrentUpto 16 Amp
Contacts01 NO + 01 NC
Contact TypePotential Free

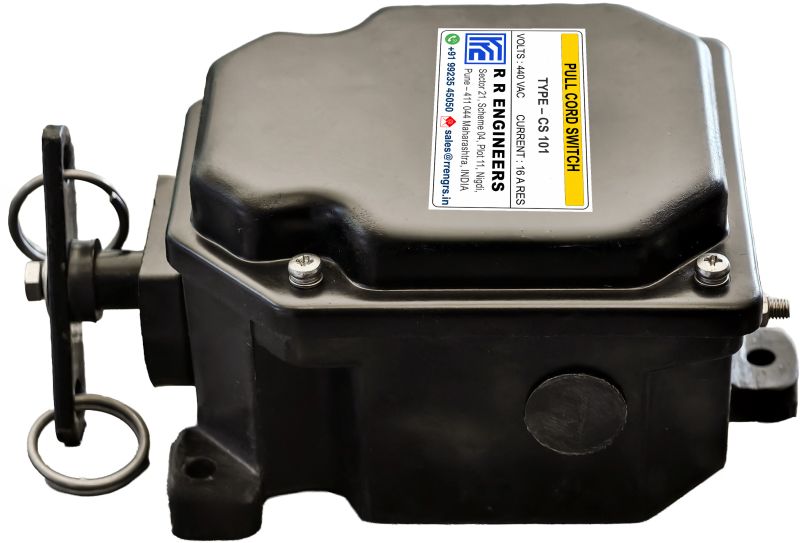

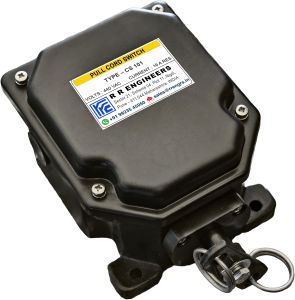

This model CS 101 of Pull Cord Switch will have 01 NO & 01 NC Contact pair along with powder coated MS Lever with SS Rings for attaching Wire Rope. Our switches are housed in non-corrosive dust and waterproof D.M.C (Dough Moulding Compound) enclosure having IP 65 grade protection and is able to withstand any harsh climatic conditions. Contacts are rated for 16 Amps at 440 Volts AC. Operating handle mechanism is manual reset type. Easy termination of cable through 02 Nos. of 3/4" B.S.C. threaded cable entry holes. Switch is generally mounted at a distance of 15 metres. APPLICATION There are several safety switches used in the belt conveyor to operate in emergency conditions. Pull Cord Switch is one of them, which operator or user can operate to stop the belt conveyor instantly when an accident happens. Since the Pull Cord Switch is so designed that it should be installed at the side of belt conveyor and the pull cord should be mounted along conveyor, the switch can be actuated at any position. Pull Cord Switch is a switch that is mounted along a conveyor stringer and is manually actuated by a cord that runs the full length of the conveyor. The cord can then be pulled at any point on the conveyor as an emergency stop. CONSTRUCTION As these switches are used as safety or emergency switch, it is not operated very frequently therefore construction of these switches is such that it should be operated immediately though it kept idle for long time. RRE Pull Cord Switch is housed in dust and weatherproof D.M.C (Dough Moldings Compound) enclosure having IP 65 grade of protection. Sturdy and heavy-duty CAM switch with robust contacts is used to give longer service life. Powder coated operating handle is ﬁtted with spring steel rings at both ends for ﬁxing the rope. Design of the rings gives maximum ﬂexibility in operating condition. The switch is designed with manual reset type mechanism. Contacts are rated for 16 Amps at 440 Volts AC. OPERATION The Pull Cord Switch is mounted on the walkway side of the conveyor belt, preferably at about every 15 to 20 meters. Rope is tied to the end rings of the handle and is carried opposite to each other. When an accident occurs in the belt conveyor, the worker can stop the belt conveyor at any position with pulling the cord in order to drive the lever. The rotation put the torsion spring in motion to drive the CAM into the displacement. Then it drives the Limit Switch to cut down the control wiring. Thus, the belt conveyor can stop operation. Unless and until the handle is reset to normal position manually, the switch remains in operated condition. All the Pull Cord Switches installed along an individual belt are electrically wired in series and connected to the control station by a two-core cable. Therefore, actuation of any one of these pull cord switches will stop the concerned conveyor until the particular switch is manually reset.

...more
R R Engineers

Pimpri Chinchwad, Pune

GST
Pull Cord Switch

1,700 / Piece

MOQ1 Piece
Country of OriginMade in India
Power/Voltage230 V AC
Rated Insulation Voltage1500 V
Material/BodyMetal
FeaturesRobust Design, Field Mounting, Heavy Duty mechanism
Switch TypeWeatherproof
BrandSMARTsaa
Model Name/NumberPC 202
Usage/ApplicationConveyor Safety , Emergency Stop

...more
Smart Sensors And Automations SMARTsaa

Bhosari, Pune

9 yrs
Push Pull Switches

Get Price Quote

Brand NamePeco
Mechanical Life5 Years
SizeStandard
Our OE Part No.265154500114
Dielectric Intensity>1500VAC/1min
Operating Temperature-40°C--+85°C

Our organization is endowed by a massive circulation system that allows us to reach purchasers wherever and distribute orders on schedule. Available with us in different grades and specifications, our products stand high on the counts of quality.

...more
progressive engineering company

Chakan, Pune

14 yrs
Manual Reset Type Pull Cord Switch

Get Price Quote

MOQ1 Piece(s)
Brand NameProtocontrol

Protocontrol offers manual operated pull cord switch series pc to stop the conveyor belt in the case of emergency. It is a safety device which when operated stops the belt conveyor motor and provides audio visual alarm. pull cord switch is housed in dust and weatherproof cast aluminum enclosure with ip 65 grade of protection. Sturdy & heavy duty cam-switch with robust contacts is used to give longer service life. Handle fitted with spring steel rings at both ends is provided for fixing the rope. The design of the rings gives maximum flexibility in operating condition. Enclosure is epoxy painted to give high corrosion resistance. The switch is designed with manual reset type of mechanism. Pull cord switch is mounted on the walkway side of the conveyor belt, preferably at about every 30 meters of the length. Rope is tied to the end rings of the handle. When the rope is pulled from any side, the switch is operated. Unless and until the handle is reset to normal position manually, the switch remains in operated condition. following models are available : pc 101: pull cord switch with 1 no + 1 nc contact pc 202: pull cord switch with 2 no + 2 nc contact all above switch are field mounting having ip 65 enclosure, available in various enclosures materials to suite site conditions: c: cast aluminum, d: corrosion resistance dmc / frp, ci: cast iron, f: flameproof optional accessories: ts: with terminal strip inside the switch jb: with separate junction box with terminal strip for ease of termination mf: mechanical flag indication il: indicating lamp for location indicator of operated switch cg: cable gland bp: base plate.

...more
Protocontrol Instruments India Pvt. Ltd.

Bhosari, Pune

17 yrs
Pull Cord Switch

Get Price Quote

FeatureSwitches available in Cast Iron or Die Cast Aluminum enclosures in sophisticated as well as economic versions. Etc.

Pull Cord Switch with Terminal Box & Lamp A sophisticated pull cord switch that is designed to avoid spurious tripping or accidental resets (snap action) and ensure that the switch will operate after long periods of unused (double break silver-cadmium tipped contacts).

...more
Jayashree Electrodevices Pvt. Ltd.

Pimpri Chinchwad, Pune

16 yrs
Pull Cord Switch

1,850 / Piece

Brand NameSai Control
Country of OriginMade in India
MaterialCast Aluminium
Switch TypeWaterproof
Model Name/NumberSPS-302N
Usage/ApplicationBelt conveyor safety switch
Power/Voltage230V AC
Current Rating16 A
Frequency50Hz

...more
Sai Control System

Bhosari, Pune

16 yrs
Pull Cord Switch

Get Price Quote

Temperature-10oC to 50oC
Mounting Height:1.5 Meters to 2.5 Meters

Pull Cord Switch to Switch to Continuous ON Mode PIR Sensing Mode, Miniature Size which can be work unnoticed to gel with the aesthetic beauty of the space, EMI protection: Protection against electromagnetic interference noise caused by cell phones, TV, tuners, audio players.Over Current & Short Circuit Protection by an external replaceable fuse

...more
Shriyuj Electro Controls

Bhosari, Pune

8 yrs
Pull Cord Switch

Get Price Quote

These Switches are designed for Man and Machine Safety, to avoid accidents, and for stopping the Machine in case of Emergency. Pull Cord Switches are useful for emergency stopping of conveyors from any point by pulling the rope connected to the switch. Pull Cord Switch is mounted on both sides of belt conveyors preferably every 15 to 20 meters.
...more

Kana Electromechs

Kothrud, Pune

8 yrs
PUSH PULL SWITCH

Get Price Quote

PUSH PULL SWITCH, E 14 Lamp Socket, Push Button Actuator

Esbee Industrial Combines Private Limited

Bhosari, Pune

8 yrs
Pull Cord Switches

Get Price Quote

Pull Cord Switches, Load Managers & Energy Meters, Joystick Controller

Simply Electrifying Private Limited

Aundh, Pune

8 yrs
Push Pull Solenoid Switch

Get Price Quote

Push Pull Solenoid Switch, Electro Magnetic Switc

Kalyan Engineers

Pimple, Pune

8 yrs
