Q- Log Controls And Systems Bhumkar Nagar, Pune, Maharashtra

Technical Specifications i) Regulated power supply 24 VDC12VDC10 VDC5 VDC@ 3.0A2.0A ii) Input: 230 VAC, 5060Hz iii) Out put has short circuit and thermal overload protection IV) Surge protection provision for transformer primary Applications 1) Power supply inside controls panel for PLC 2) Reference power supply 3) Auxiliary power supply in control panel 5) Battery charger 6) Encoder Solenoid valvesProximity sensorsPhotosensor power supply Other voltages (28.0V, 15.0V, 18.0 etc) on demand NOTE:- Due to continuous product development the product supplied to you may look different than the product image in the pdf file. If power supply is to be used as battery charger then customer should inform Q-Log controls about application.

Features: • DIN rail mountable • LED indication for relay status • External power supplySignal supply selectable by jumper. • Input voltage can be ACDC of up to 2000V Applications: *Voltage safety monitoring *Overvoltage monitoring *Configuring speed dependent relay by connecting analogue tachogenerator output to the module *Safety voltage monitor in Solar panel

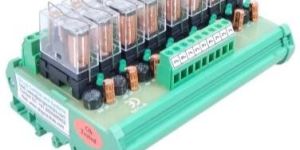

Application Relay Interface Module 1 changeover DC used to interface 24DC digital outputs to contactorssolenoid valvesindications etc. Load and PLC ops secondary are galvanically isolated. COMPONENT SPECIFICATIONS Relay: 24VDC coil, 1 changeover Omron Relay socket: 1 changeover PCB soldering type Terminals: Screw type suitable for 2.5 sq. mm wires Profile and end plates: Phoenix make TECHNICAL SPECIFICATIONS Input data: Operating voltage: 24 VDC +- 10% Input current: Max 20mA@24 VDCAC Protection across relay coil: Free wheeling diode Indication: 3mm LED No of relays: 2 or 4 or 8 Terminals: Screw type suitable for 2.5 sq. mm wires Conductor size: 025-2.5 sq. mm Insulation stripping length: 7 mm Output Data: Contact type: SPDT (1 changeover NO-Pole-NC) Max. current: 10Amps@250 VAC or 30 VDC Fuse protection: Available on request Output wiring: Potential free Terminals: Screw type suitable for 2.5 sq. mm wires Conductor size: 025-2.5 sq. mm Insulation stripping length: 7 mm Module dimensions (HXLXD): 90x36x70 (2 Relay board) | 90x68x70 (4 Relay board) | 90x130x70 (8 Relay board)

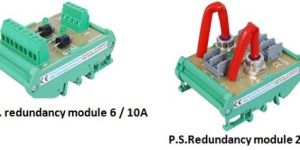

Technical Specifications I) Suitable for 6Amps 10Amps 25Amps power supplies ii) Input max: 100VDC iii) DIN rail mountable IV) 1000VDC PIV v) Power supply ON indications Applications To use power supply redundancy in control system

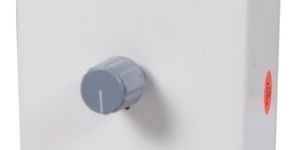

Technical Specifications Features: Supply voltage: 230 VAC ±10% 110 VAC ±10% Output: 0-180 VDC 0-90 VDC Maximum load current: 3 Amp 6 Amp RMS Speed control: By means of a potentiometer Protection: Overload and short circuit protection using fuse Ratings: 3Amps6 Amps(other current ratings on demand) Load: PMDC motorHeating coilIR or Incandescent Lamp Housing: Powder coated CRC box Size: 135x90x55 (HxWxD)

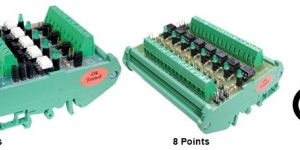

Features DIN rail mountable FourFiveSixEight optoisolators on single board LED indication for input signal Positive supply commonnegative supply common selection by jumpers 234 Outputs can be grouped to same supply by jumpers Technical Specifications Input signal voltage:20 VDC-28VDC, Typical voltage is 24VDC Max. input current:25 mA @24VDC Max. output voltage:65 VDC Min.output voltage:2.0 VDC Max. load per output point:50 mA Continuous power dissipation at (or below) 25°C free-air temperature: 200mW Input to output electrical isolation: 3.55 KV Max. Voltage drop in output voltage: 0.5 V @ 5mA load Resistance, input to output: 100 GΩ Switch ON delay: 5µS Switch OFF delay: 5µS Applications a) For connecting invertersServo drives to PLC output modules. b) To convert NPN sensor to PNP sensor and vice versa. c) For isolating field inputs from PLC input module. d) To connect incremental encoder (With Incompatible signal level) to control system. e) In all applications where we need very fast and require isolation between driver and driven circuits. f) For connecting one signal level (5-230 VDC)to another signal level (2-65 VDC)with isolation. g) To make field inputs noise free. Available in 4points5 points6 points8 points variants. Opto. boards with input signal other than 24VDC can be supplied on demand. High speed switching 2µS possible on demand. StandardApprovals CE Certified PCB:IEC61373 Terminals:ULCE Optoisolator:UL Profile & end plates:CE

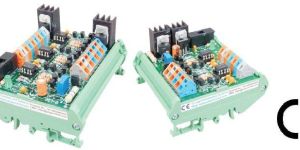

Features: . Output of type Source Sink Push Pull in single module. · Input in the range 3-10 VDC and 12-30 VDC (Peak to peak voltage) · Minimum Driving current: 1.6 mA · Supply voltage:24-30 VDC@300mA . Output pulse train voltage adjustable from 4 � 28 VDC by preset · Maximum input frequency 2000 KHz · Reduces high frequency noise and gives clear square wave

Feature Input signals 3-10 or 10-30VDC 10 Encoder output sets from single encoder input Sink Source Push pull Open collector (Transistor) outputs. Supply voltage 24-30 VDC@1Amp· Output pulse voltage 51024 VDC as per customerâ��s requirement. Each output can drive150mA load.  Din rail mountable

Features: Input signals 3-10 or 10-30VDC Sink / Source/ Push pull / Open collector (Transistor) outputs. Supply voltage 24-30 VDC@1Amp Output pulse voltage 5/10/24 VDC as per customer�s requirement. Each output can drive150mA load. Din rail mountable

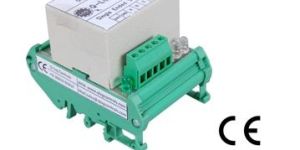

Features: � DIN rail mountable � Three (A,B,Z) outputs module � LED indication for output signals � Reduces high frequency noise and gives clear square wave output. � Source type outputs Technical specifications: Input signal voltage:3-10 VDC OR 10-24VDC Max. input current:5 mA Max. output voltage:5-30 VDC Min.output voltage:5.0 VDC Max. load per output point:200 mA Continuous power dissipation at (or below) 25°C free-air temperature: 200mW Input to output electrical isolation: 3.55 KV Max. Voltage drop in output voltage: 0.5 V @ 5mA load Resistance, input to output: 100 G� Max pulse frequency: 1000 KHz Applications: a) For connecting simulated encoder signals from invertersServo drives to PLC inputs. b) To convert RS422 signal in to single ended signal c) To shift level of the square wave input to desired level d) Conversion of sink type encoder to source type outputs

Features DIN rail mountable, compact and easy for troubleshooting. TwoFourEight phototransistors on a single board. Sink or Source type input connectable LED indication for input signal. Ideal to drive hydraulic and pneumatic solenoid coils. Built in free wheeling diode across driving load for every individual output point Technical Specifications Input signal voltage:3 VDC-100 VDC, Typical voltage is 24105VDC Max. input current:20 mA @24VDC Max. output voltage:60 VDC Min.output voltage:Supply voltage-4 VDC Max. load per output point:5 Amps Peak non repeatitive surge current:8 Amps Input to output electrical isolation: 3.55 KV Max. Voltage drop in output voltage: 2.5 V @ 2 Amp load Switching ONOFF delay:10 microseconds Load type:Resistive and Inductive Size:40X90 (2 POINTS),70x90 (4 points),90x140 (8 points) Applications a) For switching contactors from PLC outputs. b) For switching DC loads like solenoid valves, DC actuators, DC Lamps, DC electromagnets in industrial use directly from controller outputs. c) In all applications where we need very fast switching and require isolation between driver and driven circuits. The load can be inductive or resistive. Available in 248 points variants. Solid State Relay boards with input signal other than 24105 VDC can be supplied on demand. Caution: DO NOT USE SSR BOARD FOR SWITCHING AC SUPPLY ! StandardsApprovals CE certified PCB:IEC 61373 Optoisolatortransistor:ULVDE Connectors:CE Profile and end plates:UL CONNECTION DETAILS ON NEXT PAGE !

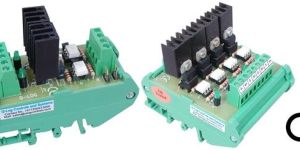

Features DIN rail mountable EightFour DC SSRs on a single board Sink or Source input selection by jumper selection LED indication for input signal Semiconductor Fuse protection for short circuit and overcurrent Output points in two groups. Each group consists four op points Technical Specifications Input signal voltage:20 VDC-28VDC, Typical voltage is 24VDC Max. input current:20 mA @24VDC Max. output voltage:100 VDC Min.output voltage:5 VDC Max. load per output point:5 Amp Peak non repeatitive surge current:8 Amp Input to output electrical isolation: 3.55 KV Max. Voltage drop in output voltage: 2.5 V @ 2 Amp load Switching ON delay:7 microseconds Switching OFF delay:10 microseconds Load type:Resistive and Inductive Applications a) For switching contactors from PLC outputs. b) For switching DC loads like solenoid valves, DC actuators, Lamps, DC electromagnets in industrial use directly from controller outputs. c) In all applications where we need very fast switching and require isolation between driver and driven circuits. The load can be inductive or resistive. Available in 8 points and 4 points variants. Solid State Relay boards with input signal other than 24VDC can be supplied on demand. Caution: DO NOT USE SSR BOARD FOR SWITCHING AC SUPPLY ! StandardsApprovals CE certified PCB:IEC 61373 OptoisolatorTransistor:ULVDE Connectors:CE Profile and end plates:UL

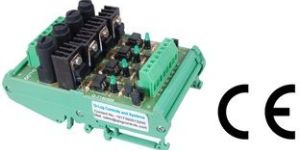

Features DIN rail mountable EightFour DC SSRs on a single board Sink or Source input selection by jumper selection LED indication for input signal Semiconductor Fuse protection for short circuit and overcurrent. Output points in two groups. Each group consists four op points. Technical Specifications Input signal voltage:20 VDC-28VDC, Typical voltage is 24VDC Max. input current:20 mA @24VDC Max. output voltage:100 VDC Min.output voltage:5 VDC Max. load per output point:5 Amp Peak non repeatitive surge current:8 Amp Input to output electrical isolation: 3.55 KV Max. Voltage drop in output voltage: 2.5 V @ 2 Amp load Switching ON delay:7 microseconds Switching OFF delay:10 microseconds Load type:Resistive and Inductive Applications a) For switching contactors from PLC outputs. b) For switching DC loads like solenoid valves, DC actuators, Lamps, DC electromagnets in industrial use directly from controller outputs. c) In all applications where we need very fast switching and require isolation between driver and driven circuits. The load can be inductive or resistive. Available in 8 points and 4 points variants. Solid State Relay boards with input signal other than 24VDC can be supplied on demand. Caution: DO NOT USE SSR BOARD FOR SWITCHING AC SUPPLY ! StandardsApprovals CE certified PCB:IEC 61373 OptoisolatorTransistor:ULVDE Connectors:CE Profile and end plates:UL

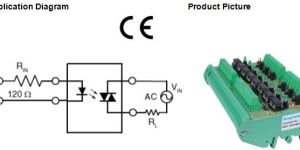

Features DIN rail mountable EightFour phototriacs on a single board LED indication for input signal Positive supply commonnegative supply common selection by jumpers for ip signal Output points in onetwo groups. Each group consists four op points Individual op point can be grouped ungrouped by jumper selection Technical Specifications Input signal voltage:20 VDC-28VDC28VDC4-9 VDC 10-15 vdc Max. input current:20 mA @24VDC Max. output voltage:600 VAC Min.output voltage:24 VAC Max. load (rms) per output point:1 Amp Peak non repeatitive surge current:10 Amp Input to output electrical isolation: 3.55 KV Max. Voltage drop in output voltage: 1.7 V @ 1 Amp load Switching delay Off to ON and ON to OFF:Less than half cycle Load type:Resistive and Inductive Size:8 point :-118x90x50 (WXHXD) 4 point :-62x90x50 (WXHXD) Applications a) For switching contactors from PLC outputs. b) For switching AC loads like single phase motors, AC actuators, AC solenoid valves, AC electromagnets in industrial use directly from controller outputs. c) To switch Air conditioner, microwave ovens, washing machines, personal hygiene systems, refrigerators, fan heaters, domestic fans, inductive heating cookers, water heaters directly from controller outputs. d) In all applications where we need very fast switching and require isolation between driver and driven circuits. The load can be inductive or resistive. Available in 48 points variants. Solid State Relay boards with input signal other than 24VDC can be supplied on demand. StandardsApprovals CE certified PCB:IEC 61373 Optotriac:ULVDE Connectors:CE Profile and end plates:UL Caution: DO NOT USE SSR BOARD FOR SWITCHING DC SUPPLY !

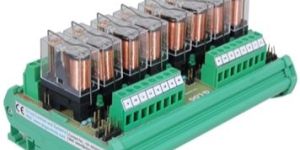

Application Relay Interface Module 2 changeover DC used to interface 24DC digital outputs to contactorssolenoid valvesindications etc. Load and PLC ops are galvanically isolated COMPONENT SPECIFICATIONS Relay: 24VDC coil,1 changeover Omron Relay socket: 1 changeover PCB soldering type Terminals: Screw type suitable for 2.5 sq. mm wires Profile and end plates: Phoenix make TECHNICAL SPECIFICATIONS Input data: Operating voltage: 24 VDC +- 10% Input current: Max 20mA@24 VDCAC Protection across relay coil: Free wheeling diode Indication: 3mm LED No of relays: 2 or 4 or 8 Terminals: Screw type suitable for 2.5 sq. mm wires Conductor size: 025-2.5 sq. mm Insulation stripping length: 7 mm Output Data: Contact type: DPDT (2 changeover contacts NO-Pole-NC) Max. current: 5Amps@250 VAC or 30 VDC Output wiring: Potential free Terminals: Double decker Screw type suitable for 2.5 sq. mm wires Conductor size: 025-2.5 sq. mm Insulation stripping length: 7 mm Module dimensions (HXLXD): 125x36x70 (2 Relay board) 125x70x70 (4 Relay board) 125x130x70 (8 Relay board)

Application Relay Interface Module 1 changeover DC used to interface 24DC digital outputs to contactorssolenoid valvesindications etc.Load and PLC ops secondary are galvanically isolated. COMPONENT SPECIFICATIONS Relay: 24VDC coil, 2 changeover Omron Relay socket: 1 changeover PCB soldering type Terminals: Screw type suitable for 2.5 sq. mm wires Profile and end plates:Phoenix make TECHNICAL SPECIFICATIONS Input data: Operating voltage: 24 VDC +- 10% Input current: Max 20mA@24 VDCAC Protection across relay coil: Free wheeling diode Indication: 3mm LED SinkSource: selectable by jumpers No of relays: 2 or 4 or 8 Terminals: screw type suitable for 2.5 sq. mm wires Conductor size: 025-2.5 sq. mm Insulation stripping length: 7 mm Output Data: Contact type: SPDT (1 changeover NO-Pole-NC) Max. current: 10Amps@250 VAC or 30 VDC Fuse protection: Available on request Output wiring: Potential free Terminals: Screw type suitable for 2.5 sq. mm wires Conductor size: 025-2.5 sq. mm Insulation stripping length: 7 mm Module dimensions (HXLXD): 90x36x70 (2 Relay board) | 90x68x70 (4 Relay bo ard) | 90x130x70 (8 Relay board)

Application Relay Interface Module 1 changeover ACDC used to interface 24VACDC digital outputs to contactorssoleoid valvesindications etc.Load and PLC ops or transformer secondary are galvanically isolated COMPONENT SPECIFICATIONS Relay:24VDC coil,1 changeover Omron Relay socket:1changeover PCB soldering type Terminals:screw type suitable for 2.5 sq. mm wires TECHNICAL SPECIFICATIONS Input data: Operating voltage: 24 VAC24 VDC +- 10% Input current: Max 20mA@24 VDCAC Protection across relay coil: Free wheeling diode Indication: 3mm LED SinkSource: Selectable by jumpers No of relays: 2 or 4 or 8 Terminals: Screw type suitable for 2.5 sq. mm wires Conductor size: 025-2.5 sq. mm Insulation stripping length: 7 mm Output Data: Contact type: SPDT (1 changeover NO-Pole-NC) Max. current: 10Amps@250 VAC or 30 VDC Fuse protection :available on request Output wiring :Potential free Terminals : screw type suitable for 2.5 sq. mm wires Conductor size :025-2.5 sq. mm Insulation stripping length :7 mm Module dimensions (HXLXD) : 90x36x70 (2 Relay board) | 90x68x70 (4 Relay bo ard) | 90x130x70 (8 Relay board)

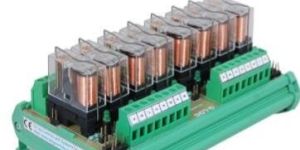

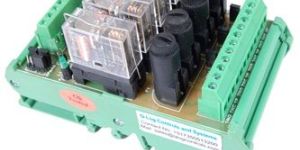

Application Relay Interface Module 1 changeover DC used to interface 24DC digital outputs to contactorssolenoid valvesindications etc. Load and PLC ops secondary are galvanically isolated. Fast acting fuse is at NO point for short circuit protection. COMPONENT SPECIFICATIONS Relay: 24VDC coil,1 changeover Omron Relay socket: 1 changeover PCB soldering type Terminals: Screw type suitable for 2.5 sq. mm wires Profile and end plates: Phoenix make TECHNICAL SPECIFICATIONS Input data: Operating voltage: 24 VDC +- 10% Input current: Max 20mA@24 VDCAC Protection across relay coil: Free wheeling diode Indication: 3mm LED No of relays: 2 or 4 or 8 Terminals: Double decker screw type suitable for 2.5 sq. mm wires Conductor size: 025-2.5 sq. mm Insulation stripping length: 7 mm Output Data: Contact type: SPDT (1 changeover NO-Pole-NC) Max. current: 10Amps@250 VAC or 30 VDC Fuse protection: Available Output wiring: Potential free Terminals: Screw type suitable for 2.5 sq. mm wires Conductor size: 025-2.5 sq. mm Insulation stripping length: 7 mm Module dimensions (HXLXD): 130x38x70 (2 Relay board) | 130x70x70 (4 Relay board) | 130x134x70 (8 Relay board)

Technical Specifications Regulated power supply 24 VDC12VDC10 VDC5 VDC@ 1.5A or 3.0A Input:2 30 VAC, 5060Hz Output has short circuit and thermal overload protection Surge protection provision for transformer primary DIN rail mountable Applications Power supply inside controls panel for PLC Reference power supply Auxiliary power supply in control panel Encoder supply

Technical Specifications Regulated power supply 24 VDC12VDC10 VDC5 VDC@ 1.5A or 3.0A Input:2 30 VAC, 5060Hz Output has short circuit and thermal overload protection Surge protection provision for transformer primary DIN rail mountable Applications Power supply inside controls panel for PLC Reference power supply Auxiliary power supply in control panel Encoder supply
