• Controls and Protection :• Single Phase Preventor provided to avoid single phasing. (Only for 3 Phase System)• L P Switch : Switches OFF the Compressor, incase of any pressure develops in refrigeration system.• H. P. Switch : Switches OFF the compressor, incase of any low pressure develops in refrigeration system.• Solenoid Valve : Ensures fast equilisation of Refrigerant• ON delay timer : To protect compressor form overloading during operation.• M.C.B's : To protect entire unit/conrol circuit water - pump.• Water - level controller : To ensure minimum water level.• Temperature Indicator Controller : Display and control the set temperature ( Range ambient to 6oC)• Temperature Indicator : To monitor return water temperature.• Water Filter : Filters the return water. Operator Friendly Control Panel (Detachable)• Temperature Indicator Controllers• Temperature Indicators• Power ON MCB • System ON MCB• Compressor ON Indicators• Timer ON Indicators• Low water level indicator.• Compressor OFF due to a) Single phasing b) L. P. Fail c) cut-off on set point• Three Phase indicators (R Y B) . Solenoid ON indicator.   Water Connections :• Water Outlet Valve. Bypass Valve (Water-Flow Control). Drain Connection. Overflow Connection.• 1/2" or 1" BSP socket with nozzle for water-outer. 1/2" or 1" BSP socket nozzle for water-inlet.• Tap Water inlet with ball cock.

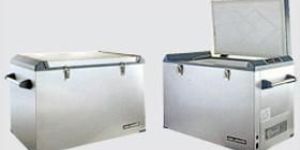

State Of art technology, highly suitable for ambulance, blood donation camps, vaccination camps, storing and transporting medical kits, temporary storage of bio-samples, blood bags, piasma samples, vaccines etc.   Features :• Extremely powerful DC compressor cooling system• Can Operate on UPS System• Can be Carried in vehicles & directly powered by vehicle battery output• Extremely low starting compressor current• Supplied with both 12 or 24 volt and 240 volt cords• High reliability and long life expectancy• Steel cabinet, Steel lid and Steel handles which can be tie down points• Digital autometic temperature control with LED display• Compact overall size, anywhere can be easily carried

Temperature Range :  "-18 to +10℃(40

Power :  DC: 12V/24V(automatic changeover)

Availability :  W850 x D510 x H605mm, 25kg/net, 27.5kg/gross

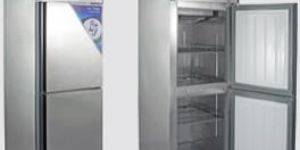

Low Freeze - Upright (Vertical) Type :• Temperature Range -15°C to -20°C• Both inner & outer chambers made of high quality stainless steel SS 304 grade Double external doors for use   convenience• Aesthetic luxurious finish, durable, rounded interior corners, durable & easy to clean • Microcontroller & digital display of temperature.• Superior refrigeration design with easy accessibility for service maintenance.• Smooth Castor wheels, front two with brakes.• 3 No.s of Thick Epoxy Plastic coated steel shelves, adjustable• CFC-free, R-134a refrigerant, environmentally friendly• CFC-free, environment friendly Cyclopentene foaming PUF insulation• Low noise, comfortable operation.• Energy-Saving design, effectively reduces electricity consumption• Self-closing door design• Door frame cold-bridge cut off design, can effectively prevent the refrigerating loss • Input power 220-240 Volts, supplied with power cord & plug.• Automatic Voltage Stabilizer with high and low voltage cut off.• Circular Chart temperature recorder (Optional extra cost) • Datalogger with display for continuous logging of temperature through external USB (Optional extra cost) • Datalogger with SMS alert system (Optional extra cost) • Cryo Coolant cassettes (rectangular anodized aluminium cassettes) with special cryogenic coolant inside to protect the samples in frozen condition over a period of 24 - 36 hours during power failure (Optional extra cost)

Specifications :• Temperature range +2°C to +8°C• Inner Cabinet made of either durable white epoxy painted or stainless steel SS304/SS316 (Optional)• Inner Shelves made of epoxy plastic coated steel rods, alternatively shelves made of SS304/SS316 (Optional)• CFC Free Eco-friendly refrigerant R 1 34a• CFC-free, environment friendly Cyclopentene foaming PUF insulation• No frost, fan-assisted cooling circulation system• Ultra fast pull down, Auto defrost with self-evaporating drip tray• Rear-to-front hot air anti-condensation• Digital temperature controller• Double glazed glass doors• Full length illumination• Fitted with castors, front two with brakes• Low noise, Green technology & Energy saving• Self closing hinge doors• Lock as standard• Input 220/240V, 50Hz with power cord & plug• Automatic Voltage Stabilizer with time delay restart• Circular chart temperature recorder (Optional extra cost)• Datalogger with display for continuous logging of temperature through external USB (Optional extra cost)• Datalogger with SMS alert system (Optional extra cost)

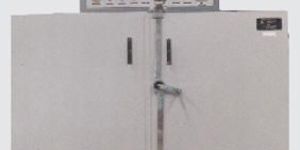

Electronic Digital Temperature Indicator Controller with suitable sensor at extra cost Two wire mesh shelves are supplied with the oven, shelves in s/s shall be at Extra cost. Any customized size of oven shall be supplied on request.

Optional Features: • PID controller• Inspector window with Two Pane Glass, Heater and Lamp.• Port holes of 25 mm dia for specimen wiring.• Chamber On delay timer.• Specimen trays.• Electrical terminals through wall Systems Provided : • Air-Circulation Systems1/20 Hp capacity continuous rated 230 Volts, single phase AC operated motor along with 12" dia fan has been provided for uniform temperature and humidity condition inside the chamber.• Heating Systems Low surface loading inconel tube heaters having capacity 500 watts-2nos. Has been provided to add heat inside the chamber. All the heaters are mounted in the conditioning space and will operate in the black zone.• Humidity SystemsLow pressure moisture generator tank has been provided to generate the moisture and add humidity in the chamber. 2 KW capacity immersion heater having 1 V4 BSP threading has been provided inside the moisture generator tank. The moisture generator tank has been provided along with low water level controller with mechanical float type refilling arrangement. • Control Panel and wiring Separate control panel provided on the top of the chamber which incorporate all the indicating and monitoring instruments with control switches, MCB'S, contactors, indicating lamps etc. All the wiring will be done as per IS color code with channel type wiring. • Utilities Provided a. Chamber drain b. Viewing window 30x30cms 2 pane glass with low wattage heater & manually operated wiper c. Chamber interior light d. Port hole 25mm dia 1 no. e. Terminal panel-6 nos. 5 amp capacity f. 30 Lts capacity S/S tank provided on the top for water storage • Safety Protections Provideda. MCB's for heatersb. Over temperature safety cut-off with audio visual alarm.c. Low water level indication with audio visual alarm   • Water requirement30 Lts/day dematerialized water during the humidity test

Optional Features:  PID Controllers  On Delay Timer  Specimen Trays

ems 1/20 Hp capacity continuous rated 230 Volts, single phase AC operated motor along with 12" dia fan has been provided for uniform temperature   • Heating SystemsLow surface loading inconel tube heaters having capacity 500 watts-2nos. Has been provided to add heat inside the chamber. All the heaters are mounted in the conditioning space and will operate in the black zone.   • Control Panel and WiringSeparate control panel provided on the top of the chamber which Incorporate all the indicating and monitoring instruments with control switches, MCB"S , contactors, indicating lamps etc. All the wiring will be done as per IS color code with channel type wiring. • Utilities provideda. Port hole 25 mm dia 1no.b. Terminal panel - 6 nos. 5 amp capacity   • Safety protections provideda. MCB's for heatersb. Over temperature safety cut-off with audio visual alarm

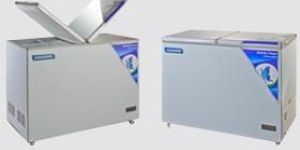

Specifications :• Temperature Range : 18°C to -20°C• Cabinet made up High Quality durable white powder coated sheet• Aesthetic luxurious finish, durable & easy to clean• Double Protection consisting of butterfly type, folding external doors• Smoothly sliding internal glass doors• Durable spray coated baskets• Digital Temperature Control / display of internal temperature• Superior Refrigeration design with easy accessibility for service maintenance• Smooth Castor wheels, front two with brakes• CFC-free, R-134a refrigerant, environmentally• CFC-free, environment friendly,Cyclopentene foaming and high density PUF insulation• Silent, Comfortable operation• Energy-Saving design, effectively reduces electricity consumption• Door handles with standard locks• Input power 220-240 Volts, supplied with power cord & plug• Automatic Voltage Stabilizer with high and low voltage cut off

Blood Bag Refrigerators (4ºC ±2ºC) :Cryo Scientific Blood Bag Refrigerators meet critical standards on safety, relibility and user friendliness as demanded by Blood Transfusion experts of today. Specially designed for consistent and reliable storage of whole blood at a safe temperature + 4 ºC. Available in four models of 60, 160, 300, and 600 bags - capacities to suit small, medium and large blood banks.   SPECIFICATION :Design & Construction• Outer Cabinet made of durable pre-coated, galvanised sheets & interior made of non-rusting Stainless Steel SS 304 sheets• Fully extendable drawers with dividers made of turret punched and corrosion free stainless steel sheets for convenient storage of blood bags and permitting free turbulence of cold air• No frost, Positive forced air circulation ensures temperature uniformity• Self closing, Double pane glass door, lock as standard• Interior full length cabinet light with an ON / OFF switch• Non - CFC, environment-friendly PUF insulation• Fitted with castors, front two with brakesRefrigeration• Low noise, Hermetically sealed compressor with CFC-free environment - friendly refrigerant (R-134a)• Air cooled condenser aided by continuous rated motor fan• Back to front condenser airflow to keep the glass pane door free from moisture condensation• Auto defrost and condensate removal• Energy saving designTemperature Recorder• Microprocesser based temperature chart recorder• Built-in, circular,weekly(7-day) recorder• Graphic chart provides permanent record of storage condition Control Systems• Microprocessor based digital temperature controller• Alarms for temperature deviation (High/Low), power failure and door open condition• Auto Rechargeable Battery back-up for temperature display, chart recorder and alarm during power failure• Automatic voltage stabilizer with high / low voltage cut-off & time delay restart• Input 2201240V, 50 Hz, power cord & plug• CE certified by TUV-SUV

Refricon hvac systems - we are leading manufactures of cold chambers in india.

We deals in nano cool, which is highly suitable for ambulance, blood donation camps, vaccination camps, storing and transporting medical kits, temporary storage of bio-samples, blood bags, piasma samples, vaccines etc.
