Presentation of the range The RXM Optimum miniature relay range comprises:1) 5 A relay with 2 C/O contacts or 3 A relays with 4 C/O contacts.The relays have the same dimensions.2) Socket with mixed contact terminals.3) Metal maintaining clamps (accessories).   Relay description • Area by which the product can be easily gripped.• Mechanical “relay status” indicator.• LED (depending on version) indicating the relay status.• Four notches for rail mounting adapter or panel mounting adapter with fixing lugs.• Eight or fourteen Faston type pins.   Socket description • Two fixing holes for panel mounting.• Connection by screw clamp terminals.• Eight or fourteen female contacts for the relay pins.• Two fixing holes for metal maintaining clamp.• Locating slot for mounting on DIN rail with fixing clip.

  • PK Plug & Sockets• Available in different version Wander type Wall mounted type Panel mounted type Also, special plugs for special applications• IP44 & IP67 versions• Range: 16, 32, 63 & 125A• 3P, 4P & 5P• Kaedra Enclosures:• Degree of Protection against external mechanical impacts acc. to EN 50102 :IK 08• Resistance to fire and abnormal heat acc. to IEC 695-2-1: 850ºC (glow wire test)

Rated Impulse current Iimp : 12.5kA 25kA & 50100kA for NPE, Maximum discharge current Imax: upto 50kA, Voltage protection level Up < 1.5kV, Compliance with Standards : IEC 61643-1 , Type 1 as well as Type 2 tests, Voltage protection level Up: ≤ 1.5kV.

• Combined Modular unit having isolation, switching, and protection   functions in 45 mm width   • 3 Pole Power Base in 12A and 32A ratings   • Control units for Over current protection available in three models • Standard Protection unit • Advanced protection unit • Multifunction control unit

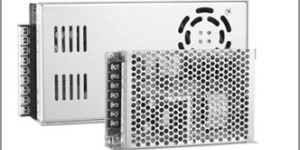

Presentation : ABL2REM series of switch mode power supplies adopt the 3rd generation of switch mode power supply design technologies with a small and exquisite bulk and stable performance, used to provide the DC voltage necessary for electrical equipment operating on a safety low voltage. This series of power supplies are able to satisfy all the demands of standard commercial equipment and meet the current standards throughout the world. As the equipment groupware, it has advantages of being easy in installation and suited to different mounting needs on different application occasions.ABL2REM switch mode power supplies are totally electronic and regulated. They provide the following benefits:• Compact bulk to save the mounting space (35W/50W/100W/150W)• Wide range of input voltage (AC88-264V and DC110-370V. Different power ranges differ. See the product parameters for details.)• Stable output voltage, adjustable by the potentiometer.• Conformity to Standard EN 55022 Class B.• Overload, short-circuit, overvoltage and superheat protections (the superheat protection is suitable for 200-350W)• All models have the mounting accessories with standard guides.ABL2REM switch mode power supplies provide 24V DC output and have following products with seven power ranges:DC 24V 35W, 50W, 100W, 150W, 200W, 250W and 350W Electromagnetic compatibility :Levels of conducted and radiated emissions are defined in Standards EN 55011 and EN 55022.The switch mode power supplies in the ABL2REM range are Class B, the strictest level. Behaviour in the event of short-circuits :ABL2 power supplies are equipped with electronic and thermal overload protection. This protection resets itself automatically on elimination of the fault, which avoids having to take any action or change a fuse. Descriptions :ABL 2REM regulated switch mode power supplies comprise:1 Two fixing holes for M3 screws.2 A 115/230 V input voltage selector (on 150 W, 200 W, 250 W and 350 W versions only).3 A 4 mm2 screw clamp terminal block for connection of the AC input voltage and DC output voltage.4 A green LED indicating the presence of DC output voltage.5 An output voltage adjustment potentiometer (± 10 %).

  • Compliance with IS / IEC 60947- 3• Rating : 32A to 630A • Operational Voltage Ue = 415 V AC, 250 V DC• Utilisation Category : AC 23A @ 415 VAC, DC 23A @ 250 VDC• Suitable for both DIN and BS Fuses 3P  3P + Isolable Neutral  4P version

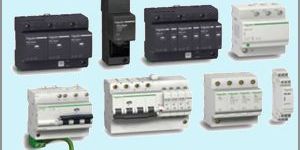

• Type 1+2 Rated Impulse current Iimp : 12.5kA/ 25kA & 50/100kA for N/PE Maximum discharge current Imax: upto 50kA Voltage protection level Up < 1.5kV Compliance with Standards : IEC 61643-1 , Type 1 as well as Type 2 tests• Type 2 withdrawable Surge Arrestors  Maximum current discharge Imax : 65kA, 40kA, 15kA,8kA Maximum continuous operating voltage Uc: 340V Voltage protection level Up: ≤ 1.5kV Compliance with standards: IEC 61643-1class 2, EN 61643-11 type 2

Complete stations “ready for use”, “Pistol grip”, type XAC A, Empty enclosures, type XAC D, Separate components and spare parts, Variable composition stations, factory assembled, Complete stations “ready for use” Empty enclosure, Separate components and spare parts, Variable composition stations, factory assembled.

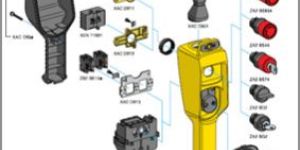

Pendant control stations with intuitive operation : • Double insulated, for control circuits Complete stations “ready for use”, “Pistol grip”, type XAC A Complete stations “ready for use”, type XAC D • Double insulated, for power circuits (direct switching) Complete stations “ready for use”, type XAC D • Double insulated, for control or power circuits Empty enclosures, type XAC D Separate components and spare parts Variable composition stations, factory assembled Pendant control stations : • Double insulated, type XAC A, for control circuits Complete stations “ready for use” Empty enclosures Separate components and spare parts Variable composition stations, factory assembled • Double insulated, type XAC B or metal, type XAC M (1) Complete stations “ready for use”, type XAC B, for control circuits Complete stations “ready for use”, type XAC B, for power circuits Empty enclosures, type XAC B, for control or power circuits Empty enclosures, type XAC B or XAC M, for control circuits Separate components and spare parts Variable composition stations, factory assembled • Double insulated, type XAC F, for control circuits (1) Empty enclosures Variable composition stations, factory assembled Controllers :• Controllers for “light hoisting” applications, type XKB Controllers XKB A with predefined, non modifiable schemes, factory assembled Controllers XKB E with variable and modifiable schemes, factory assembled Separate components • Controllers for “medium hoisting” applications, type XKD Controllers with variable composition schemes, factory assembled Separate components • Controllers for “heavy hoisting” applications, type XKM Controllers XKM A and XKM B with variable composition schemes, factory assembled Controllers XKM C with variable composition schemes, factory assembled Separate components • Potentiometers for controllers For standard applications, type XKZ A For applications requiring an extended “neutral zone”, types XKB Z and XKD Z

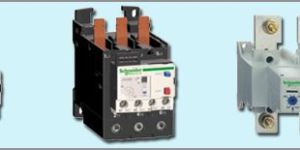

• 3 Models    • LR2 K from 0.11 A to 16A    • LRD from 0.1 to 150A    • LR9F from 30A to 630A    • EOCR from 0.3 to 60A • Over load relays available in Class 10 and class 20 version. • Compact design in 45mm width for LRD relays up to 38A. • Direct mounting on contactor is possible . Accessories are available to mount  relays independently. • Easy fault indication by LED is possible in EOCR. • Wide variety of accessories like Remote reset cord , extended STOP PB is available for quick installation.

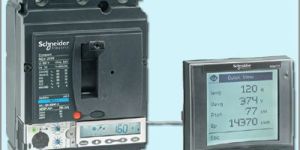

Compact NSX   • LV circuit breaker or switch (£ 690 V)   • Fixed or withdrawable   • 2 sizes, 5 ratings    • 100/160/250 A: 2P (3P), 3P, 4P    • 400/630 A: 3P, 4P   • 3 types of tripping devices    • Thermomagnetic up to 250 A    • Electronic    • Advanced electronic incorporating measurement and communication   • Switchboard display unit

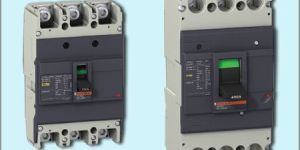

• Two Frame Sizes up to 200A    • 3P up to 200A    • 4P up to 100A • Easypact MCCBs may be mounted  at any orientation without derating • Easypact MCCBs can be connected either from top or the bottom • Easypact Busbar    • Whole bus bar system is tested for 30KA up to 250A &  40KA up to 400 & 630A for 1s    • Main Incomer 250 / 400 /630A    • Outgoing 100A 3P MCCBs   Functions & Characteristics : The EasyPact CVS range is the Designed to meet the requirements of the majority of the applications, the new EasyPact CVS circuit breakers deliver a level of performance and cost-saving functionality that is unusual in their price range. Features : Rated current from 100 to 800 A Breaking capacity from 25 to 50 kA at 400/415 V 3- and 4-pole versions 3 frame sizes (100-250 A, 400-630 A and 800 A) Thermal-magnetic and electronic protection available for the entire range Extended, adjustable thermal protection from 0,7 to 1 times (TMD) or 0,5 to 1 times (electronic) the rating of the trip unit Common accessories and auxiliaries with other Schneider Electric MCCB offers (up to 630A) Suitable for isolation Earth-leakage protection achieved by installing a Vigi module or a Vigirex relay Earth Fault Protection through GFP modules to protect electrical distribution network against fireCompliance with IEC 60947-2 Certifications: GOST, CCC, CCS

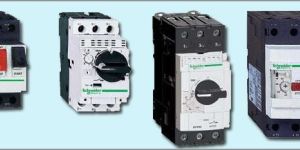

• GV2 • 15, between 0,1 and 32 A • GV2ME/GV2P: Thermal and short circuit protection / GV2LE/GV2L: short circuit protection only 10KA or 50KA • GV3 • 8, between 9 and 80 A • GV3P: Thermal and short circuit protection / GV3L/GK3: short circuit protection only 35KA, 50KA or 100kA • GV7 • 8, between 12 and 220 A • GV7RE: Thermal and short circuit protection – Icu 35kA / GV7RS: Thermal and short circuit protection – Icu 70A

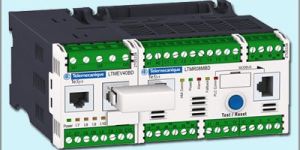

• 0.4A to 810A in three frame sizes of 8A, 27A and 100A• For requirements >100A, external CTs can be used. • Basic unit has current Protection and measurements,    and additional voltage monitoring unit for complete motor management system. • Control voltage available in 24V DC and 110-240V AC versions. • Dedicated display module LTMCU for parameter display and Setting.• Inbuilt 6 Inputs and 4 outputs for custom built Programming .   Voltage module will have additional 4 I/P available. • Inbuilt Modbus / Profibus / Can Open / Device Net / Ethernet Protocol

• MCBs    • Widest Range: 1 to 125A    • Choice of breaking capacities: 10, 15, 20, & 25kA   • RCCBs & RCBOs    • Widest range : up to 125A  -  Sensitivity :10mA to 500mA   • RED    • Wide Range: from 25A to 100A with sensitivity of 30 & 300mA    • 2P & 4P   • Distribution Board    • SPN , TPN  & Vertical Distribution Boards    • PPI DBs for installation requiring sub incomer (RCCBs) in each phase

DM 1000 / 3000 Series1 Phase & 3 Phase Digital Panel Meters• 5 flexible models to check the basic electrical parameters for many applications. DM 52 Series3 Phase Energy Meter• Standalone energy meters with pulse output   EM 6438Dual Source Energy Meter• Meter with 2 energy registers to separately record the consumption from two different sources   PM 800• Modular & up gradable LCD display meter with internal memory, remote display options, Power Quality analysis, control capability and dual port   PM 9Din Rail Mounting Multifunction Meter• Compact modular meter only 72mm wide for optimized installation.• Monitors all multifunction parameters & has RS485 communication port or pulse output options.

 Ring Master• RM6• NEX Panel• Evolis Circuit Breakers• SF1 Circuit Breaker• Recolosers & Sectionaliser• Package Substation

• Rating : 800 to 3200A• Single frame size• 3P/4P, Fixed/Draw out, Manual/Electrical Versions • Icu = Ics = Icw (1sec) = 50kA• Circuit breaker & switch disconnector versions• Conforms to IS/IEC 60947-2 & 3• Microprocessor based ET trip system

  • 3 Ranges available • Automatic DOL starter type TDL from 0.05 to 125HP in 1Ph and 3 Ph version.• Automatic reversing DOL starter from 3HP to 20HP in 3Ph version.• Automatic S/D starter from 7.5HP to 400 HP in 3Ph version• Conforms to IEC 60947-4-1, and IS13947-4-1. • Ability to withstand wide voltage variation (55% to 110%) for DOL starters up to   20HP and S/D starters up to 40HP. • Suitable for Humid, high temperature and tropical environment. • Enclosure with dust & vermin resistant. • Coordinated starter with HRC fuse.

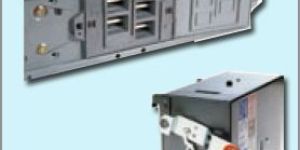

  • Rated voltage : 600V in 3 Pole & 4 Pole • I - LINE 2 range 800A to 5000A (Aluminum) 800A to 6000A (Copper)• Conforms to UL857, IEC60439-1,2, (JIS8364)• 5 conductor construction with integral earth bus as standard• IP Ratings IP40 / 41 / 54 / 55 / 65  Outdoor IP 66 (with Canopy)• Busway application Feeder/ Rising Main & Plug-in versions• Plug-in units compatible with NSX MCCBs

The range of pushbuttons and pilot lights from the house of heralds a differentbeginning towards a new electric world. The most beautiful amongst its species, the range of pushbuttons, switches & pilot lights are highly desired by those who value quality.Its undisputed technological supremacy, along with easy to use and easier to mount features, makes them the brightest among its progenitors.

• 7 contactor sizes from 6 to 300 A   • 2.2 kW to 160 kW (AC3/415 V)    • Width from 45 mm (6 A) to 213 mm (300 A)    • 3 poles    • AC control • 4 thermal overload relay sizes from 0.1 to 333 A    • For all TeSys E contactors    • Class 10A    • Direct mounting under contactors • 4 Key accessory types   • Control: auxiliary contact block    • Reverser starter: mechanical interlock    • Star-Delta: Time delay auxiliary contact block    • Terminal block for thermal overload relay • 1 control relay range   • 3 types of control relays with 4 NO/NC contacts: 2+2, 3+1 and 4+0 • Standardized Certified Solutions   • IEC 60947-4-1    • IEC 60947-5-1    • CE    • GOST

  • 20A to 1000A• Degree of Protection: IP55 as standard• Protective earth• Plug-in units compatible with fuses/ NSX MCCBs• Lighting busways• KDP – 20A• KBA – 25A / 40A (1phase & 3phase) • KBB – 25A / 40A (Double circuit)• Low & Medium Power busways• KNA - 40A to 160A (Aluminum)• KSA – 100A to 1000A (Aluminum)• KSC – 100A to 800A (Copper)
